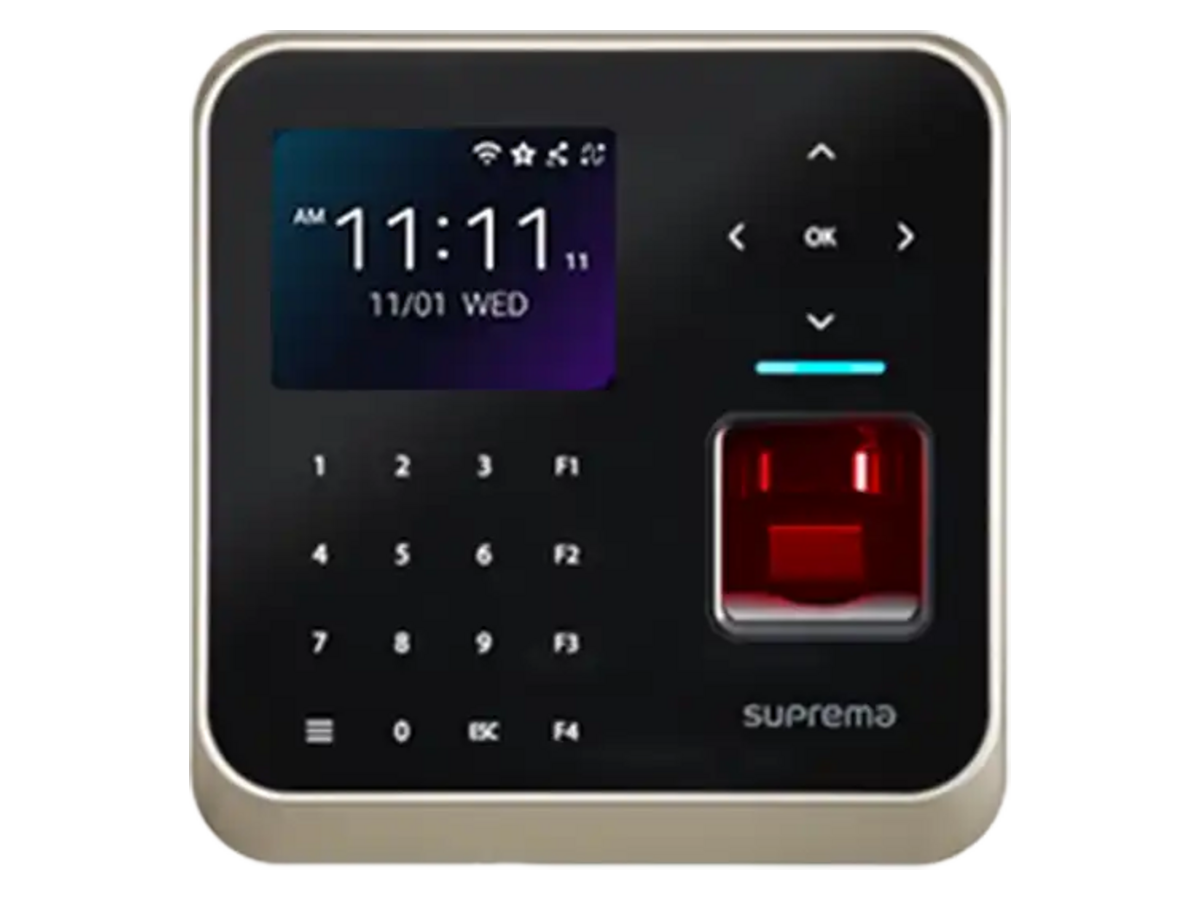

Suprema BioStation 2a 為USER GUIDE，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 BioStation 2a 香港價格連安裝報價。
| Wiegand Input (4-pin) | Input (5-pin) |
|---|---|
| Wiegand Output (4-pin) | Relay (3-pin) |
| RS-485 (4-pin) | USB Expansion Port (5-pin) Power Supply (2-pin) |
| Name | Description |
| LCD Screen | Displays various information or settings. • 1 to 9: Enters numbers/characters or selects a menu item. |
| Numpad/Menu/ESC Button | • : Opens the menu. • ESC: Moves back to the previous screen, or cancels input. |
| Function Buttons | Serves as T&A function key or selects a sub-menu item. |
| • | : Change the character type, or set arming/disarming. |
| Arrow keys/OK Button | • : Delete numbers/characters or authenticate using ID. |
| LED 指示燈 | • Blue/Green blinking: ‒ Fails to receive an IP address when DHCP is enabled. ‒ Disconnection with the master device when in Slave mode. • Red/Purple blinking: Device is locked. • Yellow blinking: Waiting for an input. |
| Fingerprint authentication unit | Part to scan the fingerprint for entrance. Part to scan a RFID card or mobile access card for entrance. |
| USB (Type-C) Memory Slot | Connects the USB memory. |
| Speaker | Delivers sound. |
| Ethernet | Connects the Ethernet cable. |
| Input (5-pin) | Connect the Input cable. |
| Relay (3-pin) | Connects the relay cable. |
| USB Expansion Port (5-pin) | Connect other accessory products. |
| Power Supply (2-pin) | Connects the power supply cable. |
| PIN | Name Color 1 PWR +VDC RED (White stripe) 2 PWR GND Black (White stripe) |
| hold the | and then release. |
| modify, disable DHCP setting. | and Subnet Mask. • Gateway: View the gateway of the device. To modify, • DNS Address: Set the DNS address. disable DHCP setting. • IP Address: View the IP address of the device. To • Subnet Mask: View the subnet mask of the device. To modify, disable DHCP setting. modify, disable DHCP setting. • Gateway: View the gateway of the device. To modify, disable DHCP setting. • Subnet Mask: View the subne |
| Category | Problem Solution Troubleshooting |
| The power is being | • If the terminal and the bracket are far away from each other, the |
| 供電 | supplied but the device device may not operate due to the temper switch. |
| does not operate. | • Check the adapter or the power cable. • For a normal user PIN, request it from the administrator and enter it |
| I lost my PIN. | again. • If you have lost the Admin PIN, contact the installation company. PIN |
| I entered my PIN and | • Check if you have entered the registered PIN correctly. |
| pressed the OK button, | • Check if you have changed the PIN recently. |
| but I still cannot open | • If you cannot remember the PIN, request it from the administrator and |
| the door. | enter it again. • Check How to enroll a fingerprint and enroll the fingerprint again. |
| The fingerprint has been | • If your fingerprint has a cut, the device may recognize your fingerprint |
| enrolled but fingerprint | as someone else’s fingerprint. |
| authentication cannot | • If there are a large number of enrolled fingerprints, change Matching |
| be done smoothly and | Timeout and try again. errors occur frequently. • The authentication rate may vary for each fingerprint due to different characteristics. Enroll the fingerprint of another finger. • Check if the finger or the fingerprint sensor is smeared with sweat, |
| Fingerprint | water or dust, and wipe the finger or the fingerprint sensor clean. Suddenly fingerprint • Wipe your finger and the fingerprint sensor with a dry towel and then authentication cannot try again. be done. • If the fingerprint of your finger is too dry, blow on the fingerprint and then try again. • When Sensor Mode is set to Auto On, the sensor will only turn on |
| The fingerprint sensor | when you place finger on the fingerprint sensor. If you want to keep |
| does not turn on. | the fingerprint sensor on, go to AUTHENTICATION > Fingerprint > Sensor Mode and then select Always On. The door cannot be • The electric lock may be malfunctioning. Have an inspection through |
| Door Lock | locked when I close the the installation company. door. • BioStation 2a is equipped with a built-in battery but if power is not |
| Suddenly the time has | supplied for a long time, the built-in battery may die, causing the time Time |
| become incorrect. | to become incorrect. You can correct the time by referring to Date & Time. |
| I lost my Admin PIN, so I | • The administrator grants an access permission in BioStation 2a, so |
| Admin Access | cannot access the Admin only the administrator can access the Admin menu. |
| mode. | • If you have lost the Admin PIN, contact the installation company. |
| Biometric | Fingerprint • BS2A-ODPB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa RF Option |
| Credential | • BS2A-OAPWB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), iCLASS SE/SR/Seos, FeliCa |
| RF Read Range2) | EM/MIFARE/DESFire/HID iCLASS: 50 mm, HID Prox/FeliCa: 30 mm |
| Mobile | NFC, BLE |
| CPU | 1.5 GHz Quad Core |
| Memory | 16 GB Flash + 2 GB RAM |
| Crypto Chip | Supported |
| LCD Type | 2.8” color TFT LCD |
| LCD Resolution | 320 x 240 |
| LED | Multi-color |
| Sound | 16 bit |
| 工作溫度 | -20 °C ~ 60 °C |
| 儲存溫度 | -40 °C ~ 70 °C |
| 工作濕度 | 0 % ~ 80 %, non-condensing |
| Storage Humidity | 0 % ~ 90 %, non-condensing |
| Dimension (W x H x D) | 142 x 144 x 45 (Bottom) / 37.8 (Top) (mm) • Device: 429 g Weight • Bracket (Including washer and bolt): 142 g |
| IP Rating | IP65 |
| Certificates | CE, UKCA, KC, FCC, RCM, SIG, RoHS, REACH, WEEE |
| Image Dimension | 272 x 320 pixels |
| Image Bit Depth | 8 bits, 256 gray scale |
| 解像度 | 500 dpi |
| Extractor / Matcher | MINEX certified and compliant Live Fingerprint Supported (SW-based) Detection |
| Max. User | 500,0003) |
| Max. Credential (1:N) | Fingerprint: 100,000 • Fingerprint: 500,000 |
| Max. Credential (1:1) | • Card: 500,000 • PIN: 500,000 |
| Max. Text Log | 5,000,000 |
| RS-485 | 1 ch Master / Slave (Selectable) RS-485 Communication OSDP V2 compliant |
| Wiegand | 1 ch Input, 1 ch Output |
| Input | 3 ch Inputs |
| Relay | 1 Relay |
| USB | USB 2.0 (Host) |
| USB Expansion Port | Supported |
| 防拆 | Supported • Voltage: 12 Vdc • Current: Max. 0.8 A |
| Electrical | Switch Input VIL Max.: 1 V |
| Switch Pull-up Resistance | 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.) |
| Wiegand Output VOH | More than 4.8 V |
| Wiegand Output VOL | Less than 0.2 V Wiegand Output Pull-up Internally pulled up with 1 kΩ Resistance 2 A @ 30 VDC Resistive load Relay 1 A @ 30 VDC Inductive load functions are compatible with BioStation 2a. (Unit: mm) 144 142 137.9 132.1 FCC compliance information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limit |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

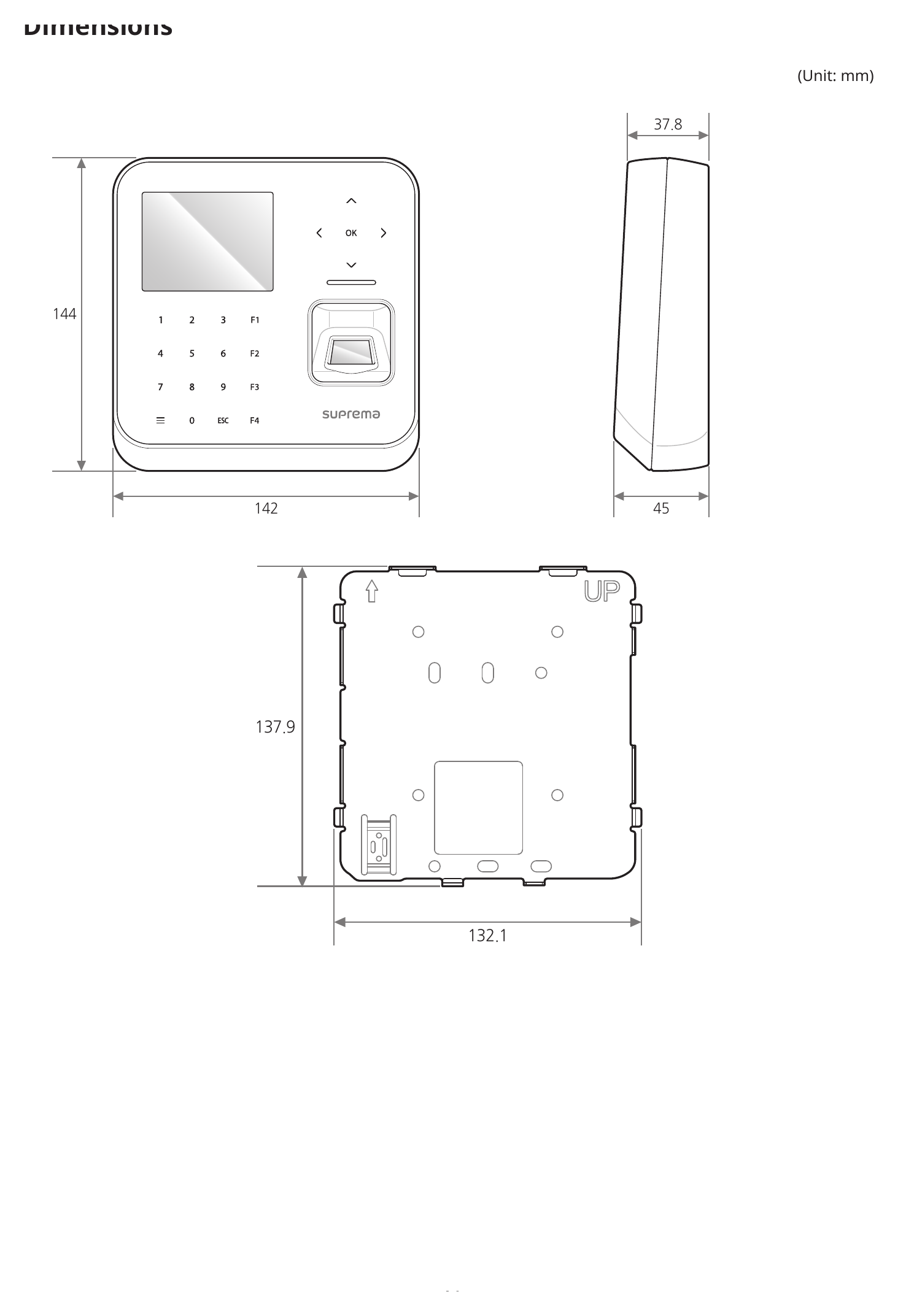

詳見圖示｜Unit: mm
