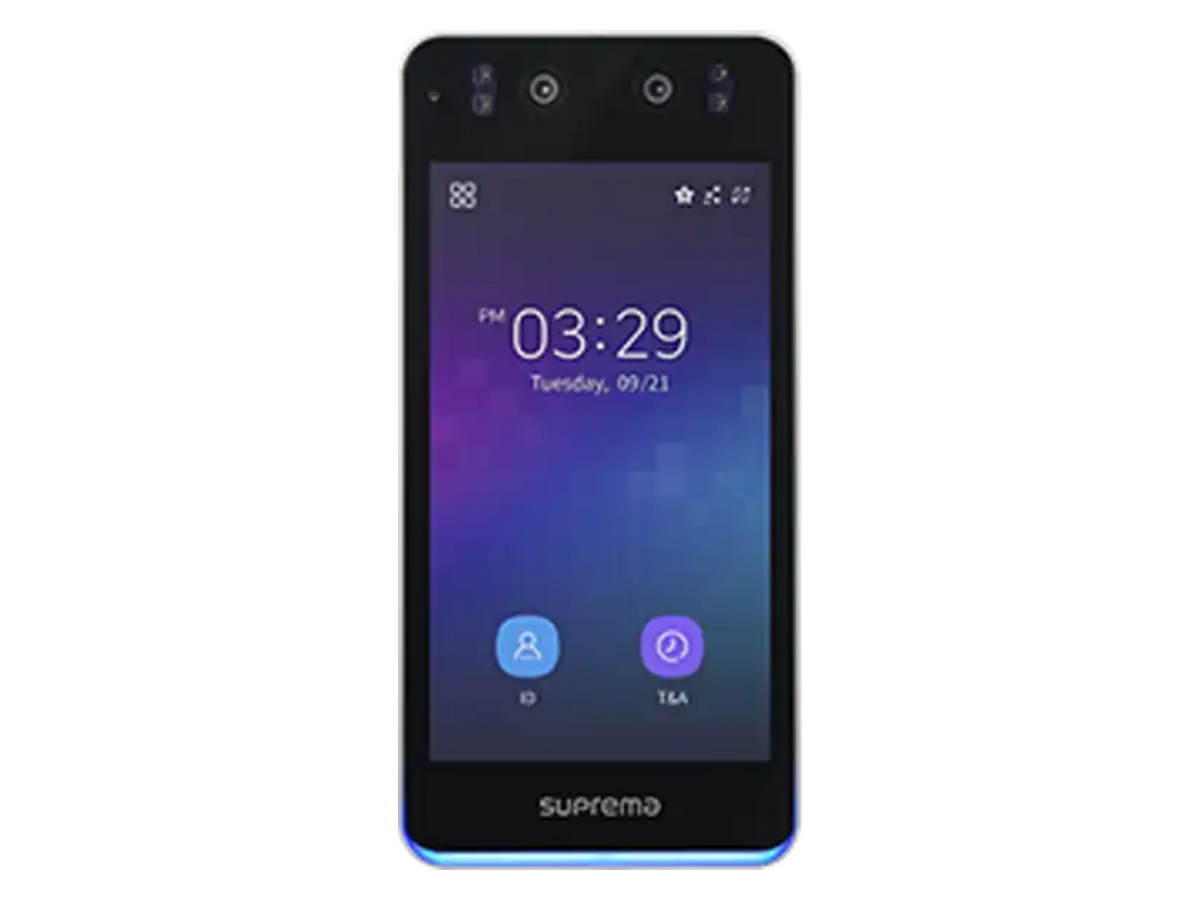

| RS-485 (4-pin) | Wiegand Input (4-pin) Relay (3-pin) Power Supply (2-pin) USB (Type-C) Memory Slot |
|---|
| Name | Description |
|---|
| Infrared Camera | Capture the infrared face image. |
|---|
| Visual Camera | Capture an actual face image. |
|---|
| LCD Screen | Provides a UI for operation. Part to scan a RFID card or mobile access card for entrance. |
|---|
| LED 指示燈 | • Blue/Green blinking: ‒ Fails to receive an IP address when DHCP is enabled. ‒ Disconnection with the master device when in Slave mode. • Red/Purple blinking: Device is locked. • Yellow blinking: Waiting for an input. |
|---|
| Speaker | Delivers sound. |
|---|
| Ethernet | Connect the Ethernet cable. |
|---|
| TTL Input (5-pin) | Connect the TTL input cable. |
|---|
| USB Expansion Port (5-pin) | Connect other accessory products. |
|---|
| Wiegand Output (4-pin) | Connect the Wiegand Output cable. |
|---|
| Wiegand Input (4-pin) | Connect the Wiegand Input cable. |
|---|
| Relay (3-pin) | Connect the Relay cable. |
|---|
| Power Supply (2-pin) | Connects the power supply cable. |
|---|
| USB (Type-C) Memory Slot | Connects the USB memory. |
|---|
| Pin | Name Color 1 PWR +VDC Red (white stripe) 2 PWR GND Black (white stripe) |
|---|
| Wall thickness | Wall |
|---|
| Distance | 300 mm |
|---|
| DC 24 V | DC 12 V 16 AWG 150 m 50 m 18 AWG 136 m 30 m 20 AWG 90 m 20 m • DO NOT extend the length of power cable when using the power adapter. • DO NOT use the CAT5 UTP 2-Wire for power supply purpose. Hub BioStation 3 BioStation 3 • When you use a gigabit network switch, please see below information. ‒ Use a Cat5e UTP(Unshielded Twisted Pair) cable. ‒ Use all 4 pairs (8 lines) of cable for network connecti |
|---|
| Door strike | DC power • Install a diode at both sides of the door lock wire as shown in the figure to protect the relay from the reverse current, which occurs when the door lock operates. • Use a separate power supply for BioStation 3 and the door lock. • Suprema’s standalone intelligent readers contain internal relays that can directly lock/unlock doors without external controllers for added convenience. For |
|---|
| Automatic door | 1 control device BioStation 3 Door lock TTL connection 1 - TTL IN0 Red 2 - TTL IN1 Yellow 3 - TTL IN2 Orange 4 - TTL GND Black Door sensor 5 - SH GND Grey Cable shield (optional) TTL Door button BioStation 3 |
|---|
| Sensor | PC Relay connection Hub 1 - RLY NO White 2 - RLY COM Blue 3 - RLY NC Orange |
|---|
| Fail Secure Lock | Relay Fail Safe Lock Power Power supply connection 1 - PWR +VDC Red (white stripe) 2 - PWR GND Black (white stripe) 2 1 Dead bolt / DC power Door strike DC power Suprema’s standalone intelligent readers contain internal relays that can directly lock/unlock doors without external controllers for added convenience. For access control applications in need of security, however, it is NOT recommended t |
|---|
| Secure I/O 2 | 4 - SH GND Grey |
|---|
| Cable shield (optional) | 4 RS-485 Power DC power Power supply connection Hub 1 - PWR +VDC Red (white stripe) 2 - PWR GND Black (white stripe) Door sensor DC power |
|---|
| Door lock | PC Door button • BioStation 3 can be used as a multi-door controller with the slave devices with the RS-485 cable. The slave devices are used as dummy readers and authentication is performed in the master device. • If a fingerprint authentication device is configured as a slave device in BioStation 3, you cannot add another BioStation 3 as a slave device. • If the fingerprint authentication device |
|---|
| Category | Feature Specifications Product Specifications |
|---|
| Biometric | Face • BS3-DB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa RF Card • BS3-APWB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos |
|---|
| RF Read Range2) | EM/HID Prox/MIFARE/DESFire/HID iCLASS: 30 mm, FeliCa: 15 mm |
|---|
| Mobile | NFC, BLE |
|---|
| Scramble Keypad (PIN) | Supported |
|---|
| QR/Barcode3) | Supported4) |
|---|
| CPU | 1.5 GHz Quad Core |
|---|
| Memory | 32 GB Flash + 4 GB RAM |
|---|
| Crypto Chip | Supported |
|---|
| LCD Type | 5.5" IPS color LCD |
|---|
| LCD Resolution | 720 x 1280 pixels |
|---|
| Sound | 16 bit |
|---|
| 工作溫度 | -20 °C ~ 50 °C |
|---|
| 儲存溫度 | -40 °C ~ 70 °C |
|---|
| 工作濕度 | 0 % ~ 80 %, non-condensing |
|---|
| General | Storage Humidity 0 % ~ 90 %, non-condensing |
|---|
| Camera | 2 MP 2 EA |
|---|

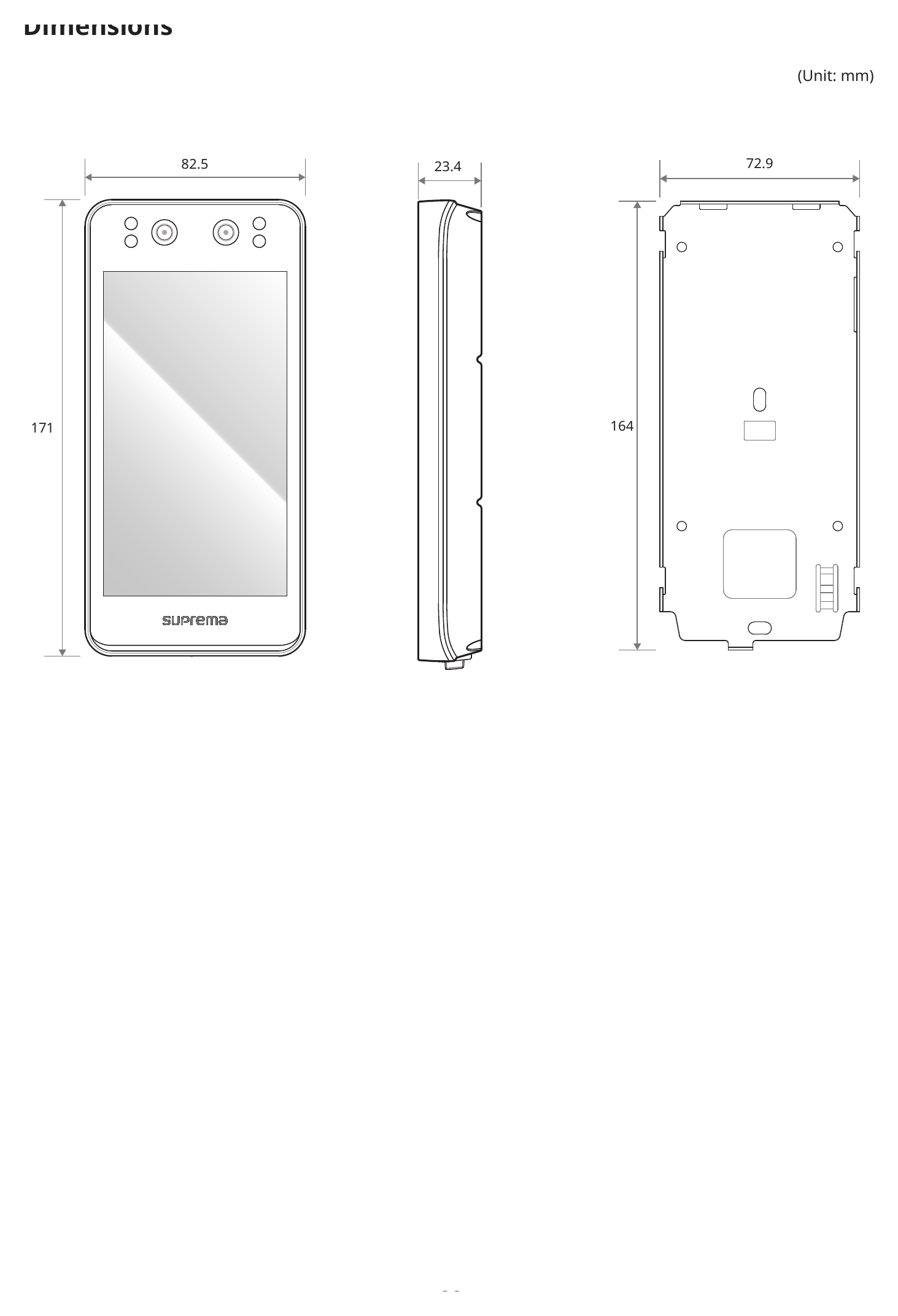

| Dimensions (W x H x D) | 82.5 x 171 x 23.4 (mm) • Device ‒ BS3-DB: 370 g Weight ‒ BS3-APWB: 380 g • Bracket: 90 g (Including washers and bolts) |
|---|
| IP Rating | IP65 |
|---|
| IK Rating | IK06 |
|---|
| Certifications | CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE, MIC, TELEC |
|---|
| Authentication Distance5) | 0.3 ~ 1.0 m |
|---|
| Authentication Height | 1.4 ~ 1.9 m |
|---|
| Matching Speed | Within 0.2 seconds |
|---|
| Live Face Detection | Supported |
|---|
| Max. User | 100,0006) • Fingerprint: 100,0007) Max. Credentials (1:N) • Face: 50,000 • Fingerprint: 100,0007) |
|---|
| 容量 | • Face: 100,000 Max. Credentials (1:1) • Card: 100,000 • PIN: 100,000 |
|---|
| Max. Text Logs | 5,000,000 |
|---|
| Max. Image Logs | 50,000 |
|---|
| RS-485 | 1 ch Master / Slave (Selectable) RS-485 Communication OSDP V2 compliant |
|---|
| Wiegand | 1 ch Input, 1 ch Output |
|---|
| TTL Input | 3 ch Inputs Interfaces |
|---|
| Relay | 1 Relay • BS3-DB: Not supported PoE+ • BS3-APWB: Supported (IEEE 802.3at compliant) |
|---|
| Intercom | Supported |
|---|
| RTSP | Supported |
|---|
| USB | USB 2.0 (Host) |
|---|
| USB Expansion Port | Supported |
|---|
| 防拆 | Supported • Voltage: 12 Vdc • Current: Max. 1 A Power • Voltage: 24 Vdc • Current: Max. 0.65 A • Min.: 3 V Switch Input VIH • Max.: 5 V |
|---|
| Switch Input VIL | Max.: 1 V Electrical |
|---|
| Switch Pull-up Resistance | 4.7 kΩ (The input ports are pulled up with 4.7 kΩ) |
|---|
| Wiegand Output VOH | More than 4.8 V |
|---|
| Wiegand Output VOL | Less than 0.2 V Wiegnad Output Pull-up Internally pulled up with 1 kΩ Resistance 2 A @ 30 VDC Resistive load Relay 1 A @ 30 VDC Inductive load functions are compatible with BioStation 3. authentication distance is 0.6 to 1.0 m. authentication. (Unit: mm) 82.5 23.4 72.9 Regulatory Information If the administrator has not been designated, the DASHBOARD screen will be displayed when you press . This |
|---|
