| 接口 | 1 10/100Mbps WAN Port USB 2.0 Port WPS/Reset Button |
|---|
| 按鈕 | Wireless On/Off Button Power On/Off Button |
|---|
| External Power Supply | 12VDC / 1A |
|---|
| Antenna type | 3 internal antennas WIRELESS FEATURES IEEE 802.11a/n/ac, 5GHz |
|---|
| Wireless Standards | IEEE 802.11b/g/n, 2.4GHz |
|---|
| Frequency | 2.4GHz and 5GHz 5GHz: Up to 433Mbps Signal Rate 2.4GHz: Up to 300Mbps |
|---|
| EIRP | <20dBm 5GHz 11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm 11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm, 11n HT20: -71dBm, 11n HT40: -69dBm Reception Sensitivity 2.4GHz 11g 54M: -74dBm 11n HT20: -72dBm, 11n HT40: -69dBm |
|---|
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
|---|
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption SOFTWARE FEATURES |
|---|
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond Server, Client, DHCP Client List, DHCP Address Reservation |
|---|
| Quality of Service | WMM, Bandwidth Control |
|---|
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
|---|
| Dynamic DNS | DynDns, Comexe, NO-IP |
|---|
| VPN Passthrough | PPTP, L2TP, IPSec |
|---|
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management DoS, SPI Firewall |
|---|
| Firewall Security | IP Address Filtering/MAC Address Filtering/Domain Filtering IP and MAC Address Binding |
|---|
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server Access Control |
|---|
| Management | Local Management Remote Management |
|---|
| Internet Protocol | IPv4, IPv6 www.tp-link.com Specifications： OTHERS |
|---|
| Certifications | CE, FCC, RoHS |
|---|
| System Requirements | Microsoft Windows 8/7/Vista/XP, MAC OS, Linux-based operating system |
|---|

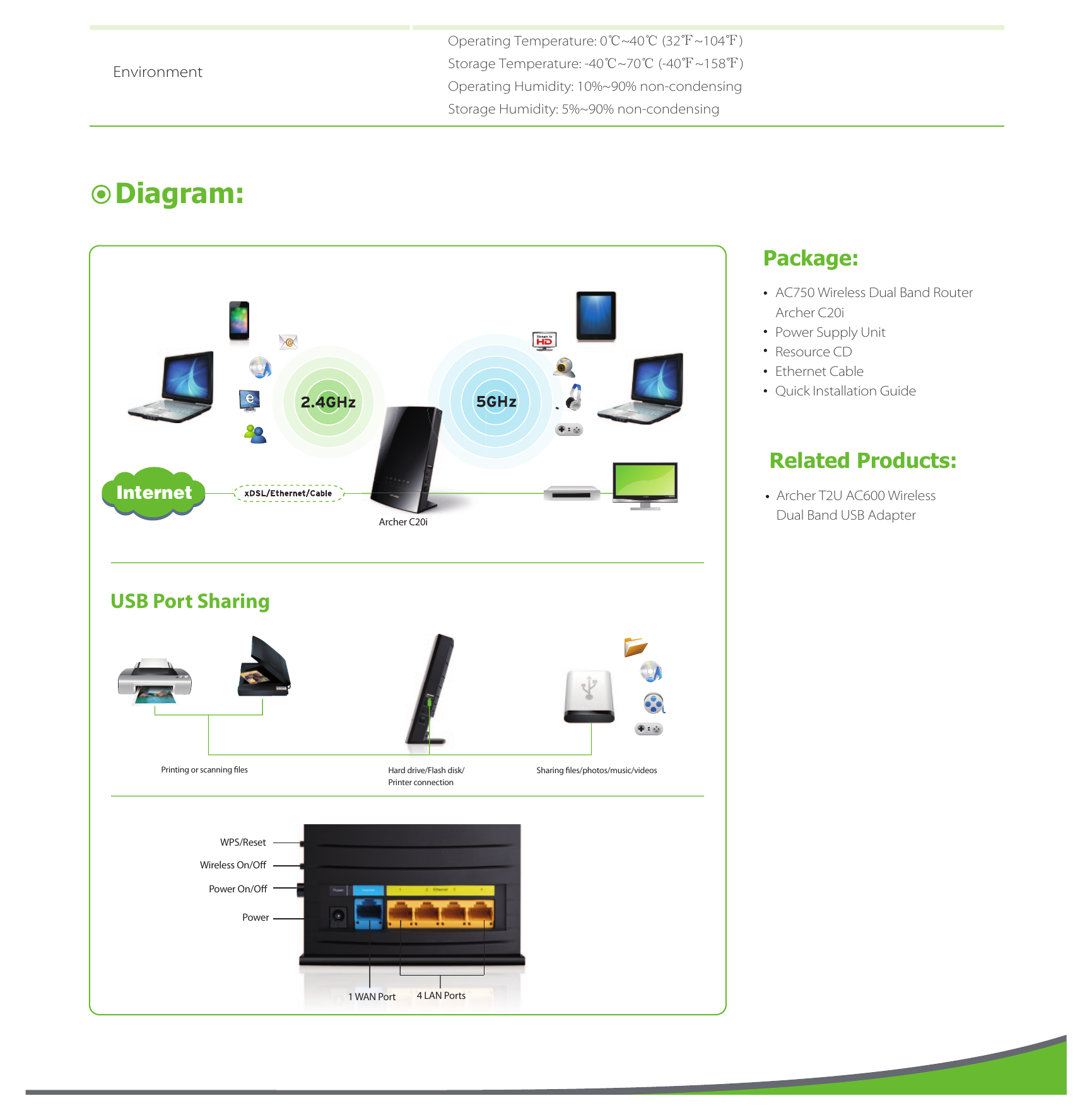

| Dimensions (W X D X H) | 4.44 x 2.36 x 6.73 in. (113 x 60 x 171mm) Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Diagram: Package: AC750 Wireless Dual Band Router Archer C20i Power Supply Unit Resource CD Ethernet Cable Quick Installation Guide Related Products: |
|---|
| Internet | Archer T2U AC600 Wireless Archer C20i Dual Band USB Adapter USB Port Sharing |
|---|
| Printing or scanning files | Hard drive/Flash disk/ Sharing files/photos/music/videos Printer connection WPS/Reset Wireless On/Off Power On/Off Power 1 WAN Port 4 LAN Ports Copyright © 2011 TP-LINK Technologies Co., Ltd. All rights reserved. www.tp-link.com |
|---|
