| 接口 | 1 10/100/1000Mbps WAN Port 2 USB 2.0 Port WPS/Reset Button |
|---|
| 按鈕 | Wireless On/Off Switch Power On/Off Button |
|---|
| External Power Supply | 12VDC / 2.5A 3 * 5GHz 5dBi detachable antennas (RP-SMA) Antenna type 3 * 2.4GHz internal antennas WIRELESS FEATURES IEEE 802.11a/n/ac, 5GHz Wireless Standards IEEE 802.11b/g/n, 2.4GHz |
|---|
| Frequency | 2.4GHz and 5GHz 5GHz: Up to 867Mbps Signal Rate 2.4GHz: Up to 300Mbps |
|---|
| EIRP | <20dBm 5GHz 11a 6Mbps: -96dBm, 11a 54Mbps: -79dBm 11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm, 11n HT20: -72dBm, 11n HT40: -71dBm Reception Sensitivity 2.4GHz 11g 54M: -77dBm 11n HT20: -74dBm, 11n HT40: -72dBm |
|---|
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
|---|
| Wireless Security | WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption SOFTWARE FEATURES |
|---|
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond Server, Client, DHCP Client List, |
|---|
| DHCP | Address Reservation |
|---|
| Quality of Service | WMM, Bandwidth Control |
|---|
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
|---|
| Dynamic DNS | DynDns, Comexe, NO-IP |
|---|
| VPN Pass-Through | PPTP, L2TP, IPSec Parental Control, Local Management Control, Host List, Access |
|---|
| Access Control | Schedule, Rule Management DoS, SPI Firewall |
|---|
| Firewall Security | IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
|---|
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server Access Control |
|---|
| Management | Local Management Remote Management |
|---|
| Internet Protocol | IPv4, IPv6 www.tp-link.com Specifications： OTHERS |
|---|
| Certifications | CE, FCC, RoHS Microsoft Windows 8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, System Requirements UNIX or Linux. |
|---|

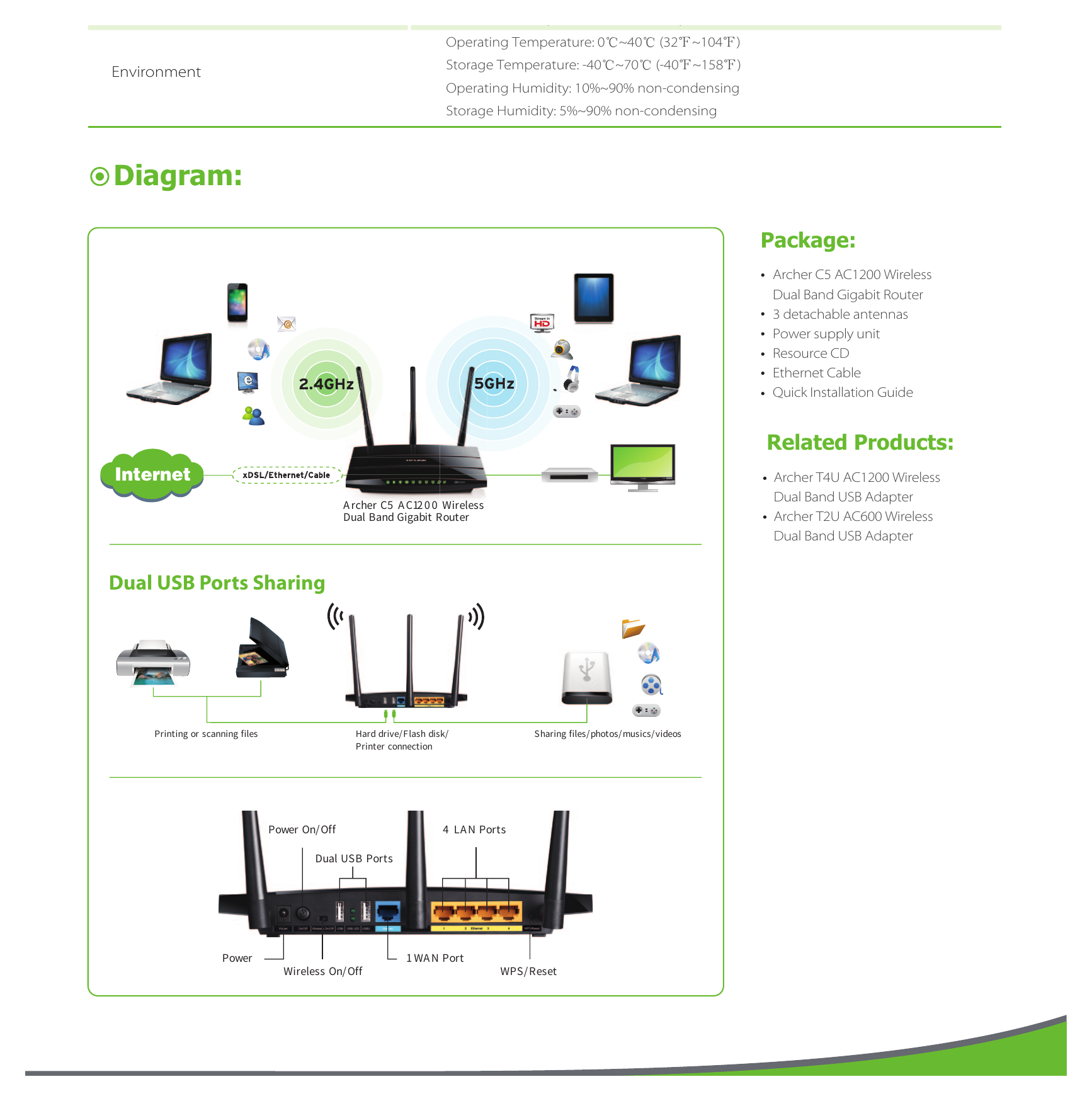

| Dimensions (W X D X H) | 9.6 x 6.4 x 1.3 in. (243 x 160.6 x 32.5mm) Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Diagram: Package: Archer C5 AC1200 Wireless Dual Band Gigabit Router 3 detachable antennas Power supply unit Resource CD Ethernet Cable Quick Installation Guide Related Products: |
|---|
| Internet | Archer T4U AC1200 Wireless Dual Band USB Adapter Archer C5 AC1200 Wireless |
|---|
| Dual Band Gigabit Router | Archer T2U AC600 Wireless Dual Band USB Adapter Dual USB Ports Sharing |
|---|
| Printing or scanning files | Hard drive/Flash disk/ Sharing files/photos/musics/videos Printer connection |
|---|
| Power On/Off | 4 LAN Ports Dual USB Ports |
|---|
| 供電 | 1 WAN Port |
|---|
| Wireless On/Off | WPS/Reset Copyright © 2011 TP-LINK Technologies Co., Ltd. All rights reserved. www.tp-link.com |
|---|
