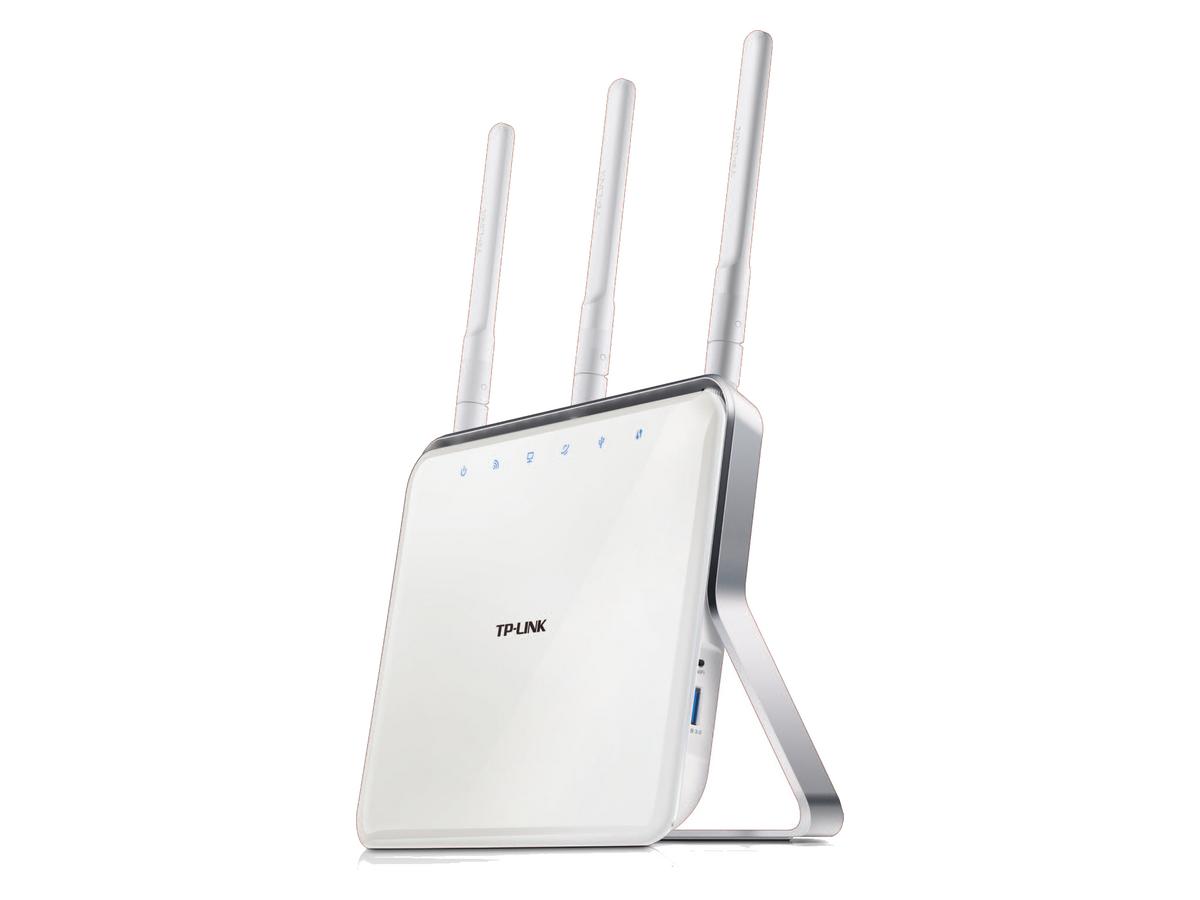

| AC1750 Wireless Dual Band Gigabit Router | Archer C8 Specifications： HARDWARE FEATURES 4 10/100/1000Mbps LAN Ports 1 10/100/1000Mbps WAN Port |
|---|
| 接口 | 1 USB 2.0 Port 1 USB 3.0 Port WPS/Reset Button |
|---|
| 按鈕 | Wireless On/Off Button Power On/Off Button |
|---|
| External Power Supply | 12VDC / 3.3A 3 detachable Dual-band antenna (RP-SMA) Antenna type (2dBi for 2.4GHz and 3dBi for 5GHz) WIRELESS FEATURES IEEE 802.11a/n/ac, 5GHz Wireless Standards IEEE 802.11b/g/n, 2,4GHz |
|---|
| Frequency | 2.4GHz and 5GHz 5GHz: Up to 1300Mbps Signal Rate 2.4GHz: Up to 450Mbps |
|---|
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
|---|
| Wireless Security | WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption SOFTWARE FEATURES |
|---|
| WAN Type | Dynamic IP /Static IP /PPPoE /PPTP (Dual Access) /L2TP (Dual Access) /BigPond Server, Client, DHCP Client List, DHCP Address Reservation |
|---|
| Quality of Service | Bandwidth Control |
|---|
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
|---|
| Dynamic DNS | DynDns, Comexe, NO-IP |
|---|
| VPN Pass-Through | PPTP, L2TP, IPSec |
|---|
| Parental Control | White List, Access Schedule DoS, SPI Firewall |
|---|
| Firewall Security | IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
|---|
| USB Sharing | Support Samba (Storage) /FTP Server /Media Server /Printer Server Access Control |
|---|
| Management | Local Management Remote Management |
|---|
| Internet Protocol | IPv4, IPv6 www.tp-link.com |
|---|
| Certifications | CE, FCC, RoHS, Wi-Fi, IPv6 |
|---|
| System Requirements | Microsoft Windows 8/7/Vista/XP, MAC OS, NetWare, UNIX or Linux. |
|---|

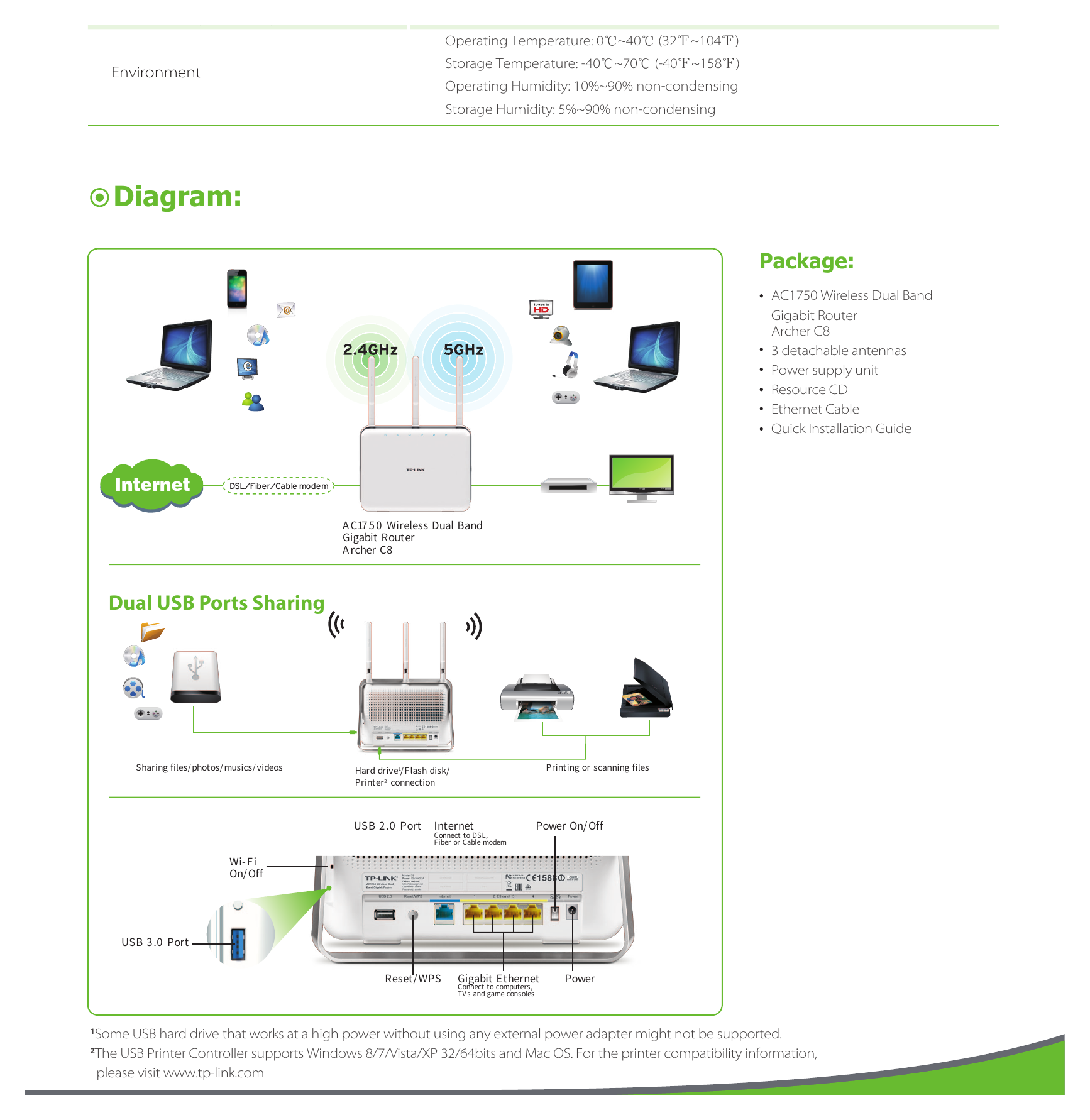

| Dimensions (W X D X H) | 8.7 X 3.4 X 6.6 in. (221 X 86 X 168.5mm) Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Diagram: Package: AC1750 Wireless Dual Band Gigabit Router Archer C8 3 detachable antennas Power supply unit Resource CD Ethernet Cable Quick Installation Guide |
|---|
| Internet | DSL/Fiber/Cable modem AC1750 Wireless Dual Band Gigabit Router Archer C8 Dual USB Ports Sharing |
|---|
| Sharing files/photos/musics/videos | Hard drive1/Flash disk/ Printing or scanning files Printer2 connection |
|---|
| USB 2.0 Port | Internet Power On/Off Connect to DSL, Fiber or Cable modem Wi-Fi On/Off USB 3.0 Port |
|---|
| Reset/WPS | Gigabit Ethernet Power Connect to computers, TVs and game consoles Some USB hard drive that works at a high power without using any external power adapter might not be supported. The USB Printer Controller supports Windows 8/7/Vista/XP 32/64bits and Mac OS. For the printer compatibility information, please visit©www.tp-link.com |
|---|
| Copyright | 2011 TP-LINK Technologies Co., Ltd. All rights reserved. www.tp-link.com |
|---|
