tp-link CPE510-V1 為Outdoor CPE，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 CPE510-V1 香港價格連安裝報價。
| MAXtream TDMA Mode | actual application 70% environment. 60% 50% 40% 30% 20% 802.11 CSMA Mode 10% Quantity of Clients 5 10 15 20 25 Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by an |
|---|---|
| Grounding | Shielded Ethernet Port Shielded Ethernet Port |
| Terminal | LANO(Passive PoE In) LAN1 Reset apter |
| PoE Ad | e |
| Pass i ve | Devic User LAN Remote Reset r LED |
| Powe | butto LAN o te Reset |
| Rem | POE CPE5 Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without perm |
| 處理器 | Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash · 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in) · 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough ) Interfaces · 1 Grounding Terminal · 1 Reset Button · Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Power Supply · Input voltage range: 16-27VDC (24V Passive PoE Adapter is provided) 11 Watts Max |
| Power Draw | Note: When deployed using Passive PoE, the power drawn from the power sourcing equipment will be higher by some amount depending on the length of the interconnecting cable. |
| Dimensions（L × W × H） | 224 × 79 × 60 mm |

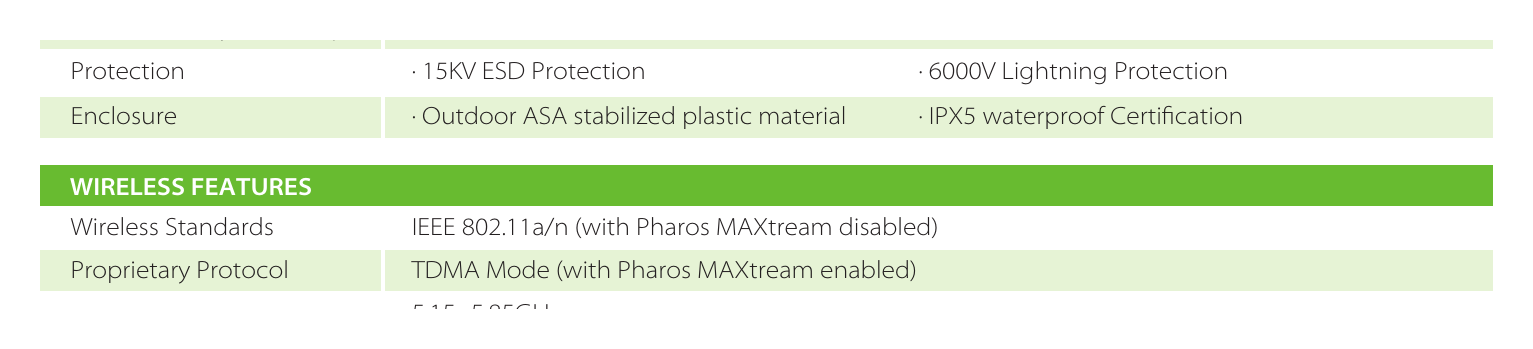

| 防護等級 | · 15KV ESD Protection · 6000V Lightning Protection |
| Enclosure | · Outdoor ASA stabilized plastic material · IPX5 waterproof Certification WIRELESS FEATURES |
| Wireless Standards | IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) 5.15~5.85GHz |
| Operating Frequency | Note: Available operating frequency may vary depending on the limitations of the coutries or regions in which the device is used. (Dynamic Frequency Selection is supported) Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Wireless Speed Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) 27dBm/500mw (Adjustable power by 1dBm) |
| Maximum Transmit Power | Note: Maximum transmission power may vary across different channels depending on the limitations of the coutries or regions in which the device is used. |
| Operation Modes | AP / Client / Bridge / Repeater / AP Router Mode /AP Client Router (WISP Client) Mode |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption |
| Data Rates | Tx Power Rx Sensitivity Data Rates Tx Power Rx Sensitivity 802.11a 802.11n 6-24Mbps 27 -95 MCS0 27 -93 36Mbps 27 -83 MCS1 27 -90 48Mbps 27 -76 MCS2 27 -88 54Mbps 27 -75 MCS3 27 -83 |
| MCS4 | 27 -80 |
| MCS5 | 27 -76 |
| RF Specifications | MCS6 26 -74 |
| MCS7 | 25 -73 |
| MCS8 | 27 -93 |
| MCS9 | 27 -90 |
| MCS10 | 27 -88 |
| MCS11 | 27 -83 |
| MCS12 | 27 -80 |
| MCS13 | 27 -76 |
| MCS14 | 27 -74 |
| MCS15 | 27 -73 www.tp-link.com ANTENNA FEATURES |
| Gain | 13dBi |
| Beamwidth | 45° (H-Plane) / 30° (E-Plane) |
| VSWR | 1.6 Max |
| Polarizations | Horizontal/Vertical |
| Cross-pol Isolation | 18 dB Min |
| Return Loss | H-Plane Pattern E-Plane Pattern 2.00 -90 -90 |
| -120 | -60 -120 -60 1.75 -150 -30 -150 -30 1.50 |
| H-Pol | 180 0 180 0 1.25 150 30 150 30 1.00 120 60 120 60 90 90 5GHz 6GHz 2.00 -90 -90 |
| V-Pol | 180 0 180 0 1.25 150 30 150 30 1.00 120 60 120 60 5GHz 6GHz 90 90 OTHERS |
| Certification | CE, FCC, RoHS, IPX5 CPE510 Passive PoE Adapter |
| Package Contents | Power Cord Installation Guide Pole Mounting Straps Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. System Requirements Note: We recommend you to use one of following Web browsers for better experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Operating Temperature: -30°C~70°C (-22°F~158°F) Storage Temperature: -40°C~ |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
詳見圖示｜Unit: mm
