| Product Description | Omada Gigabit VPN Router IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE |
|---|
| Standards and Protocols | 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP 1 Gigabit SFP Port 1 Gigabit WAN port 2 Gigabit LAN/WAN ports 2 Gigabit LAN port 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
|---|
| Network Media | 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
|---|
| Hardware | 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
|---|
| 按鈕 | Reset button |
|---|
| 供電 | 100–240 VAC, 50/60 Hz |
|---|
| Flash | 4MB SPI + 128 MB NAND |
|---|
| DRAM | 512 MB |
|---|
| LED | PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
|---|
| 防雷 | 4 kV surge protection |
|---|

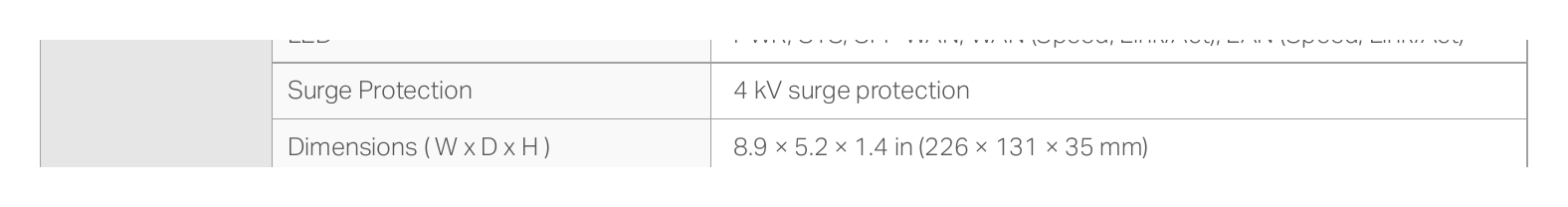

| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) Automatic Device Discovery |
|---|
| Hardware Controller (OC200/OC300) | Intelligent Network Monitoring Abnormal Event Warnings SDN Support Unified Configuration |
|---|
| Software Controller | Reboot Schedule Captive Portal Configuration |
|---|
| Concurrent Session | 150,000 |
|---|
| New Sessions /Second | 5,500 Static IP NAT Throughput (Upload / 940.3 Mbps / 940.2 Mbps Download) DHCP NAT Throughput (Upload / 940.3 Mbps / 940.4 Mbps Download) PPPoE NAT Throughput (Upload / 939.7 Mbps / 937.9 Mbps Download) L2TP NAT Throughput (Upload / 918.0 Mbps / 917.9 Mbps Download) Performance PPTP NAT Throughput (Upload / 918.9 Mbps / 914.7 Mbps Download) 66 Byte Packet forwarding rate 486,918 pps / 488,372 pps |
|---|
| IPSec VPN Throughput (AES256) | 291.6 Mbps Unencrypted: 1360.3 Mbps L2TP VPN Throughput Encrypted: 202.3 Mbps Unencrypted: 1379.3 Mbps PPTP VPN Throughput Encrypted: 115.6 Mbps Static IP Dynamic IP |
|---|
| WAN Connection Type | PPPoE PPTP L2TP DHCP Server DHCP Address Reservation DHCP |
|---|
| Basic Functions | Multi-IP Interfaces1 Multi-Net DHCP1 |
|---|
| MAC Clone | Modify WAN/LAN MAC Address2 |
|---|
| IPTV | IGMP v2/v3 Proxy |
|---|
| IPv6 | Developing3 |
|---|
| VLAN | 802.1Q VLAN Intelligent Load Balance Application Optimized Routing Load Balance Link Backup (Timing1, Failover) Online Detection One-to-One NAT2 Multi-Net NAT Virtual Server |
|---|
| NAT | Port Triggering2 Transmission NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP Static Routing Routing Policy Routing |
|---|
| Session Limit | IP-based Session Limit |
|---|
| Bandwidth Control | IP-based Bandwidth Control 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm |
|---|
| IPSec VPN | IKE v1/v23 MD5, SHA1 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) PPTP VPN Server VPN PPTP VPN Client (10)4 PPTP VPN 50 Tunnels PPTP with MPPE Encryption L2TP VPN Server L2TP VPN Client (10)4 L2TP VPN 50 Tunnels L2TP over IPSec OpenVPN Server |
|---|
| OpenVPN | 5 OpenVPN Client (10)4 50 OpenVPN Tunnels TCP/UDP/ICMP Flood Defense |
|---|
| Attack Defense | Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN Web Group Filtering6 |
|---|
| Filtering | URL Filtering |
|---|
| 安全 | Web Security6 Sending GARP Packets |
|---|
| ARP Inspection7 | ARP Scanning IP-MAC Binding |
|---|
| Access Control | Source/Destination IP Based Access Control No Authentication Simple Password1 Hotspot (Local User / Voucher1 / SMS1 / Radius1) |
|---|
| Authentication | Web Authentication External Radius Sever External Portal Sever1 Facebook1 |
|---|
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) Web Management Interface Remote Management |
|---|
| Management | Export & Import Configuration |
|---|
| Maintenance | SNMP v1/v2c/v32 Diagnostics (Ping & Traceroute)3 NTP Synchronize3 Syslog Support |
|---|
| Certification | CE, FCC, RoHS |
|---|
| Package Contents | ER7206 (TL-ER7206), Power Cord, Quick Installation Guide Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 System Requirements |
|---|
| Others | MAC OS, NetWare, UNIX or Linux Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing Portal Sever, and Facebook. Host Router |
|---|
| ER7206 (TL-ER7206) | Omada Gigabit VPN Router SFP Modules |
|---|
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 20km distance |
|---|
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance |
|---|
| TL-SM321A | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 20 km |
|---|
| TL-SM321A-2 | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 2 km |
|---|
| TL-SM321B | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km |
|---|
| TL-SM321B-2 | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 2 km |
|---|
