| LAN Interfaces | 1x 2.5Gbps Ethernet Port |
|---|
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be US: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz) Maximum Data Rate EU: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz) |
|---|
| Wireless Client Capacity | 2 GHz: 128, 5 GHz: 128, 6 GHz: 128 |
|---|
| Antennas | 2.4 GHz: 2 × 4dBi, 5 GHz: 2 × 5dBi, 6 GHz: 2 × 5dBi CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP) Transmit Power FCC:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 23 dBm (6 GHz) 2.4G: 11ax HE20MCS0:-96dBm; 11ax HE20MCS11:-66.5dBm 11ax HE40MCS0:-93dBm; 11ax HE40MCS11:-64dBm 5G: 11be EHT20MCS0:-94dBm; 11be EHTMCS13:-63dBm 11be EHT |
|---|
| Centralized | • Controller |
|---|
| Festa App | • Captive Portal |
|---|
| Access Control | • Maximum Number of MAC 4000 Filter |
|---|
| 安全 | Wireless Isolation between Clients |
|---|
| VLAN | • |
|---|
| Rogue AP Detection | - |
|---|
| Wireless Encryption | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE 802.1X Support • |
|---|
| Multiple SSIDs | 24 (8 on each band) EU: 2G: 1~13; 5G: 36~140; 6G: 33~93 Channel US: 2G:1~11; 5G: 36~165; 6G: 33~233 Enable/Disable Wireless Enable/Disable SSID Broadcast |
|---|
| Guest Network | • Automatic Channel Selection |
|---|
| Transmit Power Control | Adjust transmit Power on dBm |
|---|
| QoS (WMM) | • |
|---|
| Seamless Roaming | • |
|---|
| Mesh | • |
|---|
| Function | Beamforming • |
|---|
| MU-MIMO | 2*2 DL/UL MU-MIMO |
|---|
| MIMO | 2*2 (2G/5G/6G) MU-MIMO |
|---|
| OFDMA | OFDMA UL/DL |
|---|
| Rate Limit | Based on SSID/Client |
|---|
| Load Balance | • |
|---|
| Airtime Fairness | • |
|---|
| Band Steering | • |
|---|
| RADIUS Accounting | • |
|---|
| MAC Authentication | - |
|---|
| Reboot Schedule | - |
|---|
| Wireless Schedule | • |
|---|
| Wireless Statistics | • |
|---|
| Static IP/Dynamic IP | • 2G Band: 8Mbps to 688Mbps(MCS0-MCS13,NSS=1 to 2 BE20/40) 5G Band: EU: 8Mbps to 2882Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160) 802.11be US: 8Mbps to 4324Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160/240) 6G Band: 8Mbps to 5765Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160/320) 2G Band: 8Mbps to 574Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40) 802.11ax 5G Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160 |
|---|
| LED ON/OFF Control | • Management MAC Access Control |
|---|
| Web-based Management | - |
|---|
| SNMP | v1, v2c, v3 |
|---|
| Management | SSH • |
|---|
| Restore & Backup | - |
|---|
| Firmware update via Web | • |
|---|
| NTP | • |
|---|
| 系統日誌 | • |
|---|
| Email Alerts | - 802.3at PoE or 12V/2.5A DC Power Supply DC Power Adapter Is Not Included |
|---|
| Maximum Power | EU: 24.05 W (For PoE); 20.92 W (For DC); |
|---|
| 功耗 | US: 25.44 W (For PoE); 22.57 W (For DC); |
|---|
| Environment | Reset • |
|---|
| Mounting | Ceiling / Wall mouting (Kits included) |
|---|
| Certifications | CE, FCC, RoHS, IC |
|---|
| Dimensions (W x D x H) | 220 x 220 x 33.9 mm |
|---|
| 淨重 | 697.6g Top cover: PC Enclosure Material / Rack Bottom shell: aluminum alloy Material Mounting rack: stainless steel |
|---|
| Lightning Protection | 4kV Operating Temperature: 0 °C–40 °C (32 °F–104 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing; Festa F76 |
|---|

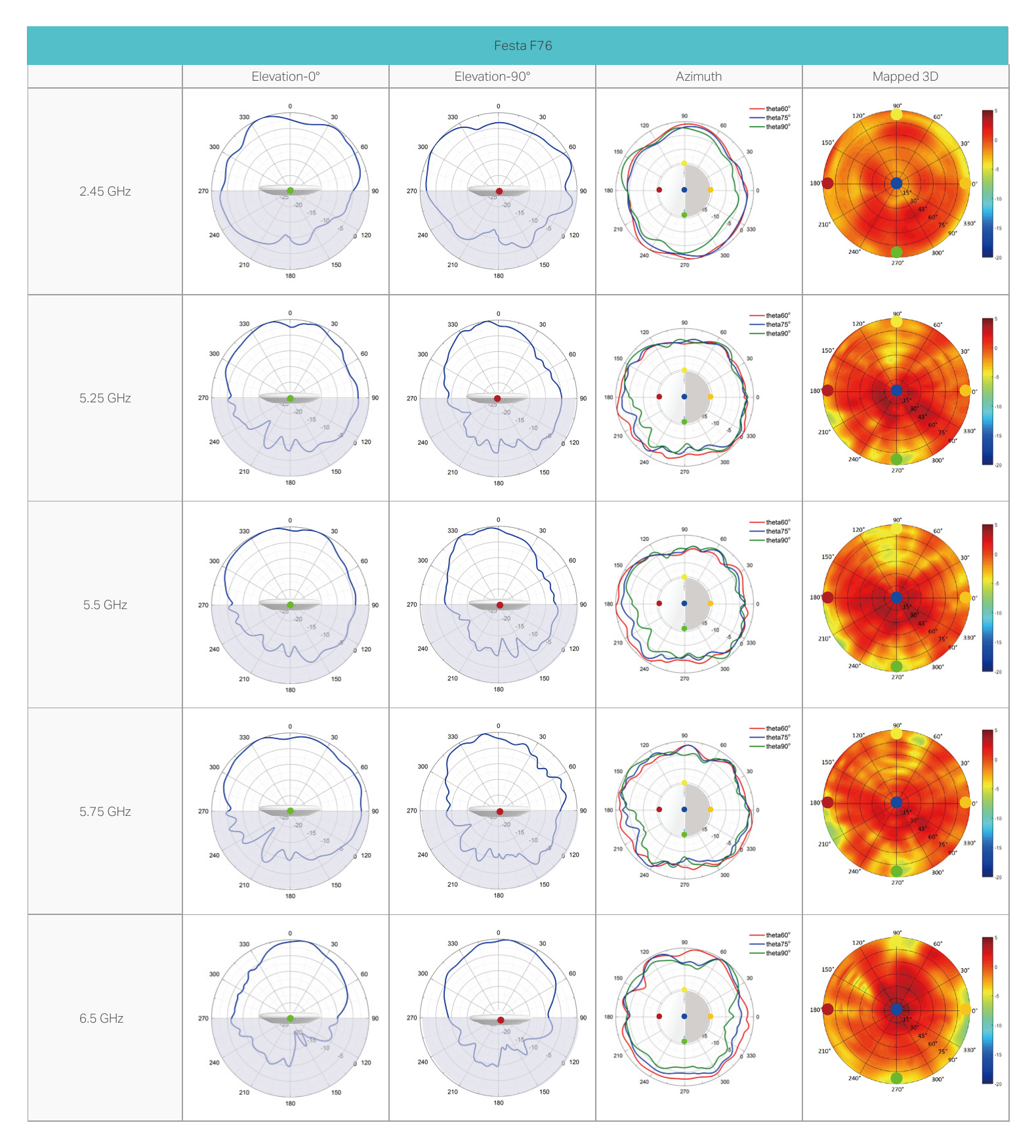

| Elevation-0° | Elevation-90° Azimuth Mapped 3D 2.45 GHz 5.25 GHz 5.5 GHz 5.75 GHz 6.5 GHz the future. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 ro |
|---|
