| Hardware Features | GPON port attribute |
|---|
| Service Port | 8*PON port (SFP Slot) Splitting Ratio 1:128 8*10/100/1000Mbps RJ45 ports Transmission distance 20km |
|---|
| Uplink Port | 8*1000Mbps SFP ports Downstream: 2.5Gbps Data rate 2*10G SFP+ ports (optional) Upstream: 1.25Gbps 1*Console port Tx: 1490nm |
|---|
| Management Port | Wavelength 1*100BASE-TX outband management port Rx: 1310nm |
|---|
| Fan Quantity | 4 Interface type SC/UPC |
|---|
| Redundancy Design | Dual power supply Fiber type 9/125μm SMF (Single Mode Fiber) |
|---|
| Support AC, DC, AC+DC power input | Class B+: 1.5dBm~5dBm Tx power |
|---|
| AC: 90V~240V, 50/60Hz | Class C+: 3dBm~7dBm |
|---|
| DC: -36V~-72V | Class B+: -28dBm Rx sensitivity |
|---|
| 功耗 | Max. 65W Class C+: -30dBm |
|---|
| 重量 | 4kg Class B+: -8dBm Saturation power |
|---|
| 尺寸 | 440mm(L)*391mm(W)*44mm(H) Class C+: -12dBm Operating temperature: 0℃~50℃ |
|---|
| Environment | Storage temperature: -40℃~85℃ Operating Humidity: 5%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|---|

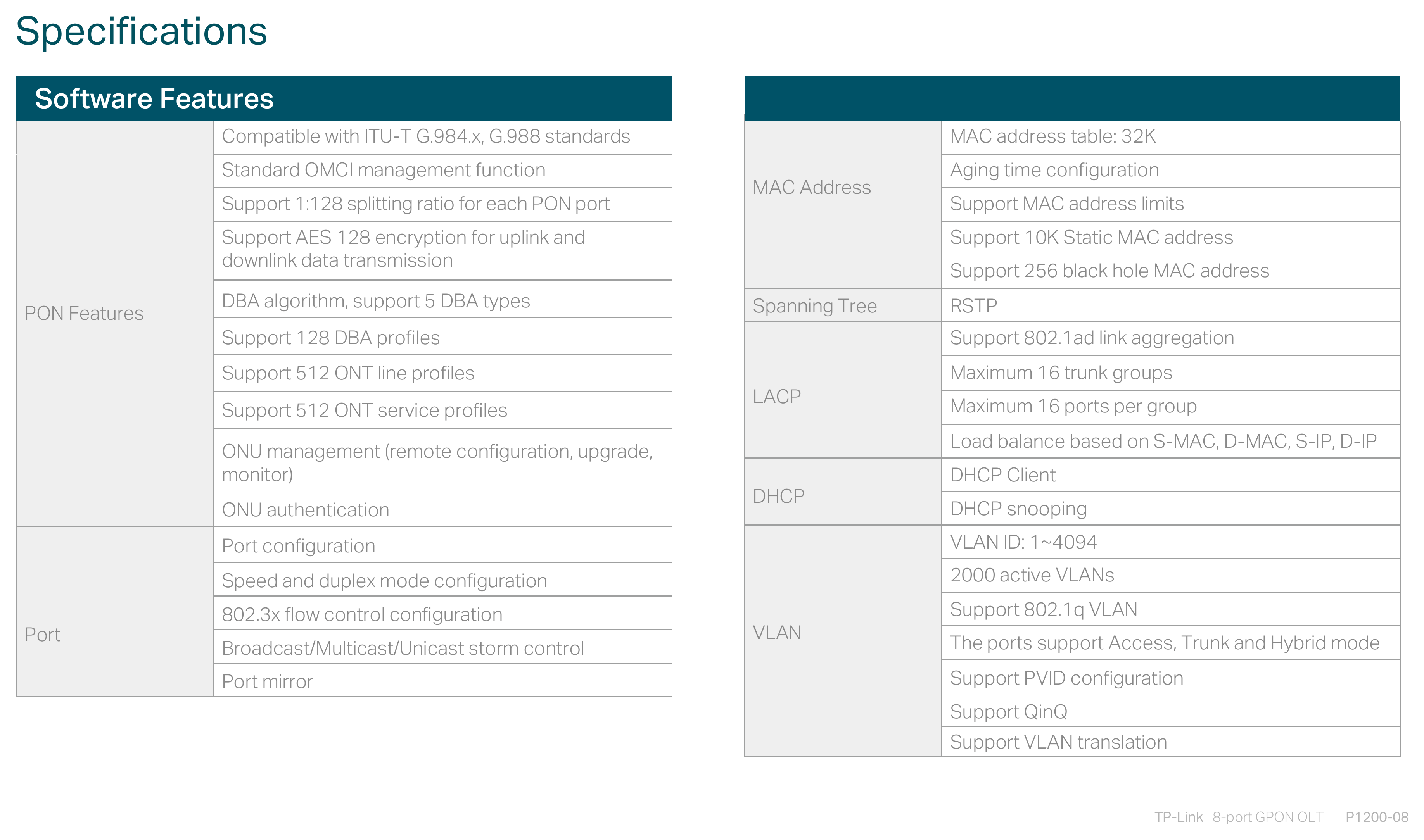

| TP-Link 8-port GPON OLT | P1200-08 Software Features Compatible with ITU-T G.984.x, G.988 standards MAC address table: 32K |
|---|
| Standard OMCI management function | Aging time configuration MAC Address Support 1:128 splitting ratio for each PON port Support MAC address limits |
|---|
| Support AES 128 encryption for uplink and | Support 10K Static MAC address downlink data transmission Support 256 black hole MAC address |
|---|
| DBA algorithm, support 5 DBA types | Spanning Tree RSTP |
|---|
| Support 128 DBA profiles | Support 802.1ad link aggregation |
|---|
| Support 512 ONT line profiles | Maximum 16 trunk groups |
|---|
| LACP | Maximum 16 ports per group Support 512 ONT service profiles Load balance based on S-MAC, D-MAC, S-IP, D-IP ONU management (remote configuration, upgrade, |
|---|
| monitor) | DHCP Client DHCP |
|---|
| ONU authentication | DHCP snooping |
|---|
| Port configuration | VLAN ID: 1~4094 |
|---|
| Speed and duplex mode configuration | 2000 active VLANs 802.3x flow control configuration Support 802.1q VLAN |
|---|
| Port | VLAN |
|---|
| Broadcast/Multicast/Unicast storm control | The ports support Access, Trunk and Hybrid mode |
|---|
| Port mirror | Support PVID configuration Support QinQ Support VLAN translation |
|---|
| Multicast | IGMP v1/v2 snooping Support EMS management based on SNMP |
|---|
| IGMP fast leave | Console port, Management port |
|---|
| IGMP snooping querier | Inbound and outbound management |
|---|
| Support 802.1p QoS | Management Operation Status monitor |
|---|
| QoS | 4 priority queues & 3 levels account management maintenance |
|---|
| Priority schedule mode: SP, WRR, SP+WRR | Configuration backup and load |
|---|
| Support 4000 ACL rules | Firmware upgrade through FTP Support basic ACL, advance ACL and link ACL Log management |
|---|
| Basic ACL: source IP | Real-time statistic |
|---|
| ACL | Advance ACL: source IP, destination IP, source port, OLT and ONT optical module diagnostics destination port, DSCP and IP message type Link ACL: source MAC, destination MAC, VLAN ID, Ethernet type Support 802.1p priority, VLAN ID, TOS, DSCP remark. |
|---|
| Part Number | Description |
|---|
| P1200-08 | 8-port GPON OLT, with dual AC input power supply |
|---|
| PRP12-AC | Redundant power supply module for P1200-08, AC input |
|---|
| PRP12-DC | Redundant power supply module for P1200-08, DC input |
|---|
| PEX12-X2 | 2*10G SFP+ uplink module for P1200-08 |
|---|
| PLT12-B+ | GPON OLT SFP optical module, Class B+ |
|---|
| PLT12-C+ | GPON OLT SFP optical module, Class C+ |
|---|
