| General | Standards and Protocols IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX/FX |
|---|
| PoE | IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X IEEE 802.3x Flow control, IEEE 802.3ad Link Aggregation IEEE 802.1d Spanning Tree Protocol (STP), IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP), IEEE 802.1q VLAN IEEE 802.1x Port-based Network Access Control, IEEE 802.1p QoS IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet |
|---|
| Network Media | 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 10GBase-T: UTP CAT 5e, 6 (Maximum 55m) or above cable (Maximum 100m) 1000BASE-X: MMF, SMF |
|---|
| Interfaces | 24 10/100/1000Mbps RJ45 ports 48 10/100/1000Mbps RJ45 ports 4 Gigabit SFP Slots 4 Gigabit SFP Slots |
|---|
| PoE Ports | / 24, up to 30W / 48, up to 30W |
|---|
| PoE 功率預算 | / 192W / 384W |
|---|
| Performance | Switching Capacity 56Gbps 104Gbps |
|---|
| 包轉發率 | 41.7Mpps 77.4Mpps |
|---|
| MAC 位址表 | 16K 3DFNHW%XƬHU 1.5MB |
|---|
| Number of IP Interfaces | 16 |
|---|
| Number of Static Routes | 32 IPv4, 32 IPv6 |
|---|
| Jumbo Frame | 9KB |
|---|
| Physical | Power Supply 100-240V AC, 50/60Hz |
|---|
| & Environment | Maximum Power Consumption 23.2W 264.8W 32.8W 470.4W (220V/50Hz) |
|---|
| Dimensions (W × D × H) | 17.3 × 7.1 × 1.7 in. 17.3 × 8.7 × 1.7 in. 17.3 × 8.7 × 1.7 in. 17.3 × 13 × 1.7 in. (440 × 180 × 44 (440 × 220 × 44 (440 × 220 × 44 (440 × 330 × 44 |
|---|
| mm) | mm) mm) mm) |
|---|
| Fan Quantity | Fanless 2 Fanless 3 |
|---|
| 工作溫度 | 0°C~40°C (32°F~104°F) |
|---|
| 儲存溫度 | -40°C~70°C (-40°F~158°F) |
|---|
| 工作濕度 | 10% ~ 90%RH, non-condensing |
|---|
| Storage Humidity | 5%~90%RH, non-condensing |
|---|
| &HUWLƮFDWLRQ | CE, FCC |
|---|

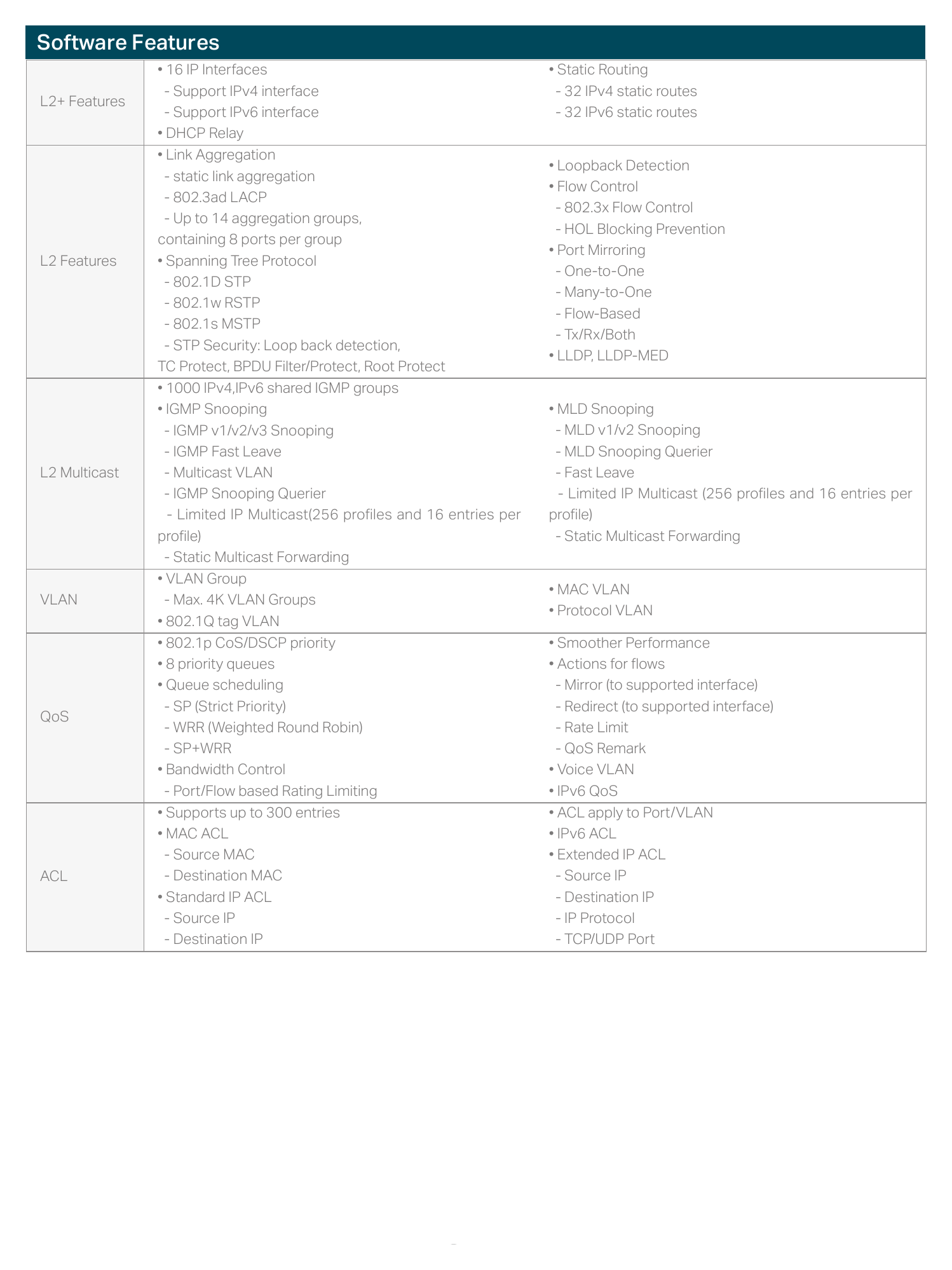

| • 16 IP Interfaces | • Static Routing |
|---|
| - Support IPv4 interface | - 32 IPv4 static routes |
|---|
| - Support IPv6 interface | - 32 IPv6 static routes • DHCP Relay • Link Aggregation • Loopback Detection - static link aggregation • Flow Control - 802.3ad LACP - 802.3x Flow Control - Up to 14 aggregation groups, - HOL Blocking Prevention containing 8 ports per group • Port Mirroring |
|---|
| L2 Features | • Spanning Tree Protocol - One-to-One - 802.1D STP - Many-to-One - 802.1w RSTP - Flow-Based - 802.1s MSTP - Tx/Rx/Both - STP Security: Loop back detection, • LLDP, LLDP-MED TC Protect, BPDU Filter/Protect, Root Protect • 1000 IPv4,IPv6 shared IGMP groups |
|---|
| • IGMP Snooping | • MLD Snooping |
|---|
| - IGMP v1/v2/v3 Snooping | - MLD v1/v2 Snooping |
|---|
| - IGMP Fast Leave | - MLD Snooping Querier |
|---|
| L2 Multicast | - Multicast VLAN - Fast Leave |
|---|
| - IGMP Snooping Querier | /LPLWHG,30XOWLFDVW SURƮOHVDQGHQWULHVSHU - Limited IP Multicast(256 profiles and 16 entries per SURƮOH |
|---|
| SURƮOH | - Static Multicast Forwarding - Static Multicast Forwarding • VLAN Group • MAC VLAN |
|---|
| VLAN | - Max. 4K VLAN Groups • Protocol VLAN • 802.1Q tag VLAN |
|---|
| • 802.1p CoS/DSCP priority | • Smoother Performance |
|---|
| • 8 priority queues | r$FWLRQVIRUưRZV |
|---|
| • Queue scheduling | 0LUURU WRVXSSRUWHGLQWHUIDFH |
|---|
| 63 6WULFW3ULRULW\ | 5HGLUHFW WRVXSSRUWHGLQWHUIDFH |
|---|
| :55 :HLJKWHG5RXQG5RELQ | - Rate Limit |
|---|
| - SP+WRR | - QoS Remark |
|---|
| • Bandwidth Control | • Voice VLAN |
|---|
| - Port/Flow based Rating Limiting | • IPv6 QoS |
|---|
| • Supports up to 300 entries | • ACL apply to Port/VLAN |
|---|
| • MAC ACL | • IPv6 ACL |
|---|
| - Source MAC | • Extended IP ACL |
|---|
| ACL | - Destination MAC - Source IP |
|---|
| • Standard IP ACL | - Destination IP |
|---|
| - Source IP | - IP Protocol |
|---|
| - Destination IP | - TCP/UDP Port |
|---|
| • AAA | • 802.1X |
|---|
| • DHCP Snooping | - Port based authentication |
|---|
| • IP-MAC-Port Binding | - MAC(Host) based authentication |
|---|
| • Dynamic ARP Inspection | - Guest VLAN |
|---|
| • Static/Dynamic Port Security | - Support Radius authentication and accountability |
|---|
| - Up to 64 MAC addresses per port | • Port Isolation • Broadcast/Multicast/Unicast Storm Control • Secure web management through HTTPS with SSLv3/ |
|---|
| - kbps/ratio/pps control mode | TLS1.0 |
|---|
| • IP/Port/MAC based access control | • Secure Command Line Interface(CLI) management |
|---|
| • DoS Defend | with SSHv1/SSHv2 • IPv6 applications • IPv6 Static Routing, QoS and ACL - DHCPv6 Client • IPv6 Dual IPv4/IPv6 - Ping6 • Multicast Listener Discovery(MLD) Snooping - Tracert6 • IPv6 neighbor discovery (ND) - Telnet(v6) |
|---|
| IPv6 Support | • Path maximum transmission unit (MTU) discovery - IPv6 SNMP • Internet Control Message Protocol (ICMP) version 6 - IPv6 SSH • TCPv6/UDPv6 - IPv6 SSL - Http/Https - IPv6 TFTP • Web-based GUI • CPU Monitoring • Command Line Interface(CLI) through console port, • Cable Diagnostics telnet • Access Control |
|---|
| Management | • SNMPv1/v2c/v3 • SNTP • SNMP Trap/Inform • System Log • RMON (1,2,3,9 groups) • Dual Image • DHCP Option82 • MIB II (RFC1213) • RMON2 MIB (RFC2021) • Interface MIB (RFC2233) • Radius Accounting Client MIB (RFC2620) • Ethernet Interface MIB (RFC1643) |
|---|
| MIBs | • Radius Authentication Client MIB (RFC2618) • Bridge MIB (RFC1493) • Remote Ping, Traceroute MIB (RFC2925) • P/Q-Bridge MIB (RFC2674) • Support TP-Link private MIBs • RMON MIB (RFC2819) Software Host Switch Features |
|---|
| Product Model | Description |
|---|
| T1600G-28TS (TL-SG2424) | JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots |
|---|
| T1600G-28PS (TL-SG2424P) | JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots |
|---|
| T1600G-52TS (TL-SG2452) | JetStream 48-Port Gigabit Smart Switch with 4 SFP Slots |
|---|
| T1600G-52PS (TL-SG2452P) | JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots SFP Modules |
|---|
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
|---|
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TL-SM321A TX:1550nm/RX:1310nm, 10km Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TL-SM321B TX:1310nm/RX:1550nm, 10km Router |
|---|
| TL-ER6120 | SafeStream Gigabit Dual-WAN VPN Router |
|---|
| TL-ER5120 | Gigabit Load Balance Broadband Router Media Converter |
|---|
| MC210CS | Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable |
|---|
| MC200CM | Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable |
|---|
| MC220L | Gigabit SFP slot supporting mini-GBIC modules, chassis mountable |
|---|
| MC1400 | 14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable |
|---|
