tp-link T1600G-V3 為Smart Switches Datasheet，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 T1600G-V3 香港價格連安裝報價。
| T1600G-18TS | T1600G-52TS T1600G-52PS (TL-SG2216) (TL-SG2452) (TL-SG2452P) 10/100/1000Mbps 24 10/100/1000Mbps RJ45 ports 48 10/100/1000Mbps RJ45 ports |
|---|---|
| General | Interfaces |
| RJ45 ports | 4 Gigabit SFP Slots 4 Gigabit SFP Slots 2 Gigabit SFP Slots |
| PoE 標準 | 802.3af/at 802.3af/at |
| PoE | PoE Ports / 24, up to 30W / 48, up to 30W |
| PoE 功率預算 | 192W 384W |
| Switching Capacity 32Gbps | 56Gbps 104Gbps Packet Forwarding 26.8Mbps 41.7Mpps 77.4Mpps Rate |
| MAC Address Table 8K | 16K 4.1Mbit 12Mbit Number of IP Interfaces Number of Static 32 (IPv4, IPv6) Routes |
| Jumbo Frame | 9KB |
| 供電 | 100-240V AC, 50/60Hz Maximum Power |
| 功耗 | 12.3W 20.4W 235.8W 32.8W 470.4W (220V/50Hz) 17.3 × 7.1 × 1.7 in. 17.3 × 7.1 × 1.7 in. 17.3 × 8.7 × 1.7 in. 17.3 × 8.7 × 1.7 in. 17.3 × 13 × 1.7 in. Dimensions (440 × 180 × 44 (440 × 180 × 44 (440 × 220 × 44 (440 × 220 × 44 (440 × 330 × 44 (W × D × H) |
| mm) | mm) mm) mm) mm) |
| Physical & | Fanless Fanless 2 Fanless 3 Fan Quantity Operating 0°C~40°C (32°F~104°F) Temperature Storage -40°C~70°C (-40°F~158°F) Temperature Operating Humidity 10%~90%RH non-condensing |
| Storage Humidity | 5%~90%RH non-condensing CE, FCC |

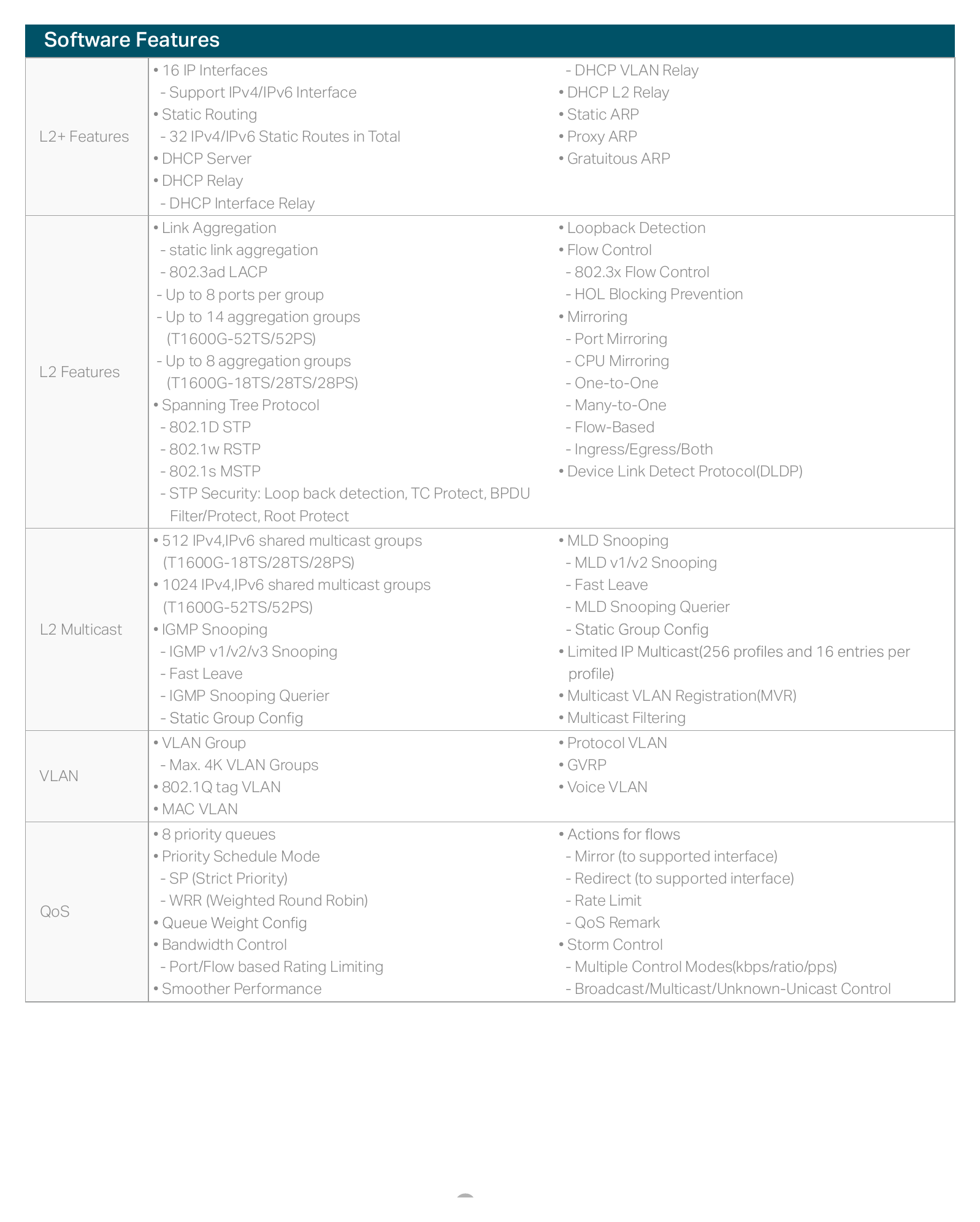

| • 16 IP Interfaces | - DHCP VLAN Relay |
| - Support IPv4/IPv6 Interface | • DHCP L2 Relay |
| • Static Routing | • Static ARP |
| L2+ Features | - 32 IPv4/IPv6 Static Routes in Total • Proxy ARP |
| • DHCP Server | • Gratuitous ARP • DHCP Relay - DHCP Interface Relay |
| • Link Aggregation | • Loopback Detection |
| - static link aggregation | • Flow Control |
| - 802.3ad LACP | - 802.3x Flow Control |
| - Up to 8 ports per group | - HOL Blocking Prevention |
| - Up to 14 aggregation groups | • Mirroring (T1600G-52TS/52PS) - Port Mirroring |
| - Up to 8 aggregation groups | - CPU Mirroring (T1600G-18TS/28TS/28PS) - One-to-One |
| • Spanning Tree Protocol | - Many-to-One |
| - 802.1D STP | - Flow-Based |
| - 802.1w RSTP | - Ingress/Egress/Both |
| - 802.1s MSTP | • Device Link Detect Protocol(DLDP) - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect |
| • 512 IPv4,IPv6 shared multicast groups | • MLD Snooping (T1600G-18TS/28TS/28PS) - MLD v1/v2 Snooping |
| • 1024 IPv4,IPv6 shared multicast groups | - Fast Leave (T1600G-52TS/52PS) - MLD Snooping Querier |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| - IGMP Snooping Querier | • Multicast VLAN Registration(MVR) • Multicast Filtering |
| • VLAN Group | • Protocol VLAN |
| - Max. 4K VLAN Groups | • GVRP |
| • 802.1Q tag VLAN | • Voice VLAN • MAC VLAN • 8 priority queues |
| • Priority Schedule Mode | - Mirror (to supported interface) |
| - SP (Strict Priority) | - Redirect (to supported interface) |
| - WRR (Weighted Round Robin) | - Rate Limit - QoS Remark |
| • Bandwidth Control | • Storm Control |
| - Port/Flow based Rating Limiting | - Multiple Control Modes(kbps/ratio/pps) |
| • Smoother Performance | - Broadcast/Multicast/Unknown-Unicast Control • Support up to 230 entries(T1600G-18TS/28TS/28PS) - TCP Flag • Support up to 350 entries(T1600G-52TS/52PS) - TCP/UDP Source Port |
| • Time-Range | - TCP/UDP Destination Port |
| - Time Slice | - DSCP/IP TOS |
| - Week Time-Range | - User Priority |
| - Absolute Time-Range | • IPv6 ACL |
| - Holiday | • Combined ACL |
| • Time-based ACL | • Rule Operation |
| • MAC ACL | - Permit/Deny |
| ACL | - Source MAC • Policy Action |
| - Destination MAC | - Mirror |
| - VLAN ID | - Rate Limit |
| - User Priority | - Redirect |
| - Ether Type | - QoS Remark |
| • IP ACL | - Destination IP |
| - Source IP | • ACL Rules Binding |
| - Destination IP | - Port Binding |
| - Fragment | - VLAN Binding - IP Protocol |
| • AAA | - DHCPv6 Snooping |
| • 802.1X | - ND Detection |
| - Port based authentication | - IPv6 Source Gurad |
| - MAC(Host) based authentication | • DoS Defend |
| - VLAN Assignment | • Static/Dynamic/Permanent Port Security |
| - MAB | - Up to 64 MAC addresses per port |
| - Guest VLAN | • Broadcast/Multicast/Unicast Storm Control |
| 安全 | - Support Radius authentication and accountability - kbps/ratio/pps control mode |
| • IP-MAC-Port Binding | • Port Isolation |
| - 512 Binding Entries | • Secure web management through HTTPS with |
| - DHCP Snooping | SSLv3/TLS1.0 |
| - ARP Inspection | • Secure Command Line Interface (CLI) management |
| - IP Source Gurad | with SSHv1/SSHv2 |
| • IPv6-MAC-Port Binding | • IP/Port/MAC based access control - 512 Binding Entries • Web-based GUI • Command Line Interface(CLI) through telnet • CPU Monitoring |
| • SNMPv1/v2c/v3 | • Cable Diagnostics |
| Management | • SNMP Trap/Inform • EEE |
| • RMON (1,2,3,9 groups) | • SNTP |
| • SDM Template | • System Log |
| • DHCP/BOOTP Client | • 802.1ab LLDP/ LLDP-MED |
| • IPv6 Static Routing and ACL | • IPv6 applications |
| • IPv6 Dual IPv4/IPv6 | - DHCPv6 Client |
| • IPv6 Interface | - Ping6 • Multicast Listener Discovery(MLD) Snooping - Tracert6 |
| • IPv6 neighbor discovery (ND) | - Telnet(v6) IPv6 Support • Path maximum transmission unit (MTU) discovery - IPv6 SNMP • Internet Control Message Protocol (ICMP) version 6 - IPv6 SSH |
| • TCPv6/UDPv6 | - IPv6 SSL - Http/Https - IPv6 TFTP |
| • MIB II (RFC1213) | • RMON2 MIB (RFC2021) |
| • Interface MIB (RFC2233) | • Radius Accounting Client MIB (RFC2620) |
| • Ethernet Interface MIB (RFC1643) | • Radius Authentication Client MIB (RFC2618) MIBs |
| • Bridge MIB (RFC1493) | • Remote Ping, Traceroute MIB (RFC2925) |
| • P/Q-Bridge MIB (RFC2674) | • Support TP-Link private MIBs • RMON MIB (RFC2819) T1600G-28TS/28PS/52TS/52PS V3.0) Host Switch |
| Product Model | Description |
| T1600G-28TS | JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots |
| T1600G-28PS | JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots |
| T1600G-52TS (TL-SG2452) | JetStream 48-Port Gigabit Smart Switch with 4 SFP Slots |
| T1600G-52PS (TL-SG2452P) | JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots SFP Modules |
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TL-SM321A TX:1550nm/RX:1310nm, 10km Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TL-SM321B TX:1310nm/RX:1550nm, 10km Router |
| TL-ER6120 | SafeStream Gigabit Dual-WAN VPN Router |
| TL-ER5120 | Gigabit Load Balance Broadband Router Media Converter |
| MC210CS | Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable |
| MC200CM | Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable |
| MC220L | Gigabit SFP slot supporting mini-GBIC modules, chassis mountable |
| MC1400 | 14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable |
* 規格以原廠最新 Datasheet 為準。
