| General | Standards and Protocols IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ax, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.3aq, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1X, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1X, |
|---|
| IEEE 802.1s, IEEE 802.1w | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ab |
|---|
| Network Media | 10BASE-T 100BASE-TX 100BASE-TX 1000Base-T 1000BASE-T 1000BASE-SX 1000BASE-SX 1000BASE-LX 1000BASE-LX 1000BASE-LX10 1000BASE-LX10 1000BASE-BX10 1000BASE-BX10 10GBase-T 10GBASE-SR 10GBASE-SR 10GBASE-LR 10GBASE-LR |
|---|
| SFP+ Direct Attach Cable | SFP+ Direct Attach Cable |
|---|
| Interfaces | 24 10/100/1000Mbps RJ45 Ports 12 100M/1000M/10Gbps RJ45 Ports 4 10G SFP+ Slots 4 10G SFP+ Slots |
|---|
| Performance | Switching Capacity 128 Gbps 320 Gbps |
|---|
| 包轉發率 | 95.2 Mpps 238.1 Mpps |
|---|
| MAC 位址表 | 16K 1.5 MB 2 MB |
|---|
| Number of IP Interfaces | 16 |
|---|
| Number of Static Routes | 48 (IPv4, IPv6) 32 (IPv4, IPv6) |
|---|
| Jumbo Frame | 9 KB |
|---|
| Physical | Power Supply 100-240V AC, 50-60Hz |
|---|
| & Environment | Max Power Consumption 21.3 W (220 V/50 Hz) 78.3 W (110 V/60 Hz) |
|---|
| Max Heat Dissipation | 72.68 BTU/h 267.16 BTU/h |
|---|
| Dimensions (W × D × H) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) 17.3 × 8.9 × 1.73 in (440 × 227 × 44 mm) |
|---|
| Fan Quantity | Fanless 2 |
|---|
| 工作溫度 | 0°C-40°C (32°F-104°F) |
|---|
| 儲存溫度 | -40°C-70°C (-40°F-158°F) |
|---|
| 工作濕度 | 10%-90%RH, non-condensing |
|---|
| Storage Humidity | 5%-90%RH, non-condensing CE, FCC |
|---|

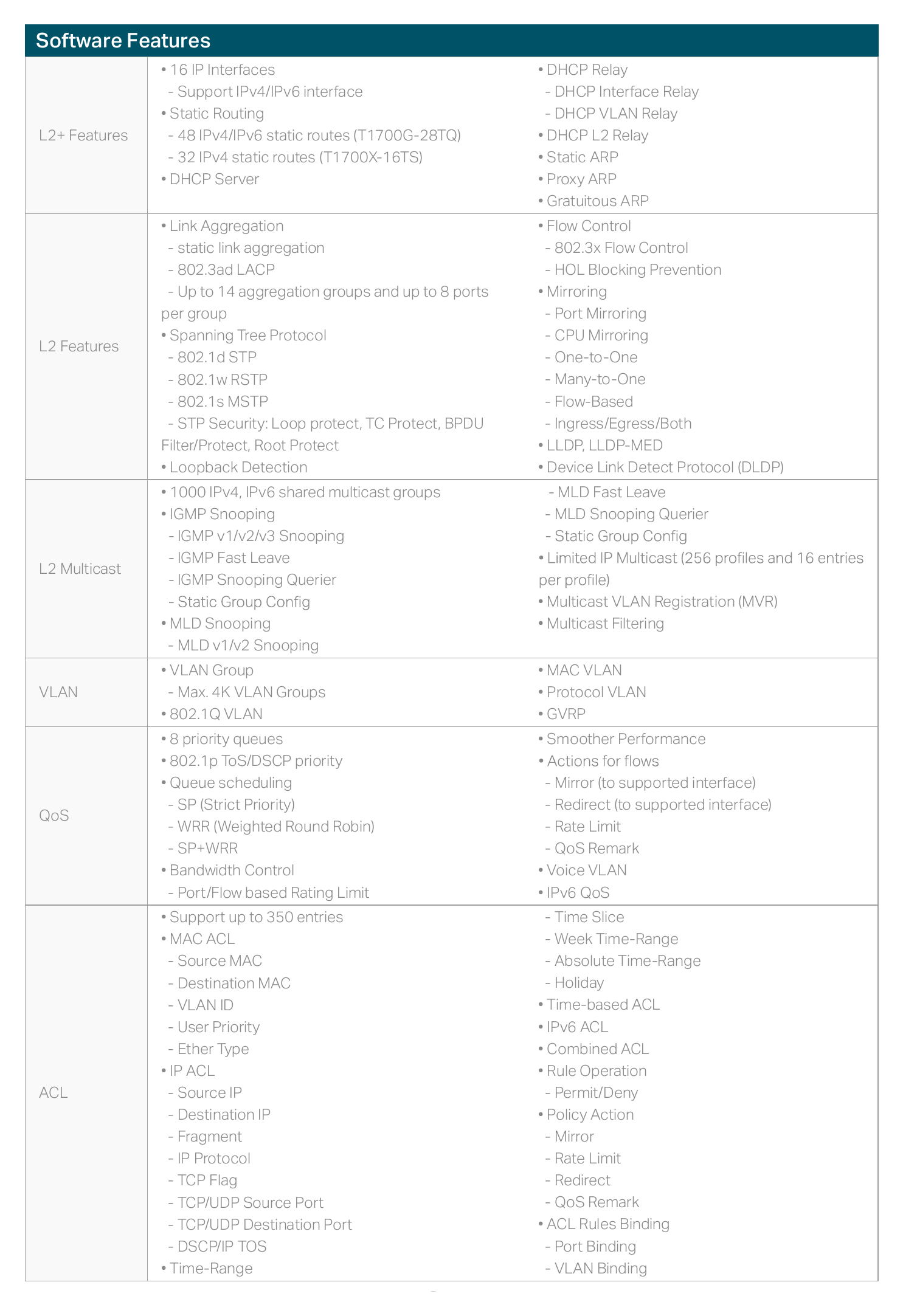

| • 16 IP Interfaces | • DHCP Relay |
|---|
| - Support IPv4/IPv6 interface | - DHCP Interface Relay |
|---|
| • Static Routing | - DHCP VLAN Relay |
|---|
| L2+ Features | - 48 IPv4/IPv6 static routes (T1700G-28TQ) • DHCP L2 Relay |
|---|
| - 32 IPv4 static routes (T1700X-16TS) | • Static ARP |
|---|
| • DHCP Server | • Proxy ARP • Gratuitous ARP |
|---|
| • Link Aggregation | • Flow Control |
|---|
| - static link aggregation | - 802.3x Flow Control |
|---|
| - 802.3ad LACP | - HOL Blocking Prevention - Up to 14 aggregation groups and up to 8 ports • Mirroring |
|---|
| per group | - Port Mirroring |
|---|
| • Spanning Tree Protocol | - CPU Mirroring |
|---|
| - 802.1d STP | - One-to-One |
|---|
| - 802.1w RSTP | - Many-to-One |
|---|
| - 802.1s MSTP | - Flow-Based - STP Security: Loop protect, TC Protect, BPDU - Ingress/Egress/Both |
|---|
| Filter/Protect, Root Protect | • LLDP, LLDP-MED |
|---|
| • Loopback Detection | • Device Link Detect Protocol (DLDP) |
|---|
| • 1000 IPv4, IPv6 shared multicast groups | - MLD Fast Leave |
|---|
| • IGMP Snooping | - MLD Snooping Querier - IGMP v1/v2/v3 Snooping - IGMP Fast Leave - IGMP Snooping Querier • Multicast VLAN Registration (MVR) |
|---|
| • MLD Snooping | • Multicast Filtering - MLD v1/v2 Snooping |
|---|
| • VLAN Group | • MAC VLAN |
|---|
| VLAN | - Max. 4K VLAN Groups • Protocol VLAN |
|---|
| • 802.1Q VLAN | • GVRP |
|---|
| • 8 priority queues | • Smoother Performance • 802.1p ToS/DSCP priority |
|---|
| • Queue scheduling | - Mirror (to supported interface) |
|---|
| - SP (Strict Priority) | - Redirect (to supported interface) |
|---|
| - WRR (Weighted Round Robin) | - Rate Limit |
|---|
| - SP+WRR | - QoS Remark |
|---|
| • Bandwidth Control | • Voice VLAN |
|---|
| - Port/Flow based Rating Limit | • IPv6 QoS |
|---|
| • Support up to 350 entries | - Time Slice |
|---|
| • MAC ACL | - Week Time-Range |
|---|
| - Source MAC | - Absolute Time-Range |
|---|
| - Destination MAC | - Holiday |
|---|
| - VLAN ID | • Time-based ACL |
|---|
| - User Priority | • IPv6 ACL |
|---|
| - Ether Type | • Combined ACL |
|---|
| • IP ACL | • Rule Operation |
|---|
| ACL | - Source IP - Permit/Deny |
|---|
| - Destination IP | • Policy Action |
|---|
| - Fragment | - Mirror |
|---|
| - IP Protocol | - Rate Limit |
|---|
| - TCP Flag | - Redirect |
|---|
| - TCP/UDP Source Port | - QoS Remark |
|---|
| - TCP/UDP Destination Port | • ACL Rules Binding |
|---|
| - DSCP/IP TOS | - Port Binding |
|---|
| • Time-Range | - VLAN Binding |
|---|
| • AAA | - DHCPv6 Snooping |
|---|
| • 802.1X | - ND Detection |
|---|
| - Port based authentication | - IPv6 Source Guard |
|---|
| - MAC (Host) based authentication | • DoS Defend |
|---|
| - VLAN Assignment | • Static/Dynamic/Permanent Port Security |
|---|
| - MAB | - Up to 64 MAC addresses per port |
|---|
| - Guest VLAN | • Broadcast/Multicast/Unicast Storm Control |
|---|
| 安全 | - Support Radius authentication and accountability - kbps/ratio/pps control mode |
|---|
| • IP-MAC-Port Binding | • Port Isolation |
|---|
| - 512 Binding Entries | • Secure web management through HTTPS |
|---|
| - DHCP Snooping | with SSLv3/TLS1.0 |
|---|
| - ARP Inspection | • Secure Command Line Interface (CLI) man- |
|---|
| - IP Source Guard | agement with SSHv1/SSHv2 |
|---|
| • IPv6-MAC Binding | • IP/Port/MAC based access control - 512 Binding Entries |
|---|
| • IPv6 Static Routing and ACL | - DHCPv6 Client |
|---|
| • IPv6 Dual IPv4/IPv6 | - Ping6 |
|---|
| • IPv6 Interface | - Tracert6 • Multicast Listener Discovery (MLD) Snooping - Telnet |
|---|
| IPv6 Support | • IPv6 neighbor discovery (ND) - IPv6 SNMP • Path maximum transmission unit (MTU) discovery - IPv6 SSH • Internet Control Message Protocol (ICMP) version 6 - IPv6 SSL |
|---|
| • TCPv6/UDPv6 | - Http/Https |
|---|
| • IPv6 applications | - IPv6 TFTP |
|---|
| • Web-based GUI | • CPU Monitoring • Command Line Interface (CLI) through telnet • Cable Diagnostics |
|---|
| • SNMPv1/v2c/v3 | • Access Control Management |
|---|
| • SNMP Trap/Inform | • SNTP |
|---|
| • RMON (1,2,3,9 groups) | • System Log |
|---|
| • DHCP Option82 | • Dual Image |
|---|
| • MIB II (RFC1213) | • RMON2 MIB (RFC2021) |
|---|
| • Interface MIB (RFC2233) | • Radius Accounting Client MIB (RFC2620) |
|---|
| • Ethernet Interface MIB (RFC1643) | • Radius Authentication Client MIB (RFC2618) MIBs |
|---|
| • Bridge MIB (RFC1493) | • Remote Ping, Traceroute MIB (RFC2925) |
|---|
| • P/Q-Bridge MIB (RFC2674) | • Support TP-Link private MIBs • RMON MIB (RFC2819) Ordering Information Host Switch |
|---|
| Product Model | Description |
|---|
| T1700G-28TQ | JetStream 24-Port Gigabit Stackable Smart Switch with four 10GE SFP+ Slots |
|---|
| TT1700X-16TS | JetStream 12-Port 10GBase-T Smart Switch with four 10 G SFP+ Slots Auxiliary Products |
|---|
| TXM431-SR | 10GBase-SR SFP+ LC Transceiver |
|---|
| TXM431-LR | 10GBase-LR SFP+ LC Transceiver |
|---|
| TXC432-CU1M | 1M Direct Attach SFP+ Cable |
|---|
| TXC432-CU3M | 3M Direct Attach SFP+ Cable Router |
|---|
| TL-ER6120 | SafeStream Gigabit Dual-WAN VPN Router |
|---|
