tp-link T2600G-28MPS(UN)-V2 為L2 Managed PoE+ Switch，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 T2600G-28MPS(UN)-V2 香港價格連安裝報價。
| 交換容量 | 56Gbps |
|---|---|
| Forwarding Rate | 41.7Mpps |
| MAC 位址表 | 16K Performance 3DFNHW%XƬHU0HPRU\ 1.5Mb |
| Jumbo Frame | 9216Bytes |
| Power Budget | 384W |
| 供電 | 100-240V, 50/60Hz Maximum Power Maximum (PoE on): 468.7W (110V/50Hz) Consumption |
| Dimensions (W × D × H) | 17.3 × 13 × 1.7 in. (440 × 330 × 44 mm) |
| 重量 | 6.0kg Physical & |
| FAN Quantity | 2 |
| 工作溫度 | 0°C~40°C (32°F~104°F) |
| 儲存溫度 | -40°C~70°C (-40°F~158°F) |
| 工作濕度 | 10% ~ 90%RH, non-condensing |
| Storage Humidity | 5%~90%RH, non-condensing |
| &HUWLƮFDWLRQ | CE, FCC |
| • Link Aggregation | •Loopback Detection |
| - Static Link Aggregation | • Flow Control |
| - 802.3ad LACP | - 802.3x Flow Control - Up to 8 aggregation groups, containing 8 ports - HOL Blocking Prevention |
| per group | • Port Mirroring |
| L2 Features | • Spanning Tree Protocol - One-to-One |
| - 802.1D STP | - Many-to-One |
| - 802.1w RSTP | - Flow-Based |
| - 802.1s MSTP | - Tx/Rx/Both - STP Security: Loop back detection, TC Protect, • L2PT BPDU Filter/Protect, Root Protect |
| • Support 1000(IPv4/IPv6)IGMP groups | • MLD Snooping |
| • IGMP Snooping | - MLD v1/v2 Snooping |
| - IGMP v1/v2/v3 Snooping | - MLD Snooping Querier |
| - IGMP Fast Leave | - Fast Leave |
| - Multicast VLAN | -Limited IP Multicast(256 profiles and 16 entries |
| - IGMP Authentication | SHUSURƮOH |
| - IGMP Snooping Querier | - Static Multicast -Limited IP Multicast(256 profiles and 16 entries SHUSURƮOH - Static Multicast |
| • 16 IP Interfaces | • Proxy ARP |
| L3 Features | - supports IPv4 interface • Static Routing |
| - supports IPv6 interface | • 48 static routes |
| • 802.3af/at | •PoE Schedule(Time-based Settings) |
| PoE | • Up to 30W per port • 384W Power Budget • 24 PoE+ Ports |
| • VLAN Group | • Private VLAN |
| - 4K VLAN Groups | • GVRP |
| • 802.1Q Tagged VLAN | • VLAN VPN (QinQ) |
| • MAC VLAN | - Port-Based QinQ |
| - 256 Groups | - Selective QinQ |
| • Protocol VLAN | • VLAN VPN (QinQ) - 16 Groups - 16 Protocols |
| • 802.1p/DSCP priority | r$FWLRQIRUưRZV |
| • 8 Priority Queues | - Mirror(to supported interface) |
| • Queue Scheduling | - Redirect(to supported interface) |
| - SP(Strict Priority) | - Rate Limit |
| - WRR(Weighted Round Robin) | - QoS Remark - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Supports up to 300 entries(up to 600 by Access • Standard IP ACL |
| Template) | - Source IP |
| • MAC ACL | - Destination IP |
| - Source MAC | • Extended IP ACL |
| - Destination MAC | - Source IP |
| - VLAN ID | - Destination IP |
| - User Priority | - Fragment |
| - EtherType | - IP Protocol |
| • Combined ACL | - TCP Flag |
| • IP-MAC-Port Binding | • Static/Dynamic Port Security |
| • DoS Defend | - Up to 64 MAC addresses per port |
| • Dynamic ARP Inspection | • Broadcast/Multicast/Unicast Storm Control |
| • IP Source Guard | - kbps/ratio/pps control mode |
| • 802.1X | • Port Isolation |
| - Port based authentication | • Secure web management through HTTPS with |
| - MAC(Host) based authentication | SSLv3/TLS1.0 |
| - Guest VLAN | • Secure Command Line Interface(CLI) - Support Radius authentication and accountability management with SSHv1/SSHv2 |
| • AAA (including TACACS+) | • IP/Port/MAC based access control |
| OAM | • 802.3ah Ethernet Link OAM • Device Link Detect Protocol(DLDP) |
| • Web-based GUI | • DHCP Snooping • Command Line Interface(CLI) through console • DHCP Option82 |
| port, telnet | • DHCP Relay |
| • sFlow | • 802.1ab LLDP/LLDP-MED |
| • SNMPv1/v2c/v3 | • CPU Monitoring |
| • SNMP Trap/Inform | • Cable Diagnostics |
| • RMON (1,2,3,9 groups) | • Access Control |
| • SDM Template | • Password Recovery |
| •PPPoE Circuit ID | • SNTP |
| • DHCP/BOOTP Client | • System Log |
| • IPv6 Dual IPv4/IPv6 | • TCPv6/UDPv6 • Multicast Listener Discovery(MLD) Snooping • IPv6 applications |
| • IPv6 ACL | - DHCPv6 Client |
| • IPv6 Interface | - Ping6 |
| • Static IPv6 Routing | - Tracert6 |
| IPv6 Support | • DHCPv6 Relay - Telnet(v6) |
| • DHCPv6 Snooping | - IPv6 SNMP |
| • IPv6 neighbor discovery (ND) | - IPv6 SSH • Path maximum transmission unit (MTU) discovery - IPv6 SSL • Internet Control Message Protocol (ICMP)version - Http/Https 6 - IPv6 TFTP |
| • MIB II (RFC1213) | • RMON2 MIB (RFC2021) |
| • Interface MIB (RFC2233) | • Radius Accounting Client MIB (RFC2620) |
| • Ethernet Interface MIB (RFC1643) | • Radius Authentication Client MIB (RFC2618) |
| • Bridge MIB (RFC1493) | • Remote Ping, Traceroute MIB (RFC2925) |
| • P/Q-Bridge MIB (RFC2674) | • Support TP-LINK private MIBs • RMON MIB (RFC2819) Host Switch |
| Product Model | Description |
| T2600G-28MPS | JetStream 24-Port Gigabit L2 managed POE+ Switch with 4 SFP Slots SFP Modules |
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TL-SM321A TX:1550nm/RX:1310nm, 10km Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TL-SM321B TX:1310nm/RX:1550nm, 10km Media Converter |
| MC210CS | Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable |
| MC200CM | Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable |
| MC200L | Gigabit SFP slot supporting mini-GBIC modules, chassis mountable 14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack- MC1400 mountable |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

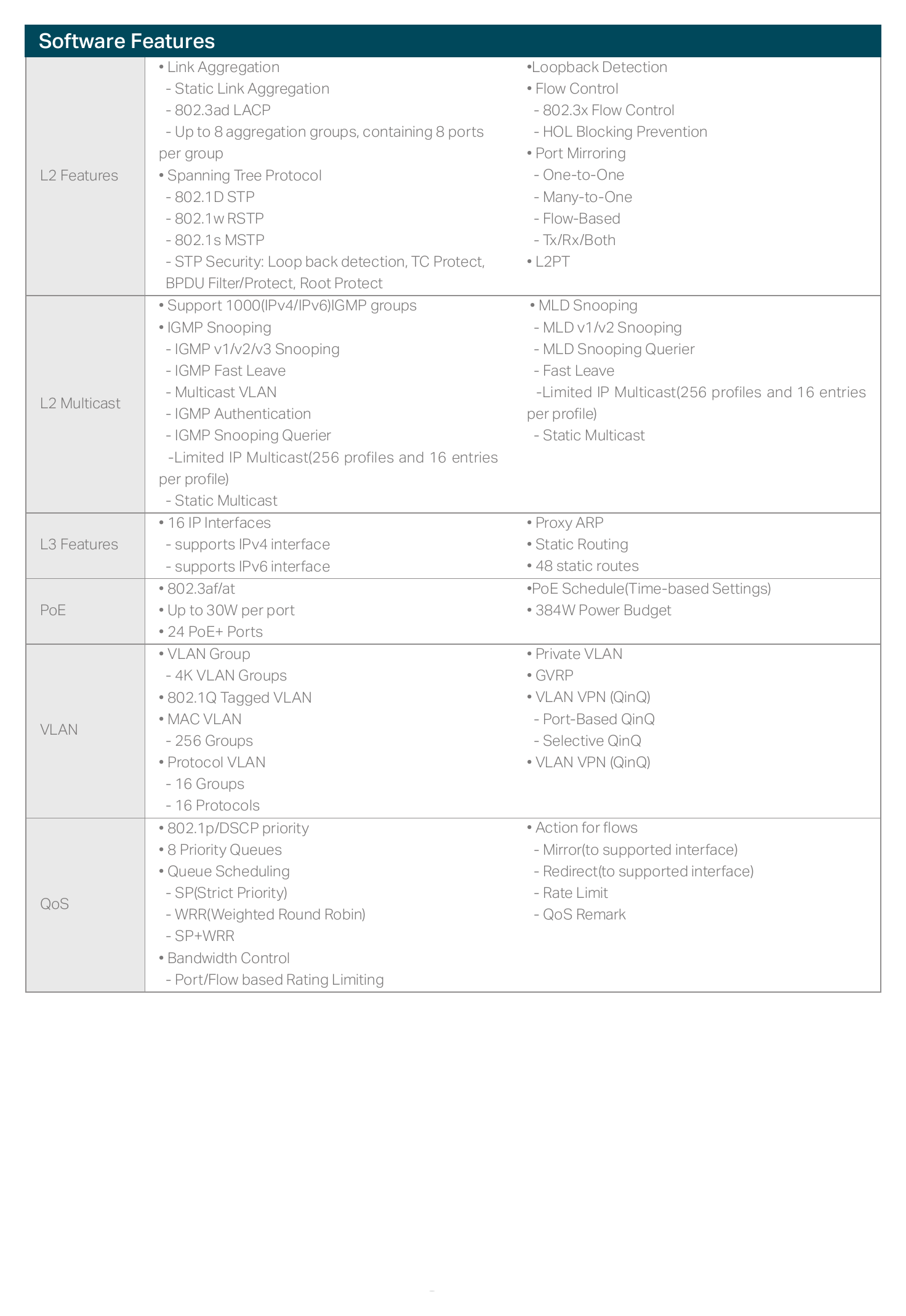

詳見圖示｜Unit: mm
T2600G-28MPS(UN)-V2 tp-link L2 Managed PoE+ Switch亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，T2600G-28MPS(UN)-V2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 官方 App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：儲存溫度方面，T2600G-28MPS(UN)-V2 係 -40°C~70°C (-40°F~158°F)，TAPO-D230S1 係 -40℃ ~60℃；工作濕度方面，T2600G-28MPS(UN)-V2 係 10% ~ 90%RH, non-condensing，TAPO-D230S1 係 10%~90% RH, Non-condensing。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 TAPO-D230S1 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 T2600G-28MPS(UN)-V2 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
