| Interfaces | RJ45 Ports, 2 Gigabit 24 10/100/1000 Mbps RJ45 Ports, 4 Gigabit SFP Slots RJ45 Ports, 4 Gigabit Mbps RJ45 Ports, 4 10 |
|---|
| General | SFP Slots SFP Slots G SFP+ Slots |
|---|
| Console Port | 1 RJ45 Console Port, 1 Micro-USB Console Port Switching 36 Gbps 56 Gbps 128 Gbps 104 Gbps Forwarding 26.8 Mpps 41.7 Mpps 95.2 Mpps 77.4 Mpps Rate |
|---|
| Performance | MAC Address 8K 16K 16K 16K Table 4.1 Mbit 16 Mbit 12 Mbit Memory |
|---|
| Jumbo Frame | 9 KB PoE Stan- 802.3at/af dards |
|---|
| Power over | PoE Capable |
|---|
| / | Port 1–24 (PoE+) / |
|---|
| Ethernet (PoE) | Ports 384 W Budget Product Pictures |
|---|
| 供電 | 100–240 V AC, 50/60 Hz 18–48 V DC 100–240 V AC, 50/60 Hz 18.26 W (220 V/50 Hz) (no PD connected) |
|---|
| Max Power | 11.47 W 15.33 W 15.33 W 450.80 W (110 V/60 HZ) 29.67 W (220 V/50 Hz) 33.52 W (220 V/50 Hz) |
|---|
| 功耗 | (220 V/50 Hz) (220 V/50 HZ) (with 384 W PD connected) 62.30 BTU/h (no PD connected) Max Heat 39.14 BTU/h 52.30 BTU/h 52.30 BTU/h 1536.68 BTU/h 101.23 BTU/h 114.37 BTU/h Dissipation (with 384 W PD connected) |
|---|
| 尺寸 | 17.3 × 8.7 × 1.7 in. 17.3 × 13 × 1.7 in. 17.3 × 8.7 × 1.7 in. Physical & (W × D × H) (440 × 220 × 44 mm) (440 × 330 × 44 mm) (440 × 220 × 44 mm) |
|---|
| Fan Quantity | Fanless 2 Fanless Operating 0 °C–45 °C (32 °F–113 °F) Temperature Storage -40 °C–70 °C (-40 °F–158 °F) Temperature Operating 10% – 90%RH, non-condensing Humidity Storage 5%–90%RH, non-condensing Humidity |
|---|
| &HUWLƮFDWLRQ | CE, FCC |
|---|

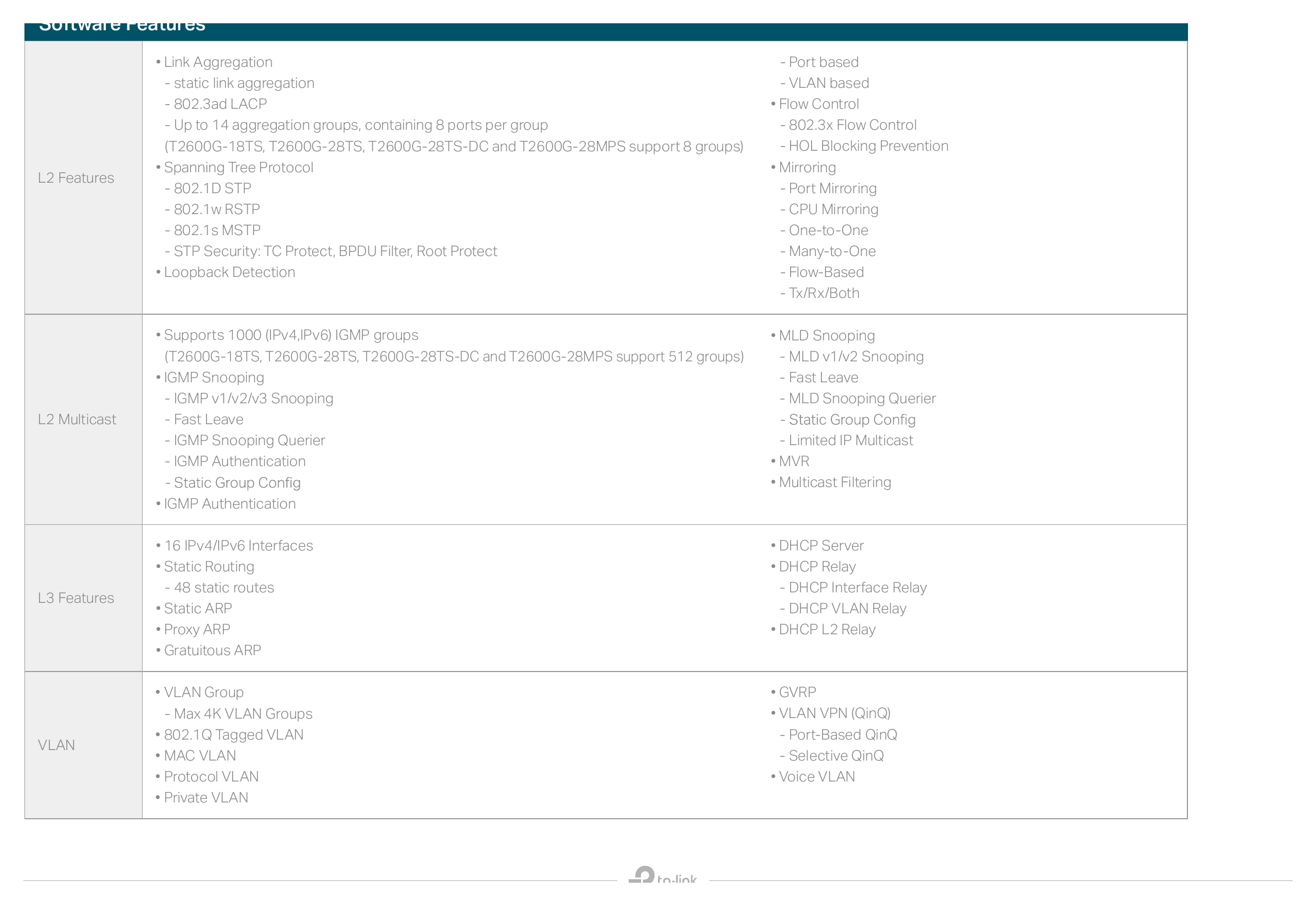

| • Link Aggregation | - Port based |
|---|
| - static link aggregation | - VLAN based |
|---|
| - 802.3ad LACP | • Flow Control - Up to 14 aggregation groups, containing 8 ports per group - 802.3x Flow Control (T2600G-18TS, T2600G-28TS, T2600G-28TS-DC and T2600G-28MPS support 8 groups) - HOL Blocking Prevention |
|---|
| • Spanning Tree Protocol | • Mirroring |
|---|
| - 802.1D STP | - Port Mirroring |
|---|
| - 802.1w RSTP | - CPU Mirroring |
|---|
| - 802.1s MSTP | - One-to-One - STP Security: TC Protect, BPDU Filter, Root Protect - Many-to-One |
|---|
| • Loopback Detection | - Flow-Based - Tx/Rx/Both |
|---|
| • Supports 1000 (IPv4,IPv6) IGMP groups | • MLD Snooping (T2600G-18TS, T2600G-28TS, T2600G-28TS-DC and T2600G-28MPS support 512 groups) - MLD v1/v2 Snooping |
|---|
| • IGMP Snooping | - Fast Leave |
|---|
| - IGMP v1/v2/v3 Snooping | - MLD Snooping Querier |
|---|
| L2 Multicast | - Fast Leave |
|---|
| - IGMP Snooping Querier | - Limited IP Multicast |
|---|
| - IGMP Authentication | • MVR • Multicast Filtering • IGMP Authentication |
|---|
| • 16 IPv4/IPv6 Interfaces | • DHCP Server |
|---|
| • Static Routing | • DHCP Relay |
|---|
| - 48 static routes | - DHCP Interface Relay |
|---|
| • Static ARP | - DHCP VLAN Relay |
|---|
| • Proxy ARP | • DHCP L2 Relay • Gratuitous ARP |
|---|
| • VLAN Group | • GVRP |
|---|
| - Max 4K VLAN Groups | • VLAN VPN (QinQ) |
|---|
| • 802.1Q Tagged VLAN | - Port-Based QinQ |
|---|
| • MAC VLAN | - Selective QinQ |
|---|
| • Protocol VLAN | • Voice VLAN • Private VLAN |
|---|
| • 8 priority queues | • Smoother Performance • 802.1p CoS/DSCP priority |
|---|
| • Queue scheduling | - Mirror (to supported interface) |
|---|
| - SP (Strict Priority) | - Redirect (to supported interface) |
|---|
| - WRR (Weighted Round Robin) | - Rate Limit |
|---|
| - SP+WRR | - QoS Remark • Bandwidth Control - Port/Flow based Rating Limiting • Supports up to 400 entries (up to 560 by SDM - TCP Flag |
|---|
| Template) | - TCP/UDP Port |
|---|
| • Time-based ACL | - DSCP/IP TOS |
|---|
| • MAC ACL | - User Priority |
|---|
| - Source MAC | • Combined ACL |
|---|
| - Destination MAC | • Packet Content ACL |
|---|
| - VLAN ID | • IPv6 ACL |
|---|
| - User Priority | • Policy |
|---|
| - Ether Type | - Mirroring |
|---|
| • IP ACL | - Redirect |
|---|
| -Source IP | - Rate Limit |
|---|
| - Destination IP | - QoS Remark |
|---|
| - Fragment | • ACL apply to Port/VLAN - IP Protocol |
|---|
| • IP-MAC-Port Binding | - Guest VLAN |
|---|
| - DHCP Snooping | - Support Radius authentication and |
|---|
| - ARP Inspection | accountability |
|---|
| - IPv4 Source Guard | • AAA (including TACACS+) |
|---|
| • IPv6-MAC-Port Binding | • Port Isolation |
|---|
| - DHCPv6 Snooping | • Secure web management through HTTPS with |
|---|
| - ND Detection | SSLv3/TLS1.0 |
|---|
| - IPv6 Source Guard | • Secure Command Line Interface (CLI) |
|---|
| • DoS Defend | management with SSHv1/SSHv2 |
|---|
| • Static/Dynamic Port Security | • IP/Port/MAC based access control - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB |
|---|
| • 802.3ah Ethernet Link OAM | • Device Link Detect Protocol (DLDP) |
|---|
| • DDM | • sFlow |
|---|
| • L2PT (Layer 2 Protocol Tunneling) | • PPPoE ID Insertion |
|---|
| • Web-based GUI | • DHCP Auto Install • Command Line Interface (CLI) through console |
|---|
| port, telnet | • CPU Monitoring |
|---|
| • SNMPv1/v2c/v3 | • Cable Diagnostics |
|---|
| Management | - Trap/Inform • EEE |
|---|
| - RMON (1,2,3,9 groups) | • Password Recovery |
|---|
| • SDM Template | • SNTP |
|---|
| • DHCP/BOOTP Client | • System Log • 802.1ab LLDP/LLDP-MED |
|---|
| • IPv6 Dual IPv4/IPv6 | - DHCPv6 Client • Multicast Listener Discovery (MLD) Snooping - Ping6 |
|---|
| • IPv6 ACL | - Tracert6 |
|---|
| • IPv6 Interface | - Telnet (v6) |
|---|
| • Static IPv6 Routing | - IPv6 SNMP |
|---|
| • IPv6 neighbor discovery (ND) | - IPv6 SSH |
|---|
| IPv6 Support | • Path maximum transmission unit (MTU) discovery - IPv6 SSL • Internet Control Message Protocol (ICMP) version 6 - Http/Https |
|---|
| • TCPv6/UDPv6 | - IPv6 TFTP • IPv6 applications |
|---|
| • MIB II (RFC1213) | • RMON2 MIB (RFC2021) |
|---|
| • Interface MIB (RFC2233) | • Radius Accounting Client MIB (RFC2620) |
|---|
| • Ethernet Interface MIB (RFC1643) | • Radius Authentication Client MIB (RFC2618) |
|---|
| • Bridge MIB (RFC1493) | • Remote Ping, Traceroute MIB (RFC2925) |
|---|
| • P/Q-Bridge MIB (RFC2674) | • Support TP-Link private MIBs • RMON MIB (RFC2819) Host Switch |
|---|
| Product Model | Description |
|---|
| T2600G-18TS | JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots |
|---|
| T2600G-28TS | JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots |
|---|
| T2600G-28TS-DC | JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots and DC Power Supply |
|---|
| T2600G-28MPS | JetStream 24-Port Gigabit L2 Managed PoE+ Switch with 4 SFP Slots |
|---|
| T2600G-28SQ | JetStream 28-Port Gigabit SFP L2 Managed Switch |
|---|
| T2600G-52TS | JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots SFP Modules |
|---|
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
|---|
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance |
|---|
| TL-SM321A | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 10 km |
|---|
| TL-SM321B | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 10 km Media Converter |
|---|
| MC210CS | Gigabit single-mode SC SFP Transceiver, up to 15 km, chassis mountable |
|---|
| MC200CM | Gigabit multi-mode SC SFP Transceiver, up to 550 m, chassis mountable |
|---|
| MC200L | Gigabit SFP slot supporting mini-GBIC modules, chassis mountable |
|---|
| MC1400 | 14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable |
|---|
