| General | Interfaces 24 10/100/1000Mbps 48 10/100/1000Mbps 16 10/100/1000Mbps |
|---|
| RJ45 | RJ45 RJ45 4 1000Mbps SFP 4 1000Mbps SFP 2 1000Mbps SFP |
|---|
| Console Port | 1 RJ45 Console Port 1 Micro-USB Console Port |
|---|
| Performance | Switching Capacity 56Gbps 104Gbps 36Gbps |
|---|
| Forwarding Rate | 41.7Mpps 77.4Mpps 26.8Mpps |
|---|
| MAC 位址表 | 16K 8K 3DFNHW%XƬHU0HPRU\ 1.5MB 4.1Mbit |
|---|
| Jumbo Frame | 9216 Bytes |
|---|
| Physical | Power Supply 100-240V AC, 50/60Hz |
|---|
| & Environment | Maximum Power Consumption 19.15W(220V/50HZ) 33.52W(220V/50Hz) 11.47W (220V/50Hz) |
|---|
| Dimensions (W × D × H) | 17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm) |
|---|

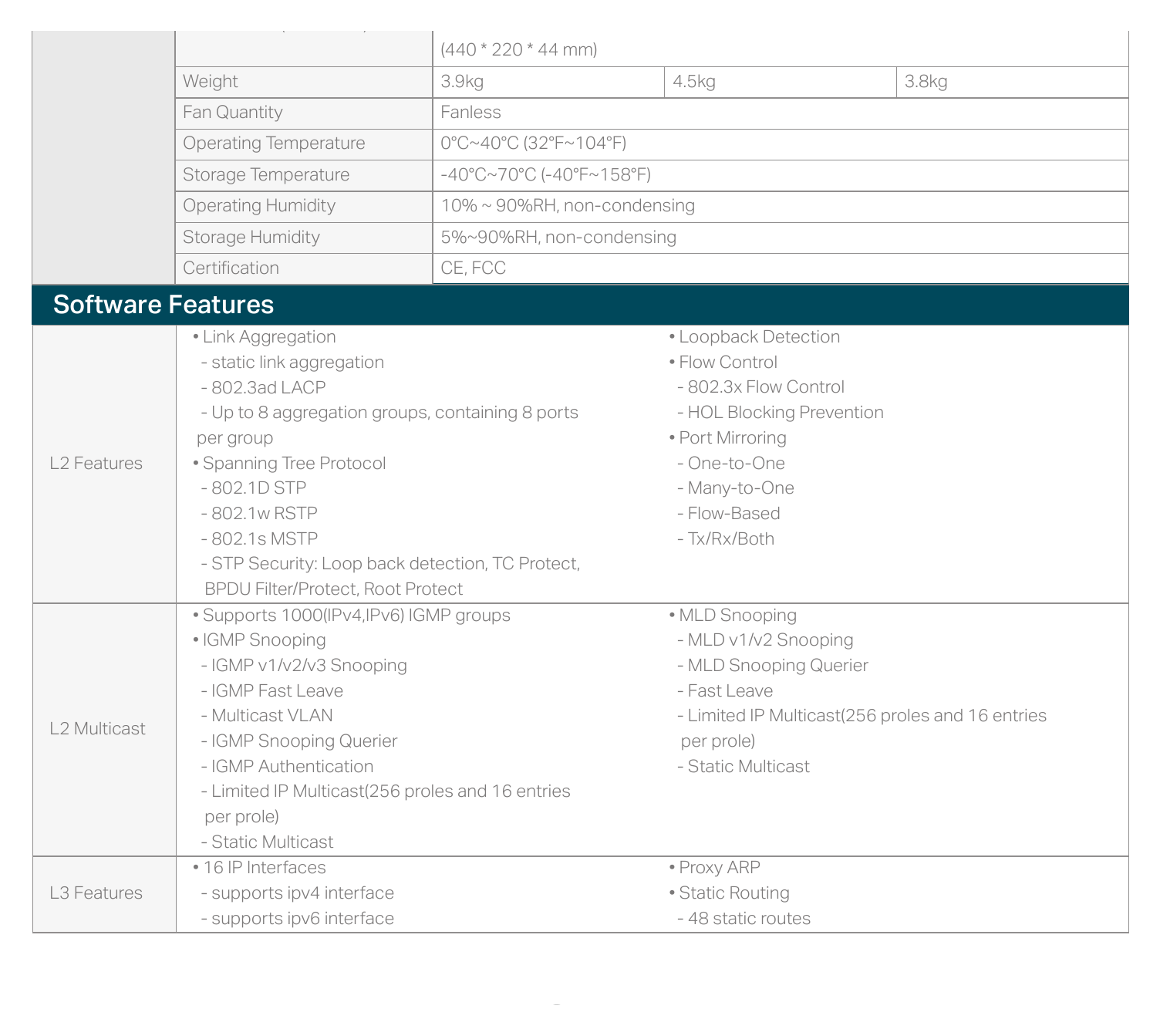

| 重量 | 3.9kg 4.5kg 3.8kg |
|---|
| Fan Quantity | Fanless |
|---|
| 工作溫度 | 0°C~40°C (32°F~104°F) |
|---|
| 儲存溫度 | -40°C~70°C (-40°F~158°F) |
|---|
| 工作濕度 | 10% ~ 90%RH, non-condensing |
|---|
| Storage Humidity | 5%~90%RH, non-condensing |
|---|
| &HUWLƮFDWLRQ | CE, FCC Software Features |
|---|
| • Link Aggregation | • Loopback Detection |
|---|
| - static link aggregation | • Flow Control |
|---|
| - 802.3ad LACP | - 802.3x Flow Control - Up to 8 aggregation groups, containing 8 ports - HOL Blocking Prevention |
|---|
| per group | • Port Mirroring |
|---|
| L2 Features | • Spanning Tree Protocol - One-to-One |
|---|
| - 802.1D STP | - Many-to-One |
|---|
| - 802.1w RSTP | - Flow-Based |
|---|
| - 802.1s MSTP | - Tx/Rx/Both - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect |
|---|
| • Supports 1000(IPv4,IPv6) IGMP groups | • MLD Snooping |
|---|
| • IGMP Snooping | - MLD v1/v2 Snooping |
|---|
| - IGMP v1/v2/v3 Snooping | - MLD Snooping Querier |
|---|
| - IGMP Fast Leave | - Fast Leave |
|---|
| - Multicast VLAN | - Limited IP Multicast(256 proles and 16 entries L2 Multicast |
|---|
| - IGMP Snooping Querier | per prole) |
|---|
| - IGMP Authentication | - Static Multicast - Limited IP Multicast(256 proles and 16 entries per prole) - Static Multicast |
|---|
| • 16 IP Interfaces | • Proxy ARP |
|---|
| L3 Features | - supports ipv4 interface • Static Routing |
|---|
| - supports ipv6 interface | - 48 static routes |
|---|
| • VLAN Group | • Private VLAN1 |
|---|
| - Max. 4K VLAN Groups | • GVRP |
|---|
| • 802.1Q Tagged VLAN | • VLAN VPN(QinQ) VLAN |
|---|
| • MAC VLAN | - Port-Based QinQ |
|---|
| - 256 Groups | - Selective QinQ |
|---|
| • Protocol VLAN | • Voice VLAN |
|---|
| • 802.1p CoS/DSCP priority | • Smoother Performance |
|---|
| • 8 priority queues | • Actions for ows |
|---|
| • Queue scheduling | - Mirror(to supported interface) |
|---|
| - SP(Strict Priority) | - Redirect(to supported interface) QoS |
|---|
| - WRR(Weighted Round Robin) | - Rate Limit |
|---|
| - SP+WRR | - QoS Remark • Bandwidth Control - Port/Flow based Rating Limiting • Supports up to 300 entries(up to 600 by Access • Standard IP ACL |
|---|
| Template) | - Source IP |
|---|
| • Time-based ACL | - Destination IP |
|---|
| • MAC ACL | • Extended IP ACL |
|---|
| - Source MAC | - Source IP |
|---|
| - Destination MAC | - Destination IP |
|---|
| - VLAN ID | - Fragment |
|---|
| ACL | - User Priority - IP Protocol |
|---|
| - EtherType | - TCP Flag |
|---|
| • Combined ACL | - TCP/UDP Port |
|---|
| • ACL apply to Port/VLAN | • IPv6 ACL |
|---|
| • IP-MAC-Port Binding | - Guest VLAN |
|---|
| • DoS Defend | - Support Radius authentication and |
|---|
| • Dynamic ARP Inspection | accountability |
|---|
| • IP Source Guard | • AAA*(including TACACS+) |
|---|
| • Static/Dynamic Port Security | • Port Isolation |
|---|
| 安全 | - Up to 64 MAC addresses per port • Secure web management through HTTPS with • Broadcast/Multicast/Unicast Storm Control SSLv3/TLS1.0 |
|---|
| - kbps/ratio/pps control mode | • Secure Command Line Interface(CLI) |
|---|
| • 802.1X | management with SSHv1/SSHv2 |
|---|
| - Port based authentication | • IP/Port/MAC based access control - MAC(Host) based authentication |
|---|
| OAM | • 802.3ah Ethernet Link OAM • Device Link Detect Protocol(DLDP) |
|---|
| • Web-based GUI | • DHCP Option82 • Command Line Interface(CLI) through console • DHCP Relay |
|---|
| port, telnet | • DHCP Server |
|---|
| • SNMPv1/v2c/v3 | • 802.1ab LLDP/LLDP-MED |
|---|
| • SNMP Trap/Inform | • Dual Image |
|---|
| • RMON (1,2,3,9 groups) | • CPU Monitoring Management |
|---|
| • SDM Template | • Cable Diagnostics |
|---|
| • sFlow2 | • Access Control |
|---|
| • PPPoE Circuit ID | • Password Recovery |
|---|
| • DHCP/BOOTP Client | • SNTP |
|---|
| • DHCP Snooping | • System Log • DDM3 |
|---|
| • IPv6 Dual IPv4/IPv6 | • TCPv6/UDPv6 • Multicast Listener Discovery(MLD) Snooping • IPv6 applications |
|---|
| • IPv6 ACL | - DHCPv6 Client |
|---|
| • IPv6 Interface | - Ping6 |
|---|
| • Static IPv6 Routing | - Tracert6 |
|---|
| IPv6 Support | • DHCPv6 Relay - Telnet(v6) |
|---|
| • DHCPv6 Snooping | - IPv6 SNMP |
|---|
| • IPv6 neighbor discovery (ND) | - IPv6 SSH • Path maximum transmission unit (MTU) discovery - IPv6 SSL • Internet Control Message Protocol (ICMP) - Http/Https |
|---|
| version 6 | - IPv6 TFTP |
|---|
| • MIB II (RFC1213) | • RMON2 MIB (RFC2021) |
|---|
| • Interface MIB (RFC2233) | • Radius Accounting Client MIB (RFC2620) |
|---|
| • Ethernet Interface MIB (RFC1643) | • Radius Authentication Client MIB (RFC2618) MIBs |
|---|
| • Bridge MIB (RFC1493) | • Remote Ping, Traceroute MIB (RFC2925) |
|---|
| • P/Q-Bridge MIB (RFC2674) | • Support TP-Link private MIBs • RMON MIB (RFC2819) Ordering Information Host Switch |
|---|
| Product Model | Description |
|---|
| T2600G-28TS | JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots |
|---|
| T2600G-52TS | JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots |
|---|
| T2600G-18TS | JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots SFP Modules |
|---|
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
|---|
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance |
|---|
| TL-SM321A | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km |
|---|
| TL-SM321B | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km Media Converter |
|---|
| MC210CS | Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable |
|---|
| MC200CM | Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable |
|---|
| MC200L | Gigabit SFP slot supporting mini-GBIC modules, chassis mountable |
|---|
| MC1400 | 14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable |
|---|
