| Standards and Protocols | 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Combo Gigabit SFP Slots Interfaces 1 RJ45 Console Port 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
|---|
| Network Media | 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR |
|---|
| Dimensions ( W x D x H ) | 17.32*13*1.73 in. (440*330*44 mm) |
|---|
| Fan Quantity | 4 |
|---|
| Max Power Consumption | 63W (220V/50Hz) |
|---|
| Max Heat Dissipation | 214.96 BTU/h |
|---|
| 供電 | 100-240V AC, 50/60Hz |
|---|
| Certications | CE, FCC, RoHS Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH, non-condensing Storage Humidity: 5% to 90%RH, non-condensing |
|---|
| 交換容量 | Up to 128Gbps for a standalone switch |
|---|
| Forwarding Rate | Up to 95.2Mpps for a standalone switch |
|---|
| Backplane | Up to 320Gbps when 8 units in the stack |
|---|
| MAC 位址表 | 32K |
|---|
| Performance | 2 MB |
|---|
| Jumbo Frame | 10240Bytes |
|---|
| Number of Routes | 12K |
|---|
| Number of Static Routes | 256 |
|---|
| Number of IP Interfaces | 128 |
|---|
| Installable SFP+ | TXM431-SR |
|---|
| Transceivers and Direct | TXM431-LR |
|---|
| Attach Copper (DAC) | TXC432-CU1M |
|---|
| Physical | Cables TXC432-CU3M |
|---|
| Stacking | Max Number of Stacking 2 SFP+ Ports Installable |
|---|
| Stacking Speed (Per Port) | 20 Gbps (Full-Duplex) |
|---|
| Number of Units Per Stack | 8 |
|---|

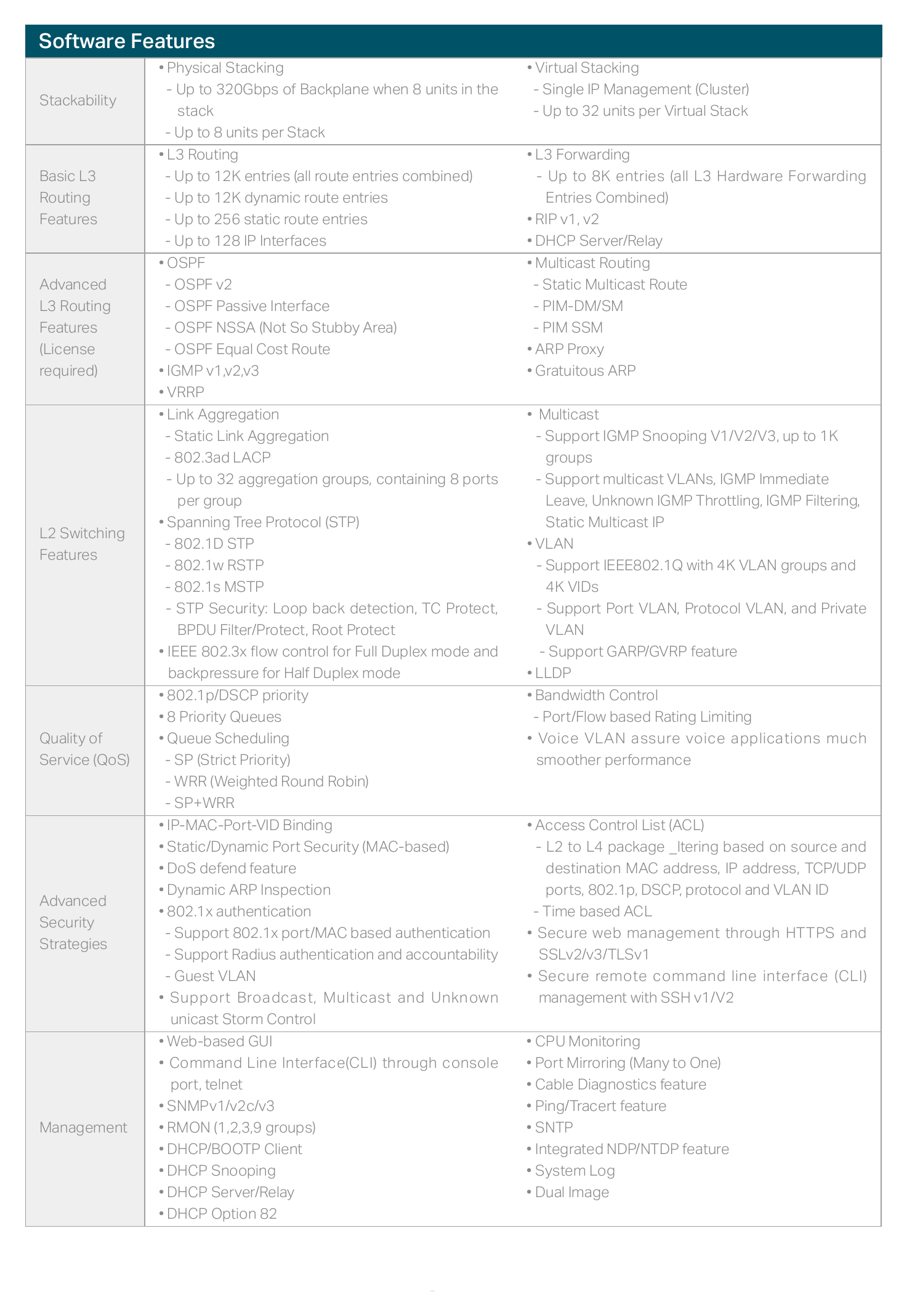

| • Physical Stacking | • Virtual Stacking - Up to 320Gbps of Backplane when 8 units in the - Single IP Management (Cluster) |
|---|
| stack | - Up to 32 units per Virtual Stack - Up to 8 units per Stack |
|---|
| • L3 Routing | • L3 Forwarding |
|---|
| Basic L3 | - Up to 12K entries (all route entries combined) - Up to 8K entries (all L3 Hardware Forwarding |
|---|
| Routing | - Up to 12K dynamic route entries Entries Combined) |
|---|
| Features | - Up to 256 static route entries • RIP v1, v2 |
|---|
| - Up to 128 IP Interfaces | • DHCP Server/Relay |
|---|
| • OSPF | • Multicast Routing |
|---|
| Advanced | - OSPF v2 - Static Multicast Route |
|---|
| L3 Routing | - OSPF Passive Interface - PIM-DM/SM |
|---|
| required) | • IGMP v1,v2,v3 • Gratuitous ARP • VRRP |
|---|
| • Link Aggregation | • Multicast |
|---|
| - Static Link Aggregation | - Support IGMP Snooping V1/V2/V3, up to 1K |
|---|
| - 802.3ad LACP | groups - Up to 32 aggregation groups, containing 8 ports - Support multicast VLANs, IGMP Immediate |
|---|
| per group | Leave, Unknown IGMP Throttling, IGMP Filtering, |
|---|
| • Spanning Tree Protocol (STP) | Static Multicast IP |
|---|
| - 802.1D STP | • VLAN |
|---|
| - 802.1w RSTP | - Support IEEE802.1Q with 4K VLAN groups and |
|---|
| - 802.1s MSTP | 4K VIDs - STP Security: Loop back detection, TC Protect, - Support Port VLAN, Protocol VLAN, and Private |
|---|
| BPDU Filter/Protect, Root Protect | VLAN r,((([ưRZFRQWUROIRU)XOO'XSOH[PRGHDQG - Support GARP/GVRP feature |
|---|
| backpressure for Half Duplex mode | • LLDP |
|---|
| • 802.1p/DSCP priority | • Bandwidth Control |
|---|
| • 8 Priority Queues | - Port/Flow based Rating Limiting |
|---|
| Quality of | • Queue Scheduling • Voice VLAN assure voice applications much |
|---|
| Service (QoS) | - SP (Strict Priority) smoother performance - WRR (Weighted Round Robin) - SP+WRR |
|---|
| • IP-MAC-Port-VID Binding | • Access Control List (ACL) • Static/Dynamic Port Security (MAC-based) - L2 to L4 package _ltering based on source and |
|---|
| • DoS defend feature | destination MAC address, IP address, TCP/UDP |
|---|
| • Dynamic ARP Inspection | ports, 802.1p, DSCP, protocol and VLAN ID |
|---|
| • 802.1x authentication | - Time based ACL - Support 802.1x port/MAC based authentication • Secure web management through HTTPS and - Support Radius authentication and accountability SSLv2/v3/TLSv1 |
|---|
| - Guest VLAN | • Secure remote command line interface (CLI) • Support Broadcast, Multicast and Unknown management with SSH v1/V2 unicast Storm Control |
|---|
| • Web-based GUI | • CPU Monitoring • Command Line Interface(CLI) through console • Port Mirroring (Many to One) |
|---|
| port, telnet | • Cable Diagnostics feature |
|---|
| • SNMPv1/v2c/v3 | • Ping/Tracert feature |
|---|
| Management | • RMON (1,2,3,9 groups) • SNTP |
|---|
| • DHCP/BOOTP Client | • Integrated NDP/NTDP feature |
|---|
| • DHCP Snooping | • System Log |
|---|
| • DHCP Server/Relay | • Dual Image • DHCP Option 82 |
|---|
| • IEEE 802.3i 10BASE-T | • IEEE 802.1p QoS |
|---|
| • IEEE 802.3u 100BASE-TX/FX | • IEEE 802.1q VLANs / VLAN tagging |
|---|
| • IEEE 802.3ab 1000BASE-T | • IEEE 802.1v Protocol VLAN |
|---|
| Ethernet | • IEEE 802.3z 1000BASE-X • IEEE 802.1d Spanning Tree Protocol (STP) |
|---|
| 網絡協議 | • IEEE 802.3ae 10GBASE-SR/LR • IEEE 802.1s Multiple Spanning Tree (MSTP) |
|---|
| • IEEE 802.3av GVRP | • IEEE 802.1w Rapid Spanning Tree (RSTP) |
|---|
| • IEEE 802.3ad Link Aggregation | • IEEE 802.1x Network Login Security • IEEE 802.3x Flow control |
|---|
| • MIB II (RFC1213) | • RMON2 MIB (RFC2021) |
|---|
| • Interface MIB (RFC2233) | • Radius Accounting Client MIB (RFC2620) |
|---|
| • Ethernet Interface MIB (RFC1643) | • Radius Authentication Client MIB (RFC2618) MIBs |
|---|
| • Bridge MIB (RFC1493) | • Remote Ping, Traceroute MIB (RFC2925) |
|---|
| • P/Q-Bridge MIB (RFC2674) | • Support TP-Link private MIBs • RMON MIB (RFC2819) Ordering Information Host Switch |
|---|
| Product Model | Description |
|---|
| T2700G-28TQ | JetStream 28-Port Gigabit Stackable L2+ Managed Switch Auxiliary Products |
|---|
| T2700G-28TQ-L1000 | T2700G-28TQ Layer 3 License Upgrade |
|---|
| TX432 | 10-Gigabit 2-Port SFP + Module |
|---|
| TXM431-SR | 10GBase-SR SFP+ LC Transceiver |
|---|
| TXM431-LR | 10GBase-LR SFP+ LC Transceiver |
|---|
| TXC432-CU1M | 1M Direct Attach SFP+ Cable |
|---|
| TXC432-CU3M | 3M Direct Attach SFP+ Cable |
|---|
| RPS150 | 150W Redundant Power Supply |
|---|
| RPS2 | Dual Bay Rackmountable RPS Shelf |
|---|
| PSM150-AC | 150W AC Power Supply Modul SFP Modules |
|---|
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
|---|
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TL-SM321A TX:1550nm/RX:1310nm, 10km Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TL-SM321B TX:1310nm/RX:1550nm, 10km |
|---|
