| 影像感測器 | 1/2.7“ Progressive Scan CMOS Starlight Sensor Focal Length: 4 mm ± 5% |
|---|
| 鏡頭 | Aperture: F1.6 ± 5% Field of View: 105° (Diagonal), 88° (Horizontal), 45° (Vertical) |
|---|
| Night Vision | 850 nm IR LED (30 m/98 ft), Starlight Color Night Vision |
|---|
| Camera | Day/Night Switch IR-Cut Filter with Auto-Switching |
|---|
| Lighting | 2× Built-in Spotlights 1× RJ45 (10M/100M) Ethernet Port |
|---|
| Interface & Button | 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
|---|
| Hub Compatibility | Compatible with Tapo Hub (sold separately) |
|---|
| Maximum Resolution | 4K 8MP (3840×2160 px) |
|---|
| Frame Rate | 15/20/25 fps |
|---|
| Digital Zoom | 18× |
|---|
| 視頻壓縮 | H.264 |
|---|
| Live View | Yes 3DNR Image Enhancement WDR |
|---|
| Audio Input & Output | Built-in Microphone and Speaker |
|---|
| Video & Audio | Audio Communication Two-Way Audio with Noise Cancellation |
|---|
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
|---|
| 本機儲存 | microSD Card Slot on Camera (Up to 512 GB) |
|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) Facial Recognition Motion Detection Person Detection |
|---|
| AI Detection | Pet Detection Vehicle Detection Line-Crossing Detection Camera Tampering Yes Activity Zones |
|---|
| Network | *Only works with Motion/Person/Pet/Vehicle Detection. System Notification Output Notification System Notification with Snapshot (Tapo Care Services) |
|---|
| Network Connectivity | Connect via Wi-Fi or Ethernet |
|---|
| Wireless Connectivity | IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz / 5 GHz |
|---|
| Wireless Communication | Bluetooth (for setup only) |
|---|
| Technology | Wi-Fi 11b: 11 Mbps 11a/g: 54 Mbps |
|---|
| Transmission Rate | 11n: 72.7Mbps (2.4 GHz), 300 Mbps (5 GHz) 11ac: 433.3 Mbps 11ax: 600Mbps |
|---|
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
|---|
| Ethernet Port | Yes |
|---|
| RTSP | Yes |
|---|
| ONVIF | Yes On-Device Machine Learning |
|---|
| 安全 | Security 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK/WPA3 |
|---|
| Power Source | 12 V DC Power Adapter |
|---|
| Input Voltage | 100-240 V, 50/60 Hz |
|---|
| Output Voltage | 12 V, 1 A (DC Power) Inside Ø: 2.1 mm DC Power Connector Size Outside Ø: 5.5 mm |
|---|
| Power Cord Length | 3m |
|---|
| Typical Power Consumption | 2.5 W Maximum Power Consumption 11.5 W |
|---|
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
|---|
| Weather Resistance | IP66 Wall-Mounted |
|---|
| Mounting Options | Ceiling-Mounted Pole-Mounted |
|---|
| 工作溫度 | -30 ºC ~ 60 ºC (-22 °F ~ 140 °F ) |
|---|
| 儲存溫度 | -40 ºC ~ 60 ºC (-40 °F ~ 140 °F) |
|---|
| 工作濕度 | 10% ~ 90% RH, Non-condensing |
|---|
| Storage Humidity | 0 ~ 90% RH, Non-condensing Mounting Screw Size Bracket Scew Size |
|---|

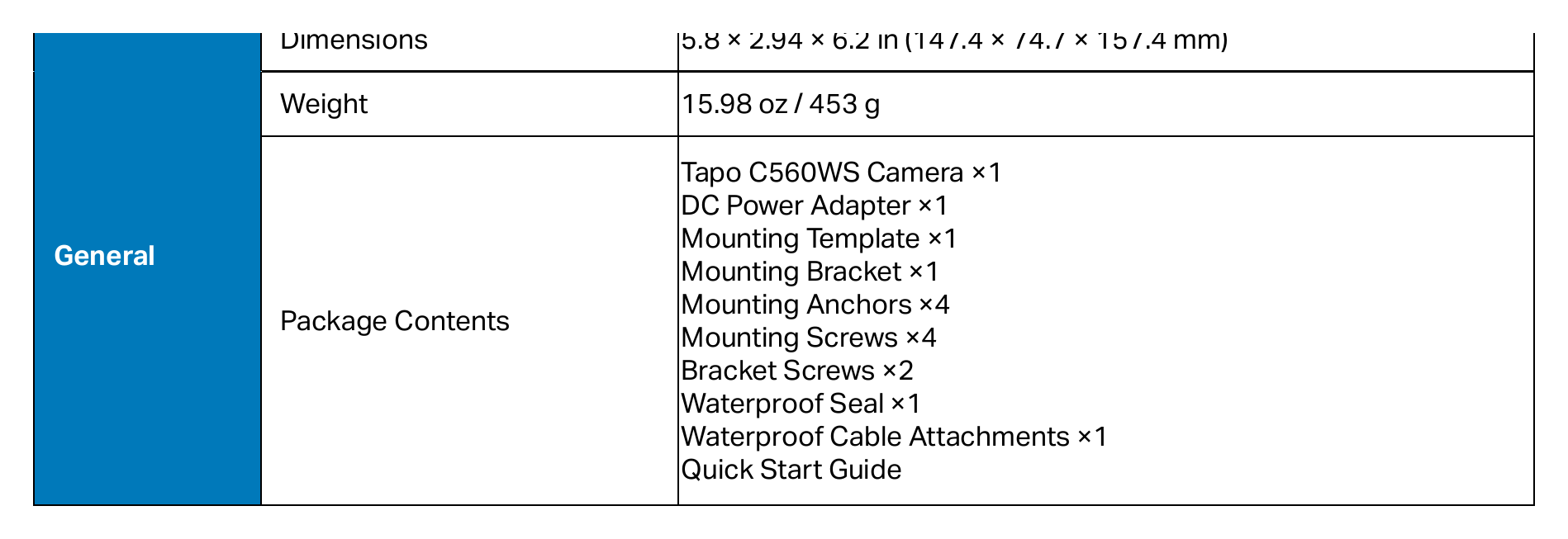

| 尺寸 | 5.8 × 2.94 × 6.2 in (147.4 × 74.7 × 157.4 mm) |
|---|
| 重量 | 15.98 oz / 453 g Tapo C560WS Camera ×1 DC Power Adapter ×1 Mounting Template ×1 Mounting Bracket ×1 Mounting Anchors ×4 Package Contents Mounting Screws ×4 Bracket Screws ×2 Waterproof Seal ×1 Waterproof Cable Attachments ×1 Quick Start Guide |
|---|
