| ADSL2+ Modem Router | TD-8816 Specifications: |
|---|
| 接口 | 1*RJ11 port, 1*Ethernet port |
|---|
| IEEE Standards | Supports 802.3, 802.3u Downstream: Up to 24Mbps Data Rates Upstream: Up to 3.5Mbps (with Annex M enabled) Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.Lite), |
|---|
| ADSL Features | ITU-T G.994.1 (G.hs), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.Lite.bis), ITU-T G.992.5 Supports Annex A/I/J/L/M Max 6 kilometers UNI 3.1/4.0ATM, Adaptation Layer Type 5-AAL5 Multiprotocol encapsulation over ATM (RFC 1483/RFC 2684) |
|---|
| ATM/PPP Protocols | UBR, CBR, VBR-rt, VBR-nrt Supports 8 PVCs OAM F4/F5 Loop-back, AIS and RDI OAM cells PPP over ATM (RFC 2364) PPP Features PPP over Ethernet (RFC 2516) IGMP snooping IGMP multicast Port VLAN IEEE 802.1d transparent learning bridging Clasical IP and ARP over ATM (RFC 1577/2225), MER |
|---|
| Network Protocols and | RIP V1/V2 |
|---|
| Features | Static routing, IP, TCP, UDP, ARP PPP Encapsulation: PAP, CHAP, MS-CHAP NAT, NAPT, DNS, DDNS, DHCP Server UPnP, Virtual Server, DMZ SIP, H.323, ALG Packet Filter |
|---|
| Firewall | Stateful Packet Inspection (SPI) NAT IPSec |
|---|
| VPN Passthrough | PPTP L2TP |
|---|
| QoS | QoS Remarking based on IPP/ToS, DSCP and 802.1p HTTP, TELNET, Console Administration and operation software (firmware) |
|---|
| Device Management | upgradable locally by WEB, TFTP, FTP, Console SNMP V1/V2 CWMP (TR-069) |
|---|
| LEDs | Power, LAN, ADSL, Internet |
|---|

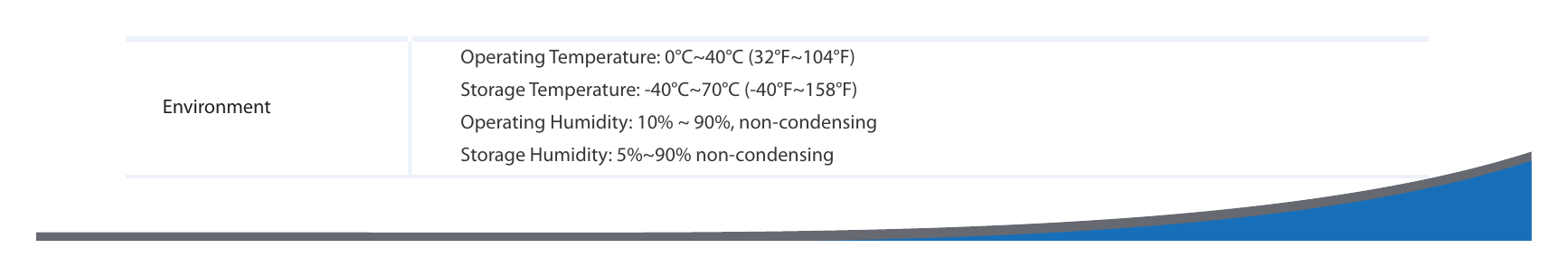

| Dimensions (W x D X H) | 5.5 x 3.6 x 1.1 in. (140 x 92 x 29mm) Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing www.tp-link.com |
|---|
| TF-3239DL | TF-3239DL - Power Adapter 10/100Mbps PCI 10/100Mbps PCI |
|---|
| Network Adapter | Network Adapter (For Desktop PC) (For Desktop PC) Related Products: - 5-Port 10/100Mbps Desktop Switch Internet TL-SF1005D - 10/100Mbps PCI Network Adapter TF-3239DL |
|---|
| TD-8816 | TL-SF1005D |
|---|
| ADSL2+ Modem | 5-Port 10/100Mbps |
|---|
| Router | Desktop Switch www.tp-link.com |
|---|
