| 接口 | 1 RJ11 Port 2 USB 2.0 Ports 1 Power On/Off Button 1 WPS Button Button 1 Wi-Fi On/Off Switch 1 RESET Button |
|---|
| External Power Supply | 12VDC/1.5A |
|---|
| Dimensions (W X D X H) | 9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm) |
|---|

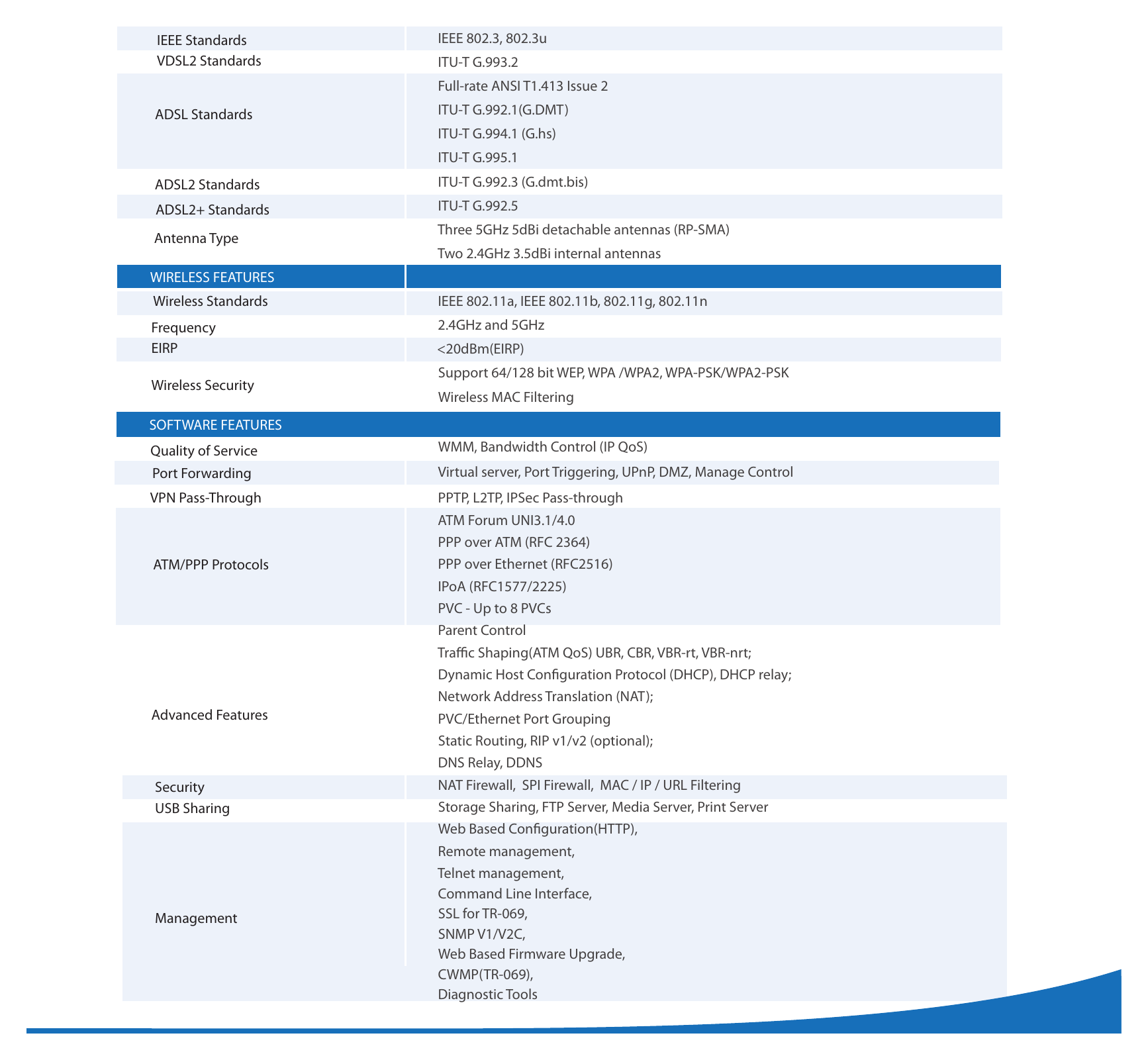

| IEEE Standards | IEEE 802.3, 802.3u |
|---|
| VDSL2 Standards | ITU-T G.993.2 Full-rate ANSI T1.413 Issue 2 |
|---|
| ADSL Standards | ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1 |
|---|
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis) |
|---|
| ADSL2+ Standards | ITU-T G.992.5 Three 5GHz 5dBi detachable antennas (RP-SMA) Antenna Type Two 2.4GHz 3.5dBi internal antennas WIRELESS FEATURES |
|---|
| Wireless Standards | IEEE 802.11a, IEEE 802.11b, 802.11g, 802.11n |
|---|
| Frequency | 2.4GHz and 5GHz |
|---|
| EIRP | <20dBm(EIRP) Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless Security Wireless MAC Filtering SOFTWARE FEATURES |
|---|
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
|---|
| Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
|---|
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) |
|---|
| ATM/PPP Protocols | PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); |
|---|
| Advanced Features | PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS |
|---|
| 安全 | NAT Firewall, SPI Firewall, MAC / IP / URL Filtering |
|---|
| USB Sharing | Storage Sharing, FTP Server, Media Server, Print Server Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, |
|---|
| Management | SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools www.tp-link.com TD-W9980 Specifications： IGMP snooping V1/V2/V3 IGMP IGMP Multicast 10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPSec VPN MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perf |
|---|
| IPv6 | Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 OTHERS |
|---|
| Certification | IPv6, CE, FCC, RoHS Microsoft® Windows® 98SE, NT, 2000, XP, Vista , Windows 7, Windows 8, MAC® OS, NetWare®, System Requirements UNIX® or Linux. |
|---|
| 工作溫度 | 0°C~40°C (32°F~104°F) |
|---|
| 儲存溫度 | -40°C~70°C (-40°F~158°F) |
|---|
| 工作濕度 | 10%~90% non-condensing |
|---|
| Storage Humidity | 5%~90% non-condensing Diagram: 2.4GHz 5GHz TV SET |
|---|
| N600 Wireless Dual Band Gigabit | Set-Top Box & IPTV VDSL2 Modem Router TD-W9980 USB PORT SHARING |
|---|
| Printing or scanning files | Printer1 or Hard drive3 Sharing files/photos/musics/videos /Flash disk connection Package: Related Products: |
|---|
| - N600 Wireless Dual Band Gigabit VDSL2 | - N600 Wireless Dual Band USB Adapter |
|---|
| Modem Router TD-W9980 | TL-WDN3200 |
|---|
| - One Power Adapter | - N600 Wireless Dual Band PCI Express Adapter |
|---|
| - One External splitter (Optional) | TL-WDN3800 - Two RJ-11 Telephone Lines - One RJ-45 Ethernet Cable - Resource CD - Quick Installation Guide Some USB hard drive that works at a high power without using any external power adapter might not be supported. Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are www.tp-link.com trademark |
|---|
