TP-LINK TL-ER604W(UN)-V2 網絡設備安裝・保養

Name: TP-LINK TL-ER604W(UN)-V2 VPN Router
Brand: tp-link
SKU: TL-ER604W(UN)-V2

產品簡介

tp-link TL-ER604W(UN)-V2 為VPN Router，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TL-ER604W(UN)-V2 香港價格連安裝報價。

接口：3 Gigabit LAN ports 1 Gigabit WAN/LAN port 10BASE-T: UTP cat
Network Media：100BASE-TX: UTP category 5, 5e cable (Max 100m) 1000BASE-T:
Antenna：2 detachable 5dBi antennas External Power Adapter
供電：(Output:12VDC/1.0A)
Flash：8MB

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

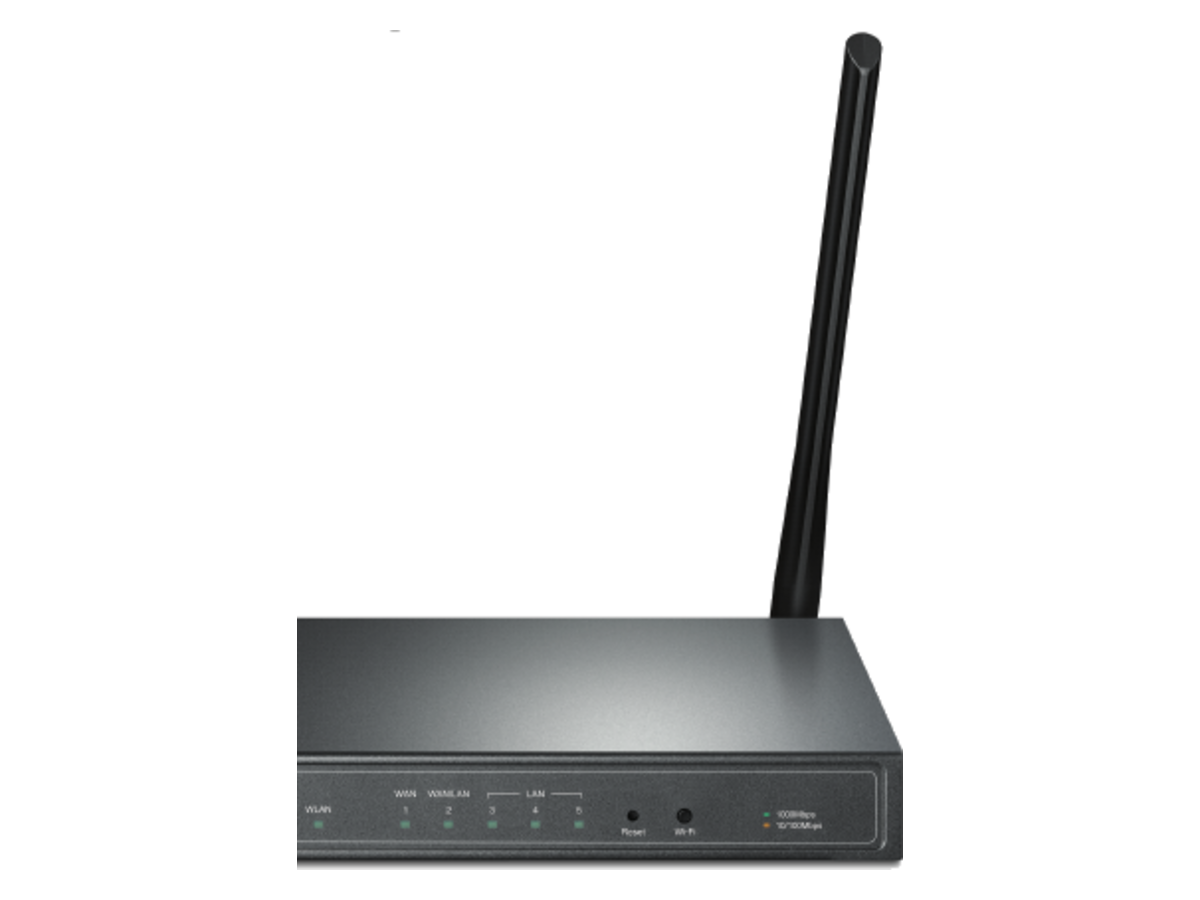

TL-ER604W(UN)-V2 tp-link VPN Router 產品圖片

詳細規格

接口	3 Gigabit LAN ports 1 Gigabit WAN/LAN port 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
Network Media	100BASE-TX: UTP category 5, 5e cable (Max 100m) 1000BASE-T: UTP category 5, 5e cable (Max 100m)
Antenna	2 detachable 5dBi antennas External Power Adapter
供電	(Output:12VDC/1.0A)
Flash	8MB
DRAM	DDRII 64MB
LED	PWR, SYS, WLAN, WAN, WAN/LAN, LAN
Dimensions ( W x D x H )	8.2 x 5.0 x 1.0 in.(209 x 126 x 26 mm)

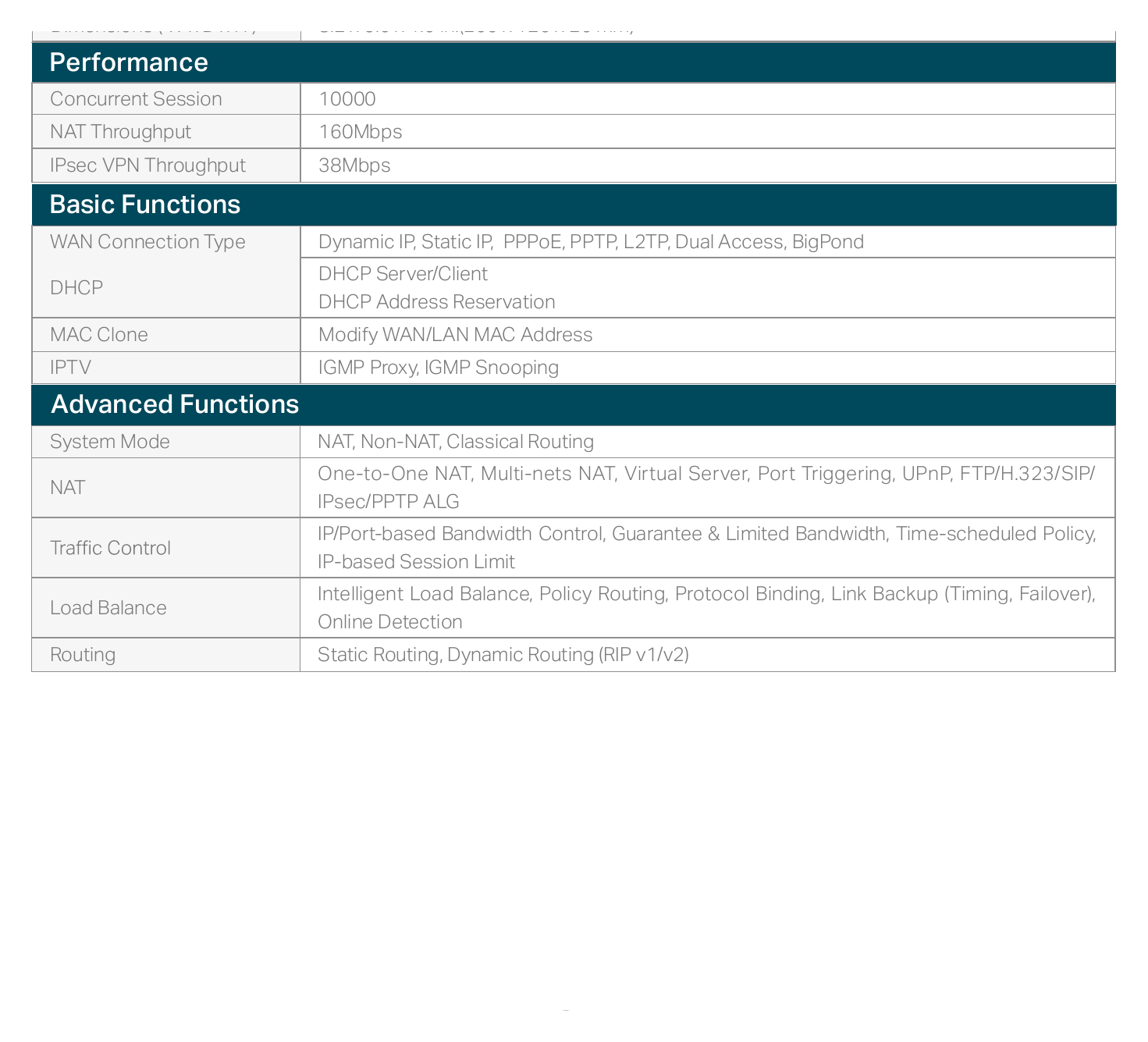

Concurrent Session	10000
NAT Throughput	160Mbps
IPsec VPN Throughput	38Mbps
WAN Connection Type	Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond DHCP Server/Client DHCP Address Reservation
MAC Clone	Modify WAN/LAN MAC Address
IPTV	IGMP Proxy, IGMP Snooping
System Mode	NAT, Non-NAT, Classical Routing One-to-One NAT, Multi-nets NAT, Virtual Server, Port Triggering, UPnP, FTP/H.323/SIP/ IPsec/PPTP ALG IP/Port-based Bandwidth Control, Guarantee & Limited Bandwidth, Time-scheduled Policy, IP-based Session Limit Intelligent Load Balance, Policy Routing, Protocol Binding, Link Backup (Timing, Failover), Online Detection
Routing	Static Routing, Dynamic Routing (RIP v1/v2) 30 IPsec VPN Tunnels LAN-to-LAN and Client-to-LAN IPsec VPN Main Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec VPN	MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) 8 PPTP VPN Tunnels PPTP VPN Server/Client PPTP with MPPE Encryption NetBIOS Passthrough 8 L2TP VPN Tunnels L2TP VPN Server/Client L2TP over IPsec NetBIOS Passthrough
Application Control	IM, P2P, Web IM, Web SNS, Web Media Protocol/Proxy Blocking TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN CSRF Defense MAC Filtering
Filtering	URL/Keywords Filtering Web Content Filtering (Java, ActiveX, Cookies) Sending GARP Packets
ARP Inspection	ARP Scanning by WAN/LAN IP-MAC Binding
EIRP	<20dBm (EIRP) Enable/Disable wireless radio WDS bridge WMM Wireless statistics
Wireless Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Multi-SSID	Up to 8 SSIDs
Service	PPPoE Server, E-Bulletin, Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) Web-based Management Interface, Remote Management
Maintenance	Export & Import Conguration, NTP Synchronize, Syslog Support, SNMP, IP NAT Table CE, FCC, RoHS SafeStream Wireless N Gigabit Broadband VPN Router TL-ER604W, Power Adapter, Package Contents RJ45 Ethernet Cable, Quick Installation Guide, Resource CD
L2TP VPN	50 L2TP VPN Tunnels, L2TP VPN Server/Client, L2TP over IPsec
System Requirements	Microsoft® Windows® 8/7/Vista/XP/2000, MAC® OS, Linux-based operating System Operating Temperature: 0℃ to 40℃ (32 ℉ to 104 ℉ ) Storage Temperature: -40℃ to 70℃ (-40 ℉ to 158 ℉ ) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing Ordering Information
Product Model	Description
TL-ER604W	SafeStream Wireless N Gigabit Broadband VPN Router
