TP-LINK TL-SG1024D-V2 網絡設備安裝・保養

Name: TP-LINK TL-SG1024D-V2 8/16/24-Port
Brand: tp-link
SKU: TL-SG1024D-V2

產品簡介

tp-link TL-SG1024D-V2 為8/16/24-Port，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TL-SG1024D-V2 香港價格連安裝報價。

Store and forward：TL-SG1008 / TL-SG1016D / TL-SG1024D Auto-MDI/MDIX Auto-negot
Easy to use：according to the link status and cable length to limit the c
Plug and Play design：network. It also complies with the EU’S RoHS, prohibiting th
Quiet/Fanless design：materials. Besides, 80% of the packaging material can be rec
www.tp-link.com：Copyright © 2012 TP-LINK Technologies Co., Ltd. All rights r

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Store and forward	TL-SG1008 / TL-SG1016D / TL-SG1024D Auto-MDI/MDIX Auto-negotiation MAC address auto-learning and TP-LINK Green Technology auto-aging This new generation TL-SG1008/TL-SG1016D/TL-SG1024D Gigabit Switch features 10KB Jumbo frame the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption
Easy to use	according to the link status and cable length to limit the carbon footprint of your
Plug and Play design	network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous
Quiet/Fanless design	materials. Besides, 80% of the packaging material can be recycled. High Performance All 8/16/24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1008/TL-SG1016D/TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo
www.tp-link.com	Copyright © 2012 TP-LINK Technologies Co., Ltd. All rights reserved. Specifications： Product Picture
IEEE 802.3,	IEEE 802.3, IEEE 802.3,
Standards	IEEE 802.3u, IEEE 802.3u, IEEE 802.3u,
IEEE 802.3x	IEEE 802.3x IEEE 802.3x
Network Ports	810/100/1000Mbps RJ45 ports 1610/100/1000Mbps RJ45 ports 24*10/100/1000Mbps RJ45 ports
Auto Negotiation	YES YES YES
Auto MDI/MDIX	YES YES YES
Windows 2000/XP/Vista/7	Windows 2000/XP/Vista/7 Windows 2000/XP/Vista/7
Systems	Linux/MAC OS Linux/MAC OS Linux/MAC OS
轉發方式	Store and Forward Store and Forward Store and Forward
Switch Capacity	16 Gbps 32 Gbps 48 Gbps
MAC 位址表	8K 8K 8K
Jumbo Frame	10 KB 10 KB 10 KB
Flow Conrol	YES YES YES
Fanless	YES YES YES
Green Technology	YES YES YES
Power Saving	Up to 75% Up to 40% Up to 40%
LED	Power、1000Mbps、Link/Act Power、1000Mbps、Link/Act Power、1000Mbps、Link/Act
尺寸	29418044 mm 29418044 mm 29418044 mm

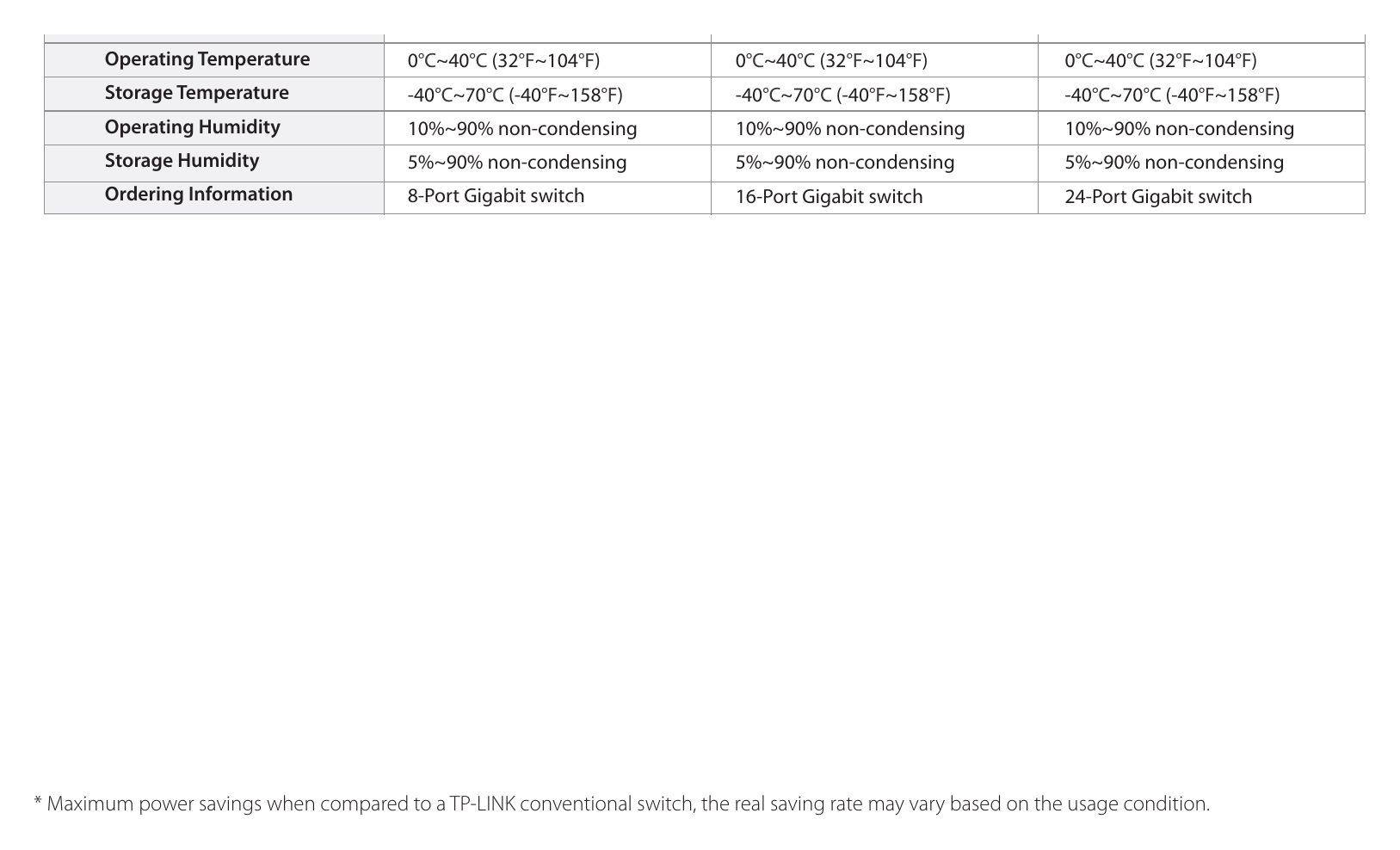

工作溫度	0°C~40°C (32°F~104°F) 0°C~40°C (32°F~104°F) 0°C~40°C (32°F~104°F)
儲存溫度	-40°C~70°C (-40°F~158°F) -40°C~70°C (-40°F~158°F) -40°C~70°C (-40°F~158°F)
工作濕度	10%~90% non-condensing 10%~90% non-condensing 10%~90% non-condensing
Storage Humidity	5%~90% non-condensing 5%~90% non-condensing 5%~90% non-condensing
Ordering Information	8-Port Gigabit switch 16-Port Gigabit switch 24-Port Gigabit switch
