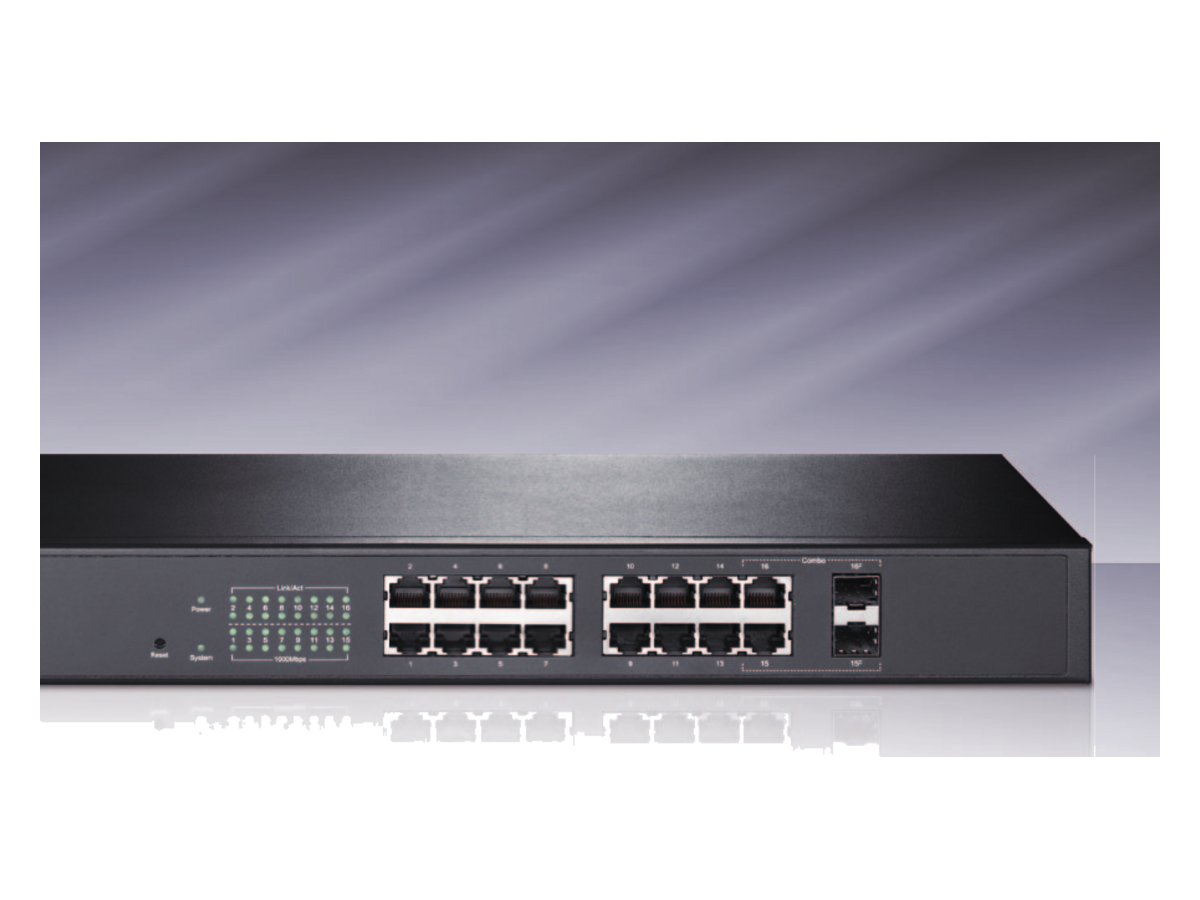

TP-LINK TL-SG2216-V1 網絡設備安裝・保養

Name: TP-LINK TL-SG2216-V1 TP-LINK
Brand: tp-link
SKU: TL-SG2216-V1

產品簡介

tp-link TL-SG2216-V1 為TP-LINK，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TL-SG2216-V1 香港價格連安裝報價。

RJ45 Port：16 Connector
Gigabit SFP Port：2(Combo)
供電：100-240VAC, 50/60Hz
Fan Quantity：Fanless
Certification：CE, FCC

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

RJ45 Port	16 Connector
Gigabit SFP Port	2(Combo)
供電	100-240VAC, 50/60Hz
Fan Quantity	Fanless
Certification	CE, FCC

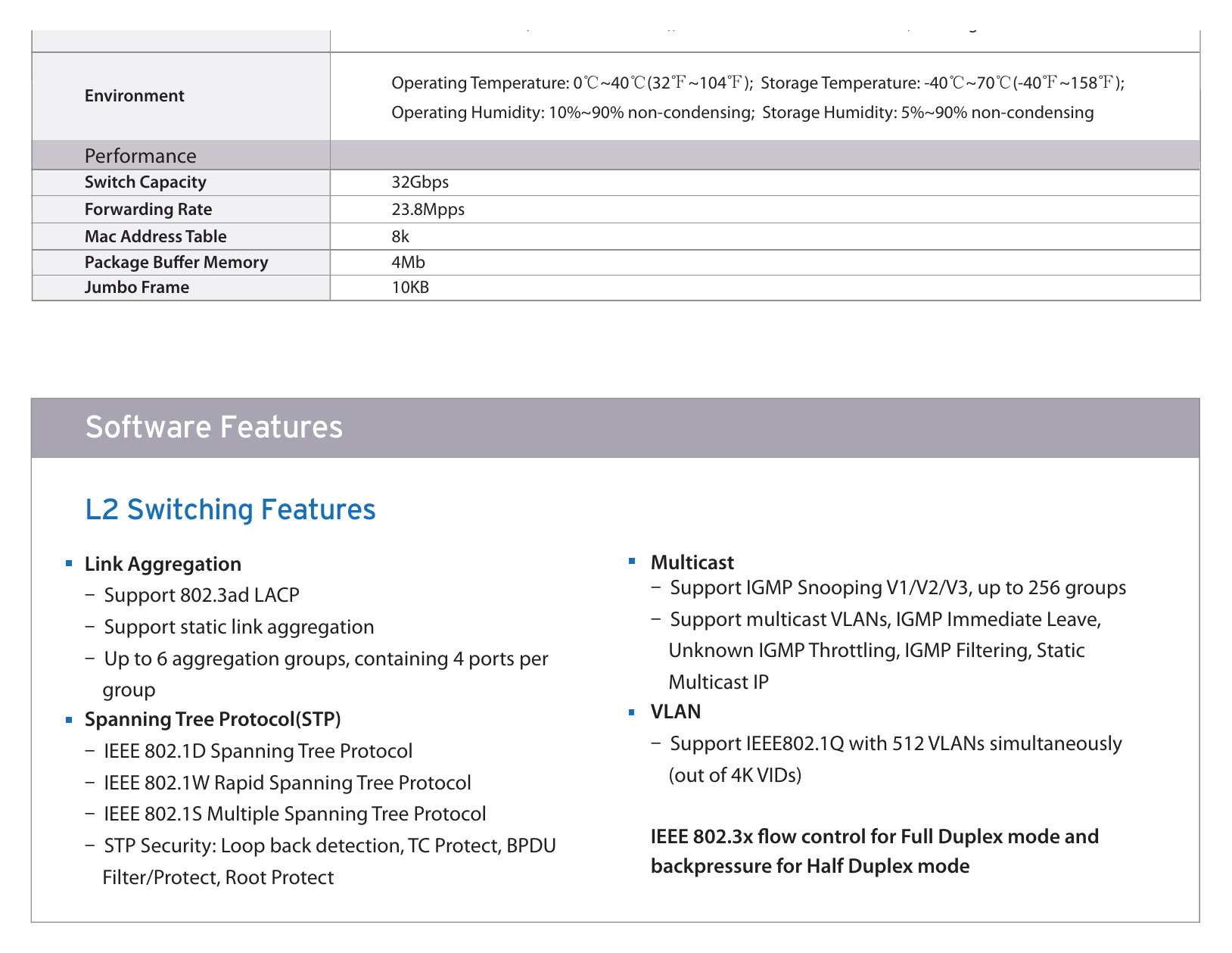

Dimensions (W x D x H)	17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm), 19-inch Rack mount Steel Case, 1U Height Operating Temperature: 0℃~40℃(32℉~104℉); Storage Temperature: -40℃~70℃(-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing Performance
Switch Capacity	32Gbps
Forwarding Rate	23.8Mpps
MAC 位址表	8k
Package Buffer Memory	4Mb
Jumbo Frame	10KB Software Features L2 Switching Features
Link Aggregation	Multicast
– Support 802.3ad LACP	– Support IGMP Snooping V1/V2/V3, up to 256 groups
– Support static link aggregation	– Support multicast VLANs, IGMP Immediate Leave, – Up to 6 aggregation groups, containing 4 ports per Unknown IGMP Throttling, IGMP Filtering, Static
group	Multicast IP
Spanning Tree Protocol(STP)	VLAN
– IEEE 802.1D Spanning Tree Protocol	– Support IEEE802.1Q with 512 VLANs simultaneously – IEEE 802.1W Rapid Spanning Tree Protocol (out of 4K VIDs) – IEEE 802.1S Multiple Spanning Tree Protocol – STP Security: Loop back detection, TC Protect, BPDU IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode Filter/Protect, Root Protect
www.tp-link.com	Copyright © 2013 TP-LINK Technologies Co., Ltd. All rights reserved.
Quality of Service (QoS)	Cable Diagnostics feature Ping/Tracert feature Support 802.1p CoS/DSCP priority System Log Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR	Ethernet Protocols Port/Flow- based Rate Limiting IEEE 802.3i 10BASE-T Voice VLAN assure voice applications much smoother IEEE 802.3u 100BASE-TX/FX performance IEEE 802.3ab 1000BASE-T
Advanced Security Strategies	IEEE 802.3z 1000BASE-X IEEE 802.3x Flow control Support Broadcast, Multicast and Unknown unicast Storm IEEE 802.1p QoS Control IEEE 802.1q VLANs / VLAN tagging Static/Dynamic Port Security (MAC-based) IEEE 802.1D Spanning Tree Protocol (STP) Access Control List (ACL)-L2~L4 package filtering based on IEEE 802.1W Rapid Spanning Tree (RSTP) source and destination MAC address, IP address, TCP/UDP IEEE
SSL and SSH encryptions	MIBs
Management	MIB II (RFC1213) Interface MIB (RFC2233) Support Web-based GUI management mode Ethernet Interface MIB (RFC1643) Support Command Line Interface(CLI) through telnet Bridge MIB (RFC1493) management mode P/Q-Bridge MIB (RFC2674) SNMP v1/v2c/v3 RMON MIB (RFC2819) RMON (1, 2, 3, 9 groups) RMON2 MIB (RFC2021) DHCP/BOOTP Client Remote Ping, Traceroute MIB (RFC2925) CPU Monitoring Support TP-LINK private M
Product Model	Description
TL-SG2424	16-Port Gigabit Smart Switch with 2 Combo SFP Slots Router
TL-ER6120	SafeStream Gigabit Dual-WAN VPN Router
TL-ER5120	Gigabit Load Balance Broadband Router SFP Modules
TL-SM311LS	Gigabit SFP module, Single-mode, LC interface, Up to 10km distance
TL-SM311LM	Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance
TL-SM321A	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km
TL-SM321B	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km Media Converter
MC210CS	Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable
MC200CM	Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable
MC220L	Gigabit SFP slot supporting mini-GBIC modules, chassis mountable
MC1400	14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable
