TP-LINK TL-SG2424P-V1 網絡設備安裝・保養

Name: TP-LINK TL-SG2424P-V1 Power Budget
Brand: tp-link
SKU: TL-SG2424P-V1

產品簡介

tp-link TL-SG2424P-V1 為Power Budget，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TL-SG2424P-V1 香港價格連安裝報價。

Base-T Ports：24 Combo
Connector：100/1000Mbps 4 SFP slots*
供電：100-240VAC, 50/60Hz
FAN Quantity：3
Certifications：CE, FCC Standard: 802.3at/af compliant

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Base-T Ports	24 Combo
Connector	100/1000Mbps 4 SFP slots*
供電	100-240VAC, 50/60Hz
FAN Quantity	3
Certifications	CE, FCC Standard: 802.3at/af compliant

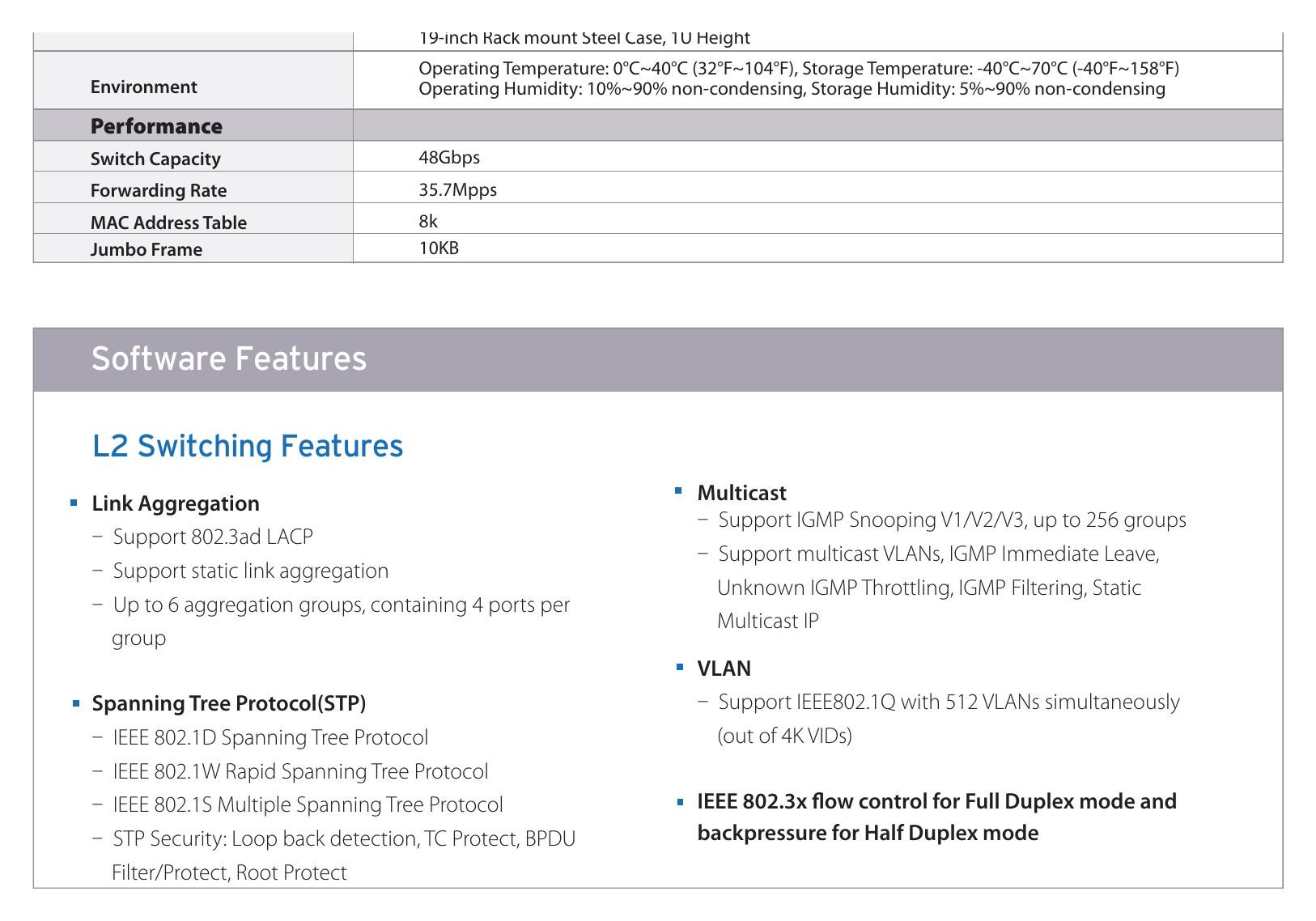

PoE Features	PoE Ports: 24 Ports PoE Power Supply: 180W 17.3 × 13 × 1.7 in. (440 × 330 × 44 mm) Dimensions (W × D × H) 19-inch Rack mount Steel Case, 1U Height Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F)
Environment	Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing Performance
Switch Capacity	48Gbps
Forwarding Rate	35.7Mpps
MAC 位址表	8k
Jumbo Frame	10KB Software Features L2 Switching Features
Link Aggregation	Multicast – Support IGMP Snooping V1/V2/V3, up to 256 groups – Support 802.3ad LACP – Support multicast VLANs, IGMP Immediate Leave, – Support static link aggregation Unknown IGMP Throttling, IGMP Filtering, Static – Up to 6 aggregation groups, containing 4 ports per Multicast IP group VLAN
Spanning Tree Protocol(STP)	– Support IEEE802.1Q with 512 VLANs simultaneously
– IEEE 802.1D Spanning Tree Protocol	(out of 4K VIDs) – IEEE 802.1W Rapid Spanning Tree Protocol – IEEE 802.1S Multiple Spanning Tree Protocol IEEE 802.3x flow control for Full Duplex mode and – STP Security: Loop back detection, TC Protect, BPDU backpressure for Half Duplex mode Filter/Protect, Root Protect
www.tp-link.com	Copyright © 2013 TP-LINK Technologies Co., Ltd. All rights reserved.
Quality of Service (QoS)	CPU Monitoring Port Mirroring (Many to One) Support 802.1p CoS/DSCP priority Cable Diagnostics feature Support 4 priority queues Ping/Tracert feature Queue scheduling: SP, WRR, SP+WRR SNTP Port/Flow- based Rate Limiting System Log Voice VLAN assure voice applications much smoother performance Ethernet Protocols Advanced Security Strategies IEEE 802.3i 10BASE-T Support Broadcast, Multicast and Unkn
Management	MIB II (RFC1213) Interface MIB (RFC2233) Support Web-based GUI management mode Ethernet Interface MIB (RFC1643) Support Command Line Interface(CLI) through telnet Bridge MIB (RFC1493) management mode P/Q-Bridge MIB (RFC2674) SNMP v1/v2c/v3 RMON MIB (RFC2819) RMON (1, 2, 3, 9 groups) RMON2 MIB (RFC2021) DHCP/BOOTP Client Remote Ping, Traceroute MIB (RFC2925) DHCP Filtering Support TP-LINK private M
Product Model	Description
TL-SG2424P	24-Port Gigabit Smart PoE Switch with 4 Combo SFP Slots SFP Modules
TL-SM311LS	Gigabit SFP module, Single-mode, LC interface, Up to 10km distance
TL-SM311LM	Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance
TL-SM321A	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km
TL-SM321B	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km
MC210CS	Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable
MC200CM	Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable
MC220L	Gigabit SFP slot supporting mini-GBIC modules, chassis mountable
MC1400	14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable * The switch supports 100/1000Mbps SFP module at full-duplex mode. When using the SFP port with a 100M module or a gigabit module, you need to configure its corresponding Speed and Duplex mode through firmware. By factory default, the Speed and Duplex mode of SFP port is 1000Mbps Full-duplex.
