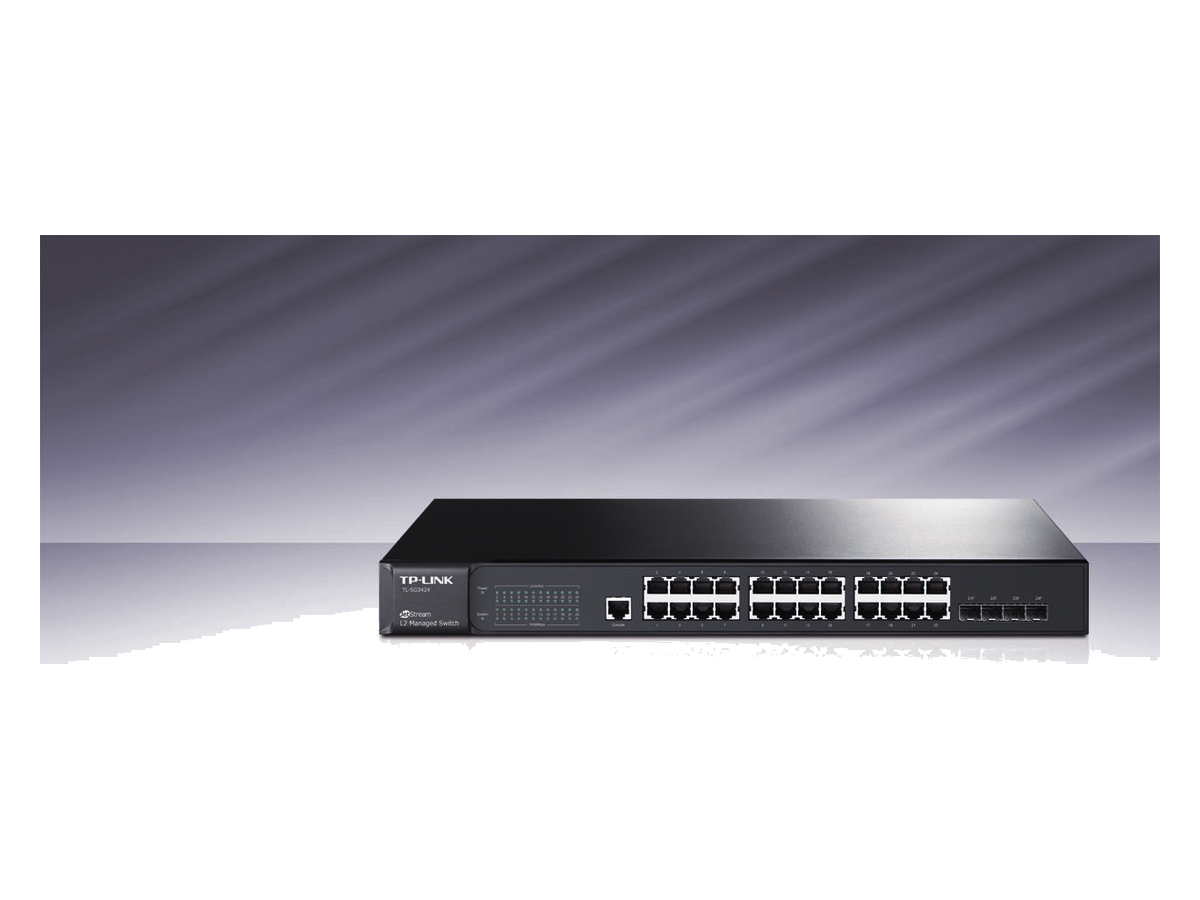

TP-LINK TL-SG3424-V2 網絡設備安裝・保養

Name: TP-LINK TL-SG3424-V2 TP-LINK
Brand: tp-link
SKU: TL-SG3424-V2

產品簡介

tp-link TL-SG3424-V2 為TP-LINK，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TL-SG3424-V2 香港價格連安裝報價。

Connector：Combo Gigabit SFP slots*
Console Port：1
供電：100-240VAC, 50/60Hz
FAN Quantity：0
Certification：CE, FCC 17.3 × 8.7 × 1.7 in. (440 × 220 × 44 mm) Dimensions(

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Connector	Combo Gigabit SFP slots*
Console Port	1
供電	100-240VAC, 50/60Hz
FAN Quantity	0

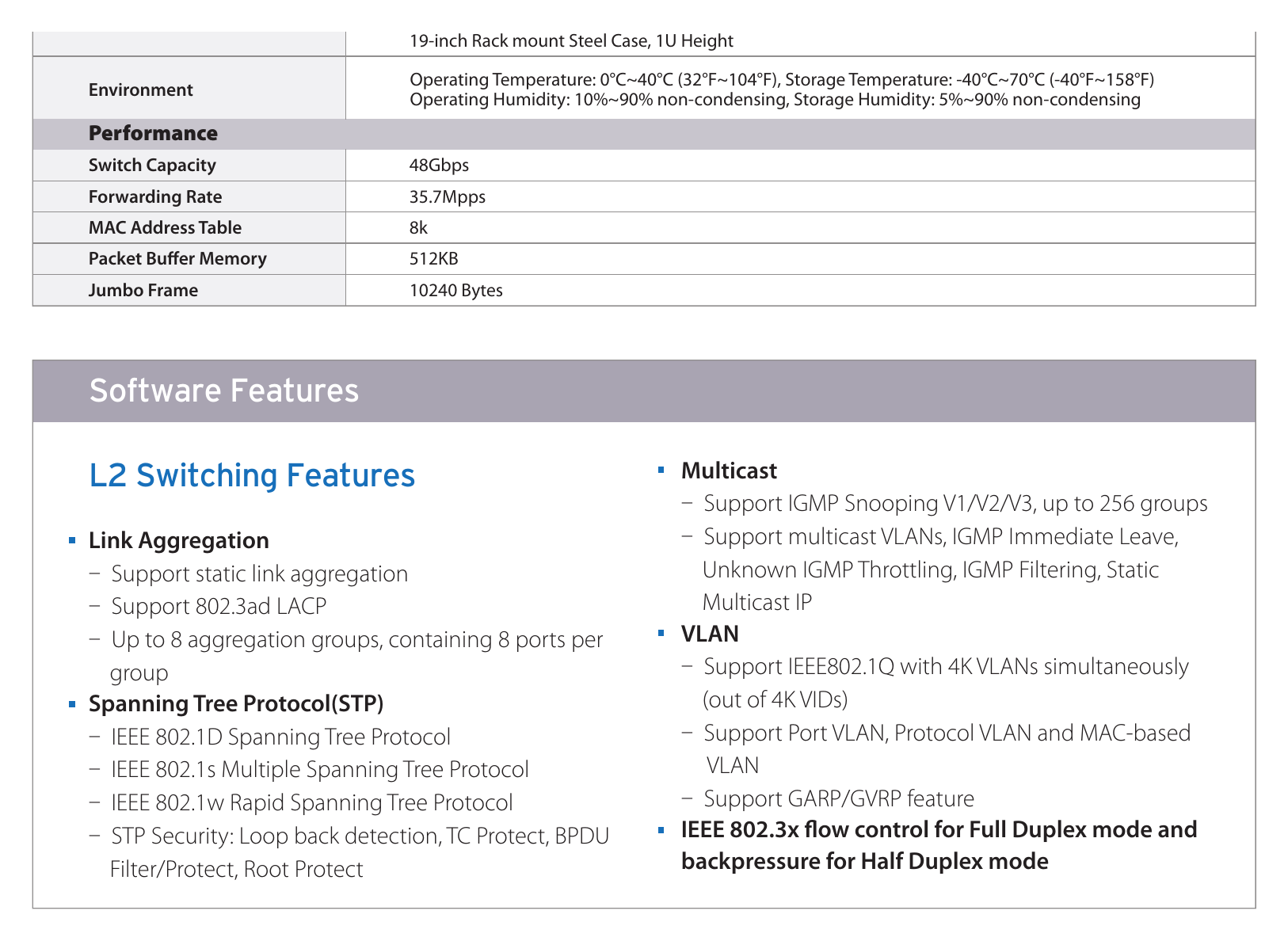

Certification	CE, FCC 17.3 × 8.7 × 1.7 in. (440 × 220 × 44 mm) Dimensions(W × D × H) 19-inch Rack mount Steel Case, 1U Height Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing Performance
Switch Capacity	48Gbps
Forwarding Rate	35.7Mpps
MAC 位址表	8k
Packet Buffer Memory	512KB
Jumbo Frame	10240 Bytes Software Features
L2 Switching Features	Multicast – Support IGMP Snooping V1/V2/V3, up to 256 groups
Link Aggregation	– Support multicast VLANs, IGMP Immediate Leave,
– Support static link aggregation	Unknown IGMP Throttling, IGMP Filtering, Static
– Support 802.3ad LACP	Multicast IP – Up to 8 aggregation groups, containing 8 ports per VLAN
group	– Support IEEE802.1Q with 4K VLANs simultaneously
Spanning Tree Protocol(STP)	(out of 4K VIDs)
– IEEE 802.1D Spanning Tree Protocol	– Support Port VLAN, Protocol VLAN and MAC-based – IEEE 802.1s Multiple Spanning Tree Protocol VLAN – IEEE 802.1w Rapid Spanning Tree Protocol – Support GARP/GVRP feature – STP Security: Loop back detection, TC Protect, BPDU IEEE 802.3x flow control for Full Duplex mode and
Filter/Protect, Root Protect	backpressure for Half Duplex mode
www.tp-link.com	Copyright © 2014 TP-LINK Technologies Co., Ltd. All rights reserved.
Quality of Service (QoS)	IPv6 applications – DHCPv6 Client
Support 802.1p CoS/DSCP priority	– Ping6
Support 4 priority queues	– Tracert6
Queue scheduling: SP, WRR, SP+WRR	– Telnet(v6)
Port/Flow- based Rate Limiting	– IPv6 SNMP Voice VLAN assure voice applications much smooth- – IPv6 SSH
er performance	– IPv6 SSL – Http/Https – IPv6 TFTP Advanced Security Strategies
IP-MAC-Port-VID Binding	Management Static/Dynamic Port Security (MAC-based)
DoS defend feature	Support Web-based GUI management mode
Dynamic ARP Inspection	Support Command Line Interface(CLI) through 802.1x authentication console port, telnet management mode – Support 802.1x port/MAC based authentication SNMP v1/v2c/v3 – Support Radius authentication and accountability RMON (1, 2, 3, 9 groups)
– Guest VLAN	DHCP/BOOTP Client
Access Control List (ACL)	DHCP Snooping – L2~L4 package filtering based on source and DHCP Option 82 destination MAC address, IP address, TCP/UDP CPU Monitoring
ports, 802.1p, DSCP, protocol and VLAN ID	Port Mirroring (Many to One)
– Time based ACL	Cable Diagnostics feature
Support Broadcast, Multicast and Unknown	Ping/Tracert feature
unicast Storm Control	SNTP
Secure web management through HTTPS and	Integrated NDP/NTDP feature
SSLv2/v3/TLSv1	System Log Secure remote command line interface(CLI) management with SSH v1/V2 Ethernet Protocols
IPv6 Support	IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX/FX
IPv6 Dual IPv4/IPv6 stack	IEEE 802.3ab 1000BASE-T Multicast Listener Discovery (MLD) Snooping IEEE 802.3z 1000BASE-X
IPv6 neighbor discovery (ND)	IEEE 802.3av GVRP Path maximum transmission unit (MTU) discovery IEEE 802.3ad Link Aggregation Internet Control Message Protocol (ICMP) version 6 IEEE 802.3x Flow control
TCPv6/UDPv6	IEEE 802.1p QoS
IEEE 802.1q VLANs / VLAN tagging	Ethernet Interface MIB (RFC1643)
IEEE 802.1v Protocol VLAN	Bridge MIB (RFC1493)
IEEE 802.1d Spanning Tree Protocol (STP)	P/Q-Bridge MIB (RFC2674)
IEEE 802.1w Rapid Spanning Tree (RSTP)	RMON MIB (RFC2819)
IEEE 802.1s Multiple Spanning Tree (MSTP)	RMON2 MIB (RFC2021)
IEEE 802.1x Network Login Security	Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618)
MIBs	Remote Ping, Traceroute MIB (RFC2925) Support TP-LINK private MIBs MIB II (RFC1213) Interface MIB (RFC2233) Ordering information Host switch
Product Model	Description
TL-SG3424	JetStream 24-Port Gigabit L2 Managed Switch with 4 Combo SFP Slots SFP Modules
TL-SM311LS	Gigabit SFP module, Single-mode, LC interface, Up to 10km distance
TL-SM311LM	Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance
TL-SM321A	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km
TL-SM321B	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km Media Converter
MC210CS	Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable
MC200CM	Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable
MC220L	Gigabit SFP slot supporting mini-GBIC modules, chassis mountable
MC1400	14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable * T L- S G 3 4 2 4 support 100/1000Mbps SFP module at full-duplex mode. When using the SFP port with a 100M module or a gigabit module, you need to configure its corresponding Speed and Duplex mode through firmware. By factory default, the Speed and Duplex mode of SFP port is 1000Mbps Full-duplex.
