| General | Interfaces 2 10/100/1000 Mbps RJ45 Ports 2 10/100/1000 Mbps RJ45 Ports 2 Combo Gigabit SFP Slots 2 Combo Gigabit SFP Slots |
|---|
| PoE 標準 | 802.3af/at 802.3af/at |
|---|
| PoE | PoE Ports* 16, up to 30 W 24, up to 30 W |
|---|
| PoE Power Budget* | 192 W 250 W |
|---|
| 交換容量 | 7.2 Gbps 8.8 Gbps Packet Forwarding 5.36 Mpps 6.54 Mpps Rate Performance |
|---|
| MAC 位址表 | 8K 4.1 Mbit |
|---|
| Jumbo Frame | 10 KB |
|---|
| 供電 | 100–240 V AC, 50/60 Hz 217.22 W (with 192 W PD |
|---|
| Max Power | 281 W (with 250 W PD Connected) Connected) |
|---|
| 功耗 | 17.17 W (no PD Connected) 18.73 W (no PD Connected) 741.15 BTU/h (with 192 W PD 958.21 BTU/h (with 250 W PD Max Heat |
|---|
| Connected) | Connected) Dissipation 63.91 BTU/h (no PD Connected) 58.55 BTU/h (no PD Connected) Physical & |
|---|
| Environment | Dimensions (W × D × H) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm) |
|---|
| Fan Quantity | 2 |
|---|
| 工作溫度 | 0 °C–50 °C (32 °F–122 °F) |
|---|
| 儲存溫度 | -40 °C–70 °C (-40 °F–158 °F) |
|---|
| 工作濕度 | 10%–90%RH non-condensing |
|---|
| Storage Humidity | 5%–90%RH non-condensing CE, FCC vary as a result of client limitations and environmental factors. distance may vary from the quality of the cables. Host Switches |
|---|
| Product Model | Description |
|---|

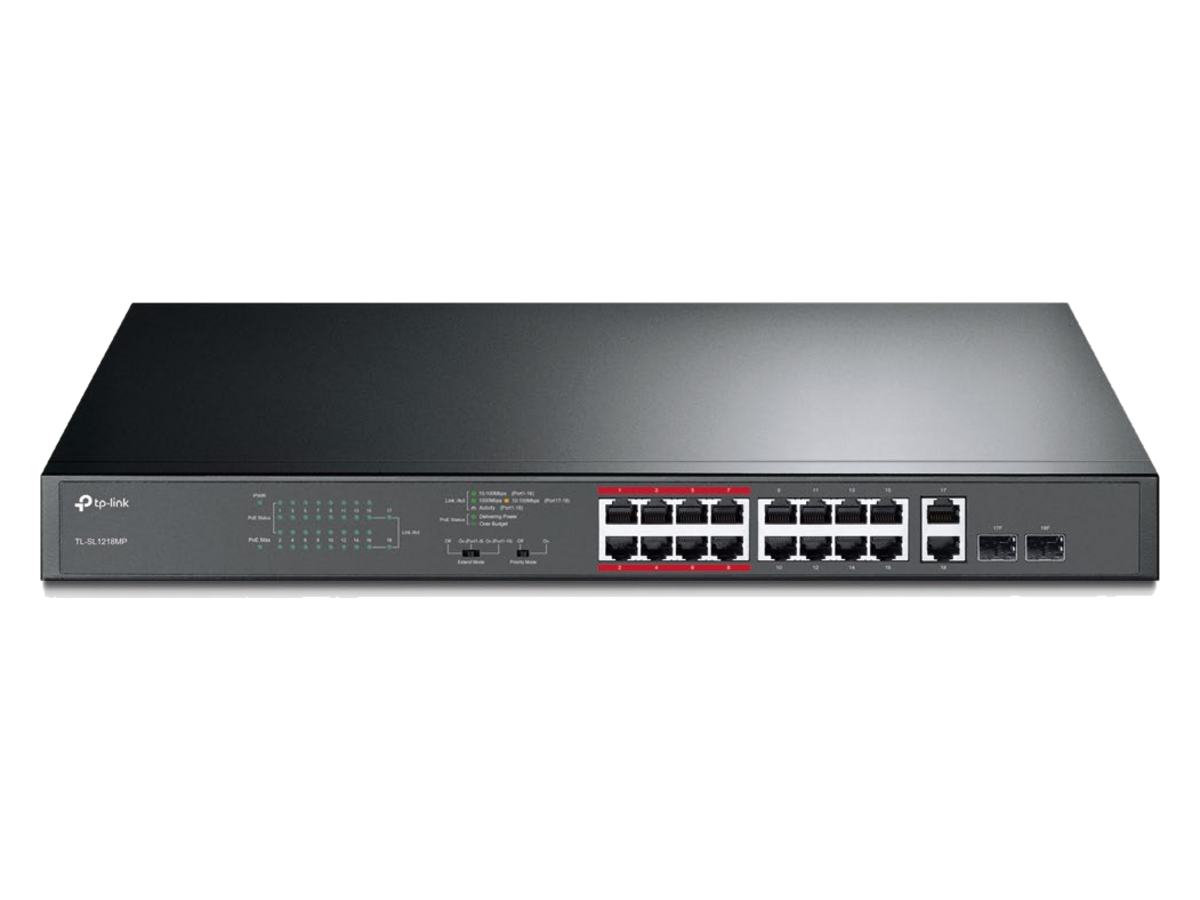

| TL-SL1218MP | 16-Port 10/100 Mbps + 2-Port Gigabit Unmanaged PoE Switch |
|---|
| TL-SL1226P | 24-Port 10/100 Mbps + 2-Port Gigabit Unmanaged PoE+ Switch SFP Modules |
|---|
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10 km distance |
|---|
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550 m distance Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector TL-SM321A TX: 1550 nm/RX: 1310 nm, 10 km Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector TL-SM321B TX: 1310 nm/RX: 1550 nm, 10 km Router |
|---|
| TL-ER6120 | SafeStream Gigabit Dual-WAN VPN Router |
|---|
| TL-ER5120 | Gigabit Load Balance Broadband Router |
|---|
