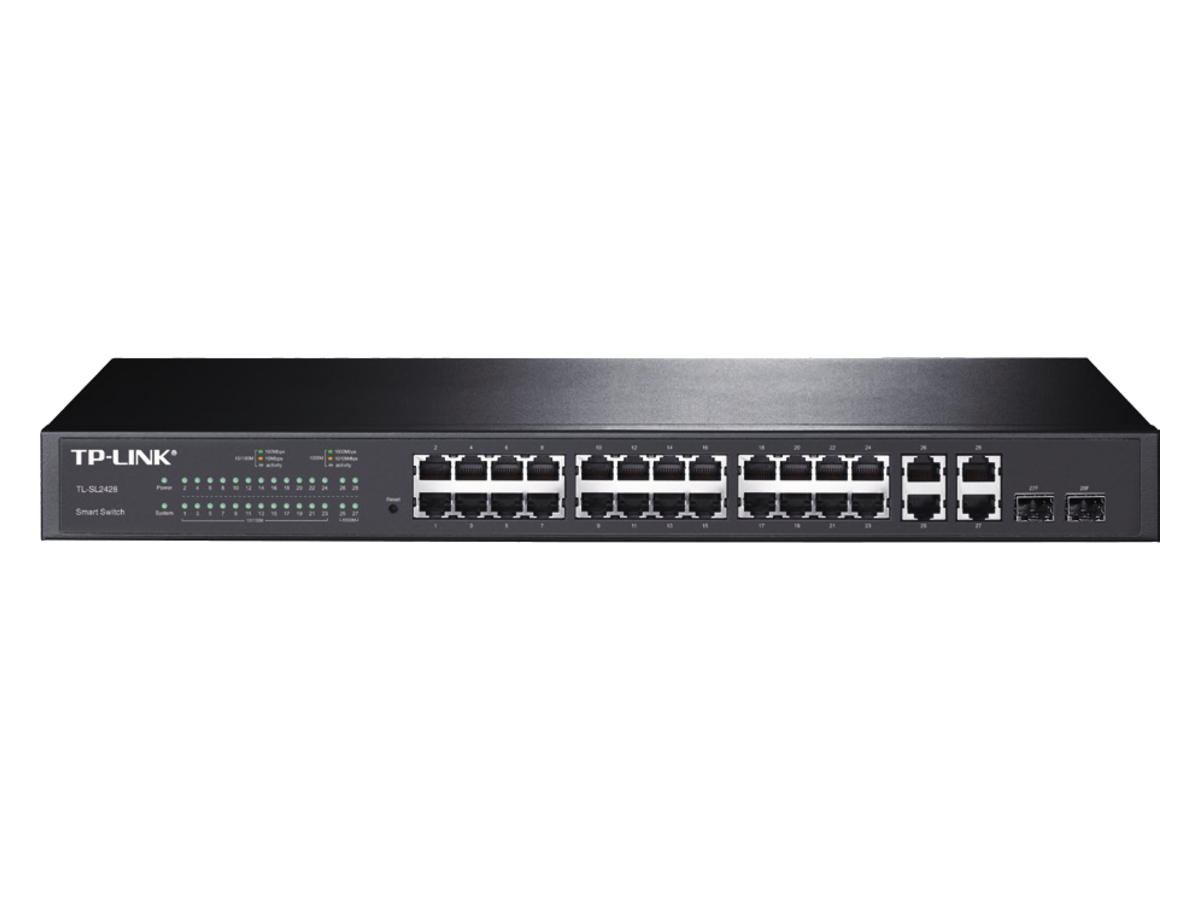

TP-LINK TL-SL2428 網絡設備安裝・保養

Name: TP-LINK TL-SL2428 TP-LINK
Brand: TP-Link
SKU: TL-SL2428

產品簡介

TP-Link TL-SL2428 為TP-LINK，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TL-SL2428 香港價格連安裝報價。

Connector：RJ45 Ports Gigabit SFP
Slots：2(Combo)
供電：100-240VAC, 50/60Hz
FAN Quantity：0
Certifications：CE, FCC

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Connector	RJ45 Ports Gigabit SFP
Slots	2(Combo)
供電	100-240VAC, 50/60Hz
FAN Quantity	0
Certifications	CE, FCC

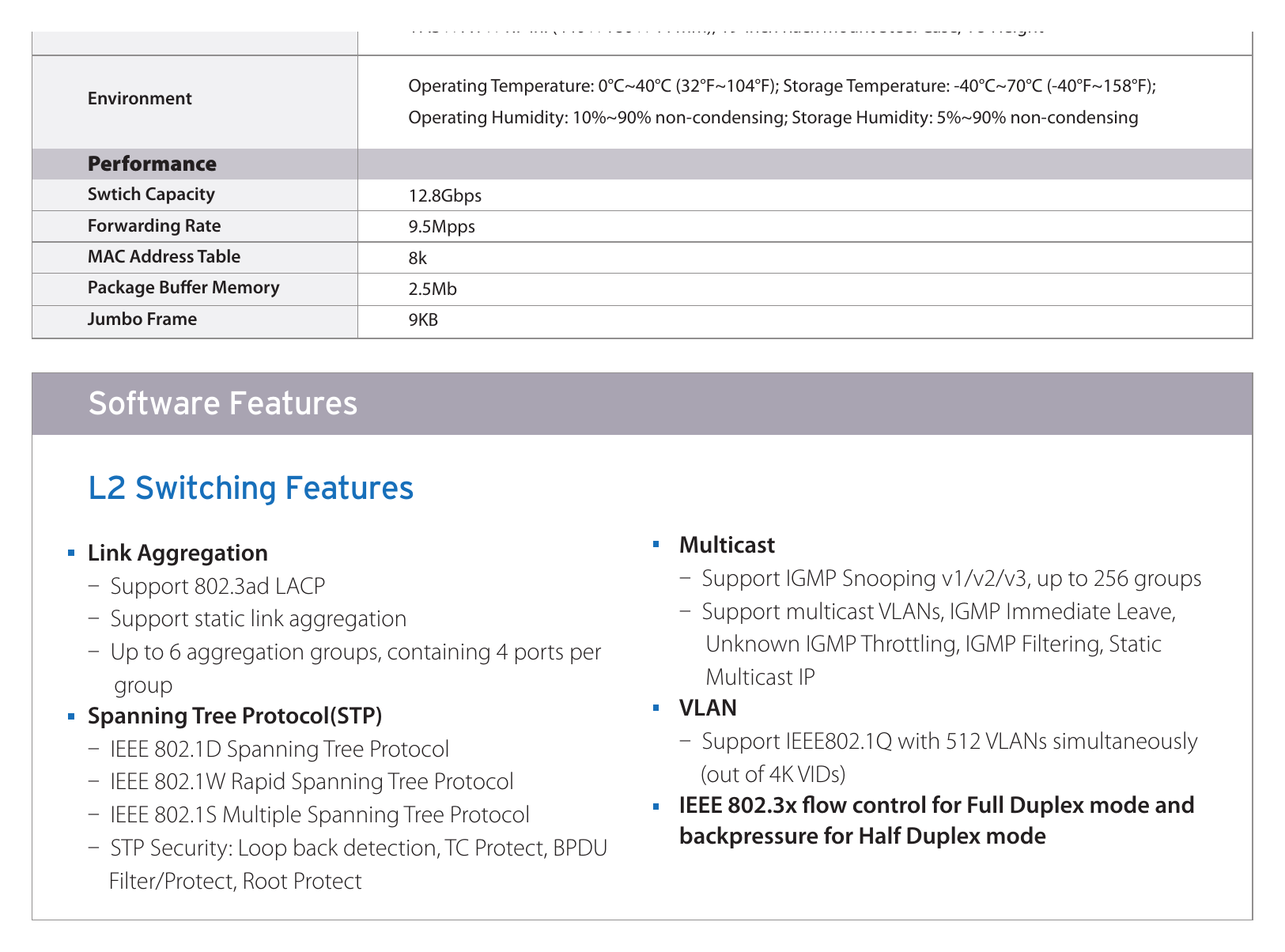

Dimensions (W × D × H)	17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm), 19-inch Rack mount Steel Case, 1U Height Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing Performance
Swtich Capacity	12.8Gbps
Forwarding Rate	9.5Mpps
MAC 位址表	8k
Package Buffer Memory	2.5Mb
Jumbo Frame	9KB Software Features L2 Switching Features
Link Aggregation	Multicast
 Support 802.3ad LACP	 Support IGMP Snooping v1/v2/v3, up to 256 groups
 Support static link aggregation	 Support multicast VLANs, IGMP Immediate Leave,  Up to 6 aggregation groups, containing 4 ports per Unknown IGMP Throttling, IGMP Filtering, Static
group	Multicast IP
Spanning Tree Protocol(STP)	VLAN
 IEEE 802.1D Spanning Tree Protocol	 Support IEEE802.1Q with 512 VLANs simultaneously  IEEE 802.1W Rapid Spanning Tree Protocol (out of 4K VIDs)  IEEE 802.1S Multiple Spanning Tree Protocol IEEE 802.3x flow control for Full Duplex mode and  STP Security: Loop back detection, TC Protect, BPDU backpressure for Half Duplex mode Filter/Protect, Root Protect
www.tp-link.com	Copyright © 2016 TP-LINK Technologies Co., Ltd. All rights reserved.
Quality of Service (QoS)	Cable Diagnostics feature
Support 802.1p CoS/DSCP priority	Ping/Tracert feature
Support 4 priority queues	System Log Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting	Ethernet Protocols Voice VLAN assure voice applications much smoother IEEE 802.3i 10BASE-T
performance	IEEE 802.3u 100BASE-TX/FX IEEE 802.3ab 1000BASE-T
Advanced Security Strategies	IEEE 802.3z 1000BASE-X Support Broadcast, Multicast and Unknown unicast Storm IEEE 802.3x Flow control
Control	IEEE 802.1p QoS
Static/Dynamic Port Security (MAC-based)	IEEE 802.1q VLANs / VLAN tagging Access Control List (ACL)-L2~L4 package filtering based on IEEE 802.1D Spanning Tree Protocol (STP) source and destination MAC address, IP address, TCP/UDP IEEE 802.1W Rapid Spanning Tree (RSTP)
ports	IEEE 802.1S Multiple Spanning Tree (MSTP) SSL and SSH encryptions MIBs
Management	MIB II (RFC1213)
Support Web-based GUI management mode	Interface MIB (RFC2233) Support Command Line Interface(CLI) through telnet Ethernet Interface MIB (RFC1643)
management mode	Bridge MIB (RFC1493)
SNMP v1/v2c/v3	P/Q-Bridge MIB (RFC2674)
RMON (1, 2, 3, 9 groups)	RMON MIB (RFC2819)
DHCP/BOOTP Client	RMON2 MIB (RFC2021)
CPU Monitoring	Remote Ping, Traceroute MIB (RFC2925)
Port Mirroring (Many to One)	Support TP-LINK private MIBs Ordering Information Host Switch
Product Model	Description
TL-SL2428	24-Port 10/100Mbps + 4-Port Gigabit Smart Switch Router
TL-ER6120	SafeStream Gigabit Dual-WAN VPN Router
TL-ER5120	Gigabit Load Balance Broadband Router SFP Modules
TL-SM311LS	Gigabit SFP module, Single-mode, LC interface, Up to 10km distance
TL-SM311LM	Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance
TL-SM321A	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km
TL-SM321B	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km Media Converter
MC210CS	Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable
MC200CM	Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable
MC220L	Gigabit SFP slot supporting mini-GBIC modules, chassis mountable
MC1400	14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable
