| Support DoS defend | Advanced QoS features |
|---|
| Port Security | To integrate voice, data and video service on one network, TL-SL3428 applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or SSL and SSH encryptions UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voi |
|---|
| Management | performance. Web-based GUI |
|---|
| Command Line Interface | Abundant Layer 2 features For more application of layer 2 switches, TL-SL3428 supports a complete lineup of layer 2 features, including SNMP v1/v2c/v3 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and |
|---|
| RMON (1, 2, 3, 9 group) | 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. En |
|---|
| Details:http://www.tp-link.com/ | the commander switch through IP clustering function more easily. support/Localesupport.asp German/Austrian/Swiss users are not included |
|---|

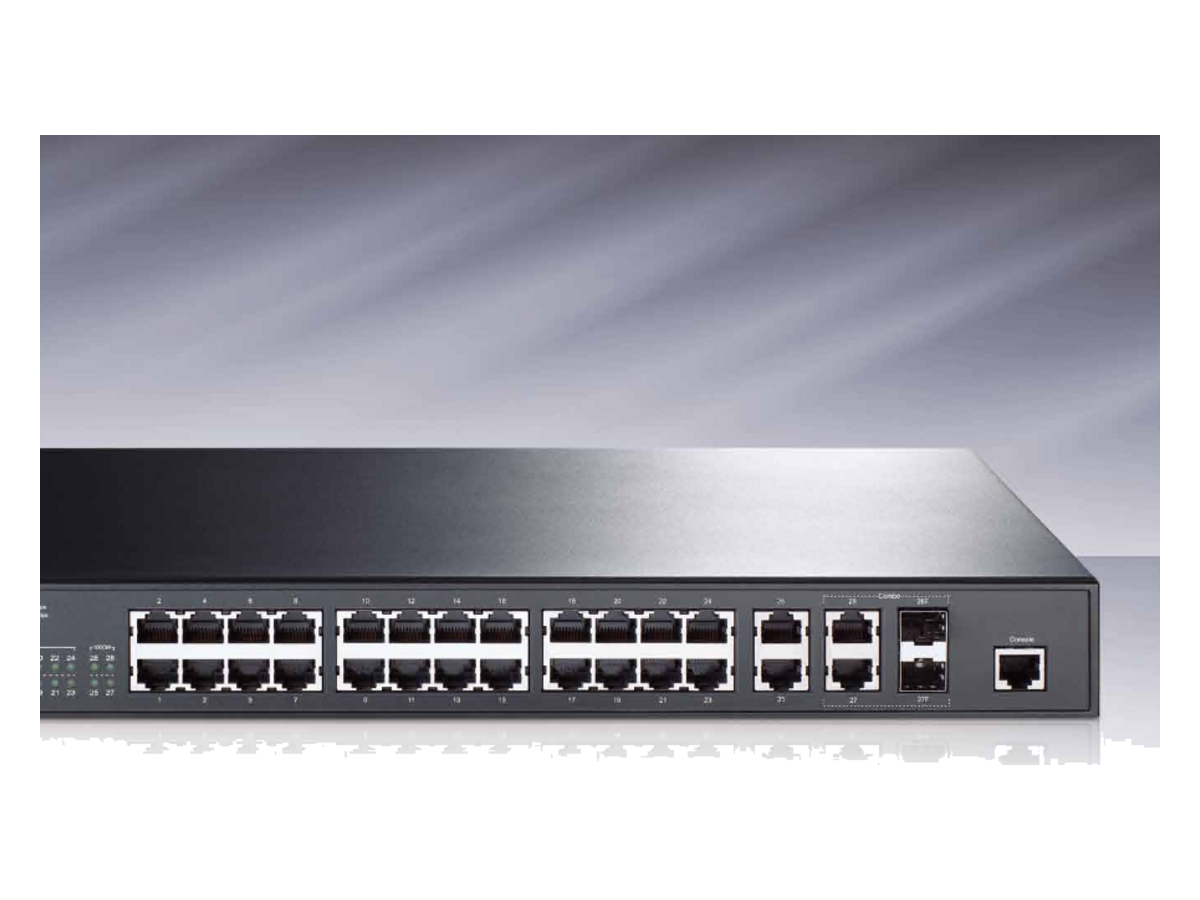

| www.tp-link.com | Copyright © 2012 TP-LINK Technologies Co., Ltd. All rights reserved. Specifications Physical Features & Performance Product Picture Physical Features 10/100Mbps |
|---|
| Base-T Ports | 24 |
|---|
| Connector | 10/100/1000Mbps 4 Base-T Ports |
|---|
| Combo Gigabit | 2 SFP Slots |
|---|
| Console Port | 1 |
|---|
| 供電 | 100-240VAC, 50/60Hz |
|---|
| Fan Quantity | 0 |
|---|

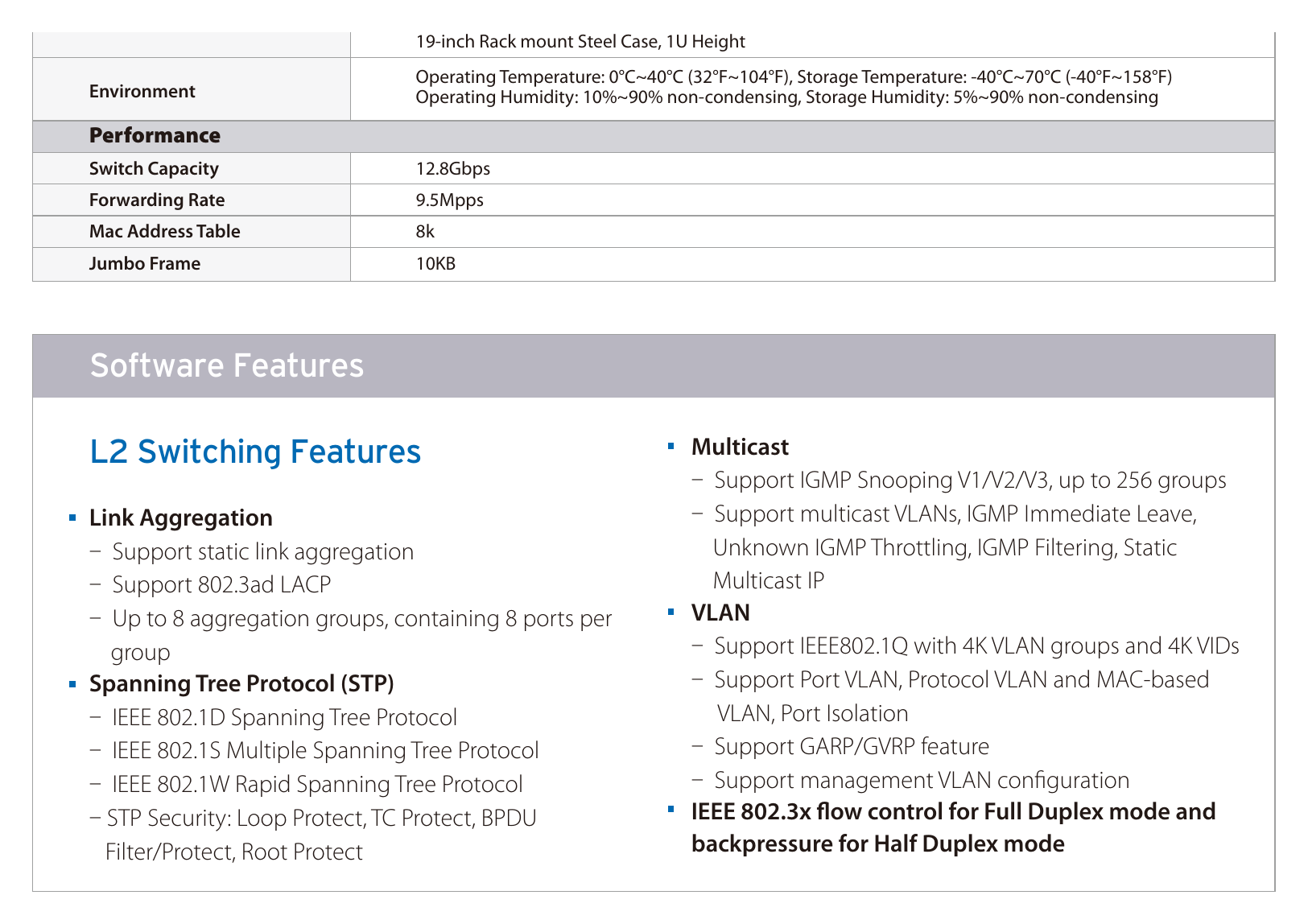

| Certification | CE, FCC 17.3 × 8.7 × 1.7 in. (440 × 220 × 44 mm) Dimensions (W × D × H) 19-inch Rack mount Steel Case, 1U Height Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F) |
|---|
| Environment | Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing Performance |
|---|
| Switch Capacity | 12.8Gbps |
|---|
| Forwarding Rate | 9.5Mpps |
|---|
| MAC 位址表 | 8k |
|---|
| Jumbo Frame | 10KB Software Features |
|---|
| L2 Switching Features | Multicast – Support IGMP Snooping V1/V2/V3, up to 256 groups |
|---|
| Link Aggregation | – Support multicast VLANs, IGMP Immediate Leave, |
|---|
| – Support static link aggregation | Unknown IGMP Throttling, IGMP Filtering, Static |
|---|
| – Support 802.3ad LACP | Multicast IP – Up to 8 aggregation groups, containing 8 ports per VLAN |
|---|
| group | – Support IEEE802.1Q with 4K VLAN groups and 4K VIDs |
|---|
| Spanning Tree Protocol (STP) | – Support Port VLAN, Protocol VLAN and MAC-based |
|---|
| – IEEE 802.1D Spanning Tree Protocol | VLAN, Port Isolation – IEEE 802.1S Multiple Spanning Tree Protocol – Support GARP/GVRP feature – IEEE 802.1W Rapid Spanning Tree Protocol – Support management VLAN configuration – STP Security: Loop Protect, TC Protect, BPDU IEEE 802.3x flow control for Full Duplex mode and |
|---|
| Filter/Protect, Root Protect | backpressure for Half Duplex mode |
|---|
| Quality of Service (QoS) | CPU Monitoring Port Mirroring (Many to One) |
|---|
| Support 802.1p CoS/DSCP priority | Cable Diagnostics feature |
|---|
| Support 4 priority queues | Ping/Tracert feature |
|---|
| Queue scheduling: SP, WRR, SP+WRR | SNTP |
|---|
| Port/Flow- based Rate Limiting | Integrated NDP/NTDP feature |
|---|
| Voice VLAN assure voice applications much | System Log smoother performance |
|---|
| Advanced Security Strategies | Ethernet Protocols |
|---|
| IP-MAC-Port-VID Binding | IEEE 802.3i 10BASE-T |
|---|
| Static/Dynamic Port Security (MAC-based) | IEEE 802.3u 100BASE-TX/FX |
|---|
| DoS defend feature | IEEE 802.3ab 1000BASE-T |
|---|
| Dynamic ARP Inspection | IEEE 802.3z 1000BASE-X 802.1x authentication IEEE 802.3av GVRP – Support 802.1x port/MAC based authentication IEEE 802.3ad Link Aggregation – Support Radius authentication and accountability IEEE 802.3x Flow control IEEE 802.1p QoS – Guest VLAN IEEE 802.1q VLANs / VLAN tagging Access Control List (ACL) IEEE 802.1v Protocol VLAN – L2~L4 package filtering based on source and IEEE 802.1d Spanning Tre |
|---|
| ports, 802.1p, DSCP, protocol and VLAN ID | IEEE 802.1w Rapid Spanning Tree (RSTP) |
|---|
| – Time based ACL | IEEE 802.1x Network Login Security Support Broadcast, Multicast and Unknown unicast Storm Control Secure web management through HTTPS and MIBs SSLv2/v3/TLSv1 Secure remote command line interface (CLI) MIB II (RFC1213) management with SSH v1/V2 Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) |
|---|
| Support Web-based GUI management mode | RMON2 MIB (RFC2021) Support Command Line Interface (CLI) through Radius Accounting Client MIB (RFC2620) |
|---|
| console port, telnet management mode | Radius Authentication Client MIB (RFC2618) |
|---|
| SNMP v1/v2c/v3 | Remote Ping, Traceroute MIB (RFC2925) |
|---|
| RMON (1, 2, 3, 9 groups) | Support TP-LINK private MIBs DHCP/BOOTP Client DHCP Snooping DHCP Option 82 |
|---|
| Product Model | Description |
|---|
| TL-SL3428 | JetStreamTM 24-Port 10/100Mbps + 4-Port Gigabit L2 Managed Switch SFP Modules |
|---|
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
|---|
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance |
|---|
| TL-SM321A | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km |
|---|
| TL-SM321B | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km Media Converter |
|---|
| MC210CS | Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable |
|---|
| MC200CM | Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable |
|---|
| MC220L | Gigabit SFP slot supporting mini-GBIC modules, chassis mountable |
|---|
| MC1400 | 14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable |
|---|
