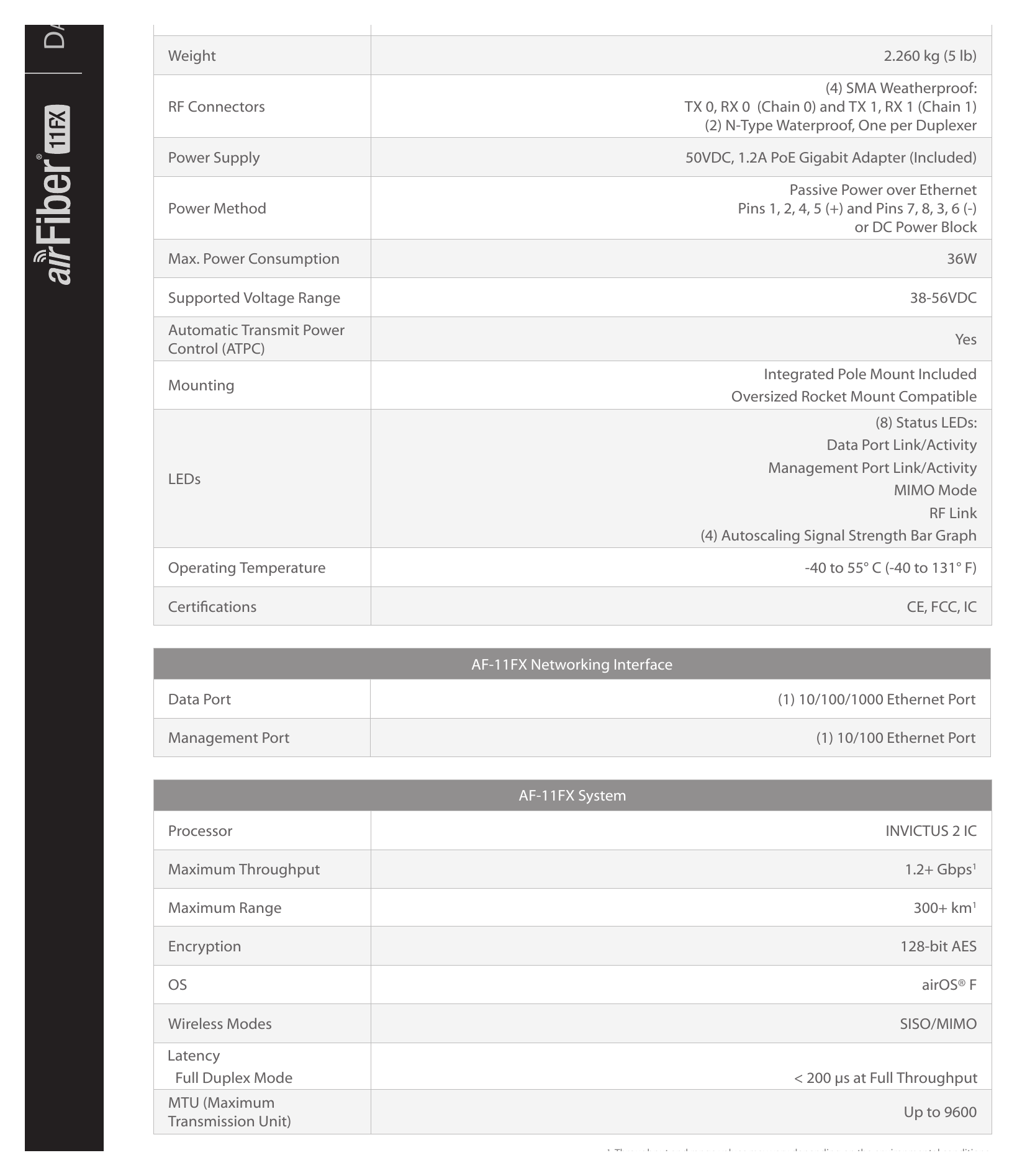

| 尺寸 | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39") |
|---|
| 重量 | 2.260 kg (5 lb) (4) SMA Weatherproof: |
|---|
| RF Connectors | TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
|---|
| 供電 | 50VDC, 1.2A PoE Gigabit Adapter (Included) Passive Power over Ethernet |
|---|
| Power Method | Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC Power Block |
|---|
| 最大功耗 | 36W |
|---|
| Supported Voltage Range | 38-56VDC Automatic Transmit Power Yes Control (ATPC) Integrated Pole Mount Included Mounting Oversized Rocket Mount Compatible (8) Status LEDs: Data Port Link/Activity Management Port Link/Activity MIMO Mode RF Link (4) Autoscaling Signal Strength Bar Graph |
|---|
| 工作溫度 | -40 to 55° C (-40 to 131° F) |
|---|
| Certifications | CE, FCC, IC AF‑11FX Networking Interface |
|---|
| Data Port | (1) 10/100/1000 Ethernet Port |
|---|
| Management Port | (1) 10/100 Ethernet Port AF‑11FX System |
|---|
| 處理器 | INVICTUS 2 IC |
|---|
| Maximum Throughput | 1.2+ Gbps1 |
|---|
| Maximum Range | 300+ km1 |
|---|
| Encryption | 128-bit AES |
|---|
| OS | airOS® F |
|---|
| Wireless Modes | SISO/MIMO Latency |
|---|
| Full Duplex Mode | < 200 µs at Full Throughput MTU (Maximum Up to 9600 Transmission Unit) 1 Throughput and range values may vary depending on the environmental conditions. AF‑11FX Radio |
|---|
| Frequency Range | 10.7-11.7 GHz2 30 dBm2 (Dependent on Regulatory Region) |
|---|
| Frequency Accuracy | ± 2.0 ppm |
|---|
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable3 AF‑11FX Suggested Max. TX Power AF‑11FX Duplexer Low Channel: 10.700 to 10.955 GHz High Channel : 11.200 to 11.445 GHz Low Channel : 10.940 to 11.200 GHz High Channel : 11.440 to 11.700 GHz 2 For region-specific details, refer to the Compliance chapter of the airFiber AF‑11FX User Guide at www.ubnt.com/download/airfiber 3 Channel widths may vary acco |
|---|
| One-Directional | Bi-Directional |
|---|
| Capacity (Mbps) | Capacity (Mbps) 1024 QAM 10x 38.4 76.8 256 QAM 8x 30.7 61.4 64 QAM 6x 23 46.0 MIMO 16 QAM 4x 15.4 30.8 |
|---|
| QPSK | 2x 7.7 15.4 3.5 MHz QPSK xRT™ 1x 3.8 7.6 1024 QAM 5x 19.2 38.4 256 QAM 4x 15.35 30.7 |
|---|
| SISO | 64 QAM 3x 11.5 23.0 16 QAM 2x 7.7 15.4 |
|---|
| Data | Channel (MHz) Modulation |
|---|
| Rate | 3.5 5 7 10 14 20 28 30 40 50 56 10x 1024QAM MIMO -64.5 -63.0 -61.5 -60.0 -58.5 -57.0 -55.5 -55.2 -54.0 -53.0 -52.5 8x 256QAM MIMO -72.5 -71.0 -69.5 -68.0 -66.5 -65.0 -63.5 -63.2 -62.0 -61.0 -60.5 6x 64QAM MIMO -79.5 -78.0 -76.5 -75.0 -73.5 -72.0 -70.5 -70.2 -69.0 -68.0 -67.5 4x 16QAM MIMO -86.5 -85.0 -83.5 -82.0 -80.5 -79.0 -77.5 -77.2 -76.0 -75.0 -74.5 2x QPSK MIMO -93.5 -92.0 -90.5 -89.0 -87.5 - |
|---|
