Uniview IPC264SA-AHDX4K-I1 為IPC264SA-AHDX4K-I1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC264SA-AHDX4K-I1 香港價格連安裝報價。
| Max Resolution | 4 MP |
|---|---|
| Sensor | 1/1.8" CMOS |
| 最低照度 | Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with Light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 130 dB |
| S/N | >56 dB |
| 焦距 | 8 to 32 mm |
| Iris | F1.6 |
| Field of View (H) | 42.6° to 15.2° |
| Field of View (V) | 23.5° to 8.9° |
| Field of View (D) | 52.4° to 17.9° |
| 光圈類型 | P-iris |
| DORI Distance (Lens) | 8 to 32 mm |
| DORI Distance (Detect) | 165.7 m to 444.4 m (543.7 ft. to 1458.1 ft.) |
| DORI Distance (Observe) | 66.3 m to 177.8 m (217.5 ft. to 583.2 ft.) |
| DORI Distance (Recognize) | 33.1 m to 88.9 m (108.7 ft. to 291.6 ft.) |
| DORI Distance (Identify) | 16.6 m to 44.4 m (54.4 ft. to 145.8 ft.) 30 m (98.4 ft.) |
| Illumination Distance (IR) | 120 m (393.7 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 750 nm |
| Supplemental Light | Dual light |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| 隱私遮蔽 | Up to 8 areas (8 blacks / 8 mosaics) |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 60 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode available: High/Low pole |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Flip vertical, Flip horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| 除霧 | Digital defog |
| Heatwave Reduction | N/A |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Ultra motion detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| UMD (Ultra Motion Detection) | Support |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic |
| 安全 | and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Home Position | Support |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: |
| EMC | 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| 供電 | DC 12 V (±25%), PoE+ (IEEE 802.3at) |
| 功耗 | Max. 23 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | 406 mm × 126 mm × 130 mm (16.0" × 5.0" × 5.1") (L × W × H) |
| 重量 | 2.14 kg (4.72 lb.) |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| RTC | Support |
| 材質 | Metal + Plastic 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Heater | Support |
| Maximum Bitstream | 35 |
| Corridor Mode | Support |
| TR-UC08-C | TR-UP06-C-IN-V2 Pole Mounting Bracket for Bullet Junction Bullet&Dome Corner Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

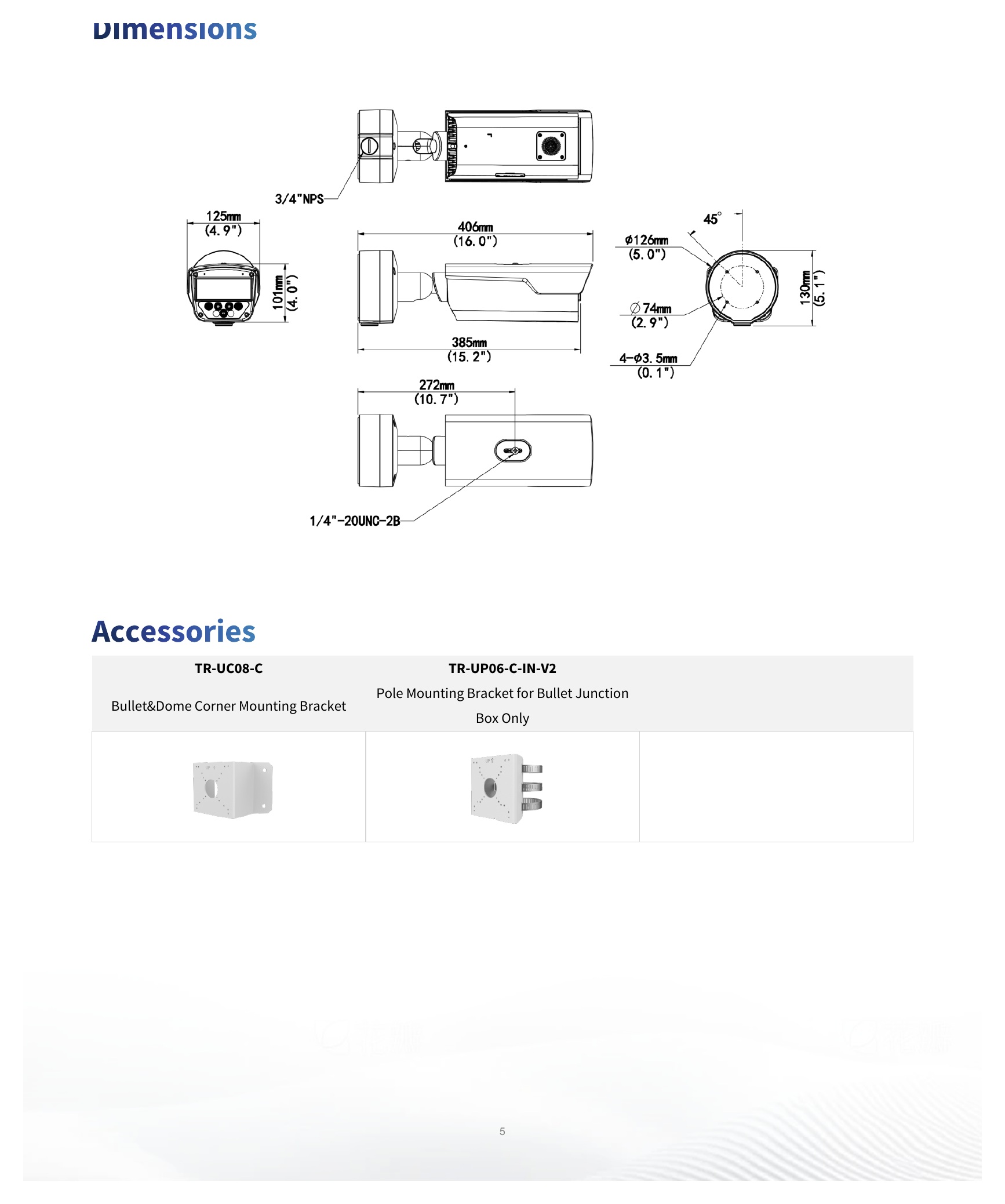

406 mm × 126 mm × 130 mm (16.0" × 5.0" × 5.1") (L × W × H)｜重量 2.14 kg (4.72 lb.)｜Unit: mm
IPC264SA-AHDX4K-I1 Uniview IPC264SA-AHDX4K-I1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC264SA-AHDX4K-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC264SA-AHDX4K-I1 係 1/1.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC264SA-AHDX4K-I1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC264SA-AHDX4K-I1 係 8 to 32 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC264SA-AHDX4K-I1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC264SA-AHDX4K-I1 Uniview IPC264SA-AHDX4K-I1供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC264SA-AHDX4K-I1 香港價格連安裝報價。
