Uniview IPC3232SB-ADZK-I0 為IPC3232SB-ADZK-I0，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC3232SB-ADZK-I0 香港價格連安裝報價。
| Sensor | 1/2.8" CMOS |
|---|---|
| 最低照度 | Color: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 355°, Tilt: 0° to 80°, Rotate: 0° to 355° |
| S/N | >52 dB |
| WDR | 120 dB |
| 焦距 | 2.7 to 13.5 mm |
| Iris | F1.2 |
| Field of View (H) | 107.4° to 29.2° |
| Field of View (V) | 54.2° to 16.3° |
| Field of View (D) | 111.0° to 33.1° |
| 鏡頭類型 | Motorized |
| DORI Distance (Lens) | 2.7 to 13.5 mm |
| DORI Distance (Detect) | 41.9 m to 209.5 m (137.5 ft. to 687.3 ft.) |
| DORI Distance (Observe) | 16.8 m to 83.8 m (55.1 ft. to 274.9 ft.) |
| DORI Distance (Recognize) | 8.4 m to 41.9 m (27.6 ft. to 137.5 ft.) |
| DORI Distance (Identify) | 4.2 m to 20.9 m (13.8 ft. to 68.6 ft.) |
| Supplemental Light | IR |
| Illumination Distance (IR) | 40 m (131.2 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Smart IR | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Statistical Analysis | N/A |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| 音訊壓縮 | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, APP Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) CE LVD (EN 62368-1) |
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); IP67 (IEC 60529) IK10 (IEC 62262) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
| 功耗 | Max. 7.0 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø148.0 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H) |
| 重量 | 0.97 kg (2.14 lb.) |
| 材質 | Metal |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| TR-JB04-C-IN | TR-FM152-A-IN TR-SM04-IN |
| Junction Box for 323 Series | In-ceiling Bracket for 323 Series Switch Box Adapter for 323 Series |
| Fix-dome(Support wiring from behind) | Fix-dome Fix-dome |
| TR-A01-IN | TR-UC08-C-V2 TR-JB07/WM04-B-IN-V2 4 Inch Back Hole Hemisphere Wall |
| NPT 3/4'' Waterproof Cable Gland | Bullet&Dome Corner Mounting Bracket Mounting Assembling Bracket |
| TR-WM04-IN-V2 | TR-CM24-IN TR-SE24-A-IN 4 Inch Hemisphere Wall Mounting Bracket Dome Pendent Mounting Bracket(Indoor) Dome Pendent Mounting Pole 500mm |
| TR-SE24-IN | HS-207S TR-UP06-C-IN-V2 Pole Mounting Bracket for Bullet Junction |
| Dome Pendent Mounting Pole 200mm | Sunshade Shell for Zoom Dome Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

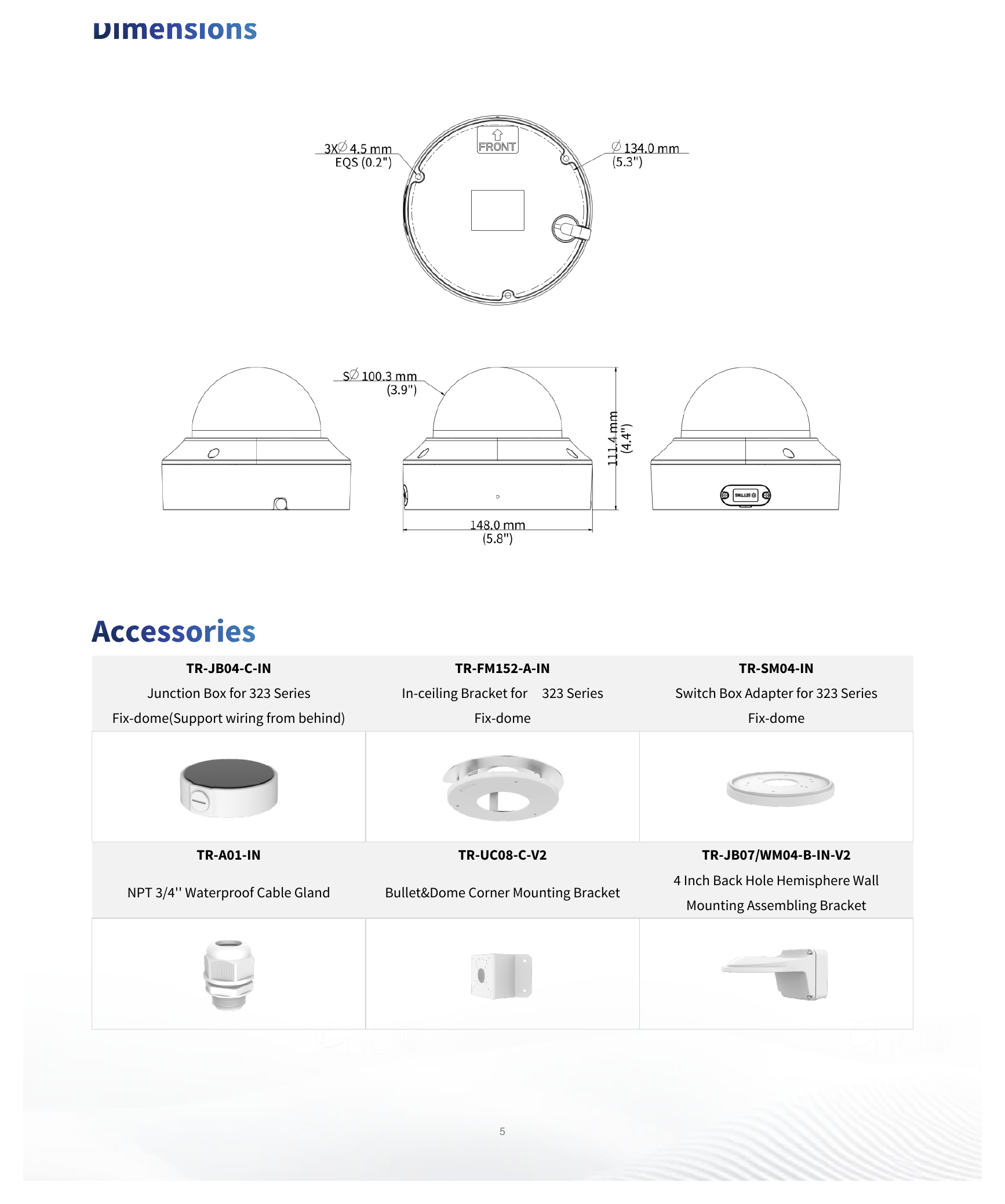

Ø148.0 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H)｜重量 0.97 kg (2.14 lb.)｜Unit: mm
IPC3232SB-ADZK-I0 Uniview IPC3232SB-ADZK-I0亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC3232SB-ADZK-I0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC3232SB-ADZK-I0 係 1/2.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC3232SB-ADZK-I0 係 Auto/Manual, 1 ~ 1/100000s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC3232SB-ADZK-I0 係 2.7 to 13.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC3232SB-ADZK-I0 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC3232SB-ADZK-I0 Uniview IPC3232SB-ADZK-I0供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC3232SB-ADZK-I0 香港價格連安裝報價。
IPC3232SB-ADZK-I0 Uniview IPC3232SB-ADZK-I0適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
商場裝 CCTV 大範圍 4K 人流監控、中庭與各出入口覆蓋，配停車場車牌識別。商場閉路電視客流統計分析旺場時段、周界越界即時 WhatsApp 通知保安。大型方案報價、免費上門評估，旺角、觀塘商場廣場工程一併規劃。即約免費勘察、透明報價無隱藏，
WhatsApp 查詢 →地盤裝 CCTV 臨時監控、防盜防搬料，安全帽偵測與危險區域越界警報守護工人安全。工地閉路電視可選太陽能 4G 流動方案，無固定電源網絡照樣覆蓋偏遠地盤。流動方案報價、免費上門勘察，荃灣、沙田新發展區地盤即日約期。免費上門睇位、專業報價跟進，
WhatsApp 查詢 →銀行裝 CCTV 高保安監控櫃位、金庫及出入口無死角覆蓋，配防劫掣與門禁聯動。找換店閉路電視高清錄影保留長時段、符合金融場所合規取證。高保安方案、合規取證規劃，港島、香港銀行找換店歡迎洽談。免費評估現場、報價快而清，香港、新界一帶即日上門。
WhatsApp 查詢 →髮型屋裝 CCTV 監控收銀區及座位、防盜防糾紛，保障員工與顧客安全。美甲店閉路電視星光夜視覆蓋打烊時段、老闆手機遠程睇舖。明碼實價、免費上門勘察，香港、港島髮型屋美甲店即約報價。上門勘察免費、報價公開實在，
WhatsApp 查詢 →車房裝 CCTV 監控工場及客戶車輛停泊區、防盜防爭議、記錄維修過程取證。車房閉路電視出入口車牌識別管理進出車輛、保障客戶愛車。免費上門勘察、按工場規模報價，觀塘、將軍澳車房維修中心即約。專業團隊免費上門評估，
WhatsApp 查詢 →工廈單位裝 CCTV 守護迷你倉、共享辦公空間防盜，24小時無人值守時段遠端監控更安心。工商大廈閉路電視配門禁聯動記錄進出、保障租戶財物。免費上門勘察、按單位數報價，港島、新界工廈單位迷你倉即約。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →查看更多CCTV 監控適用場景，請參閱 CCTV 監控安裝工程。
如需整套CCTV 監控方案，請參閱 CCTV 監控安裝工程。
