Uniview IPC3238EA-AHDZK-I1 為IPC3238EA，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC3238EA-AHDZK-I1 香港價格連安裝報價。
| Max Resolution | 8 MP |
|---|---|
| Sensor | 1/1.8" CMOS Color: 0.001 Lux (F1.2, AGC ON), BW: 0.0005 Lux Color: 0.003 Lux (F1.6, AGC ON), BW: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 140 dB |
| S/N | >56 dB |
| 焦距 | 2.8 to 12 mm 8 to 32 mm |
| Optical Zoom | 4X |
| Iris | F1.2 F1.6 |
| Field of View (H) | 102.5° to 48.5° 42° to 15.3° |
| Field of View (V) | 55.1° to 27.2° 22.6° to 8.8° |
| Field of View (D) | 126.08° to 59.66° 51.66° to 18.05° |
| 光圈類型 | P-iris |
| DORI Distance (Detect) | 108.0 m to 180.0 m (354.3 ft. to 590.6 ft.) 240.3 m to 644.4 m (788.4 ft. to 2114.2 ft.) |
| DORI Distance (Observe) | 43.2 m to 72.0 m (141.7 ft. to 236.2 ft.) 96.1 m to 257.8 m (315.4 ft. to 845.7 ft.) |
| DORI Distance (Recognize) | 21.6 m to 36.0 m (70.9 ft. to 118.1 ft.) 48.1 m to 128.9 m (157.7 ft. to 422.8 ft.) |
| DORI Distance (Identify) | 10.8 m to 18.0 m (35.4 ft. to 59.1 ft.) 24.0 m to 64.4 m (78.7 ft. to 211.4 ft.) |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| 隱私遮蔽 | Up to 8 areas (8 blacks / 8 mosaics) |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 60 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps |
| Recognition | Face recognition: Max support 16 face libraries; Max supports 100000 faces in face library Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection Object removed|Object Left Behind|Scene |
| Exception Detection | Object removed|Object Left Behind change|Defocus detection |
| Metadata of Multi-target | Gender (face), Age range (face), Glasses (face), Gender (pedestrian), Mask (pedestrian), Uppper |
| Detection | garment color (pedestrian), Lower garment color (pedestrian), Uppper garment style (pedestrian), Lower garment style (pedestrian), Bag style (pedestrian), Uppper garment color (non-montor vehicle), Uppper garment style (non-montor vehicle), Vehicle type (non-montor vehicle), Vehicle type (motor vehicle), Vehicle color (motor vehicle), Vehicle brand (motor vehicle), Plate number (motor vehicle) Cro |
| People Counting | Support people flow counting and crowd density detection Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection North America: United States, Canada;South America: Mexico, Brazil; EU: France, Spain, Portugal, Germany, UK, Ireland, Bulgaria, Latvia, Romania, Slovenia, Poland, Hungary, Serbia, Czech Republic, Slovakia, Bosnia and Herzegovina, Greec |
| Supports Multiple Countries | Pacific: South Korea, Indonesia, Malaysia, Singapore, Viet Nam, Bangladesh, India, Nepal, Philippines, Thailand, Cambodia;Middle East: Iraq, Saudi Arabia, United Arab Emirates, Egypt, Qatar, Tunisia, Yemen; Kuwait, Oman, Bahrain; Middle Asia: Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan |
| White Balance | Auto&Outdoor&Fine Tune&Sodium Lamp&Locked&Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal&Flip Vertical&Flip Horizontal&180°&90°Clockwise&90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| 除霧 | Digital defog |
| EIS | Support Motion detection|Tampering alarm|Audio Motion detection|Tampering alarm|Audio |
| Basic Detection | detection|Object removed|Object Left detection|Object removed|Object Left Behind Behind|Scene change|Defocus detection Watermark&IP Address Filtering&Access Policy&ARP Protection&RTSP Authentication&User Authentication&HTTP authentication&Alarm input&Alarm output |
| 音訊壓縮 | G.711U&G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz, 16 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR&NAS(NFS) IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3 |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 |
| 瀏覽器 | and above&Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Illumination Distance (IR) | 40 m (131.2 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Support, built-in mic*2 |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet CE EMC (EN 55032: 2015+A1:2020,EN 61000 3 3: 2013+A1: 2019,EN IEC 61000 3 2: 2019+A1: 2021,EN |
| EMC | 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4 2014) CE LVD (EN 62368 1:2014+A11:2017) UL (UL 62368 1, 2nd Ed., Issue Date: 2014 12 01) |
| Environment | CE RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| 供電 | DC 12 V (±25%), PoE+ (IEEE 802.3at) |
| 功耗 | Max. 19 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| Built-in DC12V Output | Support |
| 尺寸 | Ø148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H) |
| 重量 | 1.04 kg (2.29 lb.) 1.07 kg (2.36 lb.) |
| Working Environment | -40℃ ~60℃(-40°F~ 140°F) |
| 防雷 | 6 KV |
| Reset Button | Support |
| RTC | Support |
| 材質 | Body：Metal |
| Heater | Support |
| Maximum Bitstream | 35 |
| Corridor Mode | Support |
| TR-JB04-C-IN | TR-JB07/WM04-B-IN TR-WM04-IN |
| Junction Box for 323 Series | 4 Inch Back Hole Hemisphere Wall 4 Inch Hemisphere Wall Mounting Bracket |
| Fix-dome(Support wiring from behind) | Mounting Assembling Bracket |
| TR-FM152-A-IN | TR-SM04-IN TR-A01-IN |
| In-ceiling Bracket for 323 Series | Switch Box Adapter for 323 Series NPT 3/4'' Waterproof Cable Gland |
| Fix-dome | Fix-dome |
| TR-UP06-IN | TR-UC08-C |
| Universal Pole Mounting Bracket | Bullet&Dome Corner Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

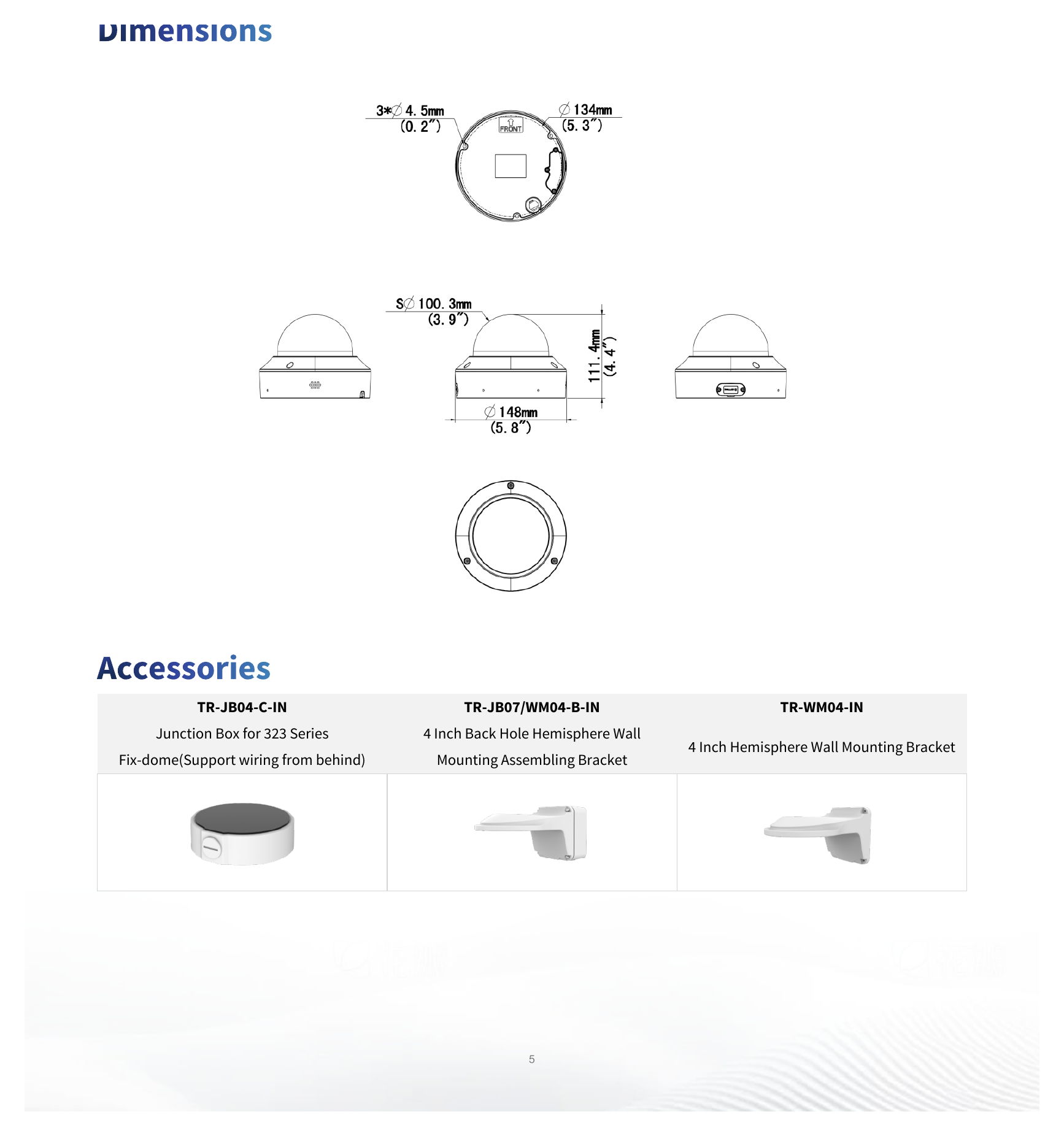

Ø148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H)｜重量 1.04 kg (2.29 lb.) 1.07 kg (2.36 lb.)｜Unit: mm
IPC3238EA-AHDZK-I1 Uniview IPC3238EA亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC3238EA-AHDZK-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Shutter方面，IPC3238EA-AHDZK-I1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC3238EA-AHDZK-I1 係 2.8 to 12 mm 8 to 32 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；視頻壓縮方面，IPC3238EA-AHDZK-I1 係 Ultra 265, H.265, H.264, MJPEG，PKC1150-4-Z28-C-P 係 H.264 (default), H.265。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC3238EA-AHDZK-I1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC3238EA-AHDZK-I1 Uniview IPC3238EA供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝、灣仔CCTV 閉路電視安裝、筲箕灣CCTV 閉路電視安裝、紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC3238EA-AHDZK-I1 香港價格連安裝報價。
