| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS Colour: 0.003 lux (F1.6, AGC ON) Minimum Illumination 0 lux with IR |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|---|
| Adjustment angle | Pan: 3° to 360° Tilt: 0° to 70° Rotate: 3° to 360° |
|---|
| S/N | >56dB |
|---|
| WDR | 120dB |
|---|
| 鏡頭類型 | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
|---|
| Iris | Fixed |
|---|
| Field of View (H) | 108.79°~ 33.23° |
|---|
| Field of View (V) | 56.90°~ 18.33° |
|---|
| Field of View (D) | 112.56°~37.46° |
|---|
| Lens (mm) | Detect (m) Observe (m) Recognize (m) Identify (m) |
|---|
| DORI Distance | 2.8 63.0 25.2 12.6 6.3 12 270.0 108.0 54.0 27.0 |
|---|
| IR Range | Up to 40m (131ft) IR range |
|---|
| Wavelength | 850nm |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| H.264 code profile | Baseline profile, Main profile, High profile Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P |
|---|
| Frame Rate | (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|---|
| 視頻碼率 | 128 Kbps~16 Mbps |
|---|
| U-code | Support |
|---|
| OSD | Up to 4 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Video stream | Dual streams |
|---|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Smart IR | Support |
|---|
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|---|
| Dewarping | N/A |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| 除霧 | Digital Defog Cross line, intrusion(based on human body detection) Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|---|
| 一般功能 | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|---|
| 音訊壓縮 | G.711U, G.711A |
|---|
| Audio Bitrate | 64 Kbps |
|---|
| 雙向語音 | N/A |
|---|
| Suppression | Support |
|---|
| 取樣率 | 8KHZ |
|---|
| Edge Storage | Micro SD, up to 256GB |
|---|
| 網絡儲存 | ANR, NAS(NFS) IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
|---|
| 用戶管理 | Up to 32 users. 2 user levels: administrator and common user |
|---|
| 安全 | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF EZStation |
|---|
| 客戶端 | EZView EZLive Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| Serial Port | N/A |
|---|
| Built-in Mic | Support |
|---|
| Built-in Speaker | N/A |
|---|
| WIFI | N/A |
|---|
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
|---|
| Video Output | N/A CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: |
|---|
| EMC | 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) |
|---|
| Safety | CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|---|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection IK10 (IEC 62262:2002) DC 12V±25%, PoE (IEEE 802.3af) Power Power consumption: Max 7.5W |
|---|
| 電源接口 | Ø 5.5mm coaxial power plug |
|---|

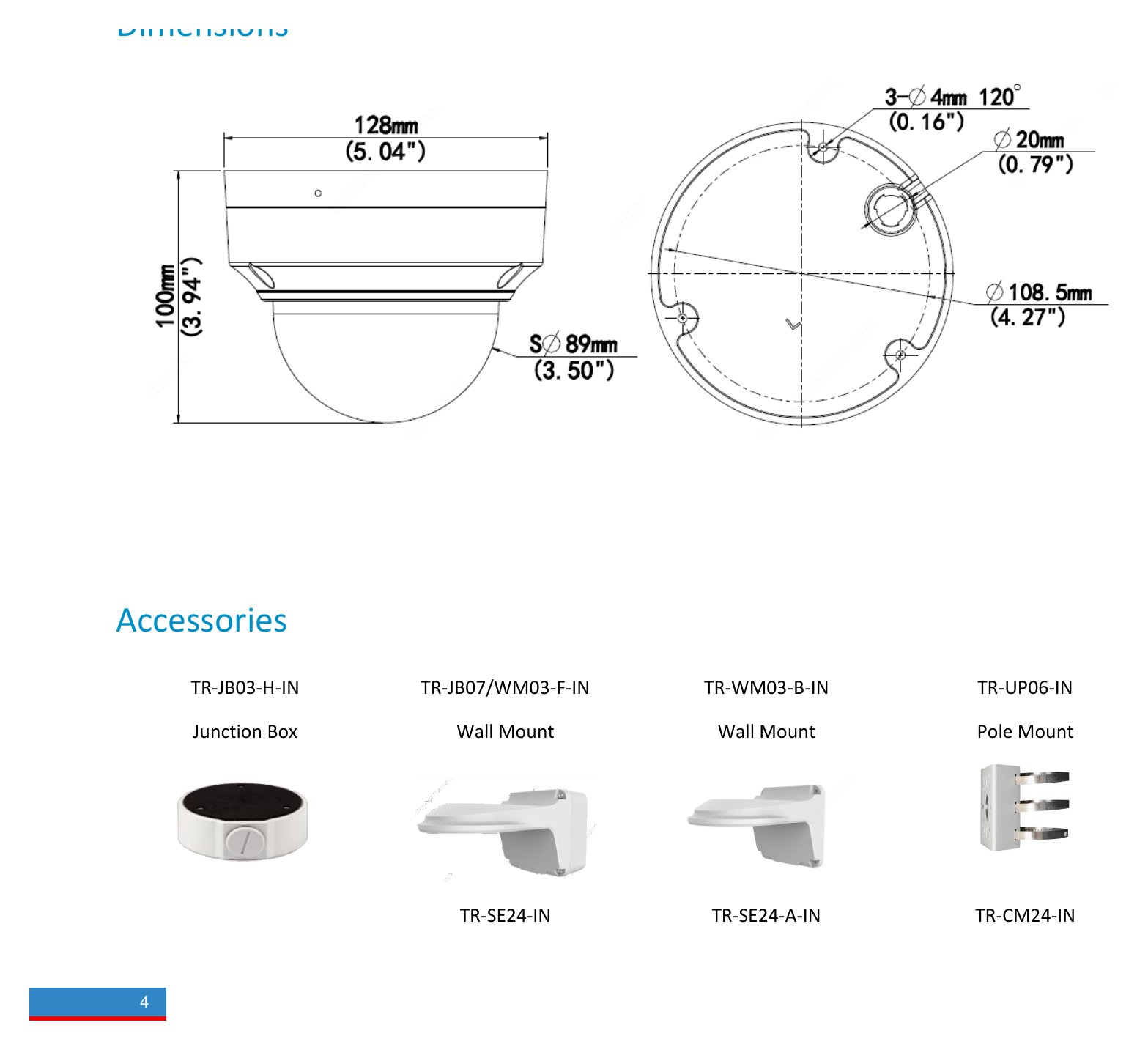

| Dimensions (Ø x H) | Φ128mmx100mm (Ø5.0” x 3.9”) |
|---|
| 重量 | 0.65kg (1.43lb) |
|---|
| 材質 | Metal + Plastic |
|---|
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| 防雷 | 6KV |
|---|
| Reset Button | Support |
|---|
| TR-JB03-H-IN | TR-JB07/WM03-F-IN TR-WM03-B-IN TR-UP06-IN |
|---|
| Junction Box | Wall Mount Wall Mount Pole Mount |
|---|
| TR-SE24-IN | TR-SE24-A-IN TR-CM24-IN TR-A01-IN |
|---|
| Waterproof Joint | Pendant Mount Pendant Mount Pendant Mount |
|---|
| Junction Mount | Pole Mount |
|---|
