Uniview IPC3614SS-ADF28K-I1 為IPC3614SS-ADF28(40)K-I1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC3614SS-ADF28K-I1 香港價格連安裝報價。
| Max Resolution | 4 MP |
|---|---|
| Sensor | 1/3.0" CMOS |
| 最低照度 | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 130 dB |
| 焦距 | 2.8 mm 4.0 mm |
| 光圈類型 | Fixed |
| Iris | F1.6 |
| Field of View (H) | 97.68° 81.39° |
| Field of View (V) | 52.67° 43.36° |
| Field of View (D) | 102.52° 86.91° |
| DORI Distance (Lens) | 2.8 mm 4 mm |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) 90.0 m (295.3 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) 36.0 m (118.1 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) 18.0 m (59.1 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) 9.0 m (29.5 ft.) |
| Supplemental Light | IR |
| Illumination Distance (IR) | 40 m (131.2 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Auto Scene Match (ASM) | Support (only WDR) |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Statistical Analysis | N/A |
| People Counting | Support people flow counting and crowd density detection |
| Attribute Collection | SIP with color retrieval Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| 音訊壓縮 | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| 雙向語音 | N/A |
| Suppression | Support |
| 取樣率 | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, APP Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) CE-LVD (EN 62368-1) |
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| 防護等級 | IP67 (IEC 60529) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
| 功耗 | Max. 6.5 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H) |
| 重量 | 0.43 kg (0.95 lb.) |
| 材質 | Metal + Plastic |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 4 KV |
| Reset Button | N/A 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| TR-JB03-H-IN-V2 | TR-A01-IN TR-SE24-IN Junction Box for Metal Turret |
| NPT 3/4'' Waterproof Cable Gland | Dome Pendent Mounting Pole 200mm Camera(Support wiring from behind) |
| TR-SE24-A-IN | TR-CM24-IN TR-UC08-C-V2 |
| Dome Pendent Mounting Pole 500mm | Dome Pendent Mounting Bracket(Indoor) Bullet&Dome Corner Mounting Bracket |
| TR-JB07/WM03-F-IN-V2 | TR-WM03-B-IN-V2 TR-UP06-C-IN-V2 |
| Wall Mounting Assembling Bracket with | Wall Mounting Assembling Bracket for 3 Pole Mounting Bracket for Bullet Junction |
| Back Hole for 3 Inch Hemisphere | Inch Hemisphere Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

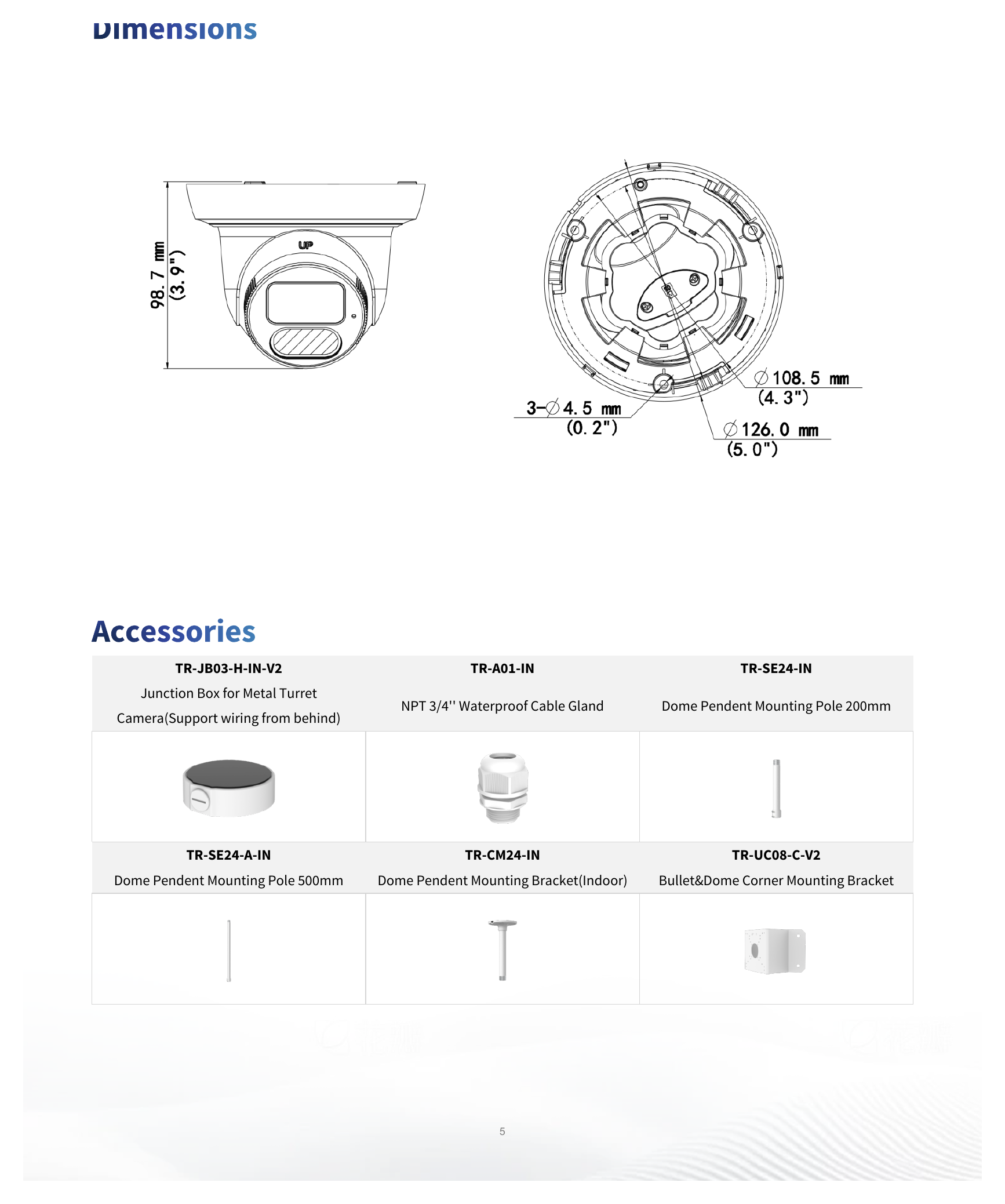

Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H)｜重量 0.43 kg (0.95 lb.)｜Unit: mm
IPC3614SS-ADF28K-I1 Uniview IPC3614SS-ADF28(40)K-I1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC3614SS-ADF28K-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC3614SS-ADF28K-I1 係 1/3.0" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC3614SS-ADF28K-I1 係 Auto/Manual, 1 ~ 1/100000s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC3614SS-ADF28K-I1 係 2.8 mm 4.0 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
