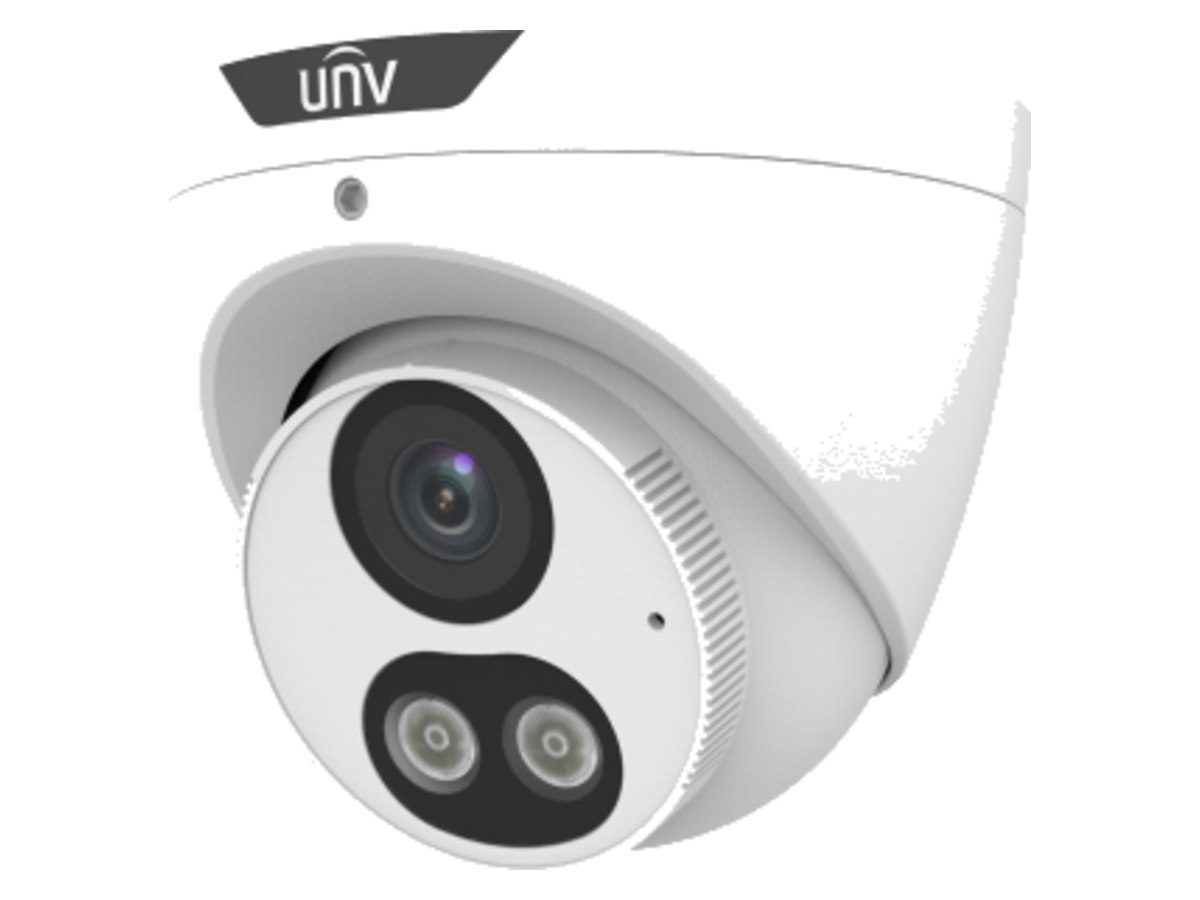

Uniview IPC3615SE-ADF28KM-WL-I0 為IPC3615SE-ADF28(40)KM-WL-I0，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC3615SE-ADF28KM-WL-I0 香港價格連安裝報價。
| Max Resolution | 5 MP |
|---|---|
| Sensor | 1/2.7" CMOS |
| 最低照度 | Color: 0.001 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 3° to 360°, Tilt: 0° to 80°, Rotate: 3° to 360° |
| S/N | >56 dB |
| WDR | 120 dB |
| 焦距 | 2.8 mm |
| 光圈類型 | Fixed |
| Iris | F1.0 |
| Field of View (H) | 102.0° |
| Field of View (V) | 53.4° |
| Field of View (D) | 121.0° |
| 鏡頭類型 | Fixed |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Supplemental Light | Warm light 30 m (98.4 ft.) |
| Light On/Off Control | Auto/Manual |
| 視頻壓縮 | Ultra 265|H.265|H.264|MJPEG D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 |
| Frame Rate-Third Stream | fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Frame Rate-Main Stream | 5 MP (2880 × 1620), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
| Smart Illumination | Support Auto| Outdoor| Fine Tune| Sodium Lamp| Locked| Auto2 |
| Digital Noise Reduction | 2D/3D DNR Normal| Flip Vertical| Flip Horizontal| 180°| 90°Clockwise| 90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Statistical Analysis | N/A Support people flow counting and crowd density detection Motion detection|Ultra motion detection|Tampering alarm|Audio detection Watermark|IP address filtering|Access policy|ARP protection|RTSP authentication|User authentication|HTTP |
| 音訊壓縮 | G.711U|G.711A|AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| 雙向語音 | N/A |
| Suppression | Support G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR|NAS (NFS) |
| 網絡協議 | IPv4|IPv6|IGMP|ICMP|ARP|TCP|UDP|DHCP|PPPo E|RTP|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|U PnP|HTTP|HTTPS|SMTP|802.1x|SNMP|QoS|SSL/ TLS|SSH ONVIF (Profile S, Profile G, Profile T, Profile M)|API|SDK Up to 32 users, 2 user levels: administrator and common user Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and |
| 安全 | Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation|APP Plug-in required live view: IE 10+, Chrome 45+, |
| 瀏覽器 | Firefox 52+, Edge 79+|Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) CE-RoHS (2011/65/EU;(EU)2015/863); WEEE |
| Environment | (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| 防護等級 | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
| 功耗 | Max. 7.5 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø110.5 mm × 94.1 mm (Ø4.4" × 3.7") (Ø × H) |
| 重量 | 0.44 kg (0.97 lb.) |
| 材質 | Metal -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 4 KV |
| Reset Button | N/A 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| TR-JB03-G-IN | TR-A01-IN TR-SE24-IN Junction Box for Mini Fix-dome(Support |
| NPT 3/4'' Waterproof Cable Gland | Dome Pendent Mounting Pole 200mm wiring from behind) |
| TR-SE24-A-IN | TR-CM24-IN TR-JB07/WM03-G-IN-V2 Wall Mounting Assembling Bracket For 32 |
| Dome Pendent Mounting Pole 500mm | Dome Pendent Mounting Bracket(Indoor) Fix-dome&Mini Fix-dome&Plastic Turret |
| TR-WM03-D-IN-V2 | TR-UC08-C-V2 TR-UP06-C-IN-V2 Wall Mounting Bracket for 32 Pole Mounting Bracket for Bullet Junction |
| Fix-dome&Mini Fix-dome&Plastic Turret | Bullet&Dome Corner Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

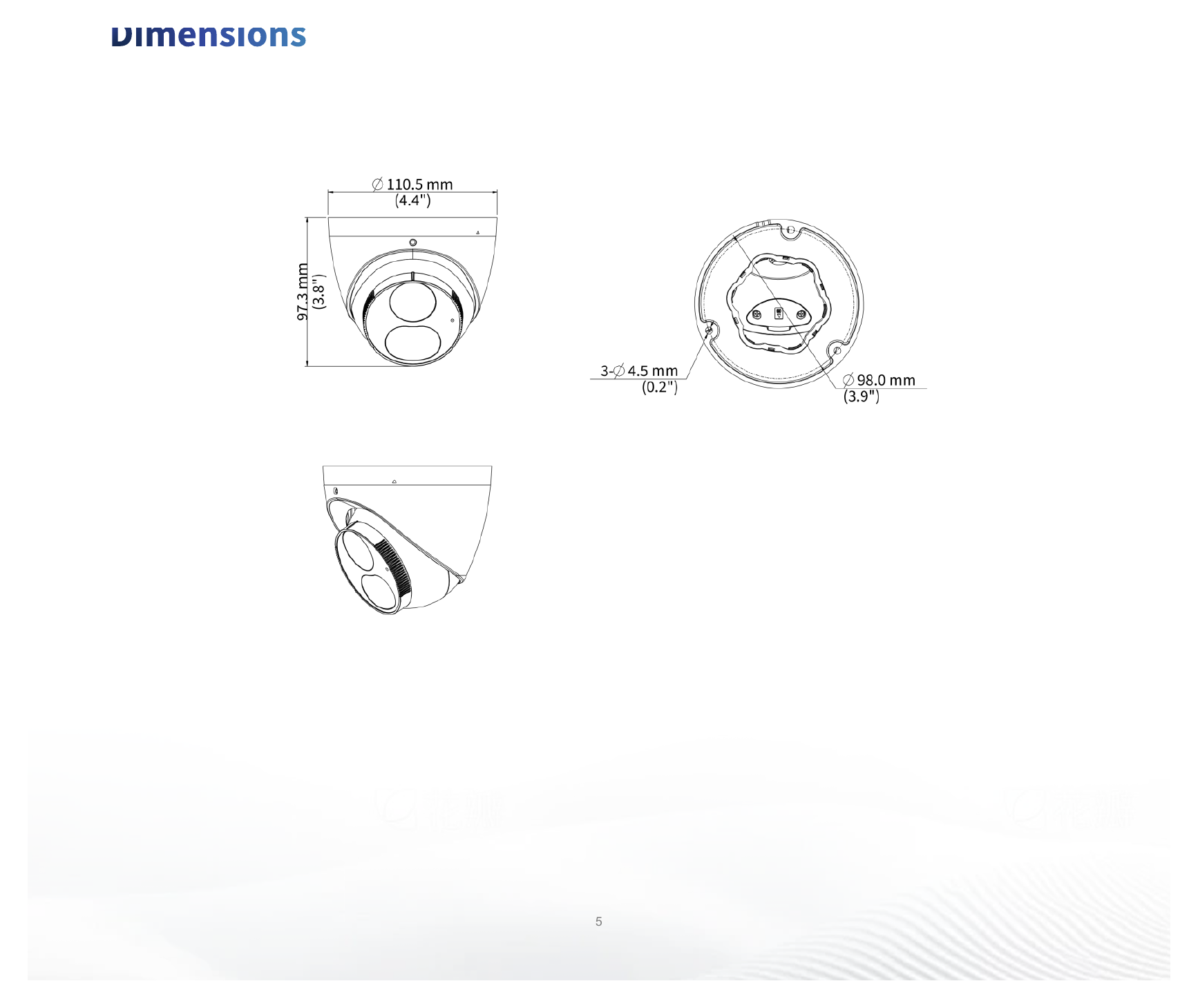

Ø110.5 mm × 94.1 mm (Ø4.4" × 3.7") (Ø × H)｜重量 0.44 kg (0.97 lb.)｜Unit: mm
IPC3615SE-ADF28KM-WL-I0 Uniview IPC3615SE-ADF28(40)KM-WL-I0亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC3615SE-ADF28KM-WL-I0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC3615SE-ADF28KM-WL-I0 係 1/2.7" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC3615SE-ADF28KM-WL-I0 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC3615SE-ADF28KM-WL-I0 係 2.8 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC3615SE-ADF28KM-WL-I0 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC3615SE-ADF28KM-WL-I0 Uniview IPC3615SE-ADF28(40)KM-WL-I0供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝、九龍灣CCTV 閉路電視安裝、佐敦CCTV 閉路電視安裝、元朗CCTV 閉路電視安裝、北角CCTV 閉路電視安裝、土瓜灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC3615SE-ADF28KM-WL-I0 香港價格連安裝報價。
