UNIVIEW IPC3622LE-ADF28K-WP-L CCTV攝影機安裝・保養

Name: UNIVIEW IPC3622LE-ADF28K-WP-L Camera
Brand: Uniview
SKU: IPC3622LE-ADF28K-WP-L

產品簡介

Uniview IPC3622LE-ADF28K-WP-L 為Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC3622LE-ADF28K-WP-L 香港價格連安裝報價。

：High quality image with 1080P, 1/2.7" CMOS sensor and F1.0 l
Max Resolution：2 MP
Sensor：1/2.7" CMOS
最低照度：Color: 0.0003 Lux (F1.0, AGC ON)
Shutter：Auto/Manual, 1 to 1/100000 s

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

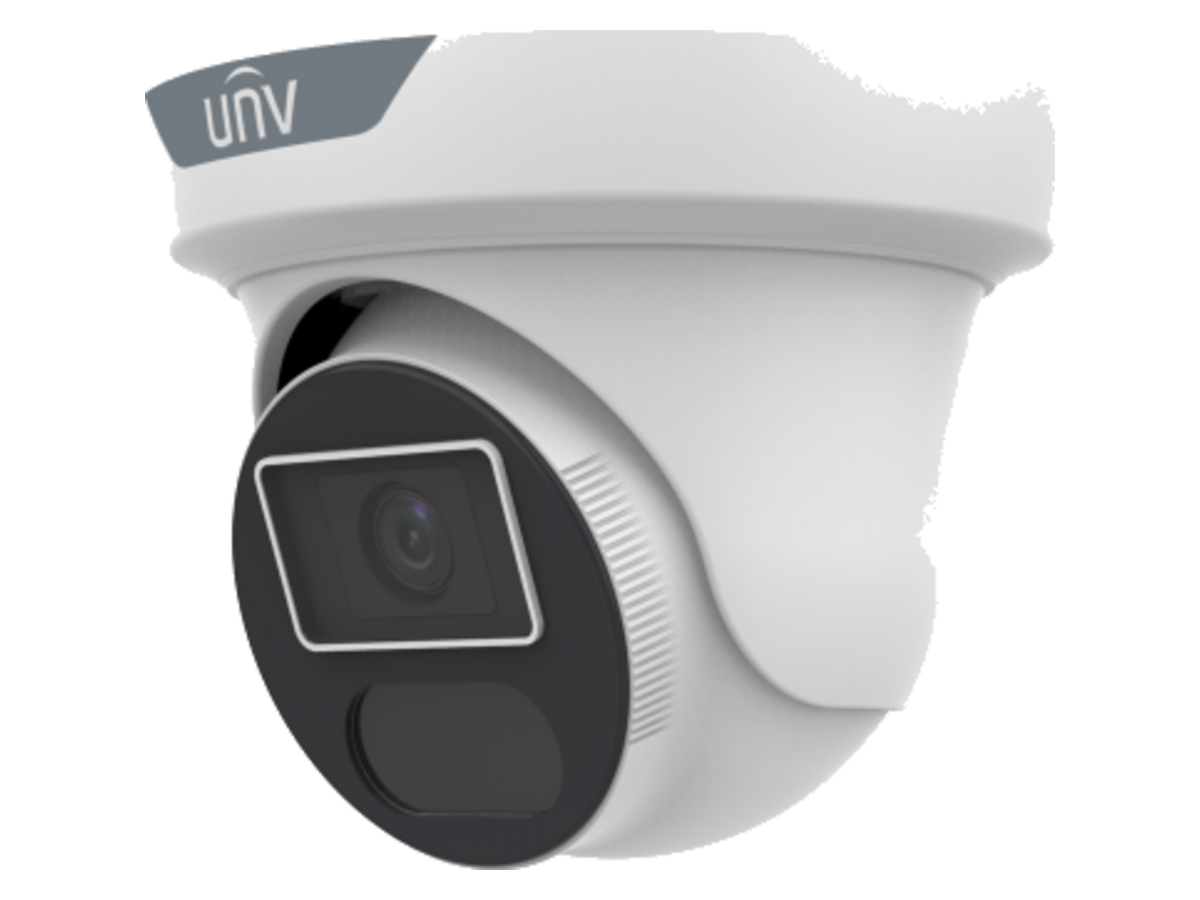

IPC3622LE-ADF28K-WP-L Uniview Camera 產品圖片

詳細規格

	High quality image with 1080P, 1/2.7" CMOS sensor and F1.0 large aperture lens
Max Resolution	2 MP
Sensor	1/2.7" CMOS
最低照度	Color: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N	>52 dB
WDR	120 dB
焦距	2.8 mm 4.0 mm
光圈類型	Fixed
Iris	F1.0
Field of View (H)	99.0° 85.4°
Field of View (V)	53.0° 47.5°
Field of View (D)	118.0° 98.5°
鏡頭類型	Fixed
DORI Distance (Lens)	2.8 mm 4 mm
DORI Distance (Detect)	45.0 m (147.6 ft.) 64.3 m (211.0 ft.)
DORI Distance (Observe)	18.0 m (59.1 ft.) 25.7 m (84.3 ft.)
DORI Distance (Recognize)	9.0 m (29.5 ft.) 12.9 m (42.3 ft.)
DORI Distance (Identify)	4.5 m (14.8 ft.) 6.4 m (21.0 ft.)
Supplemental Light	Warm light
Light On/Off Control	Auto/Manual 30 m (98.4 ft.)
視頻壓縮	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
Frame Rate	Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps;
視頻碼率	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
隱私遮蔽	Up to 4 areas
ROI	Support
Video Stream	Dual streams
Smart Illumination	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
除霧	Digital defog
防抖	N/A ColorHunter with Wise-ISP Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
音訊壓縮	G.711U, G.711A
Audio Bitrate	64 Kbps
雙向語音	N/A
Suppression	Support
取樣率	8 kHz
Edge Storage	MicroSD, up to 512 GB
網絡儲存	ANR, NAS (NFS) IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
用戶管理	Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and
安全	Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
客戶端	EZStation, APP Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
供電	DC 12 V±25%, PoE (IEEE 802.3af)
功耗	Max. 2.6 W
電源接口	Ø5.5 mm coaxial power plug
尺寸	Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
重量	0.40 kg (0.88 lb.)
材質	Metal + Plastic
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
防雷	4 KV
Reset Button	Support 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
TR-JB03-I-IN	TR-CM24-IN TR-SE24-A-IN Junction Box for Turret Camera(Support
Dome Pendent Mounting Bracket(Indoor)	Dome Pendent Mounting Pole 500mm wiring from behind)
TR-SE24-IN	TR-A01-IN TR-JB07/WM03-G-IN-V2 Wall Mounting Assembling Bracket For 32
Dome Pendent Mounting Pole 200mm	NPT 3/4'' Waterproof Cable Gland Fix-dome&Mini Fix-dome&Plastic Turret
TR-WM03-D-IN-V2	TR-UC08-C-V2 TR-UP06-C-IN-V2 Wall Mounting Bracket for 32 Pole Mounting Bracket for Bullet Junction
Fix-dome&Mini Fix-dome&Plastic Turret	Bullet&Dome Corner Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

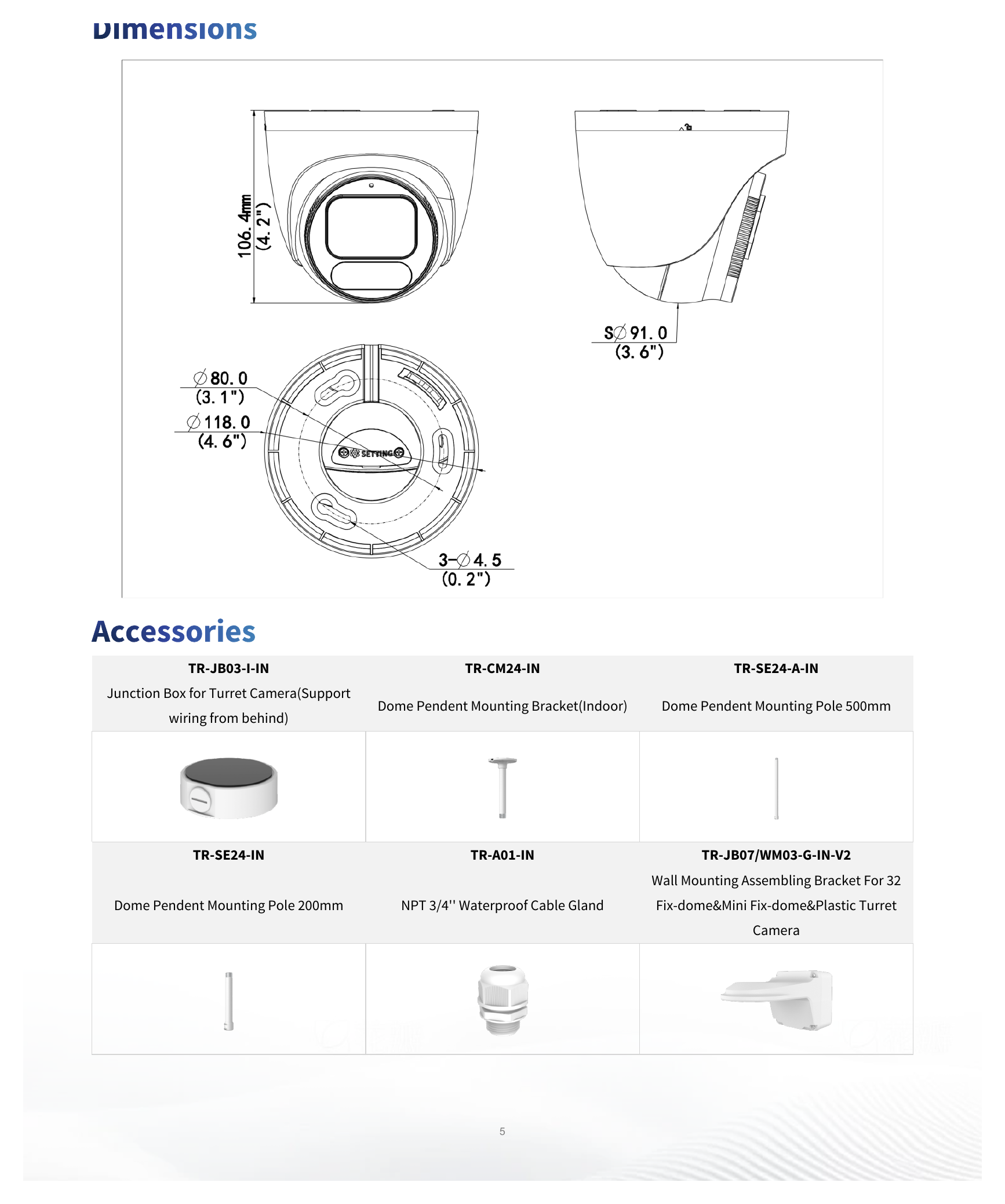

外形尺寸

Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)｜重量 0.40 kg (0.88 lb.)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，IPC3622LE-ADF28K-WP-L 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

IPC3622LE-ADF28K-WP-L Uniview Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

常見問題

IPC3622LE-ADF28K-WP-L 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，IPC3622LE-ADF28K-WP-L 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。

IPC3622LE-ADF28K-WP-L 定 PKC1150-4-Z28-C-P 邊個好？

兩者主要規格分別：Sensor方面，IPC3622LE-ADF28K-WP-L 係 1/2.7" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC3622LE-ADF28K-WP-L 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC3622LE-ADF28K-WP-L 係 2.8 mm 4.0 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
