Uniview IPC3K28SE-ADF28KMC-DL-I0 為Fixed Turret Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC3K28SE-ADF28KMC-DL-I0 香港價格連安裝報價。
| Max Resolution | 8 MP |
|---|---|
| Sensor | 1/2.5" CMOS |
| 最低照度 | Color: 0.002 Lux ( F1.0, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 130 dB |
| 焦距 | 2.8 mm |
| 光圈類型 | Fixed |
| Iris | F1.0 |
| Field of View (H) | 180° |
| Field of View (V) | 65° |
| Field of View (D) | 180° |
| 鏡頭類型 | Fixed |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 63.1 m (207.0 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft.) 30 m (98.4 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate-Main Stream | 8 MP (4096 × 1860), max. 20 fps |
| Frame Rate-Sub Stream | 2048 × 936, max. 20 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| Auto Scene Match (ASM) | Support (only WDR) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | N/A |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog |
| 防抖 | N/A Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Statistical Analysis | N/A |
| Attribute Collection | SIP with color retrieval |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, APP Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) CE-LVD (EN 62368-1) |
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) IP67 (IEC 60529) IK10 (IEC 62262) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
| 功耗 | Max. 12.6 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø128.7 mm × 109.9 mm (Ø5.1" × 4.3") (Ø × H) |
| 重量 | 0.86 kg (1.90 lb.) |
| 材質 | Metal |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 4 KV |
| Reset Button | Support 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| TR-JB03-H-IN-V2 | TR-SE24-IN TR-SE24-A-IN Junction Box for Metal Turret |
| Dome Pendent Mounting Pole 200mm | Dome Pendent Mounting Pole 500mm Camera(Support wiring from behind) |
| TR-CM24-IN | TR-UC08-C-V2 TR-JB07/WM03-F-IN-V2 Wall Mounting Assembling Bracket with |
| Dome Pendent Mounting Bracket(Indoor) | Bullet&Dome Corner Mounting Bracket Back Hole for 3 Inch Hemisphere |
| TR-WM03-B-IN-V2 | TR-UP06-C-IN-V2 TR-A01-IN |
| Wall Mounting Assembling Bracket for 3 | Pole Mounting Bracket for Bullet Junction NPT 3/4'' Waterproof Cable Gland |
| Inch Hemisphere | Box Only TR-JB03-J-IN Junction Box for Metal Turret Camera(Support wiring from behind) http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China (Zhejiang) Pilot Free Trade Zone, China Uniview cannot be held responsible for any such errors and reserves the right to ch |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

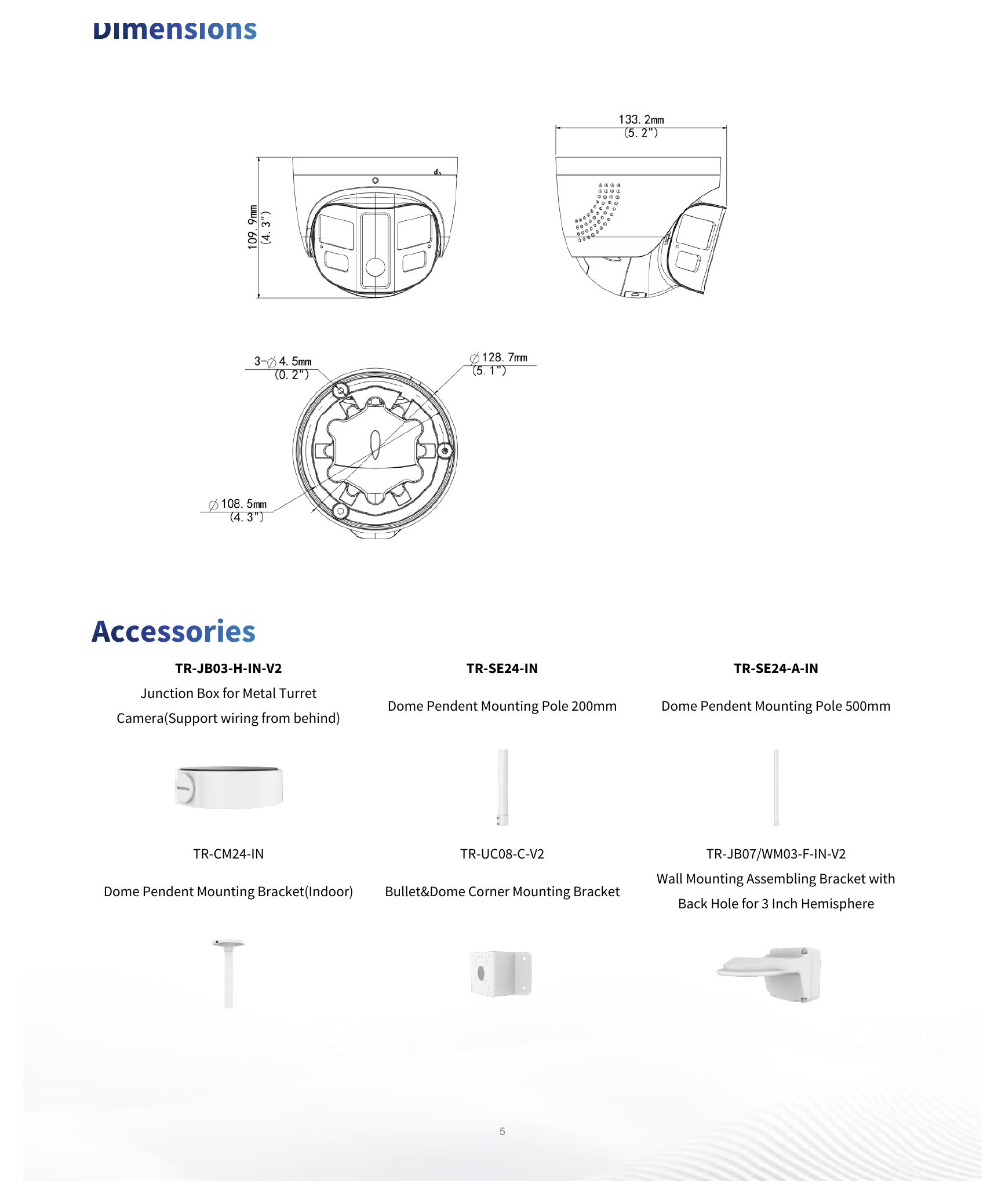

Ø128.7 mm × 109.9 mm (Ø5.1" × 4.3") (Ø × H)｜重量 0.86 kg (1.90 lb.)｜Unit: mm
IPC3K28SE-ADF28KMC-DL-I0 Uniview Fixed Turret Network Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC3K28SE-ADF28KMC-DL-I0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC3K28SE-ADF28KMC-DL-I0 係 1/2.5" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC3K28SE-ADF28KMC-DL-I0 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC3K28SE-ADF28KMC-DL-I0 係 2.8 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC3K28SE-ADF28KMC-DL-I0 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC3K28SE-ADF28KMC-DL-I0 Uniview Fixed Turret Network Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝、九龍灣CCTV 閉路電視安裝、佐敦CCTV 閉路電視安裝、元朗CCTV 閉路電視安裝、北角CCTV 閉路電視安裝、土瓜灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC3K28SE-ADF28KMC-DL-I0 香港價格連安裝報價。
