Uniview IPC6215SR-X5PAEW-VG 為IPC6215SR-X5PAEW-VG，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6215SR-X5PAEW-VG 香港價格連安裝報價。
| Sensor | 1/2.7" CMOS |
|---|---|
| 最低照度 | Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | ＞56dB |
| 焦距 | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.2 |
| Field of View (H) | 104.9° to 30.6° |
| Field of View (V) | 55.4° to 17.7° |
| Field of View (D) | 129.0° to 39.8° |
| DORI Distance (Lens) | 2.7 to 13.5 mm |
| DORI Distance (Detect) | 70.9 m to 247.5 m (232.5 ft. to 812.0 ft.) |
| DORI Distance (Observe) | 28.4 m to 99.0 m (93.2 ft. to 324.8 ft.) |
| DORI Distance (Recognize) | 14.2 m to 49.5 m (46.5 ft. to 162.4 ft.) |
| DORI Distance (Identify) | 7.1 m to 24.8 m (23.3 ft. to 81.4 ft.) |
| 隱私遮蔽 | 24 areas, up to 4 areas per scene |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream: 5 MP (2880 × 1620), max. 30 fps; |
| Frame Rate | Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Built-in DC12V Output | Support |
| 供電 | DC 12 V (±25%), PoE+ (IEEE 802.3at) |
| 功耗 | 18 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø129 mm × 143.6 mm (Ø5.1" × 5.7") (Ø × H) |
| 重量 | 780 g (1.72 lb.) |
| Working Environment | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 4 KV |
| Reset Button | Support |
| 材質 | Plastic 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| 除霧 | Digital defog |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 30 m (98.4 ft.) Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 1800 s to 3600 s |
| Home Position | Support |
| Pan Range | 350° |
| Tilt Range | 0° to 90° |
| 水平速度 | 0.1°/s to 60°/s |
| 垂直速度 | 0.1°/s to 50°/s |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | 1 * RS485 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC |
| EMC | 61000-3-2: 2019+A1: 2021, EN 50130-4:2011+A1:2014 FCC（47 CFR Part 15, Subpart B，ANSI C63.4-2014） UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Safety | CAN/CSA C22.2 NO. 62368-1-14, 2nd Ed., Issue Date:2014-12-01 EN IEC 62368-1:2020+A11:2020 |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Wireless Standards | IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz Support 802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9 802.11b: -76 dBm@11 Mbps (Typical) 802.11g: -65 dBm@54 Mbps (Typical) 802.11n: -64 dBm@MCS7_HT20 (Typical) |
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK |
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps |
| TR-JB03-H-IN | TR-A01-IN TR-JB07/WM03-F-IN |
| Junction Box for Metal Turret | Wall Mounting Assembling Bracket with NPT 3/4'' Waterproof Cable Gland |
| Camera(Support wiring from behind) | Back Hole for 3 Inch Hemisphere |
| TR-UP06-IN | TR-WM03-B-IN TR-UC08-C Wall Mounting Assembling Bracket for 3 |
| Universal Pole Mounting Bracket | Bullet&Dome Corner Mounting Bracket Inch Hemisphere Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

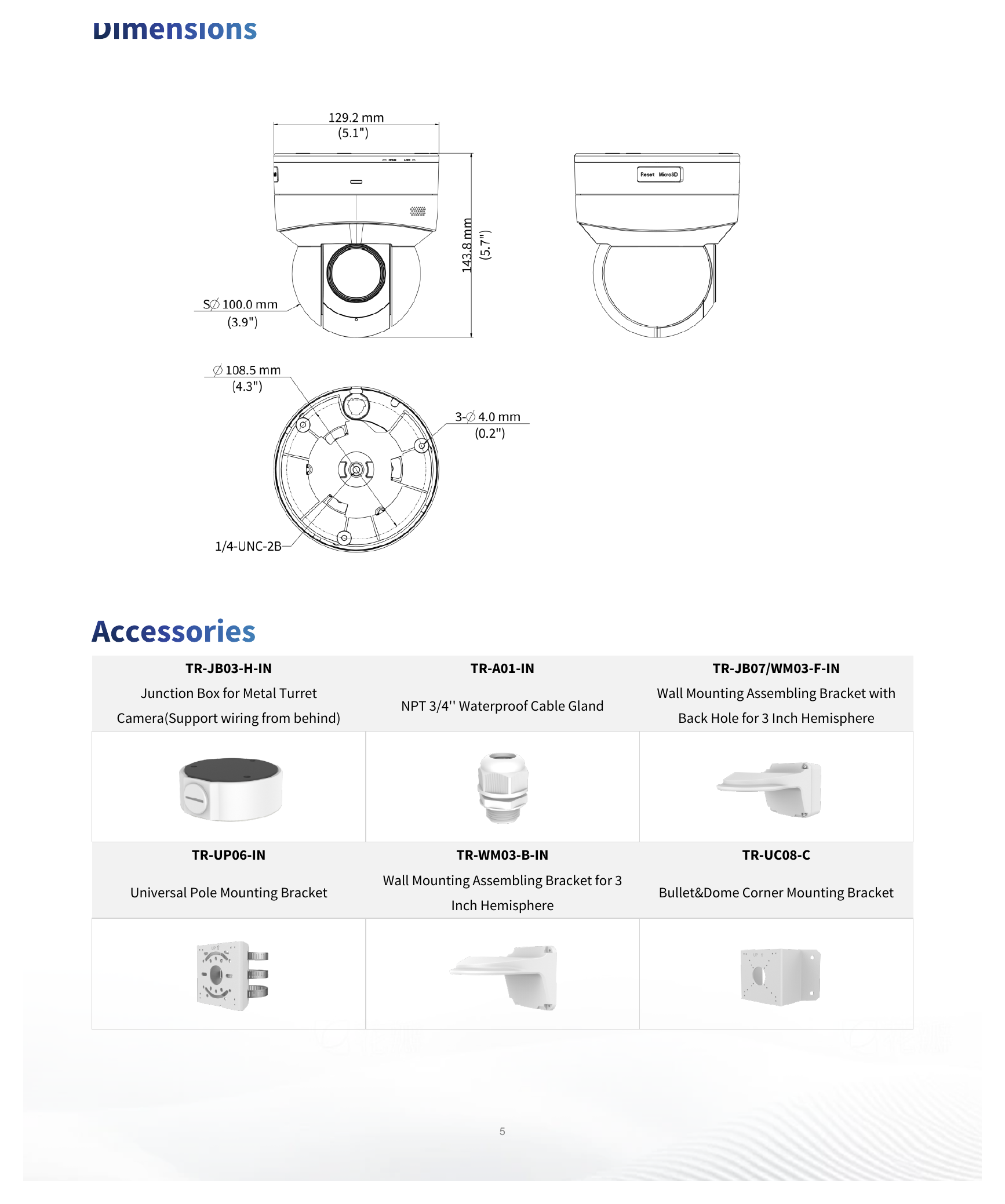

Ø129 mm × 143.6 mm (Ø5.1" × 5.7") (Ø × H)｜重量 780 g (1.72 lb.)｜Unit: mm
IPC6215SR-X5PAEW-VG Uniview IPC6215SR-X5PAEW-VG亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6215SR-X5PAEW-VG 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6215SR-X5PAEW-VG 係 1/2.7" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6215SR-X5PAEW-VG 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6215SR-X5PAEW-VG 係 2.7 to 13.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6215SR-X5PAEW-VG 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC6215SR-X5PAEW-VG Uniview IPC6215SR-X5PAEW-VG供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝、九龍灣CCTV 閉路電視安裝、佐敦CCTV 閉路電視安裝、元朗CCTV 閉路電視安裝、北角CCTV 閉路電視安裝、土瓜灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC6215SR-X5PAEW-VG 香港價格連安裝報價。
