UNIVIEW IPC6234LR-AX5C-VG3 CCTV攝影機安裝・保養

Name: UNIVIEW IPC6234LR-AX5C-VG3 IPC6234LR-AX5C-VG3
Brand: Uniview
SKU: IPC6234LR-AX5C-VG3

產品簡介

Uniview IPC6234LR-AX5C-VG3 為IPC6234LR-AX5C-VG3，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6234LR-AX5C-VG3 香港價格連安裝報價。

Max Resolution：4 MP
Sensor：1/2.9" CMOS
Day/Night：IR-cut filter with auto switch (ICR)
Shutter：Auto/Manual, 1 to 1/100000 s
WDR：120 dB

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

IPC6234LR-AX5C-VG3 Uniview IPC6234LR-AX5C-VG3 產品圖片

詳細規格

Max Resolution	4 MP
Sensor	1/2.9" CMOS
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 56 dB
Case Type	PT
焦距	2.7 to 13.5 mm
Digital Zoom	16X
Optical Zoom	5X
Iris	F1.68 to F3.18
DORI Distance (Detect)	75.8 m to 227.9 m (248.8 ft. to 747.8 ft.)
DORI Distance (Observe)	30.3 m to 91.2 m (99.4 ft. to 299.1 ft.)
DORI Distance (Recognize)	15.2 m to 45.6 m (49.9 ft. to 149.6 ft.)
DORI Distance (Identify)	7.6 m to 22.8 m (24.9 ft. to 74.8 ft.)
視頻壓縮	H.265, H.264, MJPEG, Ultra 265 Main Stream Max: 4 MP (2560 × 1440), 30 fps
Frame Rate	Main Stream Default: 4 MP (2560 × 1440), 25 fps
Sub Stream Max:	720 × 576, 30 fps
視頻碼率	128 Kbps to 6144 Kbps
U-code	Support
隱私遮蔽	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Dual streams
OSD	Up to 4 OSDs Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication
雙向語音	Support
Suppression	Support
音訊壓縮	G.711U, G.711A, AAC-LC
取樣率	G.711U/G.711A: 8 kHz, 16 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Edge Storage	MicroSD, up to 512 GB
網絡儲存	NAS (NFS)
用戶管理	Up to 32 users. 3 user levels: administrator, common user and operator SSH, IGMP, RTP, RTMP, RTCP, IPv4, SSL/TLS, QoS, 802.1x, HTTPS, HTTP, UPnP, NTP, DDNS, DNS, RTSP, DHCP, UDP, TCP, ARP, ICMP, IPv6, SMTP, PPPoE, SNMP
Compatible Integration	SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and
安全	Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3
客戶端	EZStation, UniEase, UniTools Pro Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	200 s to 1800 s
Preset Image Freeze	N/A
Tilt Range	10° to 90°
Home Position	Support
水平速度	0.1°/s to 55°/s
Pan Range	355°
垂直速度	0.1°/s to 55°/s
Number of Presets	1024
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
BLC	Support
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
除霧	N/A LightHunter
防抖	DIS
Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Alarm I/O	1/1
Built-in Speaker	Support
Built-in Mic	Built-in dual-mic
People Counting	Support people flow counting and crowd density detection
Exception Detection	Object removed, Object Left Behind
Auto Tracking	Support Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Illumination Distance (IR)	20 m (65.6 ft.) UL (UL 62368-1)
Safety	CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B)
Environment	CE-ROHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU)
防護等級	IP67 (IEC 60529) ; IK10 (IEC62262)
電源接口	Ø5.5 mm coaxial power plug
尺寸	Ø129 mm × 91 mm (Ø5.1" × 3.6") (Ø × H)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
防雷	4 KV
Reset Button	Support
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
供電	DC 12 V (±25%), PoE af
NDAA Compliant	Support
TR-JB03-J-IN	TR-CM24-IN TR-SE24-A-IN Junction Box for Metal Turret
Dome Pendent Mounting Bracket(Indoor)	Dome Pendent Mounting Pole 500mm Camera(Support wiring from behind)
TR-SE24-IN	TR-JB07/WM03-F-IN-V2 TR-WM03-B-IN-V2
Wall Mounting Assembling Bracket with	Wall Mounting Assembling Bracket for 3 Dome Pendent Mounting Pole 200mm
Back Hole for 3 Inch Hemisphere	Inch Hemisphere Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

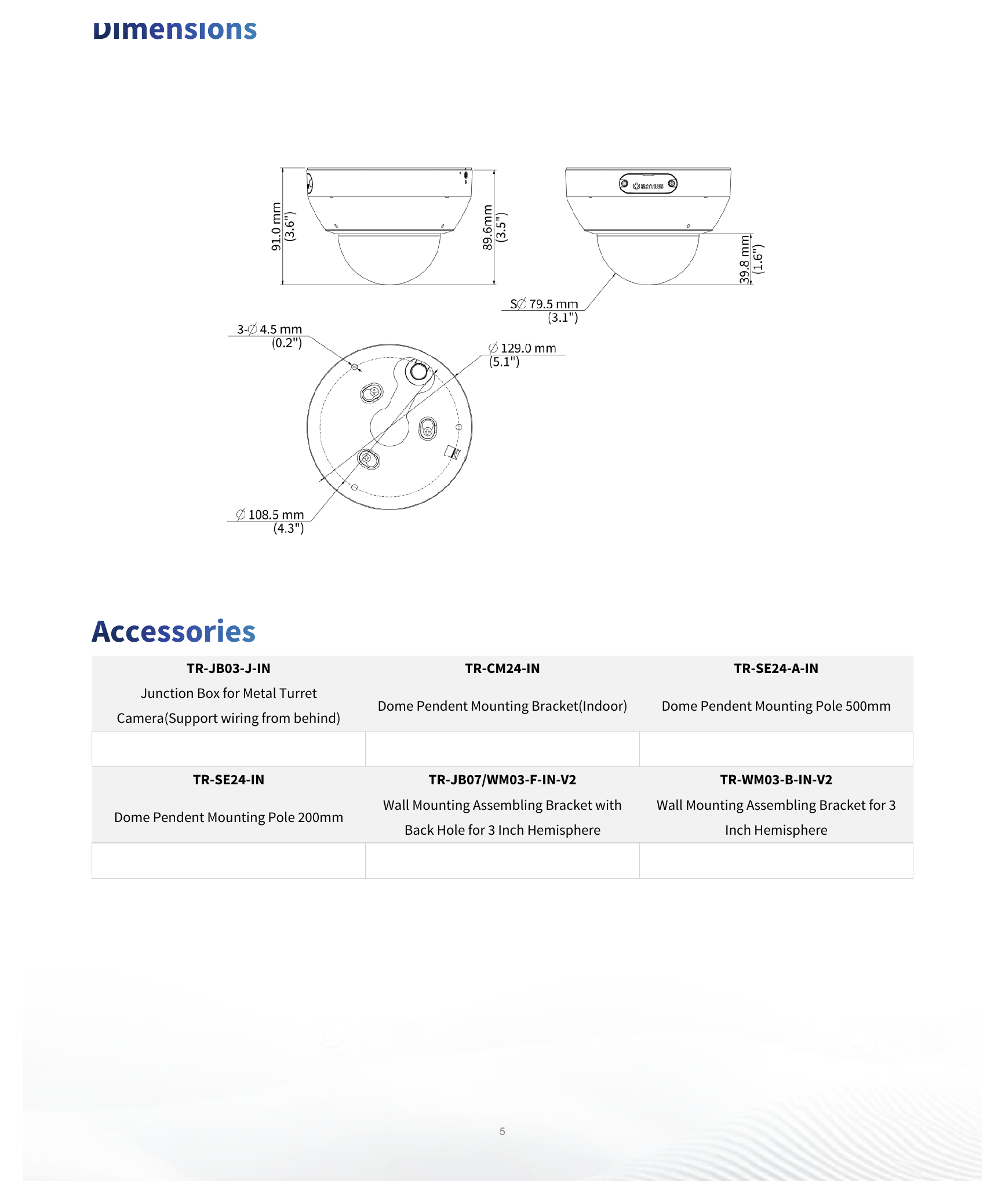

外形尺寸

Ø129 mm × 91 mm (Ø5.1" × 3.6") (Ø × H)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，IPC6234LR-AX5C-VG3 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

IPC6234LR-AX5C-VG3 Uniview IPC6234LR-AX5C-VG3亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

常見問題

IPC6234LR-AX5C-VG3 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，IPC6234LR-AX5C-VG3 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。

IPC6234LR-AX5C-VG3 定 PKC1150-4-Z28-C-P 邊個好？

兩者主要規格分別：Sensor方面，IPC6234LR-AX5C-VG3 係 1/2.9" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6234LR-AX5C-VG3 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6234LR-AX5C-VG3 係 2.7 to 13.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
