Uniview IPC6324LWH-AX5C-VG2 為IPC6324LWH-AX5C-VG2，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6324LWH-AX5C-VG2 香港價格連安裝報價。
| Sensor | 1/1.8" CMOS |
|---|---|
| 最低照度 | Color: 0.0005 Lux (F1.2, AGC ON) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| 焦距 | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Field of View (H) | 113.69° to 50.29° |
| Field of View (V) | 59.46° to 28.45° |
| Field of View (D) | 156.23° to 59.34° |
| DORI Distance (Lens) | 2.7 to 13.5 mm |
| DORI Distance (Detect) | 98.6 m to 209.9 m (323.3 ft. to 688.7 ft.) |
| DORI Distance (Observe) | 39.4 m to 84.0 m (129.3 ft. to 275.5 ft.) |
| DORI Distance (Recognize) | 19.7 m to 42.0 m (64.7 ft. to 137.7 ft.) |
| DORI Distance (Identify) | 9.9 m to 21.0 m (32.3 ft. to 68.9 ft.) |
| 隱私遮蔽 | Up to 4 areas 4 MP (2560 × 1440)@25 fps (Default) |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 視頻碼率 | 128 Kbps to 6144 Kbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Auto Tracking | Support, target filtering: human only Support false alarm filtering: cross Line detection, intrusion detection (based on human body and vehicle detection) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog |
| Light On/Off Control | Auto/Manual 40 m |
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| Motion Detection | Support |
| Tampering Detection | Support |
| Audio Detection | Support Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User |
| UMD (Ultra Motion Detection) | Support |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz, 16 kHz |
| Edge Storage | MicroSD, up to 512 GB TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S,Profile G,Profile T), API Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| 客戶端 | EZStation, EZLive, EZView Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120 s to 1800 s |
| Home Position | Support |
| Number of Presets (IPC) | 1024 |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 100° |
| 水平速度 | 1°/s to 50°/s |
| 垂直速度 | 1°/s to 40°/s |
| Number of Patrol | 16 |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) UL (UL 62368-1) |
| Safety | CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| 防護等級 | IP66 (IEC 60529) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3at) |
| 功耗 | ≤ 25.4 W |
| 重量 | 1.33 kg (2.93 lb) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 2 KV |
| Reset Button | Support |
| 材質 | Metal |
| Heater | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Maximum Bitstream | 35 |
| OSD Color | Support |
| OSD Character Number | 40 |
| TR-JB07-D-IN | TR-CM06-D TR-A01-IN Bullet Junction Box(Support wiring from |
| Alarm Ball Machine Hoisting Bracket | NPT 3/4'' Waterproof Cable Gland behind) |
| TR-UP06-B-IN | TR-UP06-C-IN-V2 TR-UC08-C-V2 Pole Mounting Bracket for Bullet Junction |
| Bullet Pole Mounting Bracket | Bullet&Dome Corner Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

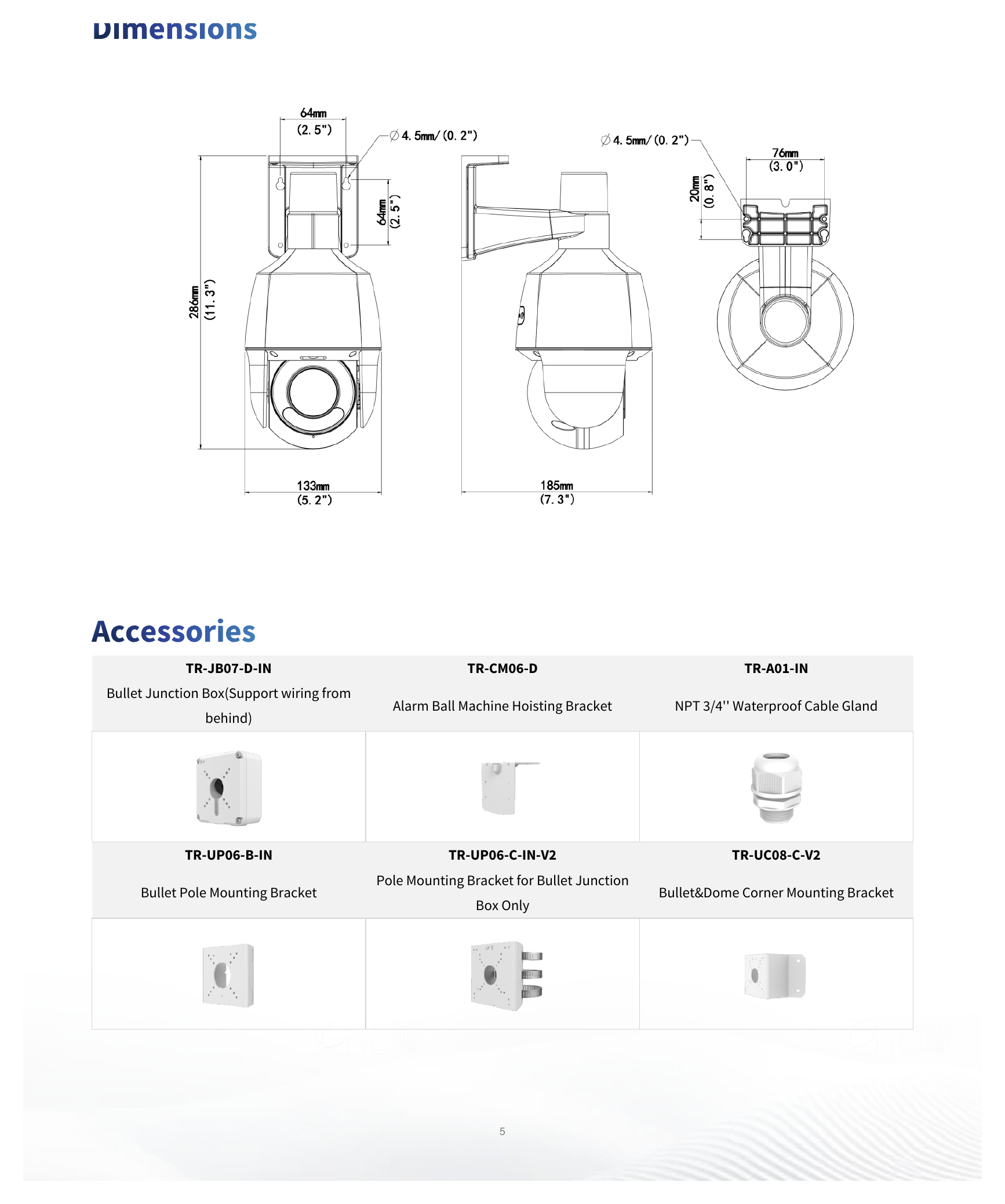

詳見圖示｜Unit: mm
IPC6324LWH-AX5C-VG2 Uniview IPC6324LWH-AX5C-VG2亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6324LWH-AX5C-VG2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6324LWH-AX5C-VG2 係 1/1.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6324LWH-AX5C-VG2 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6324LWH-AX5C-VG2 係 2.7 to 13.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6324LWH-AX5C-VG2 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC6324LWH-AX5C-VG2 Uniview IPC6324LWH-AX5C-VG2供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC6324LWH-AX5C-VG2 香港價格連安裝報價。
