Uniview IPC6325LFW-AX5C-VG 為IPC6325LFW-AX5C-VG，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6325LFW-AX5C-VG 香港價格連安裝報價。
| Max Resolution | 5 MP |
|---|---|
| Sensor | 1/2.7" CMOS |
| 最低照度 | Color: 0.005 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| 焦距 | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.2 |
| Field of View (H) | 106.9° to 30.6° |
| Field of View (V) | 56° to 17.7° |
| Field of View (D) | 131.5° to 36.1° |
| DORI Distance (Detect) | 70.9 m to 247.5 m (232.5 ft. to 812.0 ft.) |
| DORI Distance (Observe) | 28.4 m to 99.0 m (93.2 ft. to 324.8 ft.) |
| DORI Distance (Recognize) | 14.2 m to 49.5 m (46.5 ft. to 162.4 ft.) |
| DORI Distance (Identify) | 7.1 m to 24.8 m (23.3 ft. to 81.4 ft.) |
| 隱私遮蔽 | Up to 4 areas |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream: 5 MP (2880 × 1620), max. 30 fps |
| Frame Rate | Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Auto Tracking | Support, target filtering: human only Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| 除霧 | Digital defog |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 50 m (164.0 ft.) 15 m (49.2 ft.) Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120 s to 1800 s |
| Home Position | Support |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 100° |
| 水平速度 | 1°/s to 50°/s |
| 垂直速度 | 1°/s to 40°/s |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) CE LVD (EN 62368-1: 2020+A11: 2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| 防護等級 | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| 供電 | DC 12 V (±25%), PoE (IEEE 802.3at) |
| 功耗 | 18 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | 185 mm × 133 mm × 286 mm (7.3" × 5.2" × 11.3") (L × W × H) |
| 重量 | 1.32 kg (2.91 lb.) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| 防雷 | 2 KV |
| Reset Button | Support |
| Heater | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| TR-JB07-D-IN | TR-CM06-D TR-A01-IN Bullet Junction Box(Support wiring from |
| Alarm Ball Machine Hoisting Bracket | NPT 3/4'' Waterproof Cable Gland behind) |
| TR-UP06-C-IN | TR-UP06-B-IN Pole Mounting Bracket for Bullet Junction Bullet Pole Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

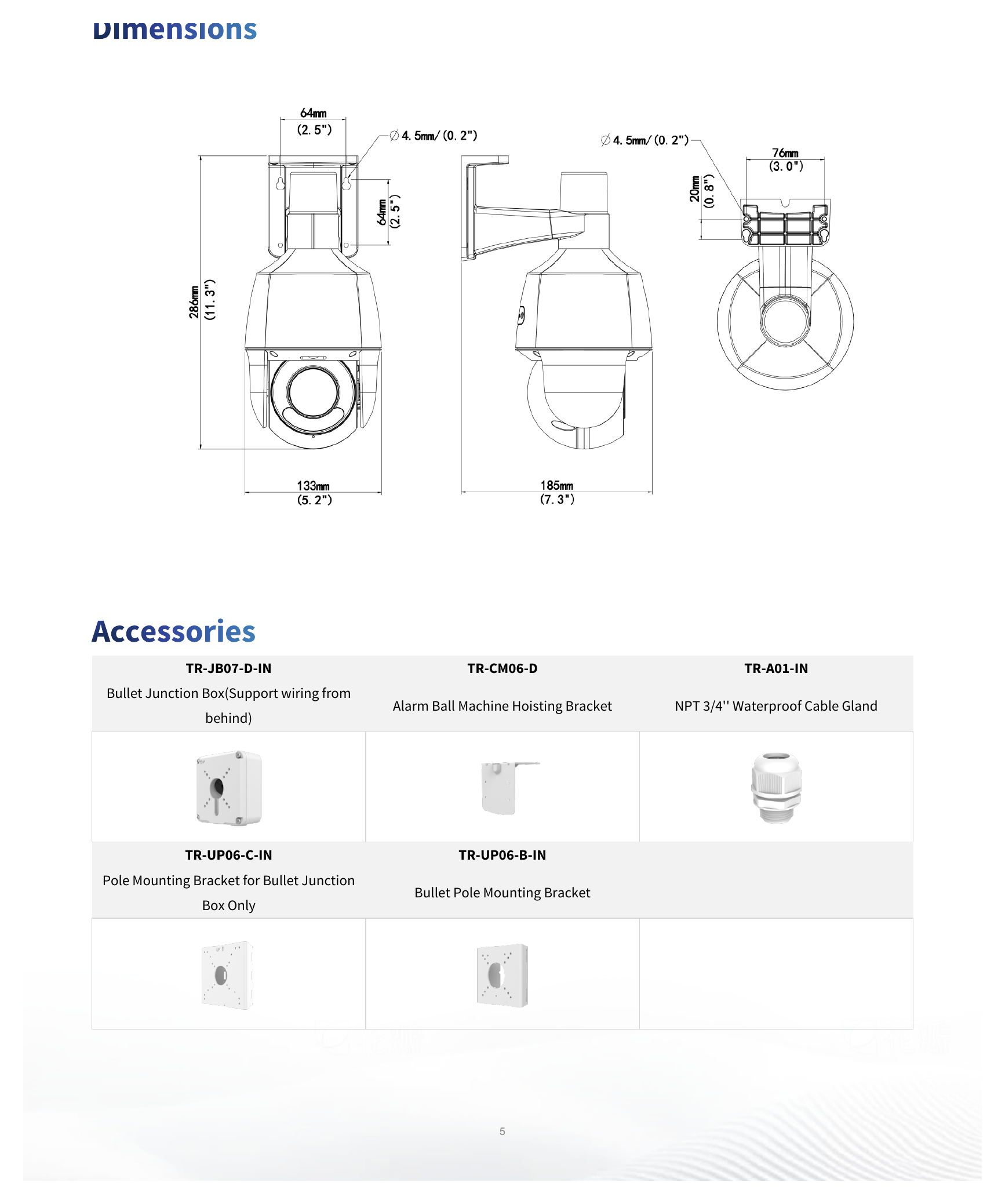

185 mm × 133 mm × 286 mm (7.3" × 5.2" × 11.3") (L × W × H)｜重量 1.32 kg (2.91 lb.)｜Unit: mm
IPC6325LFW-AX5C-VG Uniview IPC6325LFW-AX5C-VG亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6325LFW-AX5C-VG 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6325LFW-AX5C-VG 係 1/2.7" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6325LFW-AX5C-VG 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6325LFW-AX5C-VG 係 2.7 to 13.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6325LFW-AX5C-VG 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC6325LFW-AX5C-VG Uniview IPC6325LFW-AX5C-VG供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：藍田CCTV 閉路電視安裝、觀塘CCTV 閉路電視安裝、銅鑼灣CCTV 閉路電視安裝、鑽石山CCTV 閉路電視安裝、長沙灣CCTV 閉路電視安裝、青衣CCTV 閉路電視安裝、香港仔CCTV 閉路電視安裝、黃大仙CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC6325LFW-AX5C-VG 香港價格連安裝報價。
IPC6325LFW-AX5C-VG Uniview IPC6325LFW-AX5C-VG適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
村屋、圍村、丁屋裝CCTV閉路電視，前後園全景監控、車路出入記錄、紅外夜視防盜、村口通道覆蓋。免費上門度尺、按規模報價，尖沙咀、旺角項目即約勘察。上門度尺不收費、即日出報價，
WhatsApp 查詢 →茶餐廳、快餐店、大排檔裝CCTV閉路電視，廚房後廚衛生監控、收銀防盜、食客糾紛記錄、全店無死角覆蓋。專業團隊上門評估，沙田、旺角場地歡迎洽談報價。免費上門評估、快速出方案報價，香港、新界一帶即日上門。
WhatsApp 查詢 →珠寶店、金行、鐘錶店裝CCTV閉路電視，櫃檯高清特寫、保險箱區域監控、出入口防盜、24小時遠程查看。一站式勘測安裝，將軍澳、中環各區即日約見報價。持牌團隊免費勘察、明碼報價，
WhatsApp 查詢 →便利店、士多、小賣部裝CCTV閉路電視，貨架死角監控、收銀防盜、夜間無人值守遠程查看、迷你店舖全覆蓋。免費評估方案、即時報價，新界、九龍一帶歡迎查詢。免費上門度尺、報價一目了然，
WhatsApp 查詢 →電器店、手機店、電腦店裝CCTV閉路電視，貴價展品監控、櫃檯收銀防盜、客戶糾紛記錄、全店無死角。免費上門勘察、明碼實價報價，九龍、荃灣一帶即日約期。即約免費勘察、透明報價無隱藏，香港、新界一帶即日上門。
WhatsApp 查詢 →生產線、車間、廠房裝CCTV閉路電視，生產流程監控、員工操作記錄、原料成品防盜、安全事故追溯。全港覆蓋上門安裝，元朗、觀塘各區歡迎致電查詢。免費上門睇位、專業報價跟進，
WhatsApp 查詢 →查看更多CCTV 監控適用場景，請參閱 CCTV 監控安裝工程。
如需整套CCTV 監控方案，請參閱 CCTV 監控安裝工程。
