UNIVIEW IPC6412LR-X5UPW-VG CCTV攝影機安裝・保養

Name: UNIVIEW IPC6412LR-X5UPW-VG IPC6412LR-X5UPW-VG
Brand: Uniview
SKU: IPC6412LR-X5UPW-VG

產品簡介

Uniview IPC6412LR-X5UPW-VG 為IPC6412LR-X5UPW-VG，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6412LR-X5UPW-VG 香港價格連安裝報價。

Sensor：1/2.7" CMOS
最低照度：Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night：IR-cut filter with auto switch (ICR)
Shutter：Auto/Manual, 1 to 1/100000 s
WDR：120 dB

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

IPC6412LR-X5UPW-VG Uniview IPC6412LR-X5UPW-VG 產品圖片

詳細規格

Sensor	1/2.7" CMOS
最低照度	Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	＞52dB
焦距	2.7 to 13.5 mm
Optical Zoom	5X
Iris	F1.2
Field of View (H)	104.9° to 30.6°
Field of View (V)	55.41° to 17.7°
Field of View (D)	136.37° to 36.1°
DORI Distance (Lens)	2.7 to 13.5 mm
DORI Distance (Detect)	70.9 m to 247.5 m (232.5 ft. to 812.0 ft.)
DORI Distance (Observe)	28.4 m to 99.0 m (93.2 ft. to 324.8 ft.)
DORI Distance (Recognize)	14.2 m to 49.5 m (46.5 ft. to 162.4 ft.)
DORI Distance (Identify)	7.1 m to 24.8 m (23.3 ft. to 81.4 ft.)
隱私遮蔽	24 areas, up to 4 areas per scene
視頻壓縮	Ultra 265, H.265, H.264, MJPEG Main Stream: 1080P (1920 × 1080), max. 30 fps;
Frame Rate	Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps
視頻碼率	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Exception Detection	Object removed, Object Left Behind, Scene change, Defocus detection
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
除霧	Digital defog
Heatwave Reduction	N/A
Light On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (IR)	30 m (98.4 ft.) Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication
音訊壓縮	G.711U, G.711A
Audio Bitrate	128 Kbps
雙向語音	Support
Suppression	Support
取樣率	16KHZ
Edge Storage	MicroSD, up to 512 GB
網絡儲存	ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
用戶管理	Up to 32 users. 3 user levels: administrator, common user and operator TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic
安全	and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
客戶端	EZStation, UNV-Link, UNV-Link Pro
瀏覽器	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	1800 s to 3600 s
Preset Image Freeze	N/A
Home Position	Support
Pan Range	350°
Tilt Range	0° to 90°
水平速度	0.1°/s to 60°/s
垂直速度	0.1°/s to 50°/s
Audio I/O	N/A
Alarm I/O	1/1
Serial Port	1 * RS485
Built-in Mic	Support
Built-in Speaker	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A CE-EMC (EN 55032: 2015+A1:2020; EN 61000-3-3: 2013+A1: 2019; EN IEC 61000-3-2: 2019+A1: 2021;
EMC	EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017)
Safety	CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU;(EU)2015/863)
供電	DC 12 V (±25%), PoE (IEEE 802.3at)
功耗	Max. 15 W
電源接口	Ø5.5 mm coaxial power plug
尺寸	Ø129 mm × 143.6 mm (Ø5.1" × 5.7") (Ø × H)
重量	0.76 kg (1.67 lb.)
Working Environment	-10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
防雷	4 KV
Reset Button	Support
材質	Plastic 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French,
介面語言	Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
TR-JB03-H-IN	TR-JB07/WM03-F-IN TR-WM03-B-IN
Junction Box for Metal Turret	Wall Mounting Assembling Bracket with Wall Mounting Assembling Bracket for 3
Camera(Support wiring from behind)	Back Hole for 3 Inch Hemisphere Inch Hemisphere
TR-A01-IN	TR-UP06-IN TR-UC08-C
NPT 3/4'' Waterproof Cable Gland	Universal Pole Mounting Bracket Bullet&Dome Corner Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

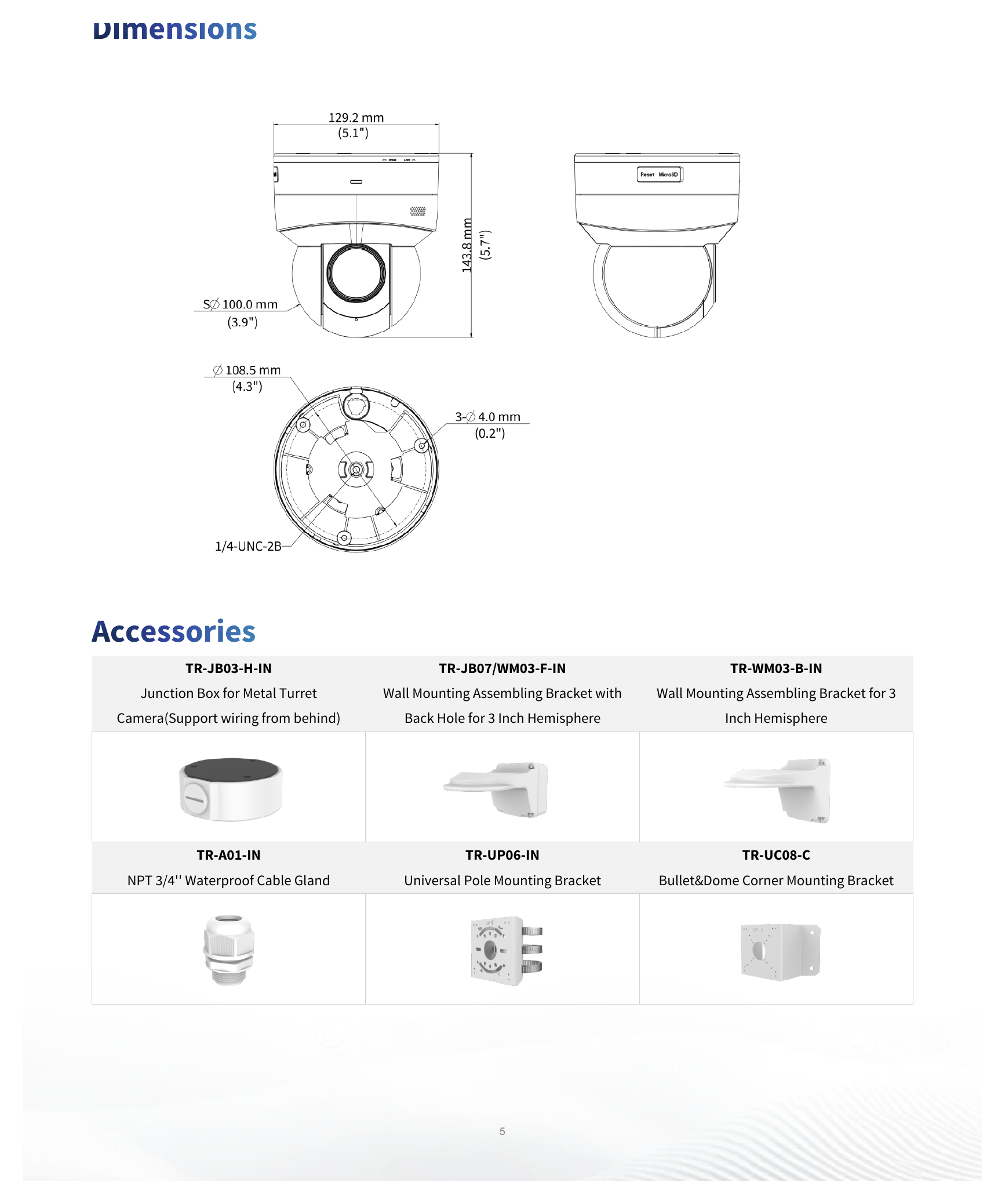

外形尺寸

Ø129 mm × 143.6 mm (Ø5.1" × 5.7") (Ø × H)｜重量 0.76 kg (1.67 lb.)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，IPC6412LR-X5UPW-VG 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

IPC6412LR-X5UPW-VG Uniview IPC6412LR-X5UPW-VG亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

常見問題

IPC6412LR-X5UPW-VG 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，IPC6412LR-X5UPW-VG 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。

IPC6412LR-X5UPW-VG 定 PKC1150-4-Z28-C-P 邊個好？

兩者主要規格分別：Sensor方面，IPC6412LR-X5UPW-VG 係 1/2.7" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6412LR-X5UPW-VG 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6412LR-X5UPW-VG 係 2.7 to 13.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
