Uniview IPC6612SR-X25-VG 為IPC6612SR-X25-VG，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6612SR-X25-VG 香港價格連安裝報價。
| Sensor | 1/2.8" CMOS |
|---|---|
| 最低照度 | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120 dB |
| S/N | >52 dB |
| 焦距 | 5 to 125 mm |
| Optical Zoom | 25X |
| Iris | F1.5 to F3.0 |
| Field of View (H) | 54.37° to 2.68° |
| Field of View (V) | 32.23° to 1.51° |
| Field of View (D) | 66.88° to 3.16° |
| DORI Distance (Lens) | 5 to 125 mm |
| DORI Distance (Detect) | 85.3 m to 1706.9 m (280.0 ft. to 5600.1 ft.) |
| DORI Distance (Observe) | 34.1 m to 682.8 m (112.0 ft. to 2240.0 ft.) |
| DORI Distance (Recognize) | 17.1 m to 341.4 m (56.1 ft. to 1120.1 ft.) |
| DORI Distance (Identify) | 8.5 m to 170.7 m (28.0 ft. to 560.0 ft.) |
| 隱私遮蔽 | 24 areas, up to 4 areas per scene |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream: 1080P (1920 × 1080), max. 30 fps |
| Frame Rate | Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| 除霧 | Digital defog |
| Heatwave Reduction | Support |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 150 m (492.1 ft.) |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic |
| 安全 | and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Tilt Range | -15° to 90° (auto reverse) |
| 水平速度 | 2°/s to 75°/s |
| 垂直速度 | 2°/s to 75°/s |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 * RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN |
| EMC | 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1-14, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |
| 供電 | DC 12 V±10%, PoE+ (IEEE 802.3at) |
| 功耗 | Max. 25 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø220 mm × 370 mm (Ø8.7" × 14.6") (Ø × H) |
| 重量 | 3.3 kg (7.26 lb.) |
| Working Environment | -40℃~65℃(-40°F ~ 149°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| Heater | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| TR-UF45-A-IN | TR-SE45-A-IN TR-SE45-IN |
| Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 Dome Ceiling Mounting Pole 200 |
| TR-CE45-IN | TR-WE45-IN TR-WE45-A-IN |
| Dome Indoor Ceiling Mounting Bracket | Dome Wall Mounting Bracket Long Wall Mounting Bracket for Dome |
| TR-JB12-IN | TR-WE45-B-IN TR-UP08-A-IN |
| Dome Junction Box | Dome Gooseneck Bracket Dome Pole Mounting Bracket |
| TR-UP08-B-IN | TR-UC08-A-IN TR-UC08-B-IN |
| Aluminium Alloy Pole Mounting Bracket | Dome Corner Mounting Bracket Aluminium Alloy Corner Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

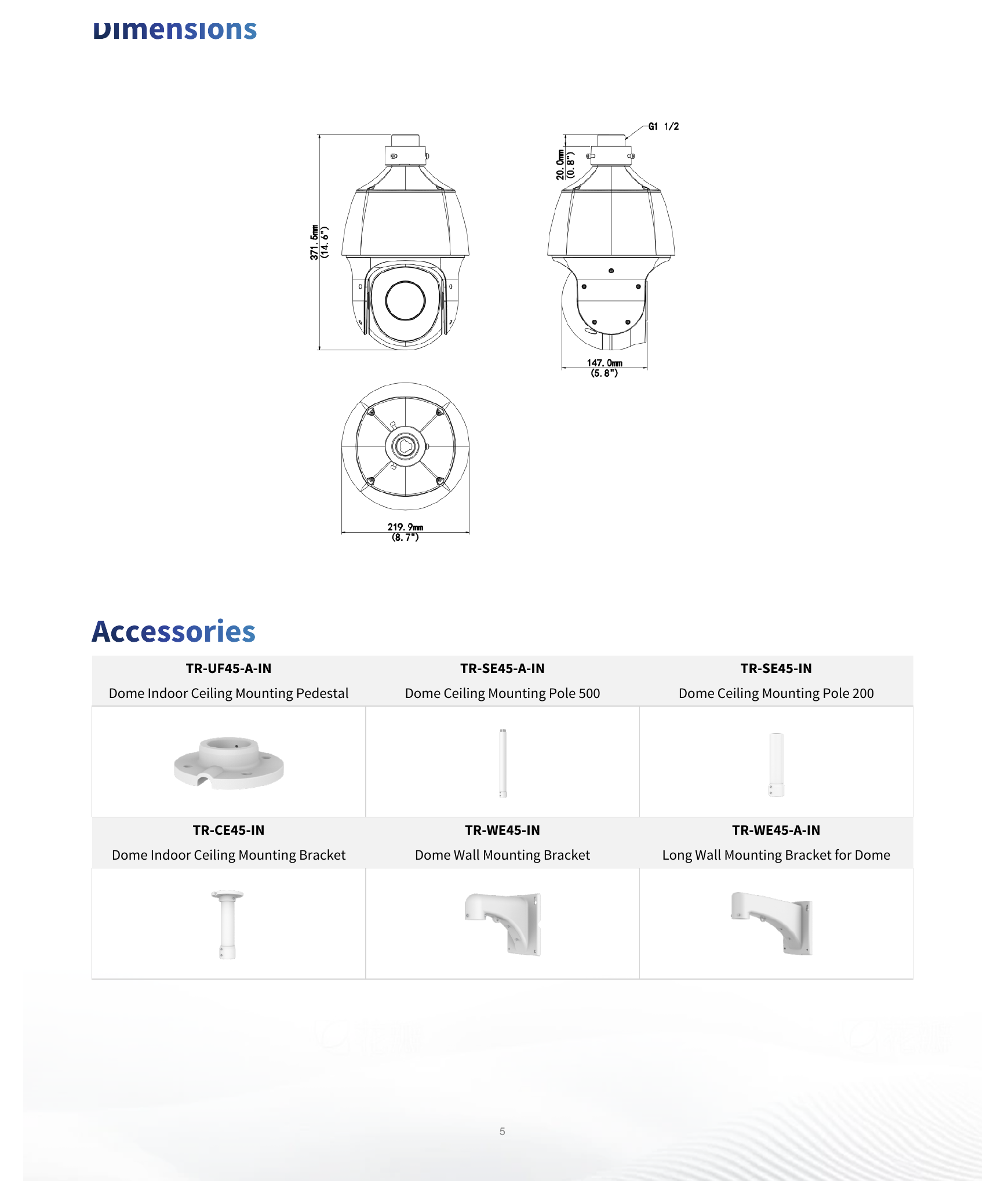

Ø220 mm × 370 mm (Ø8.7" × 14.6") (Ø × H)｜重量 3.3 kg (7.26 lb.)｜Unit: mm
IPC6612SR-X25-VG Uniview IPC6612SR-X25-VG亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6612SR-X25-VG 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6612SR-X25-VG 係 1/2.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6612SR-X25-VG 係 Auto/Manual, 1 ~ 1/100000s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6612SR-X25-VG 係 5 to 125 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6612SR-X25-VG 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
