Uniview IPC6622SR-X33-VD2 為IPC6622SR-X33-VD2，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6622SR-X33-VD2 香港價格連安裝報價。
| Max Resolution | 2 MP |
|---|---|
| Sensor | 1/2.8" CMOS |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB Color: 0.001 Lux (F1.5, AGC ON), |
| 最低照度 | B/W: 0.0005 Lux (F1.5, AGC ON), 0 Lux with Light, |
| 焦距 | 4.5 to 148.5 mm |
| Digital Zoom | 8X |
| Optical Zoom | 33X |
| Iris | F1.5 to F4.0 |
| Field of View (H) | 58.94° to 2.85° |
| Field of View (V) | 33.18° to 1.60° |
| Field of View (D) | 72.50° to 3.36° |
| DORI Distance (Detect) | 72.9 m to 2187.9 m (239.3 ft. to 7178.3 ft.) |
| DORI Distance (Observe) | 29.2 m to 875.2 m (95.7 ft. to 2871.3 ft.) |
| DORI Distance (Recognize) | 14.6 m to 437.6 m (47.9 ft. to 1435.7 ft.) |
| DORI Distance (Identify) | 7.3 m to 218.8 m (23.9 ft. to 717.8 ft.) |
| 視頻壓縮 | H.265, H.264, MJPEG, Ultra 265 Main Stream Max: 1080P (1920 × 1080), 60 fps Main Stream Default: 1080P (1920 × 1080), 25 fps Sub Stream Max: 1080P (1920 × 1080), 60 fps Third Stream Max: D1 (720 × 576), 60 fps Fourth Stream Max: D1 (720 × 576), 60 fps Fifth Stream Max: D1 (720 × 576), 60 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| 隱私遮蔽 | 24 areas, up to 8 areas per scene |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
| Frame Rate Recommendation | 1080P@60 fps + 1080P@60 fps + D1@60fp + D1@60fp + D1@60fp Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication |
| 音訊壓縮 | G.711U, G.711A |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz, 16 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | NAS (NFS) SSH, IGMP, RTP, RTMP, RTCP, IPv4, SSL/TLS, QoS, 802.1x, HTTPS, HTTP, UPnP, NTP, DDNS, DNS, RTSP, DHCP, UDP, TCP, ARP, ICMP, IPv6, SMTP, PPPoE, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Number of Presets | 1024 |
| Pan Range | 360° (endless) |
| 水平速度 | 0.1°/s to 288°/s |
| Tilt Range | -15° to 90° (auto flip) |
| 垂直速度 | 0.1°/s to 288°/s |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| 除霧 | Digital defog ColorHunter with Wise-ISP |
| 防抖 | DIS |
| Heatwave Reduction | Support |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Serial Port | 1 × RS485 |
| Exception Detection | Object removed, Object Left Behind |
| Auto Tracking | UNV Large Model Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| IR On/Off Control | Auto/Manual |
| Illumination Distance (IR) | 250 m (820.2 ft.) UL (UL 62368-1) |
| Safety | CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window) |
| 電源接口 | Wires with cold-pressed terminal |
| 尺寸 | Ø227 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| 供電 | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) |
| 功耗 | 17.3 W 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| NDAA Compliant | Support |
| TR-UF45-A-IN | TR-SE45-A-IN TR-SE45-IN |
| Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 Dome Ceiling Mounting Pole 200 |
| TR-CE45-IN | TR-WE45-IN TR-WE45-A-IN |
| Dome Indoor Ceiling Mounting Bracket | Dome Wall Mounting Bracket Long Wall Mounting Bracket for Dome |
| TR-JB12-IN | TR-WE45-B-IN TR-UP08-A-IN |
| Dome Junction Box | Dome Gooseneck Bracket Dome Pole Mounting Bracket |
| TR-UP08-B-IN | TR-UC08-A-IN TR-UC08-B-IN |
| Aluminium Alloy Pole Mounting Bracket | Dome Corner Mounting Bracket Aluminium Alloy Corner Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

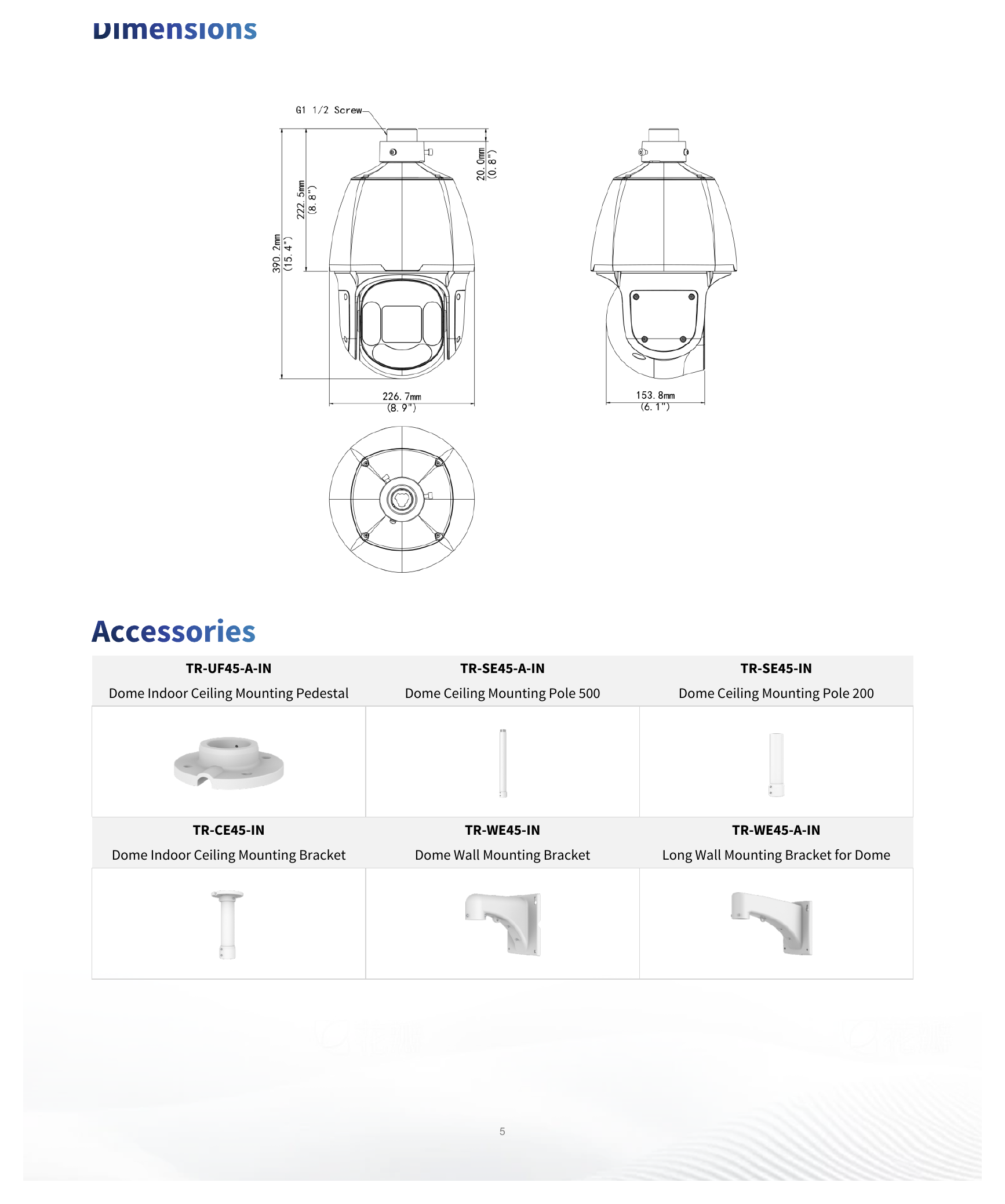

Ø227 mm × 390 mm (Ø8.9" × 15.4") (Ø × H)｜Unit: mm
IPC6622SR-X33-VD2 Uniview IPC6622SR-X33-VD2亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6622SR-X33-VD2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6622SR-X33-VD2 係 1/2.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6622SR-X33-VD2 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6622SR-X33-VD2 係 4.5 to 148.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6622SR-X33-VD2 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC6622SR-X33-VD2 Uniview IPC6622SR-X33-VD2供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC6622SR-X33-VD2 香港價格連安裝報價。
IPC6622SR-X33-VD2 Uniview IPC6622SR-X33-VD2適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
婦產科診所裝 CCTV 監控候診區同超聲波檢查儀器，診症室私隱合規佈點不入鏡治療過程，超聲波檢查室防盜同醫療糾紛錄影存證。免費上門評估，銅鑼灣、尖沙咀專科醫務中心即約報價。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →心臟科診所裝 CCTV 監控候診區同心電圖同心臟監測儀器，診症室私隱合規佈點不入鏡治療過程，心臟儀器室防盜同醫療糾紛錄影存證。免費上門評估，銅鑼灣、尖沙咀專科醫務中心即約報價。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →脊醫／物理治療中心裝 CCTV 監控候診區同衝擊波同物理治療儀器，診症室私隱合規佈點不入鏡治療過程，治療儀器室防盜同醫療糾紛錄影存證。免費上門評估，銅鑼灣、尖沙咀專科醫務中心即約報價。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →兒科診所裝 CCTV 監控候診區同疫苗冷藏及診斷儀器，診症室私隱合規佈點不入鏡治療過程，候診及診症區防盜同醫療糾紛錄影存證。免費上門評估，銅鑼灣、尖沙咀專科醫務中心即約報價。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →商鋪裝 CCTV、裝 CAM 防盜防搶，收銀防糾紛、客流統計一目了然。店舖閉路電視覆蓋舖面死角，老闆手機隨時睇舖。明碼實價報價、免費上門度尺，香港、尖沙咀等旺區商舖即日約勘。專業團隊免費上門評估，香港、新界一帶即日上門。
WhatsApp 查詢 →多間分店閉路電視集中管理，總部一個平台遠端查看各舖即時畫面與錄影。連鎖店監控系統支援客流分析、跨店比對，安裝 CCTV 統一規格方便擴充。統一規格報價、總部一站對接，新界、九龍等核心商圈分店歡迎查詢。免費現場勘察、報價清晰透明，
WhatsApp 查詢 →查看更多CCTV 監控適用場景，請參閱 CCTV 監控安裝工程。
如需整套CCTV 監控方案，請參閱 CCTV 監控安裝工程。
