Uniview IPC6628SR-X25E-VH2 為IPC6628SR-X25E-VH2，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6628SR-X25E-VH2 香港價格連安裝報價。
| Max Resolution | 8 MP |
|---|---|
| Sensor | 1/1.8" CMOS |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB Color: 0.003 Lux (F1.5, AGC ON), |
| 最低照度 | B/W: 0.002 Lux (F1.5, AGC ON), 0 Lux with Light, |
| 焦距 | 6 to 150 mm |
| Digital Zoom | 8X |
| Optical Zoom | 25X |
| Iris | F1.5 to F3.4 |
| Field of View (H) | 56.51° to 2.93° |
| Field of View (V) | 33.64° to 1.65° |
| Field of View (D) | 69.50° to 3.45° |
| DORI Distance (Detect) | 143.1 m to 3116.3 m (469.5 ft. to 10223.9 ft.) |
| DORI Distance (Observe) | 57.2 m to 1246.5 m (187.8 ft. to 4089.6 ft.) |
| DORI Distance (Recognize) | 28.6 m to 623.3 m (93.9 ft. to 2044.8 ft.) |
| DORI Distance (Identify) | 14.3 m to 311.6 m (46.9 ft. to 1022.4 ft.) |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream Max: 8 MP (3840 × 2160), 30 fps Main Stream Default: 8 MP (3840 × 2160), 25 fps Sub Stream Max: 1080P (1920 × 1080), 30 fps Third Stream Max: D1 (720 × 576), 30 fps Fourth Stream Max: D1 (720 × 576), 30 fps Fifth Stream Max: D1 (720 × 576), 30 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| 隱私遮蔽 | 24 areas, up to 8 areas per scene |
| ROI | Up to 8 areas |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs 3840 × 2160@30 fps + 1080P@30 fps + D1@30 fps + D1@30 fps + D1@30 fps |
| Frame Rate Recommendation | 3072 × 2048@30 fps + 1080P@30 fps + D1@30 fps + D1@30 fps + D1@30 fps 2688 × 1520@30 fps + 1080P@30 fps + D1@30 fps + D1@30 fps + D1@30 fps 2560 × 1440@30 fps + 1080P@30 fps + D1@30 fps + D1@30 fps + D1@30 fps 1080P@30 fps + 1080P@30 fps + D1@30fp + D1@30fp + D1@30fp Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm |
| 音訊壓縮 | G.711U, G.711A |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz, 16 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | NAS (NFS) IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, HTTPS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile M), SDK, API |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Preset Image Freeze | Support |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | Support |
| Number of Presets | 1024 |
| Pan Range | 360° (endless) |
| 水平速度 | 0.1°/s to 288°/s |
| Tilt Range | -15° to 90° (auto flip) |
| 垂直速度 | 0.1°/s to 288°/s |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| 除霧 | Digital defog ColorHunter with Wise-ISP |
| 防抖 | EIS (Gyroscope) |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Serial Port | 1 × RS485 |
| Exception Detection | Object removed, Object Left Behind |
| Auto Tracking | UNV Large Model Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Recognition | Face Recognition: Max support 16 face libraries, Max supports 100000 faces in face library |
| IR On/Off Control | Auto/Manual |
| Illumination Distance (IR) | 200 m (656.2 ft.) UL (UL 62368-1) |
| Safety | CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) |
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU) IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window) |
| 電源接口 | Wires with cold-pressed terminal |
| 尺寸 | Ø226.7 mm × 390.2 mm (Ø8.9" × 15.4") (Ø × H) |
| 重量 | 5.44 kg (11.99 lb.) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Reset Button | Support |
| 供電 | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) |
| 功耗 | Max. 20.9 W 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| NDAA Compliant | Support |
| TR-UF45-A-IN | TR-SE45-A-IN TR-SE45-IN |
| Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 Dome Ceiling Mounting Pole 200 |
| TR-CE45-IN | TR-WE45-IN TR-WE45-A-IN |
| Dome Indoor Ceiling Mounting Bracket | Dome Wall Mounting Bracket Long Wall Mounting Bracket for Dome |
| TR-JB12-IN | TR-WE45-B-IN TR-UP08-A-IN |
| Dome Junction Box | Dome Gooseneck Bracket Dome Pole Mounting Bracket |
| TR-UP08-B-IN | TR-UC08-A-IN TR-UC08-B-IN |
| Aluminium Alloy Pole Mounting Bracket | Dome Corner Mounting Bracket Aluminium Alloy Corner Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

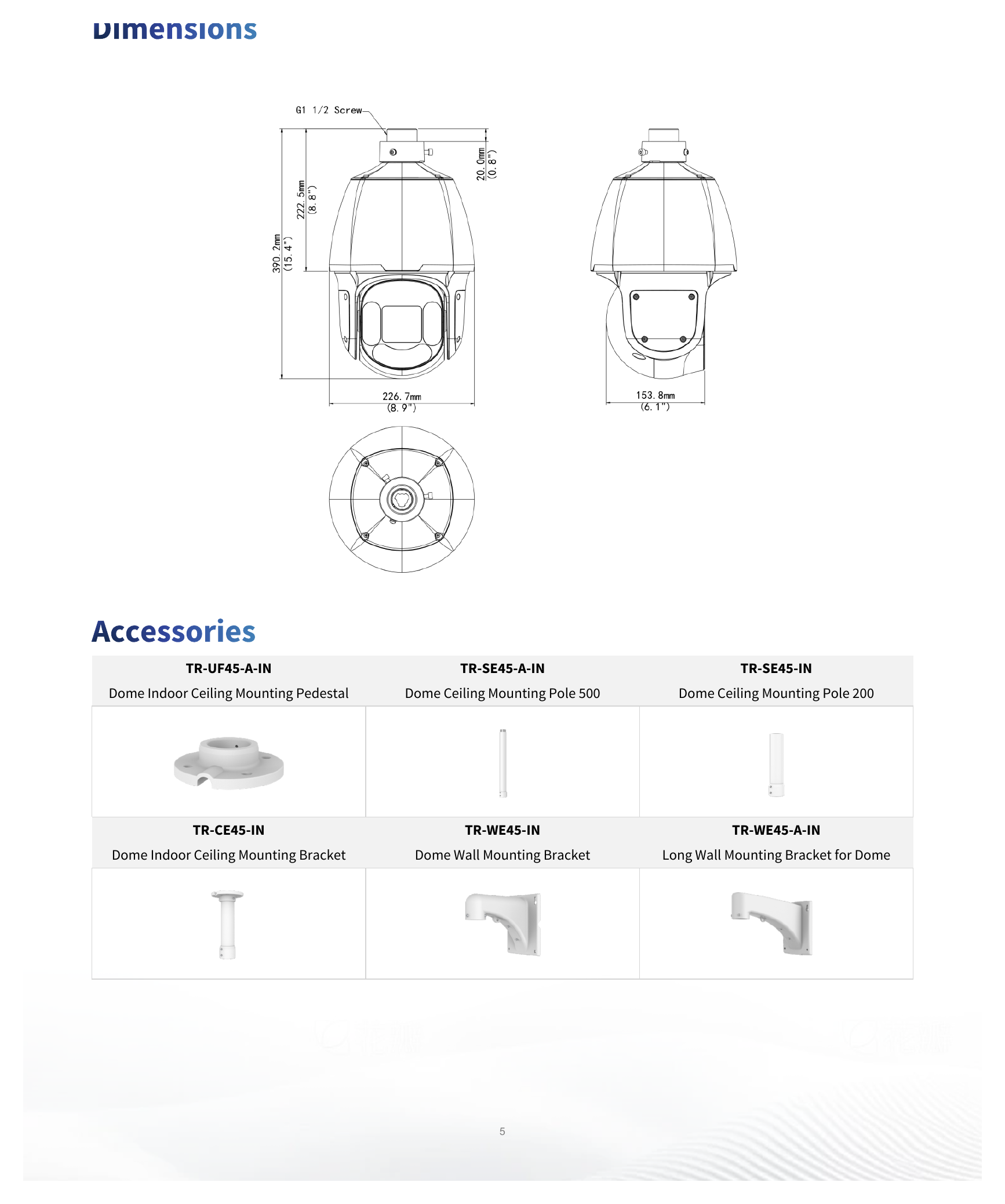

Ø226.7 mm × 390.2 mm (Ø8.9" × 15.4") (Ø × H)｜重量 5.44 kg (11.99 lb.)｜Unit: mm
IPC6628SR-X25E-VH2 Uniview IPC6628SR-X25E-VH2亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6628SR-X25E-VH2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6628SR-X25E-VH2 係 1/1.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6628SR-X25E-VH2 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6628SR-X25E-VH2 係 6 to 150 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6628SR-X25E-VH2 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
