| Channel | Channel 1 (Panorama) Channel 2 (Detail) |
|---|
| Max Resolution | 8 MP |
|---|
| Sensor | 1/1.8" CMOS 1/1.2" CMOS Color: 0.0005 Lux (F1.6, AGC ON), 0 lux with |
|---|
| 最低照度 | Color: 0.0005 Lux (F1.6, AGC ON), 0 lux with IR IR/Warm light |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 to 1/100000 s |
|---|
| WDR | 120 dB |
|---|
| S/N | >56 dB |
|---|
| Digital Zoom | N/A 16X |
|---|
| Optical Zoom | N/A 25X |
|---|
| 光圈類型 | Fixed P-iris Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) Support people flow counting and crowd |
|---|
| People Counting | N/A density detection |
|---|
| DORI Distance (Lens) | 4 mm 10 to 250 mm |
|---|
| 隱私遮蔽 | 24 areas, up to 8 areas per scene 8 MP (3840 × 2160), max. 30 fps; 6 MP (3072 × 2048), max. 30 fps; 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), m |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG 3840 × 2160@30 fps + 1080P@30 fps + D1@30 fps 3072 × 2048@30 fps + 1080P@30 fps + D1@30 fps |
|---|
| 視頻碼率 | 128 Kbps to 16 Mbps |
|---|
| U-code | Support |
|---|
| ROI | Support |
|---|
| Video Stream | Triple streams |
|---|
| OSD | Up to 10 OSDs |
|---|
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| Smart IR | N/A Support |
|---|
| 除霧 | Digital defog Optical defog |
|---|
| Heatwave Reduction | N/A Support |
|---|
| Light On/Off Control | Auto/Manual |
|---|
| Illumination Distance (IR) | N/A 250 m (820.2 ft.) 30 m (98.4 ft.) N/A |
|---|
| Basic Detection | Motion detection, Audio detection, Tampering alarm Watermark, IP address filtering, Access policy, Watermark, IP address filtering, Alarm input, Alarm output, Alarm input, User |
|---|
| 一般功能 | Alarm output, Access policy, ARP protection, authentication, RTSP authentication, ARP RTSP authentication, User authentication protection |
|---|
| 音訊壓縮 | G.711U, G.711A |
|---|
| Audio Bitrate | 128 Kbps |
|---|
| 雙向語音 | Support |
|---|
| Suppression | Support |
|---|
| 取樣率 | 8 kHz, 16 kHz |
|---|
| Edge Storage | MicroSD, up to 512 GB |
|---|
| 網絡儲存 | ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS ONVIF (Profile S, Profile G, Profile T, Profile M), |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK API, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic |
|---|
| 安全 | and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|---|
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
|---|
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
|---|
| Number of Presets | N/A 1024 |
|---|
| Preset Patrol | N/A 16 patrols, up to 64 presets for each patrol |
|---|
| Preset Image Freeze | N/A Support |
|---|
| Patrol Stay Time | 15 s to 1800 s |
|---|
| Home Position | N/A Support |
|---|
| Pan Range | 360° |
|---|
| Tilt Range | -15° to 90° |
|---|
| 水平速度 | 0.1°/s to 180°/s |
|---|
| 垂直速度 | 0.1°/s to 180°/s |
|---|
| WIFI | N/A |
|---|
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
|---|
| Alarm I/O | 7/2 |
|---|
| Serial Port | 1 × RS485 |
|---|
| Built-in Mic | N/A |
|---|
| Built-in Speaker | N/A |
|---|
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, |
|---|
| EMC | EN 55035: 2017+A11: 2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|---|
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) IP66 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |
|---|
| 供電 | DC 24 V (±25%), AC 24 V (±25%) |
|---|
| 功耗 | Max. 63 W |
|---|
| 電源接口 | Wires with cold-pressed terminal |
|---|

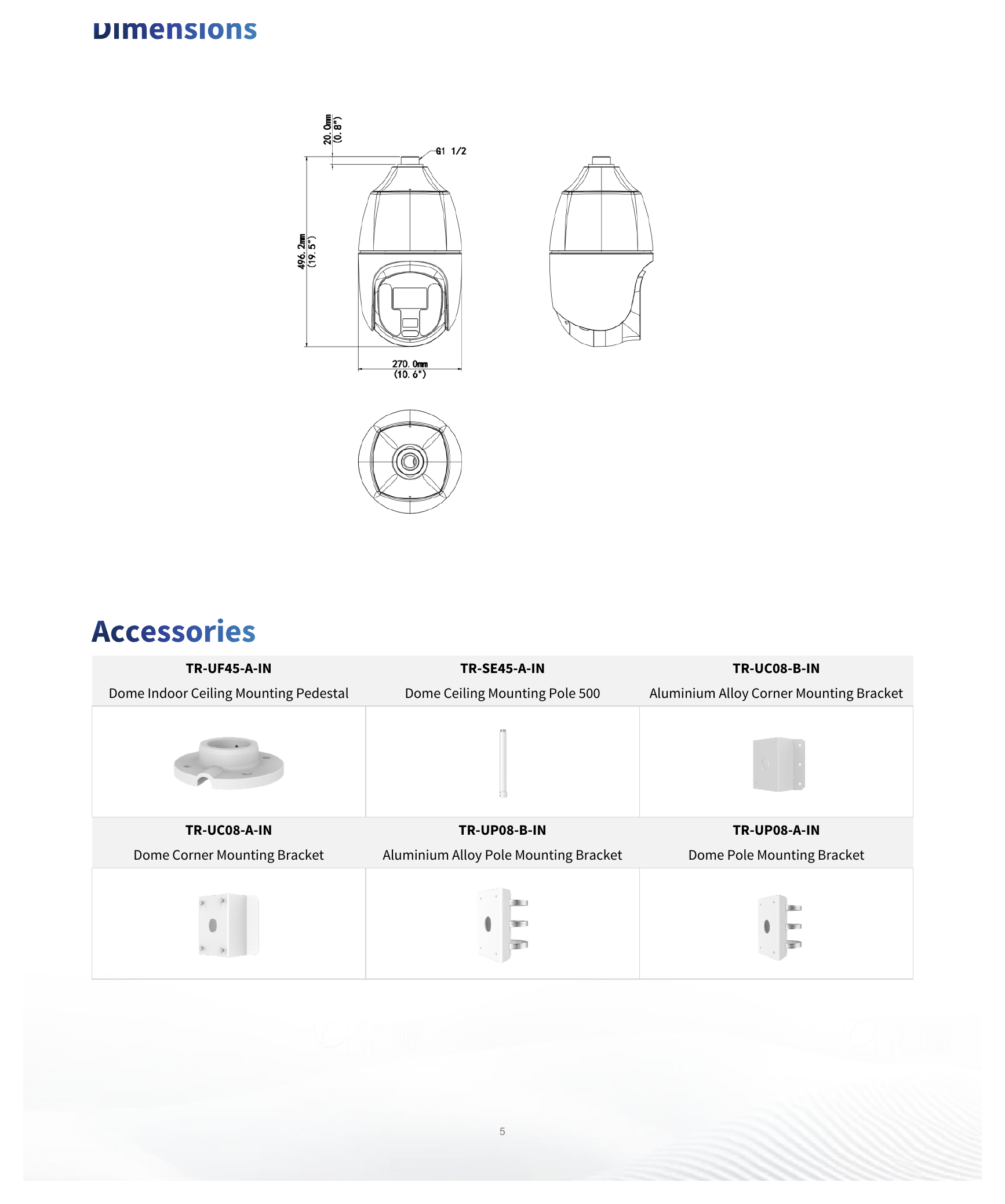

| 尺寸 | Ø270 mm × 497 mm (Ø 10.6" × 19.6") (Ø × H) |
|---|
| 重量 | 10.08 kg (22.2 lb.) |
|---|
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| 防雷 | 6 KV |
|---|
| Reset Button | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
|---|
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
|---|
| TR-UF45-A-IN | TR-SE45-A-IN TR-UC08-B-IN |
|---|
| Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 Aluminium Alloy Corner Mounting Bracket |
|---|
| TR-UC08-A-IN | TR-UP08-B-IN TR-UP08-A-IN |
|---|
| Dome Corner Mounting Bracket | Aluminium Alloy Pole Mounting Bracket Dome Pole Mounting Bracket |
|---|
| TR-WE45-B-IN | TR-JB12-IN TR-WE45-A-IN |
|---|
| Dome Gooseneck Bracket | Dome Junction Box Long Wall Mounting Bracket for Dome |
|---|
| TR-CE45-IN | TR-SE45-IN |
|---|
