Uniview IPC7622ER-X44-VF 為IPC7622ER-X44-VF，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC7622ER-X44-VF 香港價格連安裝報價。
| Sensor | 1/2.8" CMOS |
|---|---|
| 最低照度 | Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >52 dB |
| 焦距 | 5 to 220 mm |
| Digital Zoom | 16X |
| Optical Zoom | 44X |
| Iris | F1.2 to F3.5 |
| Field of View (H) | 60.6° to 1.8° |
| Field of View (V) | 36.4° to 1.0° |
| Field of View (D) | 74.5° to 2.1° |
| DORI Distance (Lens) | 5 to 220 mm |
| DORI Distance (Detect) | 77.6 m to 2793.1 m (254.5 ft. to 9163.7 ft.) |
| DORI Distance (Observe) | 31.0 m to 1117.2 m (101.8 ft. to 3665.5 ft.) |
| DORI Distance (Recognize) | 15.5 m to 558.6 m (50.9 ft. to 1832.7 ft.) |
| DORI Distance (Identify) | 7.8 m to 279.3 m (25.5 ft. to 916.4 ft.) |
| Illumination Distance (IR) | 400 m (1312.3 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| 隱私遮蔽 | 24 areas, up to 4 areas per scene |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream: 1080P (1920 × 1080), max. 60 fps |
| Frame Rate | Sub Stream: 1080P (1920 × 1080), max. 60 fps Third Stream: D1 (720 × 576), max. 60 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
| Pan Range | 360° (endless) |
| 水平速度 | 0.1°/s to 140°/s |
| Tilt Range | -45° to 90° |
| 垂直速度 | 0.1°/s to 50°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Exception Detection | Object removed, Object Left Behind |
| Auto Tracking | Support |
| People Counting | Support people flow counting and crowd density detection Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| 除霧 | Digital defog, Optical defog |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | Support Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Voltage detection, Object removed, Object Left Behind Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 256 GB |
| 網絡儲存 | ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 * RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 1000 M Base-TX Ethernet |
| Video Output | 1 BNC (for debugging) CE-EMC (EN 55032:2015, EN55024:2010+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1-14, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| 防護等級 | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| 供電 | DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25% |
| 功耗 | Max. 103 W |
| 電源接口 | Wires with cold-pressed terminal |
| 尺寸 | 280 mm × 366 mm × 520 mm (11.0" × 14.4" × 20.5") (L × W × H) |
| 重量 | 14.1 kg (31.08 lb.) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak TR-WM08-B Pan-Tilt Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

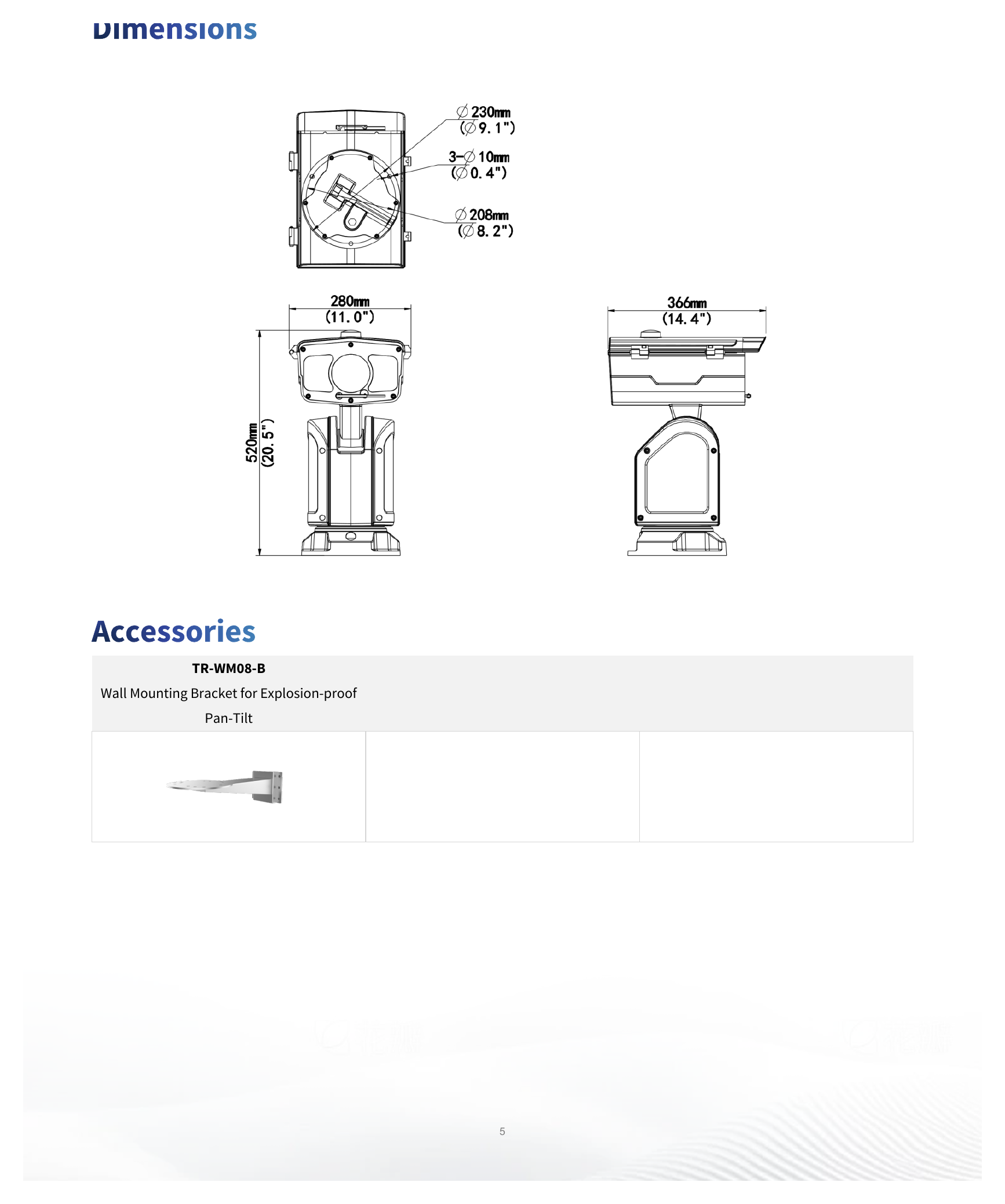

280 mm × 366 mm × 520 mm (11.0" × 14.4" × 20.5") (L × W × H)｜重量 14.1 kg (31.08 lb.)｜Unit: mm
