UNIVIEW IPC7622ER-X45-VH1 CCTV攝影機安裝・保養

Name: UNIVIEW IPC7622ER-X45-VH1 IPC7622ER-X45-VH1
Brand: Uniview
SKU: IPC7622ER-X45-VH1

產品簡介

Uniview IPC7622ER-X45-VH1 為IPC7622ER-X45-VH1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC7622ER-X45-VH1 香港價格連安裝報價。

Sensor：1/1.8" CMOS
最低照度：Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night：IR-cut filter with auto switch (ICR)
Shutter：Auto/Manual, 1 to 1/100000 s
WDR：120 dB

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

IPC7622ER-X45-VH1 Uniview IPC7622ER-X45-VH1 產品圖片

詳細規格

Sensor	1/1.8" CMOS
最低照度	Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	>52 dB
焦距	5.7 to 256.5 mm
Digital Zoom	16X
Optical Zoom	45X
Iris	F1.2(W)~F4.6(T)
Field of View (H)	59.47° (W) to 2.21° (T)
Field of View (V)	35.62° (W) to 1.21° (T)
Field of View (D)	77.3° (W) to 2.6° (T)
DORI Distance (Lens)	5.7 to 256.5 mm
DORI Distance (Detect)	107.2 m to 3330 m (351.7 ft. to 10925.2 ft.）
DORI Distance (Observe)	42 m to 1332 m (140 ft. to 4370 ft.)
DORI Distance (Recognize)	21.0 m to 666 m (68.9 ft. to 2185.0 ft.)
DORI Distance (Identify)	10.0 m to 333.0 m (32.8 ft. to 1092.5 ft.)
隱私遮蔽	24 areas, up to 8 areas per scene
視頻壓縮	Ultra 265, H.265, H.264, MJPEG Main Stream: 1080P (1920 × 1080), max. 60 fps;
Frame Rate	Sub Stream : 1080P (1920 × 1080), max. 60 fps; Third Stream : D1 (720 × 576), max. 60 fps
視頻碼率	128Kbps～16384Kbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 10 OSDs
Multi-target Detection	Support Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density detection
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
除霧	Support
防抖	EIS (Gyroscope) Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Voltage detection, Object removed, Object Left Behind Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
音訊壓縮	G.711U, G.711A
Audio Bitrate	128 Kbps
雙向語音	Support
Suppression	Support
取樣率	16KHZ
Edge Storage	MicroSD, up to 512 GB
網絡儲存	ANR, NAS (NFS)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (IR)	400 m (1312.3 ft.) IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
用戶管理	Up to 32 users. 3 user levels: administrator,common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and
安全	Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
客戶端	EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above
Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	Support
Patrol Stay Time	15 s to 1800 s
Preset Image Freeze	Support
Home Position	Support
Pan Range	360° (endless)
Tilt Range	45° to -90°
水平速度	0.1°/s to 140°/s
垂直速度	0.1°/s to 50°/s
Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	7/2
Serial Port	1 * RS485
Network	1 × RJ45 1000 M Base-TX Ethernet
Video Output	1 BNC (for debugging) CE-EMC (EN 55032:2015, EN 50130-4:2011+A1:2014, EN 61000-3-2:2014, EN 61000-3-3:2013)FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN IEC 62368-1:2020+A11:2020)UL (UL 62368-1, 3rd Ed.,2021-10-22)
Environment	CE-ROHS (2011/65/EU;(EU)2015/863)
防護等級	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
供電	DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25%
功耗	Max. 103 W
電源接口	Wires with cold-pressed terminal
尺寸	366 mm × 283 mm × 509 mm (14.4" × 11.1" × 20.0") (L × W × H)
重量	14.76 kg (32.54 lb.)
Working Environment	-40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
防雷	6 KV
Reset Button	Support TR-WM08-B Pan-Tilt Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

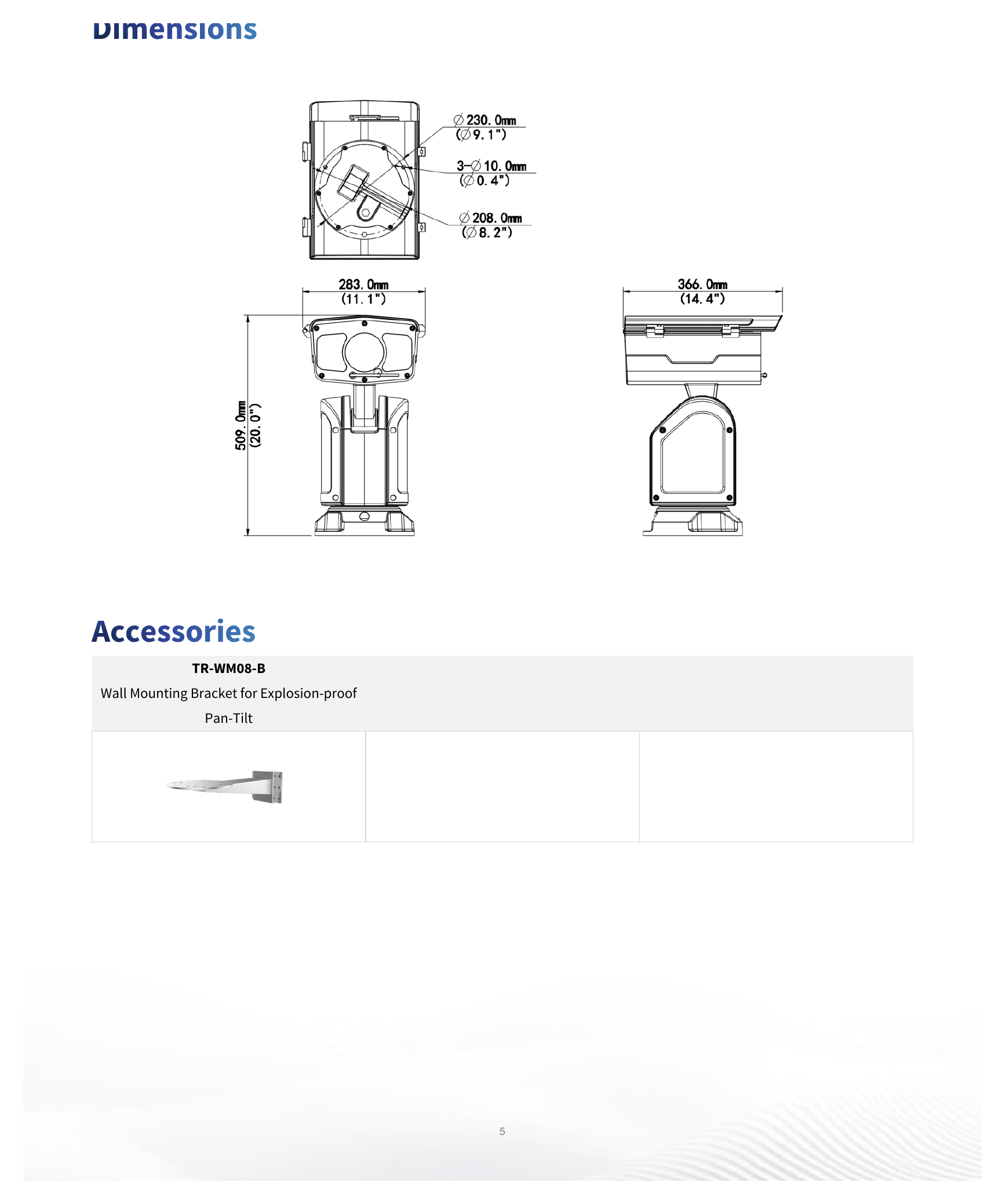

外形尺寸

366 mm × 283 mm × 509 mm (14.4" × 11.1" × 20.0") (L × W × H)｜重量 14.76 kg (32.54 lb.)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，IPC7622ER-X45-VH1 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

IPC7622ER-X45-VH1 Uniview IPC7622ER-X45-VH1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

常見問題

IPC7622ER-X45-VH1 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，IPC7622ER-X45-VH1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。

IPC7622ER-X45-VH1 定 PKC1150-4-Z28-C-P 邊個好？

兩者主要規格分別：Sensor方面，IPC7622ER-X45-VH1 係 1/1.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC7622ER-X45-VH1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC7622ER-X45-VH1 係 5.7 to 256.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
