Uniview IPC86CEB-AF18KC-I0 為Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC86CEB-AF18KC-I0 香港價格連安裝報價。
| | High quality image with 12 MP, 1/1.7" CMOS sensor |
|---|---|
| Max Resolution | 12 MP |
| Sensor | 1/1.7" CMOS |
| 最低照度 | Color: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| S/N | >52 dB |
| WDR | DWDR |
| 焦距 | 1.8 mm |
| 光圈類型 | Fixed |
| Field of View (H) | 180° |
| Field of View (V) | 180° |
| Field of View (D) | 180° |
| Iris | F2.0 |
| 鏡頭類型 | Fixed |
| DORI Distance (Lens) | 1.8 mm |
| DORI Distance (Detect) | 43.8 m (143.7 ft.) |
| DORI Distance (Observe) | 17.5 m (57.4 ft.) |
| DORI Distance (Recognize) | 8.8 m (28.9 ft.) |
| DORI Distance (Identify) | 4.4 m (14.4 ft.) |
| Illumination Distance (IR) | 15 m (49.3 ft) |
| Supplemental Light | IR |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm Fisheye View: 12 MP (4000 × 3000)@20 fps; 3000 × 3000@20 fps; 2560 × 2560@25 fps; |
| 主碼流 | Panorama View: 12 MP (4000 × 3000)@20 fps; 3000 × 2000@20/25 fps; 3000 × 1500@20/25 fps; PTZ View: 1920 × 1080@20/25 fps; |
| 子碼流 | Fisheye View: 2000 × 1500@20 fps; 2000 × 2000@25 fps; |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 第三碼流 | Fisheye View: D1 (720 × 576)@20/25 fps; CIF (352 × 288)@20/25 fps; |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view |
| Hardware Decoding | Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8 |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Support |
| 除霧 | Digital defog |
| Smart Intrusion Prevention | Cross line detection, intrusion detection |
| Statistical Analysis | Heat map (Working with management platform) |
| Basic Detection | Motion detection, Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, APP |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω, amplitude 1 V [p-p] CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) CE LVD (EN 62368-1) |
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
| 功耗 | Max. 12.0 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø149 mm × 55 mm (Ø5.9" × 2.2") (Ø × H) |
| 重量 | 0.524 kg (1.16 lb.) |
| 材質 | Metal + Plastic |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 4 KV |
| Reset Button | Support 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| RTC | Support |
| Maximum Bitstream | 20 |
| TR-JB04-D-IN | TR-A01-IN TR-SE24-IN Junction Box for Fisheye |
| NPT 3/4'' Waterproof Cable Gland | Dome Pendent Mounting Pole 200mm Fix-dome(Support wiring from behind) |
| TR-SE24-A-IN | TR-CM24-IN |
| Dome Pendent Mounting Pole 500mm | Dome Pendent Mounting Bracket(Indoor) Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

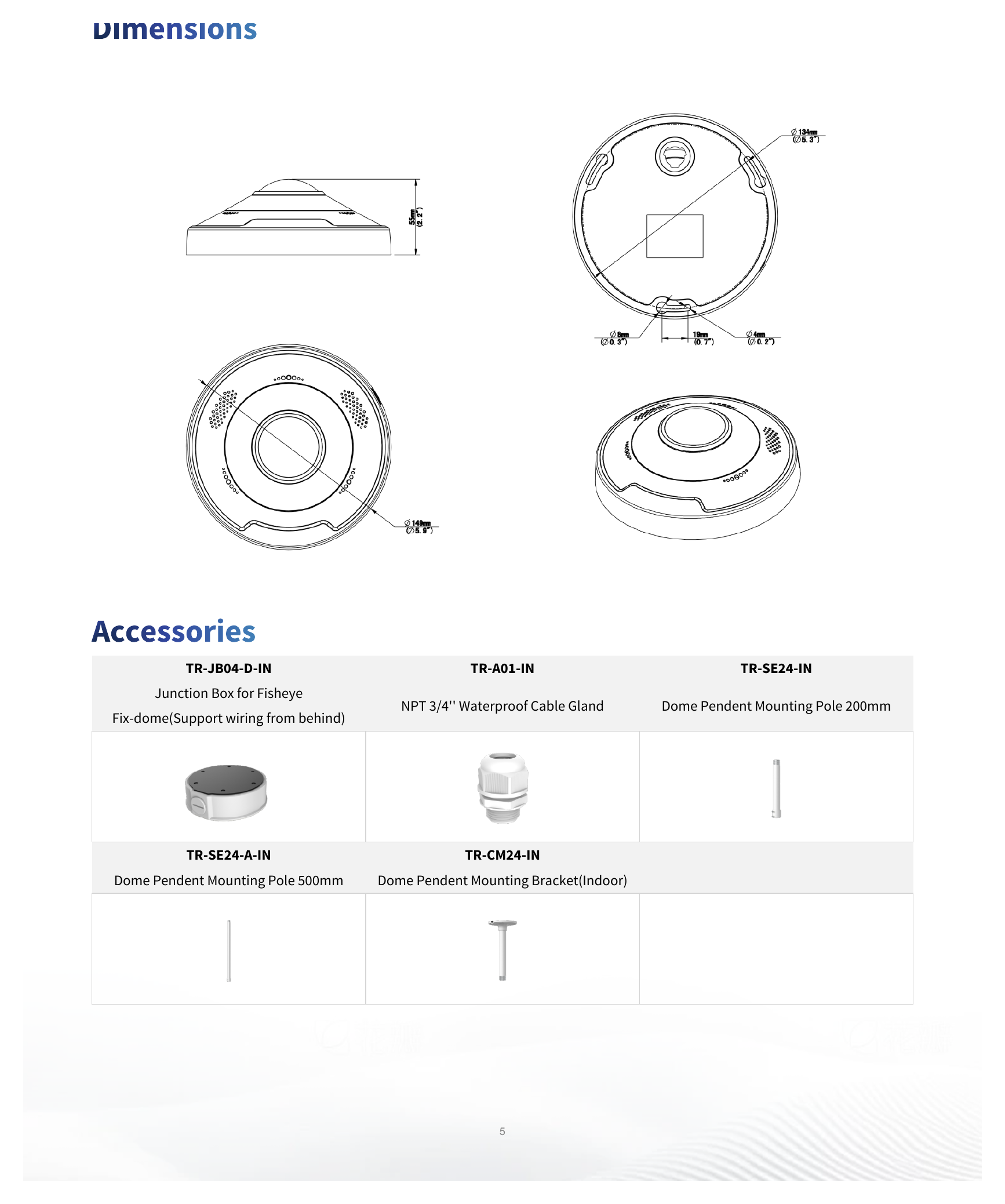

Ø149 mm × 55 mm (Ø5.9" × 2.2") (Ø × H)｜重量 0.524 kg (1.16 lb.)｜Unit: mm
IPC86CEB-AF18KC-I0 Uniview Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC86CEB-AF18KC-I0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC86CEB-AF18KC-I0 係 1/1.7" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC86CEB-AF18KC-I0 係 Auto/Manual, 1 ~ 1/100000s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC86CEB-AF18KC-I0 係 1.8 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC86CEB-AF18KC-I0 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC86CEB-AF18KC-I0 Uniview Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC86CEB-AF18KC-I0 香港價格連安裝報價。
