| Channel | Channel 1 (Panorama) Channel 2 (Detail) |
|---|
| Sensor | 1/1.8" CMOS 1/2.7" CMOS |
|---|
| 最低照度 | Color: 0.0005 Lux (F1.0, AGC ON), 0 lux with IR Color: 0.003 Lux (F1.5, AGC ON), 0 lux with IR |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 to 1/100000 s |
|---|
| WDR | 120 dB |
|---|
| S/N | >56 dB |
|---|
| 焦距 | 4.0 mm 4.8 to 120 mm |
|---|
| Optical Zoom | N/A 25X |
|---|
| Iris | F1.0 F1.5 to F3.8 |
|---|
| Field of View (H) | 94.9° 55.46° to 3.09° |
|---|
| Field of View (V) | 51.5° 32.94° to 1.73° |
|---|
| Field of View (D) | 116.7° 68.22° to 3.80° |
|---|
| DORI Distance (Detect) | 90.0 m (295.3 ft.) 123.8 m to 2475.0 m (406.0 ft. to 8120.1 ft.) |
|---|
| DORI Distance (Observe) | 36.0 m (118.1 ft.) 43.2 m to 1080.0 m (141.7 ft. to 3543.3ft.) |
|---|
| DORI Distance (Recognize) | 18.0 m (59.1 ft.) 21.6 m to 540 m (70.9 ft. to 1771.7 ft.) |
|---|
| DORI Distance (Identify) | 9.0 m (29.5 ft.) 10.8 m to 270 m (35.4 ft. to 885.8 ft.) |
|---|
| 隱私遮蔽 | Up to 4 areas 24 areas, up to 4 areas per scene 4 MP (2688 × 1520)@25 fps (Default) 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; |
|---|
| Frame Rate-Main Stream | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; 720P (1280 × 720), max. 30 fps; |
|---|
| Frame Rate-Sub Stream | D1 (720 × 576), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps 640 × 360, max. 30 fps D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288) , max. 30 fps; CIF (352 × 288) , max. 30 fps |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream: 4 MP (2688 × 1520), max. 30 fps; Main Stream: 4 MP (2688 × 1520), max. 30 fps; |
|---|
| Frame Rate | Sub Stream: 720P (1280 × 720), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; |
|---|
| Third Stream: D1 (720 × 576), max. 30 fps | Third Stream: D1 (720 × 576), max. 30 fps 2688 × 1520@30 fps + 720P@30 fps + D1@16 2688 × 1520@30 fps + 1080P@30 fps + D1@16 |
|---|
| fps | fps 2688 × 1520@30 fps + 720P@25 fps + D1@30 2688 × 1520@30 fps + 1080P@25 fps + D1@30 |
|---|
| 視頻碼率 | 128 Kbps to 16 Mbps |
|---|
| U-code | Support |
|---|
| ROI | Support |
|---|
| Video Stream | Triple streams |
|---|
| OSD | Up to 8 OSDs |
|---|
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| Smart IR | Support |
|---|
| 除霧 | Digital defog |
|---|
| Heatwave Reduction | Support |
|---|
| Light On/Off Control | Auto/Manual |
|---|
| Wavelength | N/A 850 nm |
|---|
| Illumination Distance (IR) | N/A 100 m (328.1 ft.) 30 m (98.4 ft.) N/A |
|---|
| Supplemental Light | Warm light |
|---|
| Basic Detection | Motion detection, Audio detection, Tampering alarm Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output |
|---|
| UMD (Ultra Motion Detection) | Support Support. Triggered by fixed lens via smart |
|---|
| Linkage Function | N/A intrusion prevention function to track target Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|---|
| People Counting | Support people flow counting and crowd density detection Object Left Behind, Object removed, Scene |
|---|
| Exception Detection | Object Left Behind, Object removed change |
|---|
| 音訊壓縮 | G.711U, G.711A |
|---|
| Audio Bitrate | 128 Kbps |
|---|
| 雙向語音 | Support |
|---|
| Suppression | Support |
|---|
| 取樣率 | 16 kHz |
|---|
| Edge Storage | MicroSD, up to 512 GB |
|---|
| 網絡儲存 | ANR SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator TLS 1.3, Password Protection, Strong Password Protection, Strong Password, HTTPS Password, HTTPS Encryption, Export Encryption, Export Operation Logs, Basic and Operation Logs, Basic and Digest |
|---|
| 安全 | Digest Authentication for RTSP, Digest Authentication for RTSP, Digest Authentication Authentication for HTTP, TLS 1.2, WSSE and for HTTP, TLS 1.2, WSSE and Digest Digest Authentication for ONVIF, TLS 1.3 Authentication for ONVIF |
|---|
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
|---|
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
|---|
| Number of Presets | N/A 1024 |
|---|
| Preset Patrol | N/A 16 patrols, up to 64 presets for each patrol |
|---|
| Route Patrol | N/A 16 patrols, up to 32 actions for each patrol |
|---|
| Recorded Patrol | N/A 16 patrols, up to 128 actions for each patrol |
|---|
| Patrol Stay Time | 15 s to 1800 s |
|---|
| Preset Image Freeze | N/A |
|---|
| Home Position | N/A Support |
|---|
| Number of Presets (IPC) | N/A 1024 |
|---|
| Pan Range | N/A 360° |
|---|
| Tilt Range | 18°±5° -15° to 90° |
|---|
| 水平速度 | N/A 0.1°/s to 80°/s |
|---|
| 垂直速度 | N/A 0.1°/s to 80°/s |
|---|
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
|---|
| Alarm I/O | 2/1 |
|---|
| Serial Port | 1 × RS485 |
|---|
| Built-in Mic | N/A |
|---|
| Built-in Speaker | Support |
|---|
| WIFI | N/A |
|---|
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
|---|
| Video Output | N/A CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, |
|---|
| EMC | EN 55035: 2017+A11: 2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1: 2014+A11: 2017) UL (UL 62368-1, 2nd Ed , Issue Date: 2014-12-01) |
|---|
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) |
|---|
| 防護等級 | IP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013) |
|---|
| 供電 | DC 12 V (±25%), PoE+ (IEEE 802.3at) |
|---|
| 功耗 | Max. 24 W |
|---|
| 電源接口 | Ø5.5 mm coaxial power plug |
|---|

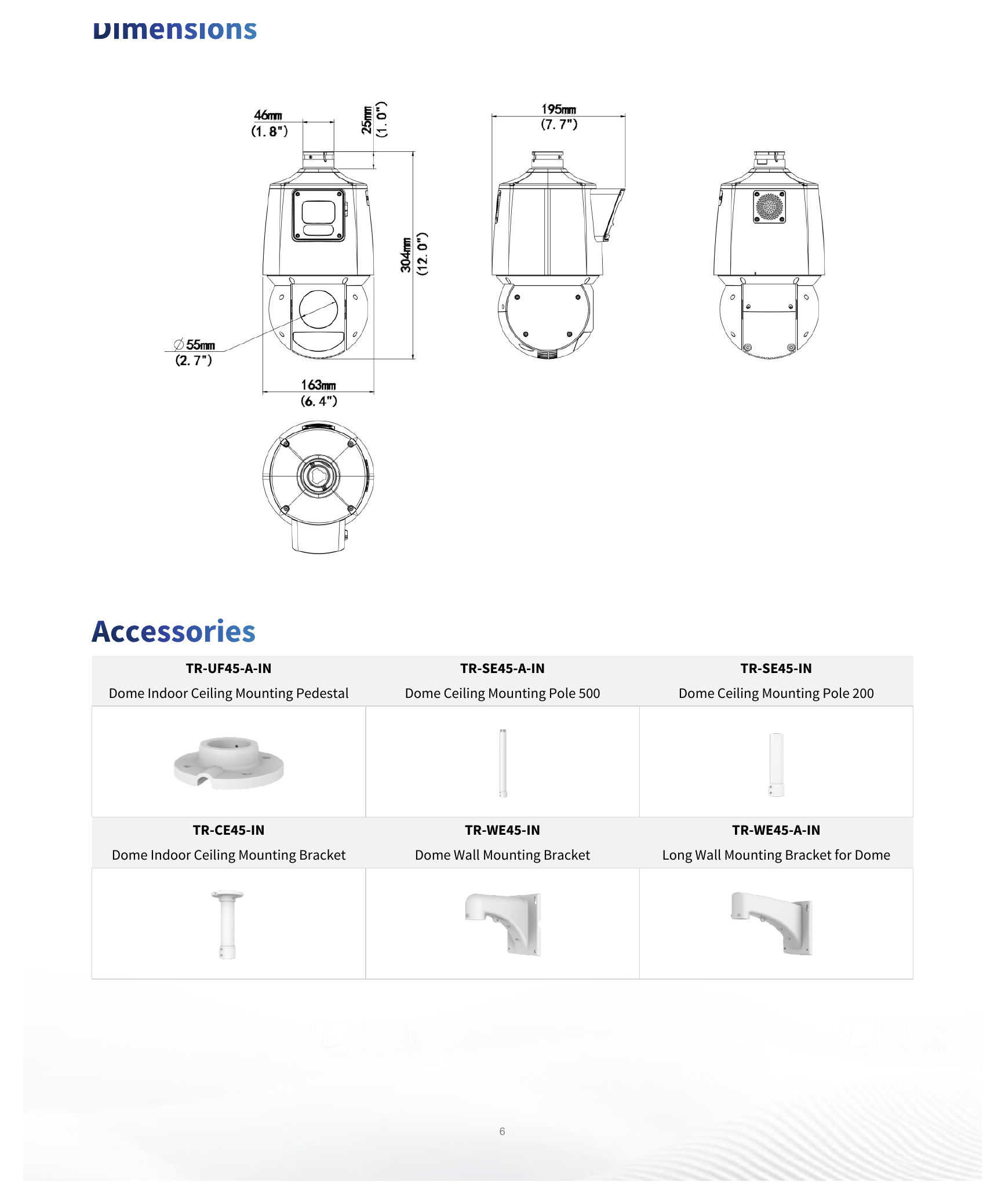

| 尺寸 | 304 mm × 195 mm × 163 mm (12.0" × 7.7" × 6.4" ) (L × W × H) |
|---|
| 重量 | 2.27 kg (5.00 lb.) |
|---|
| Working Environment | -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| 防雷 | 4 KV |
|---|
| Reset Button | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
|---|
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
|---|
| TR-UF45-A-IN | TR-SE45-A-IN TR-SE45-IN |
|---|
| Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 Dome Ceiling Mounting Pole 200 |
|---|
| TR-CE45-IN | TR-WE45-IN TR-WE45-A-IN |
|---|
| Dome Indoor Ceiling Mounting Bracket | Dome Wall Mounting Bracket Long Wall Mounting Bracket for Dome |
|---|
| TR-WE45-B-IN | TR-JB12-IN TR-UP08-A-IN |
|---|
| Dome Gooseneck Bracket | Dome Junction Box Dome Pole Mounting Bracket |
|---|
| TR-UP08-B-IN | TR-UC08-A-IN TR-UC08-B-IN |
|---|
| Aluminium Alloy Pole Mounting Bracket | Dome Corner Mounting Bracket Aluminium Alloy Corner Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
