Uniview IPC98246EFW-X42-W-VH1 為IPC98246EFW-X42-W-VH1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC98246EFW-X42-W-VH1 香港價格連安裝報價。
| | Dual-channel with one IP, provides a panoramic view and live details at the same time |
|---|---|
| Channel | Channel 1 (Panorama) Channel 2 (Detail) |
| Max Resolution | 6 MP 4 MP |
| Sensor | 1/1.8" CMOS |
| 最低照度 | Color: 0.0005 Lux (F1.2, AGC ON), 0 lux with IR |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Digital Zoom | N/A 16X |
| Optical Zoom | N/A 42X |
| Field of View (H) | 200°±5° 59.47° to 2.20° |
| Field of View (V) | 78° 35.62° to 1.24° |
| Field of View (D) | 260°±5° 73.14° to 2.59° |
| 焦距 | 2.2 mm 6 to 252 mm |
| DORI Distance (Lens) | 2.2 mm 6 to 252 mm |
| DORI Distance (Detect) | 34.1 m (111.9 ft.) 107.2 m to 3330.6 m (351.7 ft. to 10927.2 ft.) |
| DORI Distance (Observe) | 13.7 m (45.0 ft.) 42.9 m to 1332.2 m (140.8 ft. to 4370.7 ft.) |
| DORI Distance (Recognize) | 6.8 m (22.3 ft.) 21.4 m to 666.1 m (70.2 ft. to 2185.4 ft.) |
| DORI Distance (Identify) | 3.4 m (11.2 ft.) 10.7 m to 333.1 m (35.1 ft. to 1092.9 ft.) |
| 隱私遮蔽 | 24 areas, up to 8 areas per scene 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 6 MP (3680 × 1656), max. 30 fps; 1440), max. 30 fps; 1080P (1920 × 1080), max. 6 MP (3632 × 1632), max. 30 fps; |
| Frame Rate-Main Stream | 30 fps; 720P (1280 × 720), max. 30 fps; 1200 × 536, max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 960 × 432, max. 30 fps fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; |
| Frame Rate-Sub Stream | 1200 × 536, max. 30 fps; 960 × 432, max. 30 fps D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; |
| Frame Rate-Third Stream | 960 × 432, max. 30 fps 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG 3680 × 1656@30 fps + 1200 × 536@30 fps + 960 2688 × 1520@30 fps + 1080P@30 fps + D1@30 |
| × 432@30 fps | fps 3632 × 1632@30 fps + 1200 × 536@30 fps + 960 2560 × 1440@30 fps + 1080P@30 fps + D1@30 |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection |
| Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target Support, target filtering: human, non-motor |
| Auto Tracking | N/A vehicle and vehicle |
| Multi-target Detection | N/A Support Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Flip | Flip vertical Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | N/A Support |
| 除霧 | Digital defog Optical defog |
| Heatwave Reduction | N/A Support |
| Light On/Off Control | Auto/Manual 30 m (98.4 ft.) N/A |
| N/A | 350 m (1148.2 ft.) |
| Basic Detection | Motion detection, Audio detection, Tampering alarm, Ultra motion detection Watermark, IP address filtering, Alarm input, Watermark, IP address filtering, Access policy, Alarm output, Access policy, ARP protection, Alarm output, Alarm input, User |
| RTSP authentication, User authentication, | authentication, RTSP authentication, ARP |
| HTTP authentication | protection, HTTP authentication |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz, 16 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS ONVIF (Profile S, Profile G, Profile T, Profile M), |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK API, SDK TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic |
| 安全 | and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator |
| Number of Presets | N/A 1024 |
| Preset Patrol | N/A 16 patrols, up to 64 presets for each patrol |
| Preset Image Freeze | N/A Support |
| Home Position | N/A Support |
| Pan Range | N/A 360° |
| Tilt Range | 0° to 30° -15° to 90° |
| 水平速度 | N/A 0.1°/s to 180°/s |
| 垂直速度 | N/A 0.1°/s to 180°/s |
| Number of Patrol | N/A 16 |
| Snow Removal Mode | N/A Support |
| Patrol Recording | N/A Support |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 × RS485 |
| Built-in Speaker | N/A |
| Network | 1 × RJ45 1000 M Base-TX Ethernet CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |
| 供電 | DC 24 V (±25%), AC 24 V (±25%), PoE (IEEE 802.3bt) |
| 功耗 | Max. 74 W |
| 電源接口 | Wires with cold-pressed terminal |
| 尺寸 | 456 mm × 223 mm × 266 mm (17.95" × 8.78" × 10.47") (L × W × H) |
| 重量 | 8.4 kg (18.52 lb.) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6KV |
| Reset Button | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Wiper | N/A Manual |
| Maximum Bitstream | 35 |
| Maximum Bandwidth | 50Mbps |
| TR-UF45-A-IN | TR-SE45-A-IN TR-SE45-IN |
| Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 Dome Ceiling Mounting Pole 200 |
| TR-CE45-IN | TR-JB12-IN TR-WE45-A-IN |
| Dome Indoor Ceiling Mounting Bracket | Dome Junction Box Long Wall Mounting Bracket for Dome |
| TR-WE45-B-IN | TR-UP08-B-IN TR-UP08-A-IN |
| Dome Gooseneck Bracket | Aluminium Alloy Pole Mounting Bracket Dome Pole Mounting Bracket |
| TR-UC08-A-IN | TR-UC08-B-IN |
| Dome Corner Mounting Bracket | Aluminium Alloy Corner Mounting Bracket Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

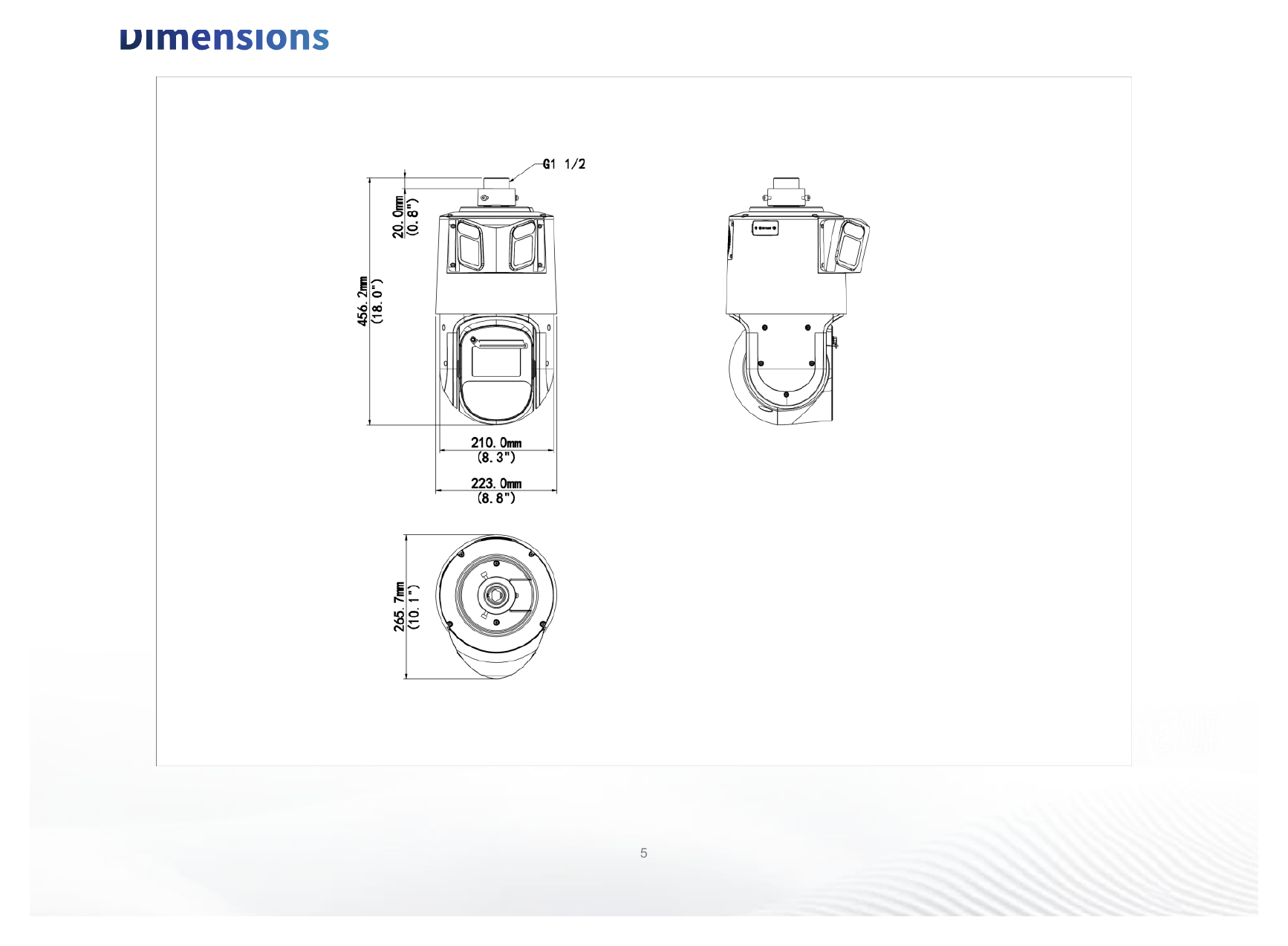

456 mm × 223 mm × 266 mm (17.95" × 8.78" × 10.47") (L × W × H)｜重量 8.4 kg (18.52 lb.)｜Unit: mm
